Toyota YARIS 倒车影像和摄像头 — Figure 8606

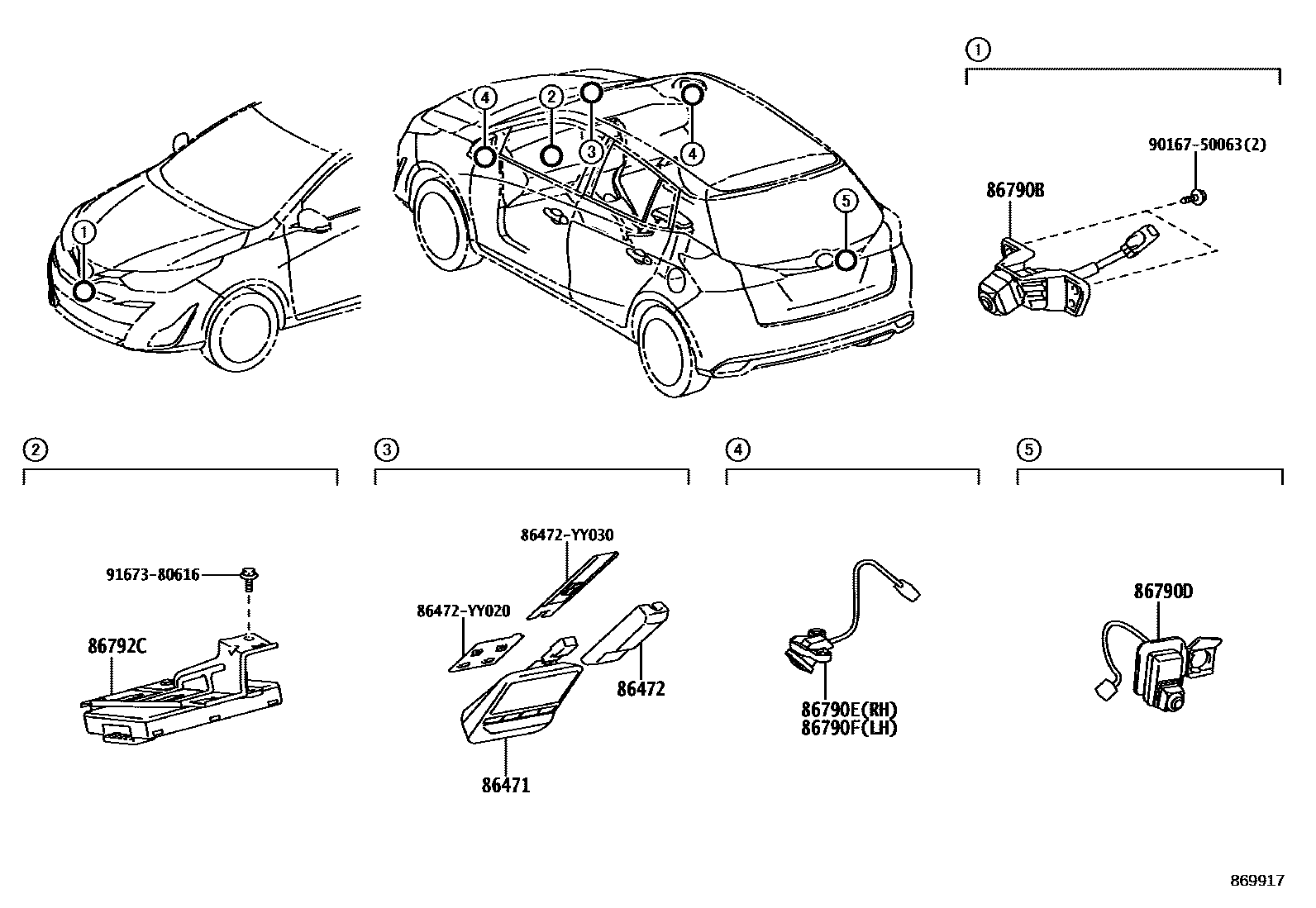

Toyota YARIS EPC diagram 8606, 倒车影像和摄像头, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86471 | driver monitor camera | 86471-YY010 |
| 86472 | driver monitor bracket | 86472-YY010 |
| 86790B | Front image camera assembly | 86790-YY240 |
| 86790D | Rear reversing image camera assembly | 86790-YY280 · 86790-YY350 · 86790-YY490 |
| 86790E | Right image camera assembly | 86790-YY250 |
| 86790F | Left image camera assembly | 86790-YY260 |
| 86792C | Parking assist ECU | 86792-YY110 |
