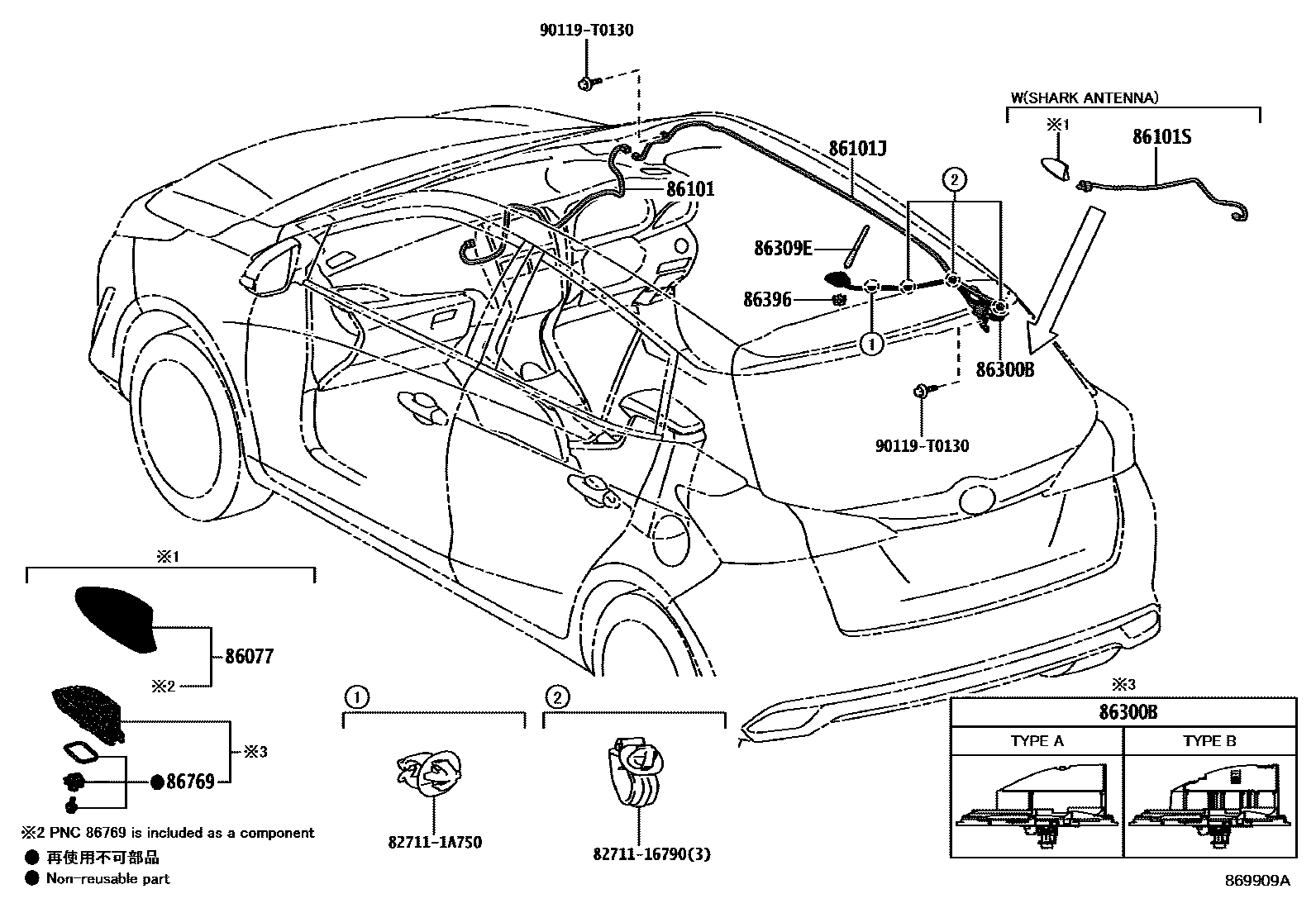

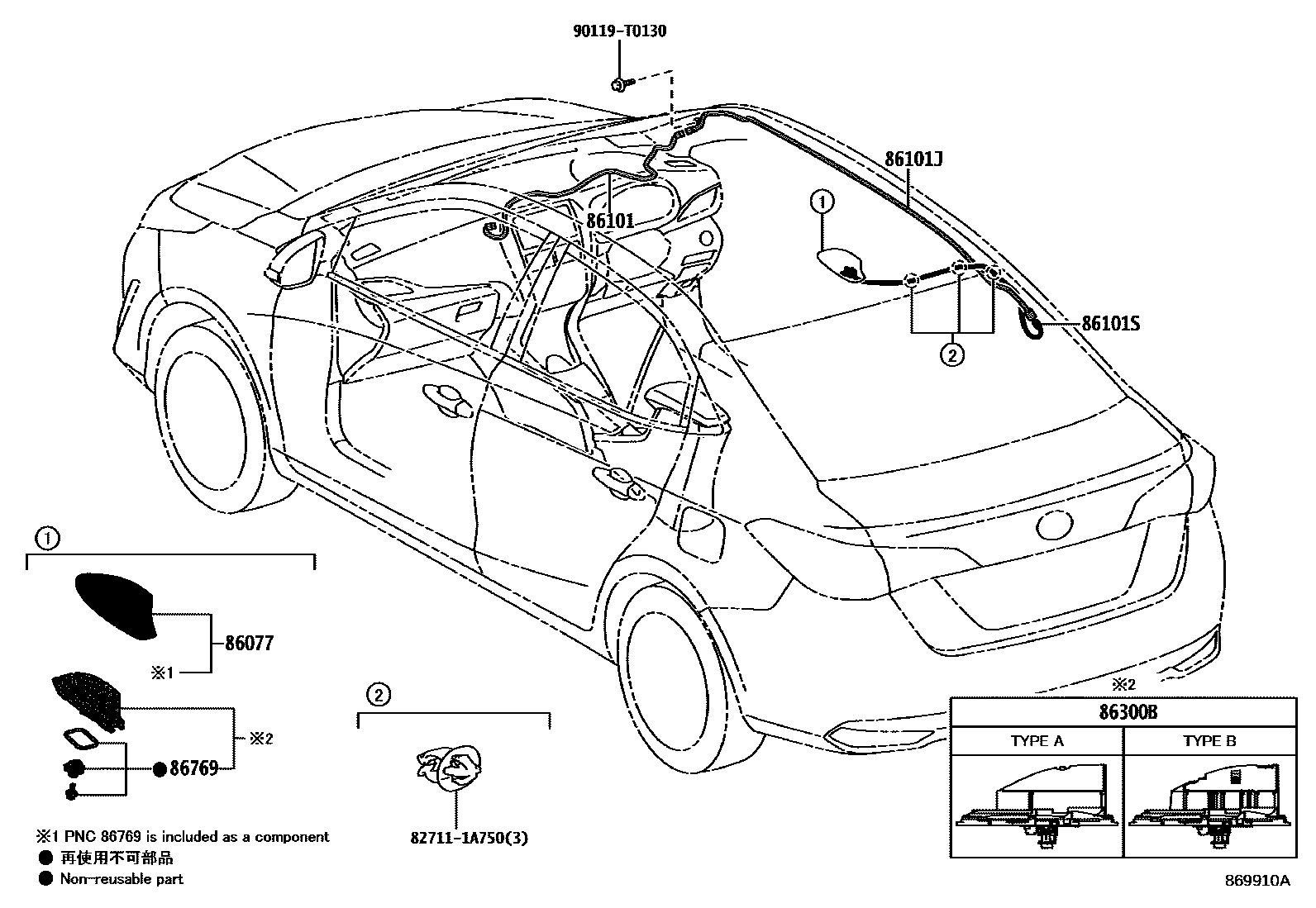

Toyota YARIS antenna — Figure 8604
Toyota YARIS EPC diagram 8604, antenna, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-0DA30 · 86101-0DA40 · 86101-0DA60 · 86101-0DA70 · 86101-0DD10 |
| 86101J | Antenna No. 2 wire sub-assembly | 86101-0D880 · 86101-0D890 · 86101-0DA00 |
| 86101S | Antenna wire sub-assembly | 86101-0D860 · 86101-0DA80 · 86101-0DA90 |
| 86300B | No. 1 amplifier antenna assembly | 86300-0D390 · 86300-0D471 · 86300-0D480 · 86300-0D481 |
| 86309E | Roof antenna sub-assembly | 86309-0D140 |
| 86396 | Antenna nut | 86396-47010 |
| 86769 | roof radome | 86769-0K010 · 86769-0K020 |
