Toyota YARIS 导航和前监视器显示屏 — Figure 8603

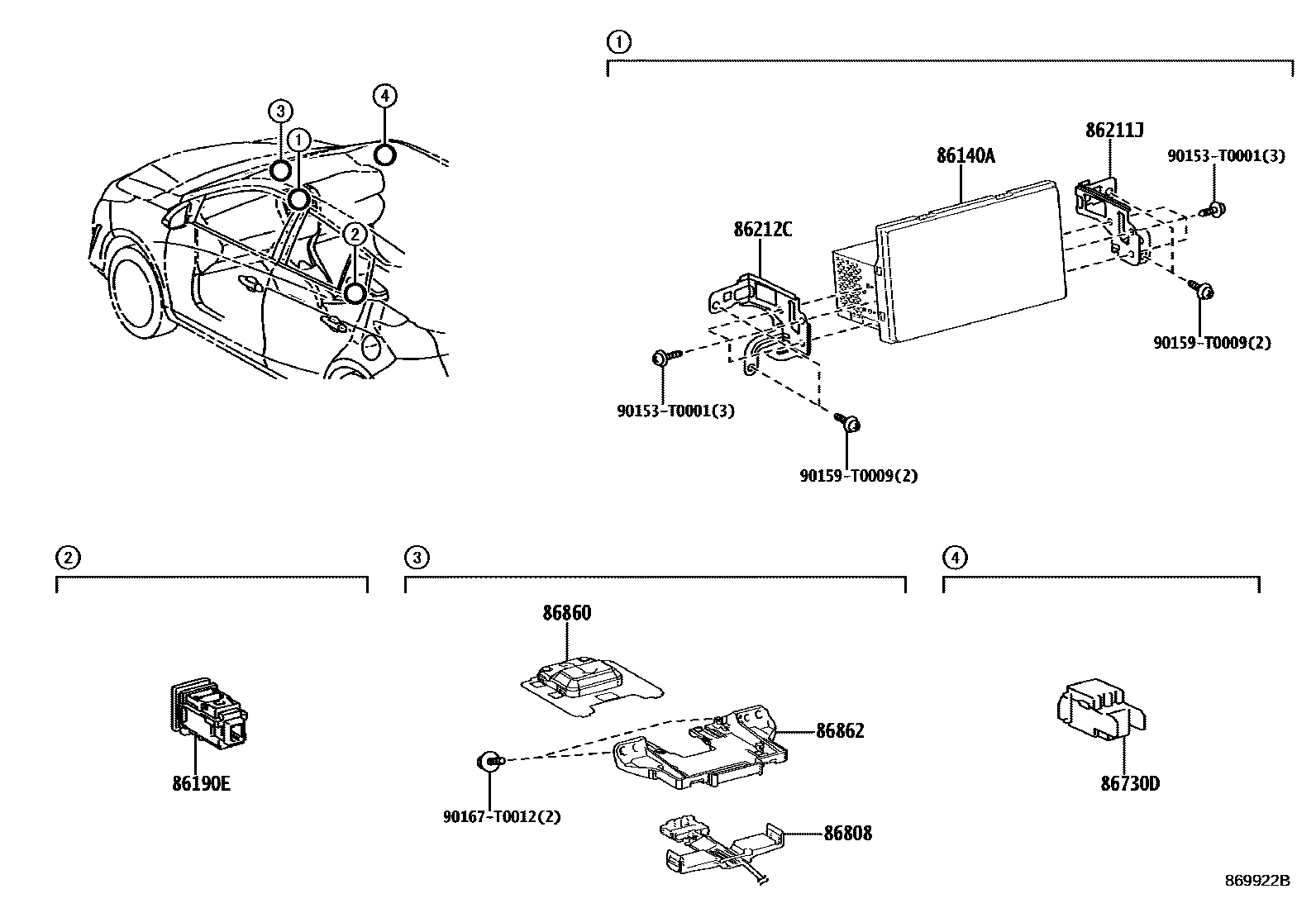

Toyota YARIS EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86140A | Radio and display receiver assembly | 86140-0D550 · 86140-0D551 · 86140-YY230 · 86140-YY500 · 86140-YY510 · 86140-YY540 · 86140-YY680 |
| 86190E | Stereo socket adapter assembly | 86190-34010 |
| 86211J | No. 1 radio bracket | 86211-0D330 · 86211-YY110 · 86211-YY140 · 86211-YY150 |
| 86212C | No. 2 radio bracket | 86212-0D280 · 86212-YY110 · 86212-YY140 · 86212-YY150 |
| 86730D | No. 2 telephone loudspeaker assembly | 86730-0D010 |
| 86808 | No. 1 navigation antenna wire sub-assembly | 86808-0D010 |
| 86860 | Navigation antenna assembly | 86860-02070 |
| 86862 | Navigation antenna bracket | 86862-0D020 |
