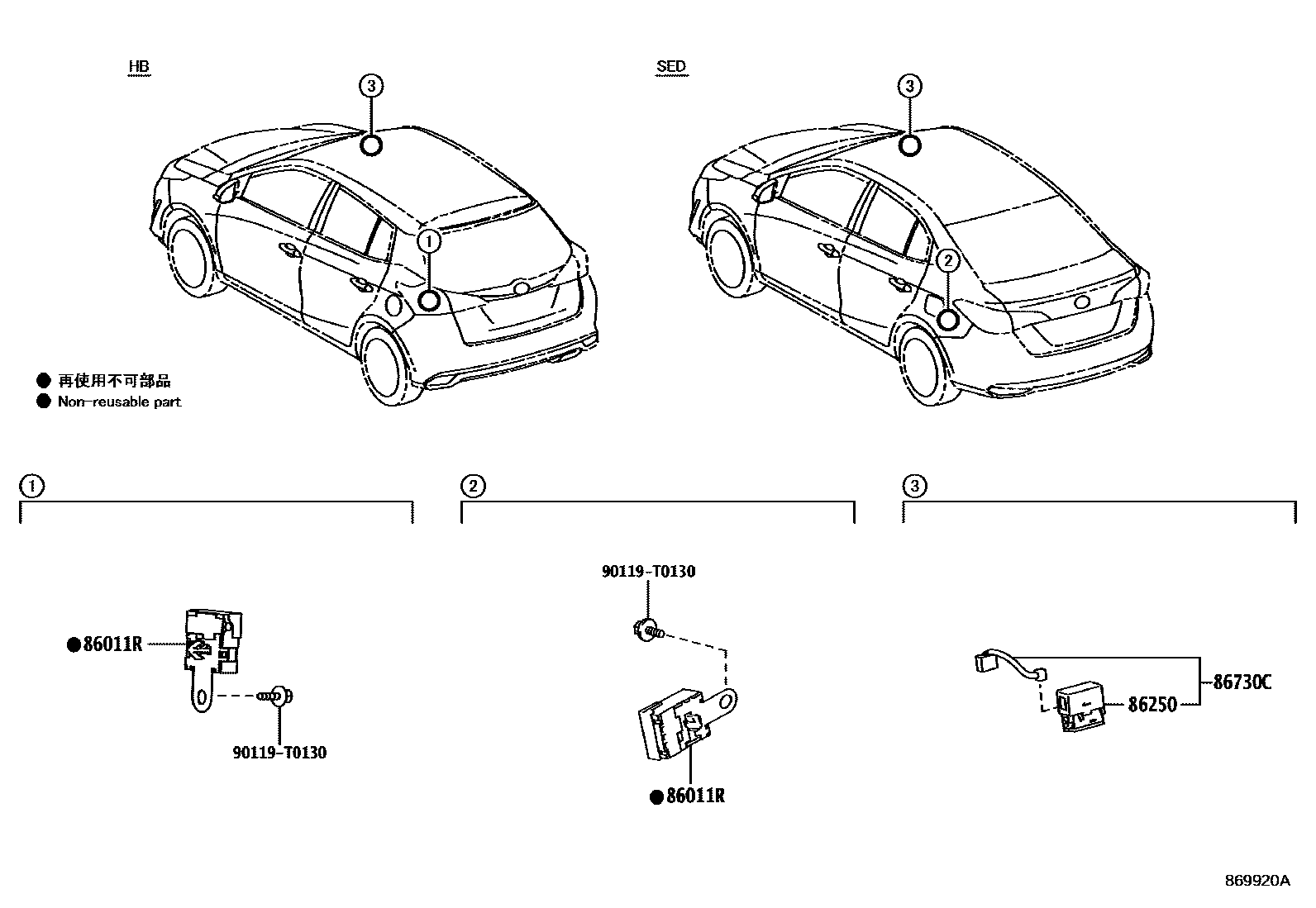

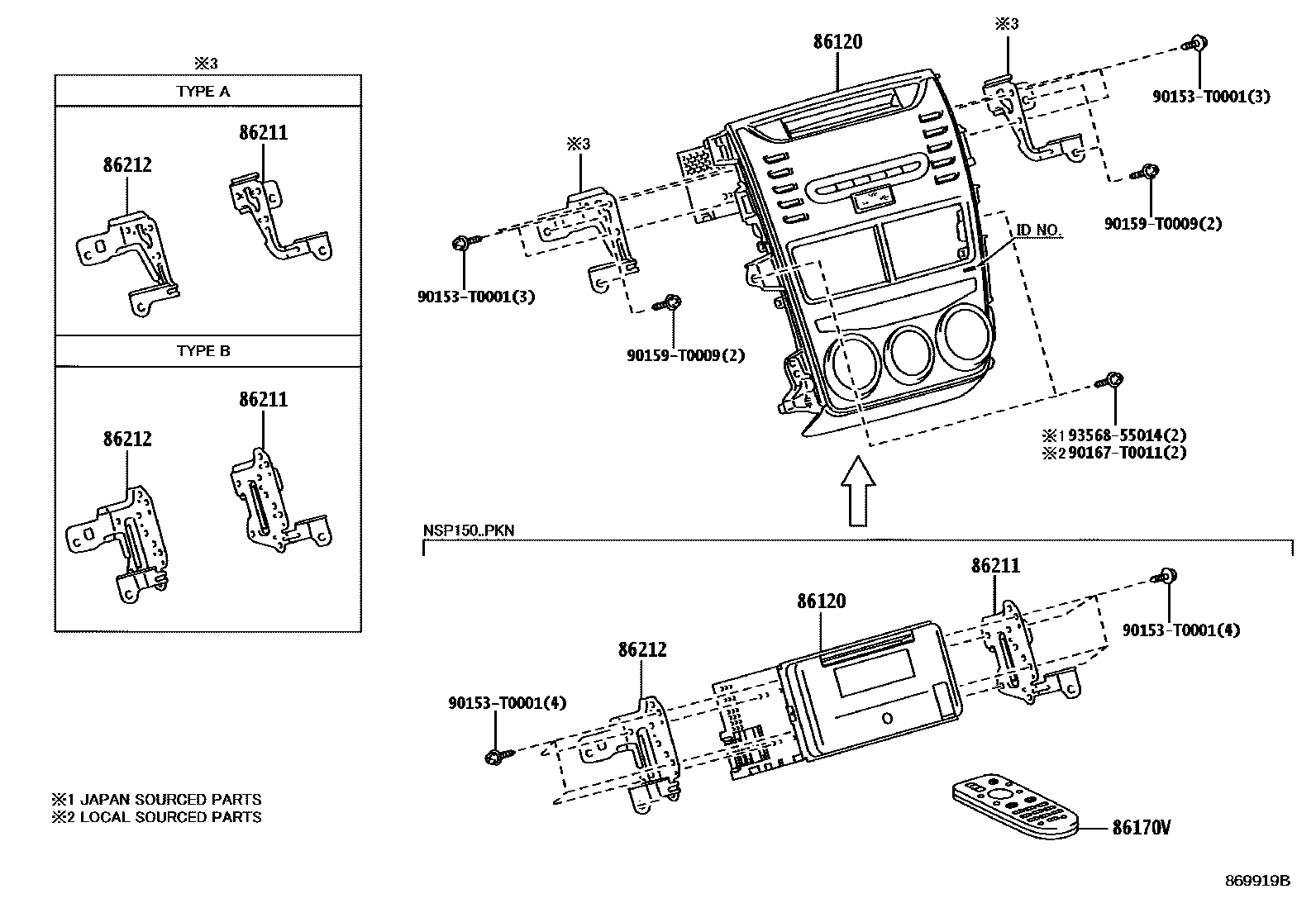

Toyota YARIS 收音机、放大器和冷凝器 — Figure 8601
Toyota YARIS EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011R | radio settings phase modulator | 90980-04189 |
| 86120 | Radio assembly | 86120-0DC30 · 86120-YY250 |
| 86170V | Remote controller assembly | 86170-YY020 |
| 86211 | No. 1 radio bracket | 86211-0D260 · 86211-0D370 · 86211-0D440 |
| 86212 | No. 2 radio bracket | 86212-0D250 · 86212-0D350 · 86212-0D420 |
| 86250 | amplifier loudspeaker assembly | 86250-52020 · 86250-52030 |
| 86730C | Telephone amplifier assembly | 86730-52010 · 86730-52020 |
