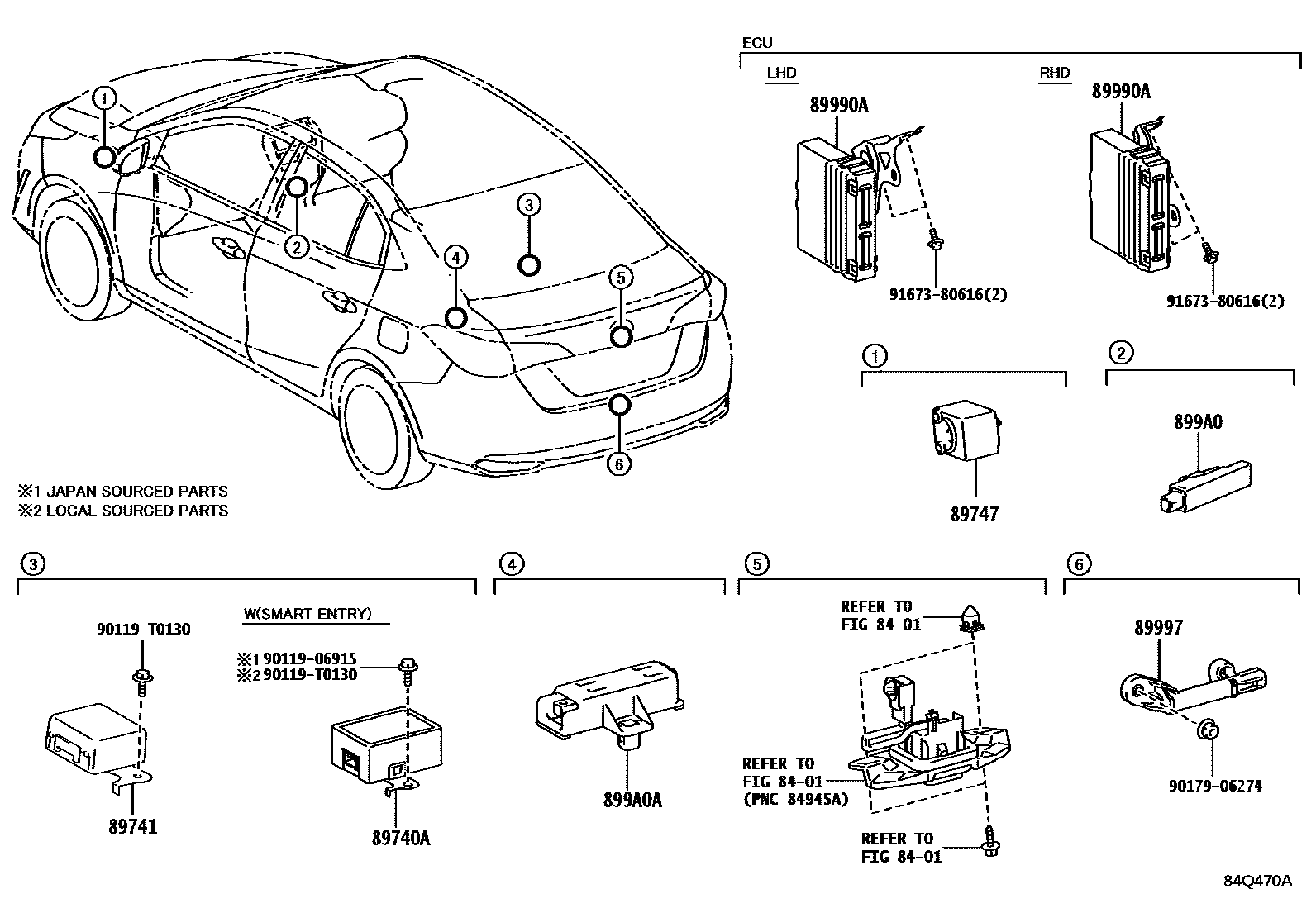

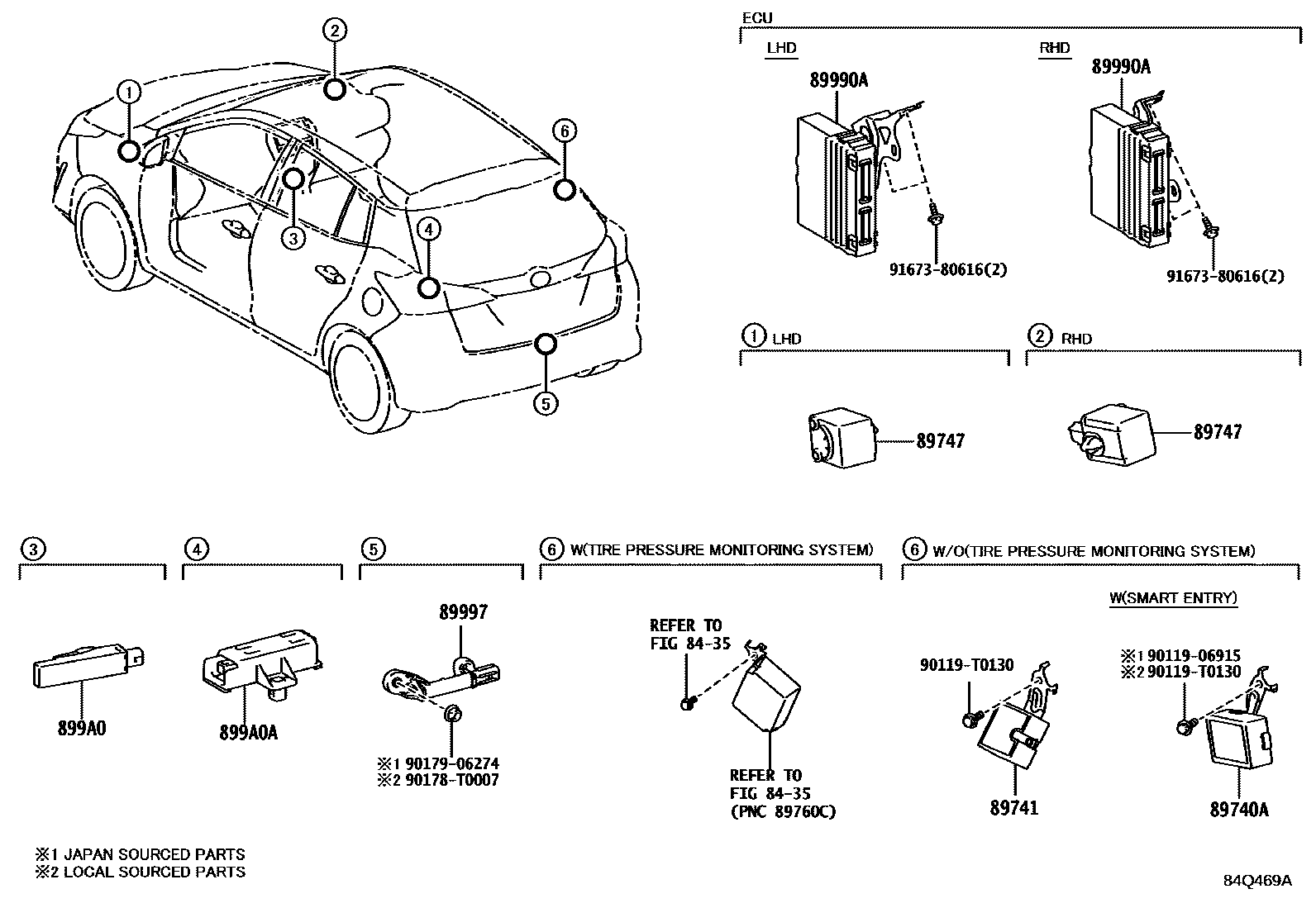

Toyota YARIS 遥控门锁 — Figure 8420
Toyota YARIS EPC diagram 8420, 遥控门锁, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89740A | Smart door control receiver assembly | 89740-0D350 · 89740-0D380 |
| 89741 | door control receiver | 89741-0D370 · 89741-0D470 · 89741-0D490 · 89741-0D510 |
| 89747 | Remote door lock buzzer | 89747-30040 |
| 89990A | Smart key ECU assembly | 89990-0D480 · 89990-0D490 · 89990-0D500 · 89990-0D510 · 89990-0D520 |
| 89997 | electronic key antenna | 89997-30100 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-0D170 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-0D100 |
