Toyota YARIS 仪表 — Figure 8301

Toyota YARIS EPC diagram 8301, 仪表, with 1 images and 2 PNC and OE references.

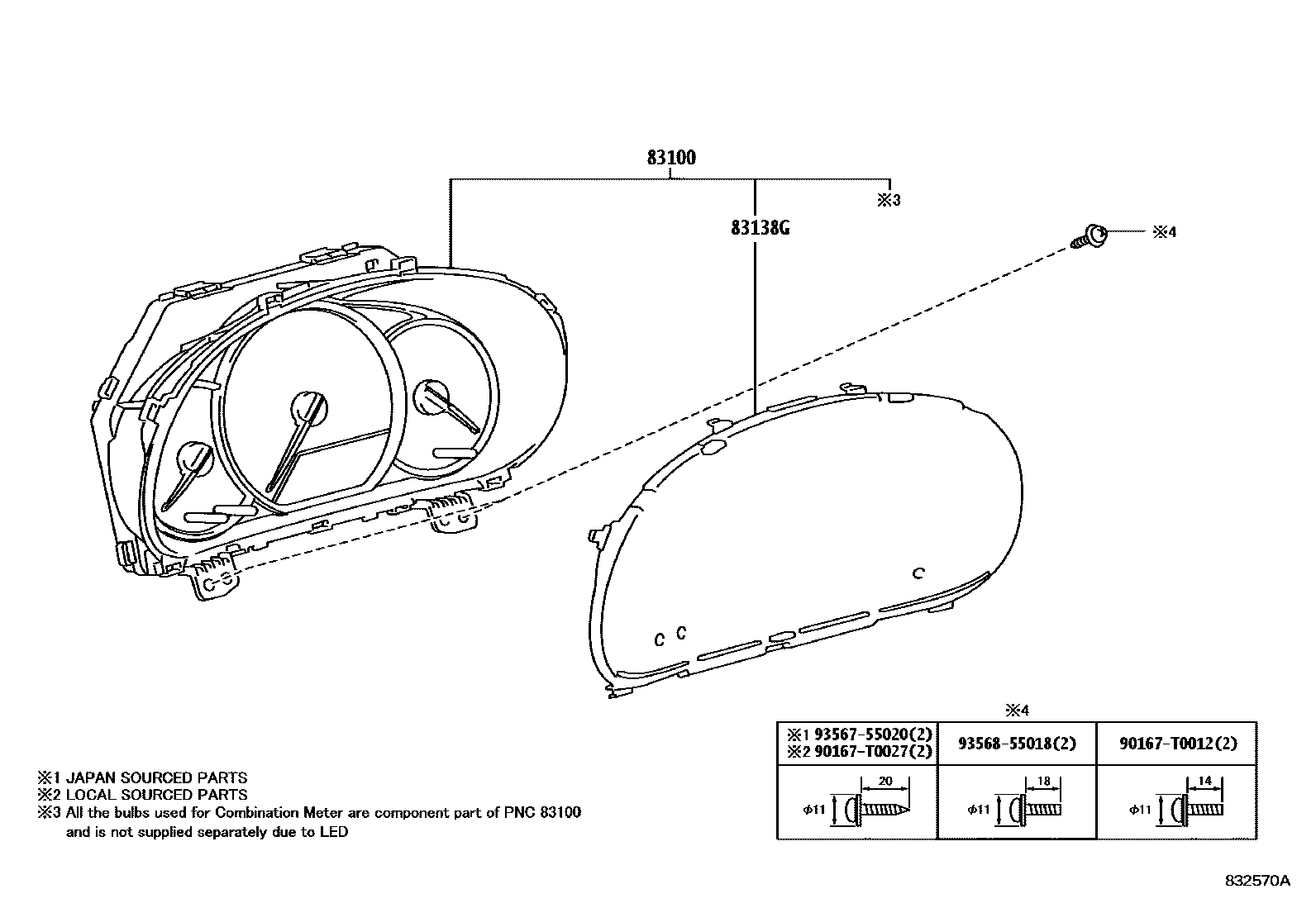

Toyota YARIS 仪表 EPC diagram — 832570A
仪表 — 832570A (202303 – 999999)

PNC and OE references

PNCPart nameOE numbers
83100Combined instrument assembly83800-0UJ10 · 83800-0UP00 · 83800-0UP10 · 83800-0UP20 · 83800-0UP40 · 83800-0UP50 · 83800-0UP60 · 83800-0UV00 · 83800-0UV01 · 83800-0UV10 · 83800-F5A80 · 83800-F5B80 · 83800-F5N10 · 83800-F5N30 · 83800-F5N50 · 83800-F5N60 · 83800-F5N90 · 83800-F5P20 · 83800-F5P30
83138GInstrument cluster glass83852-0UV30 · 83852-0UY60 · 83852-0UZ80
