Toyota YARIS 蓄电池和蓄电池电缆 — Figure 8201

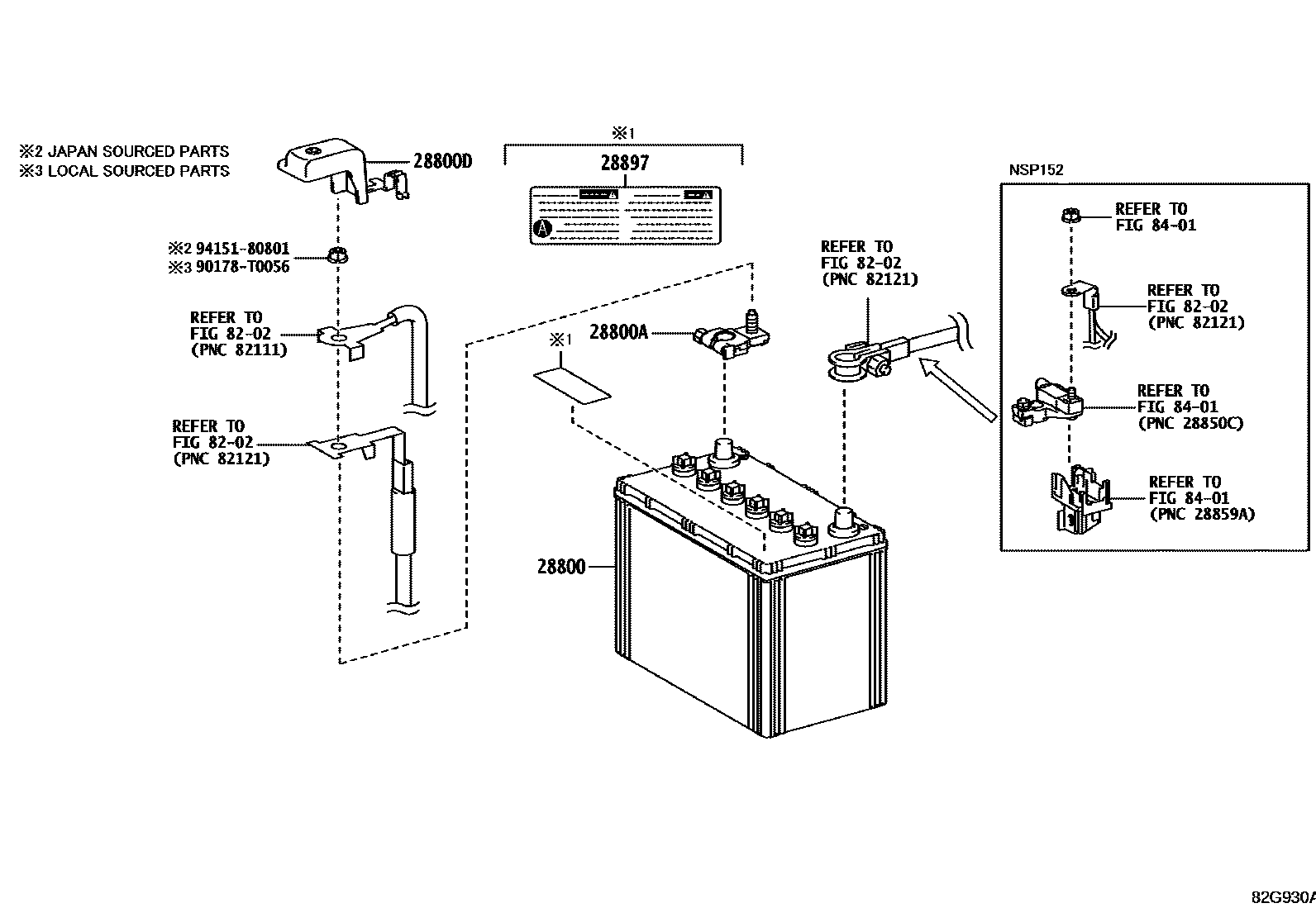

Toyota YARIS EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-0D412 · 28800-0M061 · 28800-0M152 · 28800-0M153 · 28800-0Y151 · 28800-0Y162 · 28800-0Y261 |
| 28800A | battery positive terminal | 90982-05061 · 90982-05063 |
| 28800D | Connector cover (for battery terminals) | 82821-12490 |
| 28897 | Battery warning nameplate | 28897-36030 |
