Toyota YARIS 后防护条 — Figure 7504

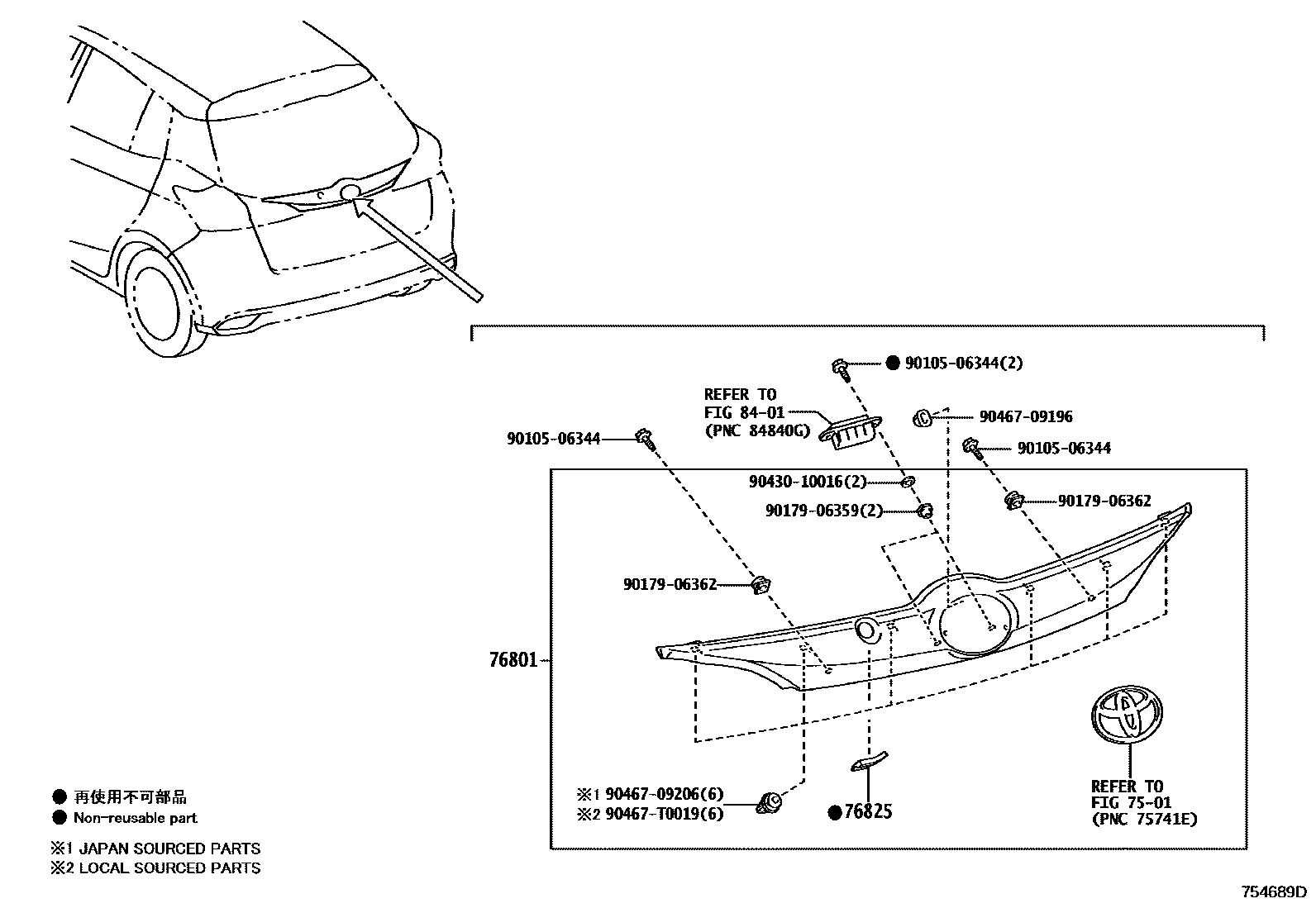

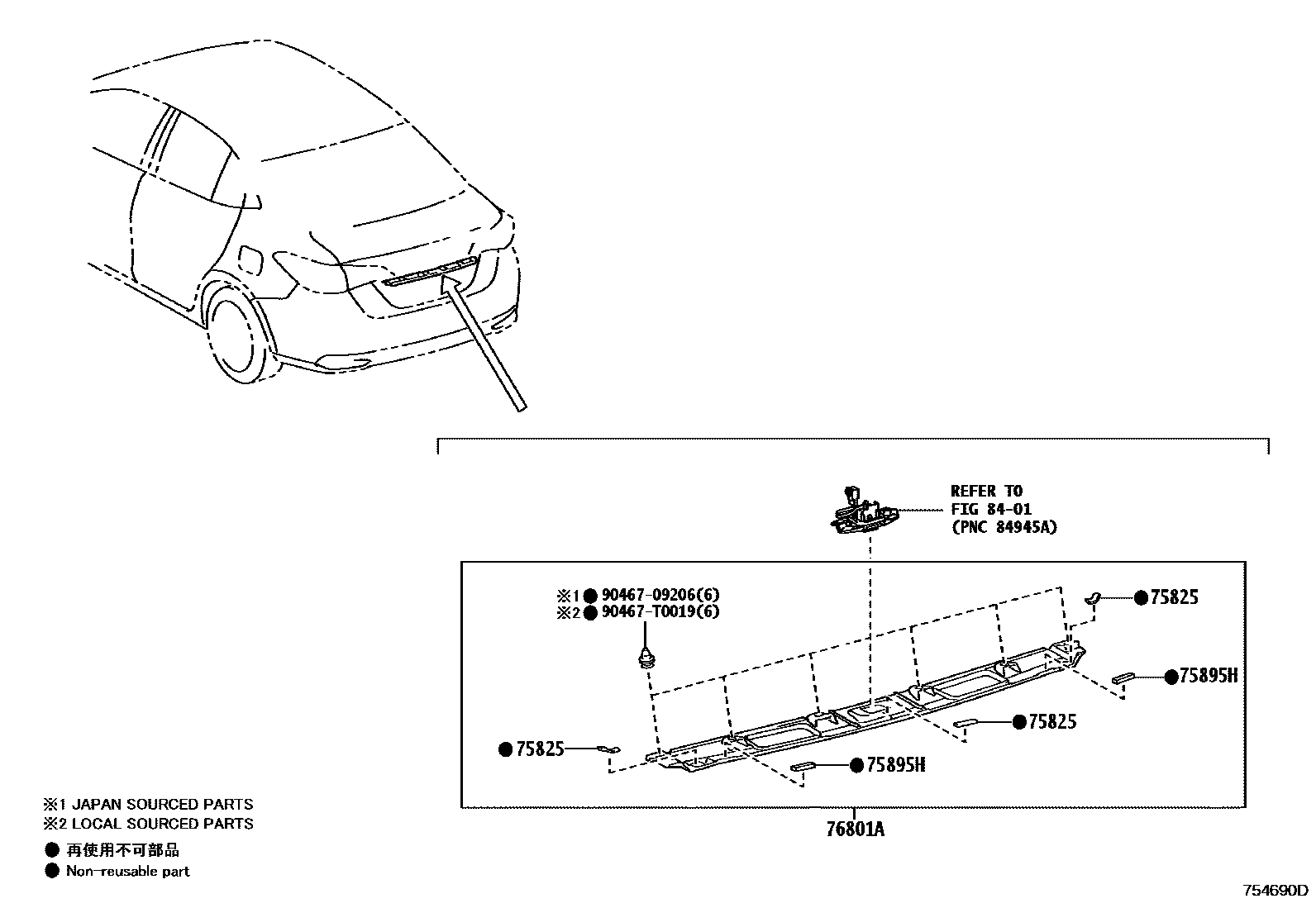

Toyota YARIS EPC diagram 7504, 后防护条, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75825 | Trunk door protective strip lining | 75825-0D060 |
| 75895H | No. 1 protective strip tape | 75895-0D190 |
| 76801 | Rear door exterior decorative strip sub-assembly | 76801-0DA41 · 76801-YP360 |
| 76801A | Trunk door outer decorative strip sub-assembly | 76801-0D860 · 76801-0D870 · 76801-0DC30 · 76801-0DC40 · 76801-YY150 |
| 76825 | Rear door exterior decorative strip protective cover | 76825-0D130 |
