Toyota YARIS 侧防护条 — Figure 7503

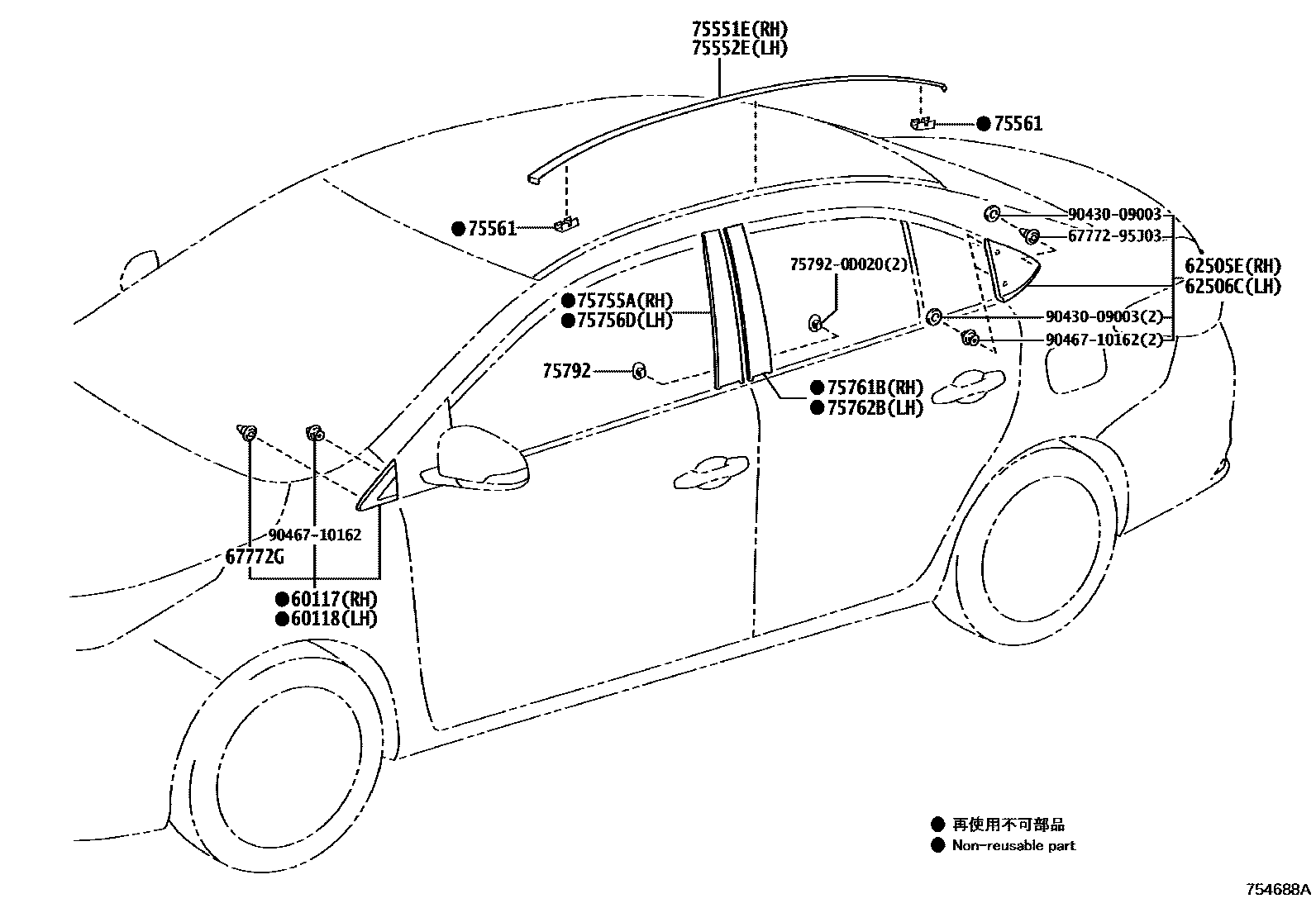

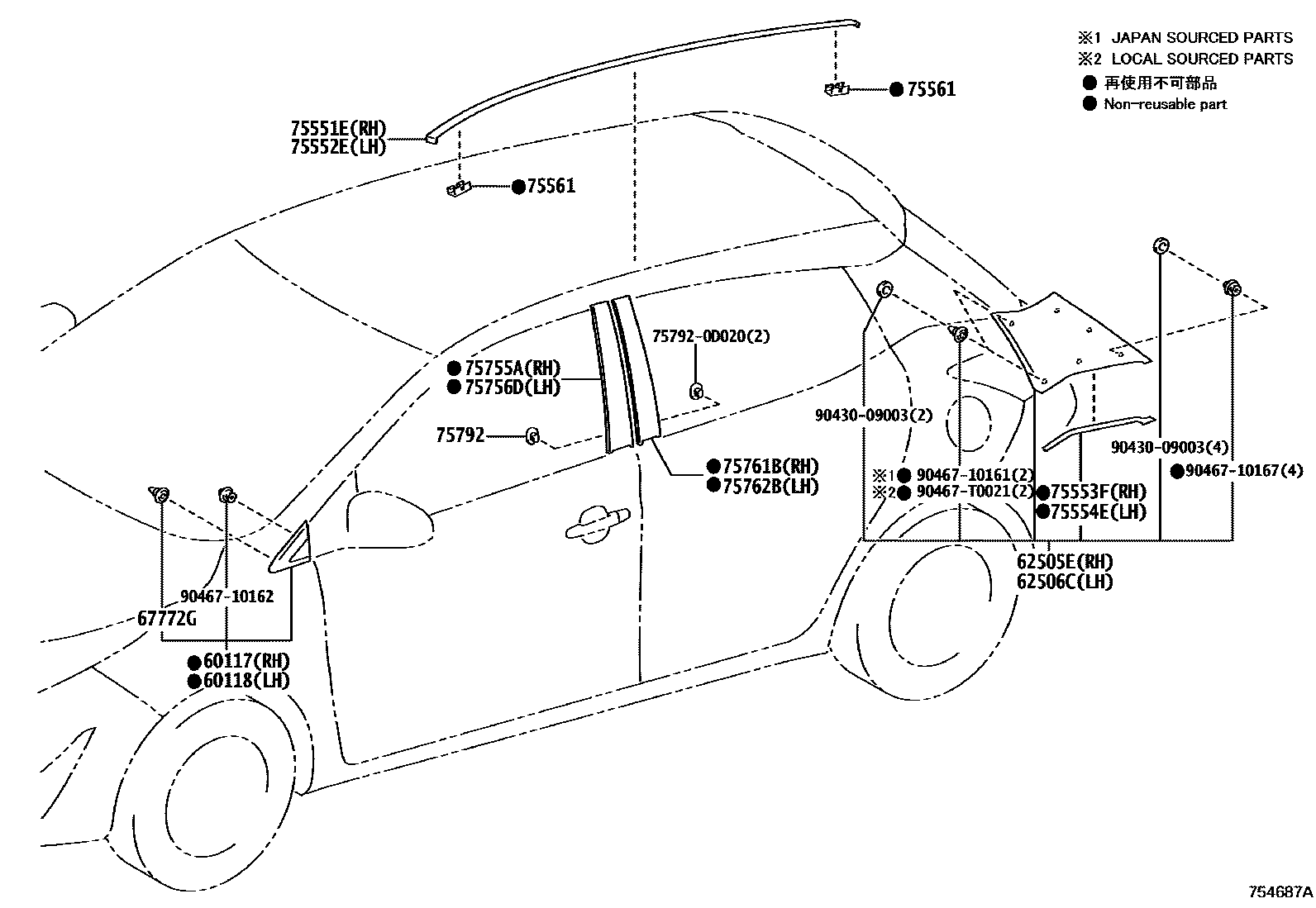

Toyota YARIS EPC diagram 7503, 侧防护条, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 60117 | Right front pillar upper cover sub-assembly | 60117-0D230 · 60117-0D250 · 60117-0D290 |
| 60118 | Left front pillar upper cover sub-assembly | 60118-0D230 · 60118-0D250 · 60118-0D290 |
| 62505E | Right corner window pillar cover sub-assembly | 62505-0D110 · 62505-0D161 |
| 62506C | Left corner window pillar cover sub-assembly | 62506-0D110 · 62506-0D161 |
| 67772G | front pillar cover | 67772-95J03 |
| 75551E | Drainage groove side decorative strip on the right side of the roof | 75551-0D161 · 75551-0D171 · 75551-0D390 |
| 75552E | Drainage groove side decorative strip on the left side of the roof | 75552-0D111 · 75552-0D121 · 75552-0D350 |
| 75553F | Right side enclosure decorative panel protective strip | 75553-0D060 |
| 75554E | Left side enclosure decorative panel protective strip | 75554-0D060 |
| 75561 | No. 1 roof drain channel side decorative strip clip | 75561-33030 |
| 75755A | Front door window frame protection strip (right center pillar) | 75755-0D040 · 75755-0D130 · 75755-0D150 |
| 75756D | Front door window frame protection strip (left center pillar) | 75756-0D040 · 75756-0D130 · 75756-0D150 |
| 75761B | Rear door window frame protection strip (right center pillar) | 75761-0D020 · 75761-0D110 · 75761-0D120 |
| 75762B | Rear door window frame protection strip (left center pillar) | 75762-0D020 · 75762-0D110 · 75762-0D120 |
| 75792 | Car door window frame protective strip clip | 75792-0D020 |
