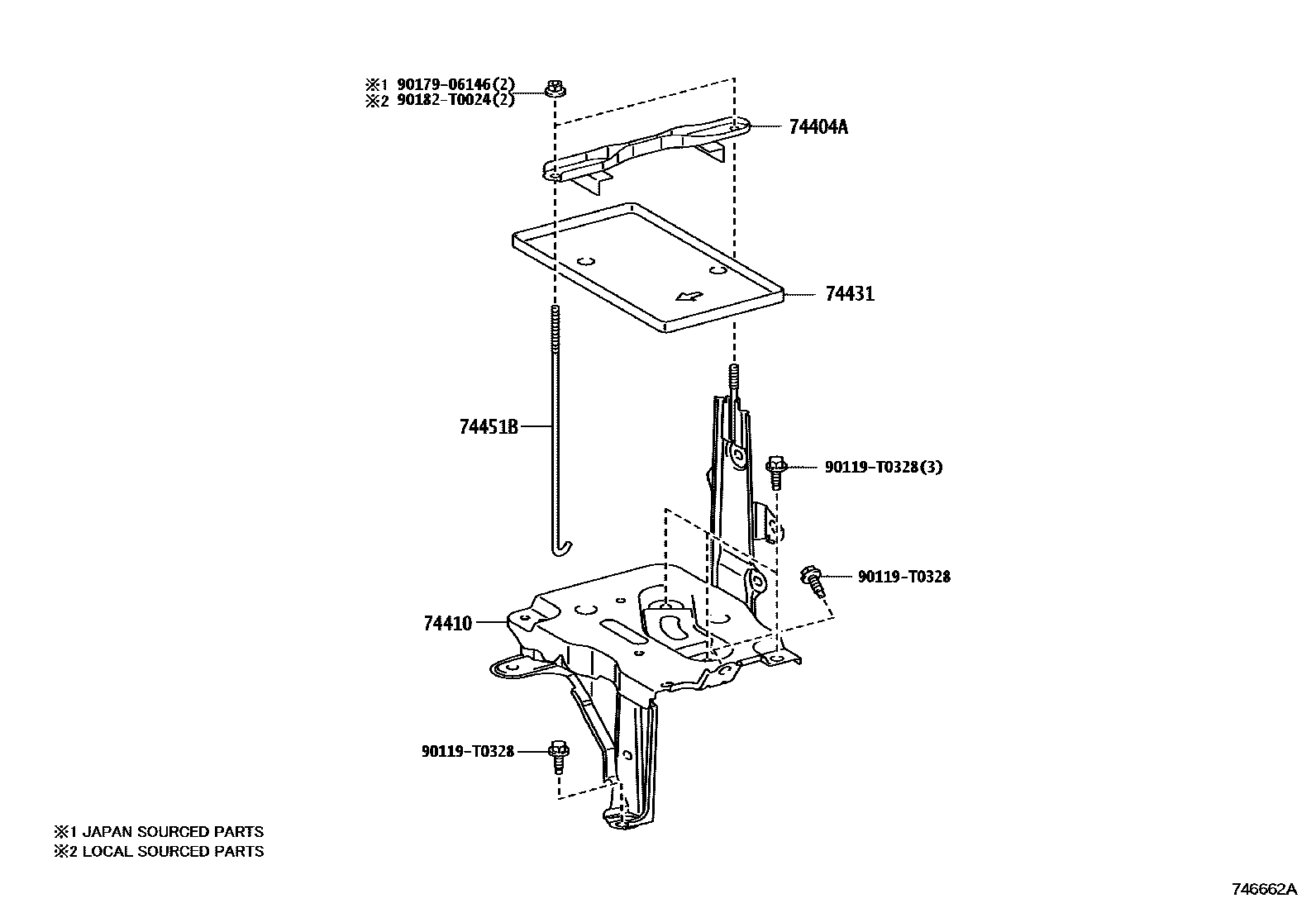

Toyota YARIS battery holder — Figure 7402
Toyota YARIS EPC diagram 7402, battery holder, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74404A | Battery clip sub-assembly | 74404-0D170 · 74404-0D201 · 74404-0D280 · 74404-0D290 · 74404-0D300 |
| 74410 | Battery bracket assembly | 74410-0D140 · 74410-0D150 · 74410-0D240 · 74410-0D320 |
| 74431 | battery tray | 74431-0D210 · 74431-0D290 · 74431-0D360 · 74431-0D370 |
| 74451B | Battery clamp bolt | 74451-0D040 · 74451-0D150 · 74451-0D160 |
