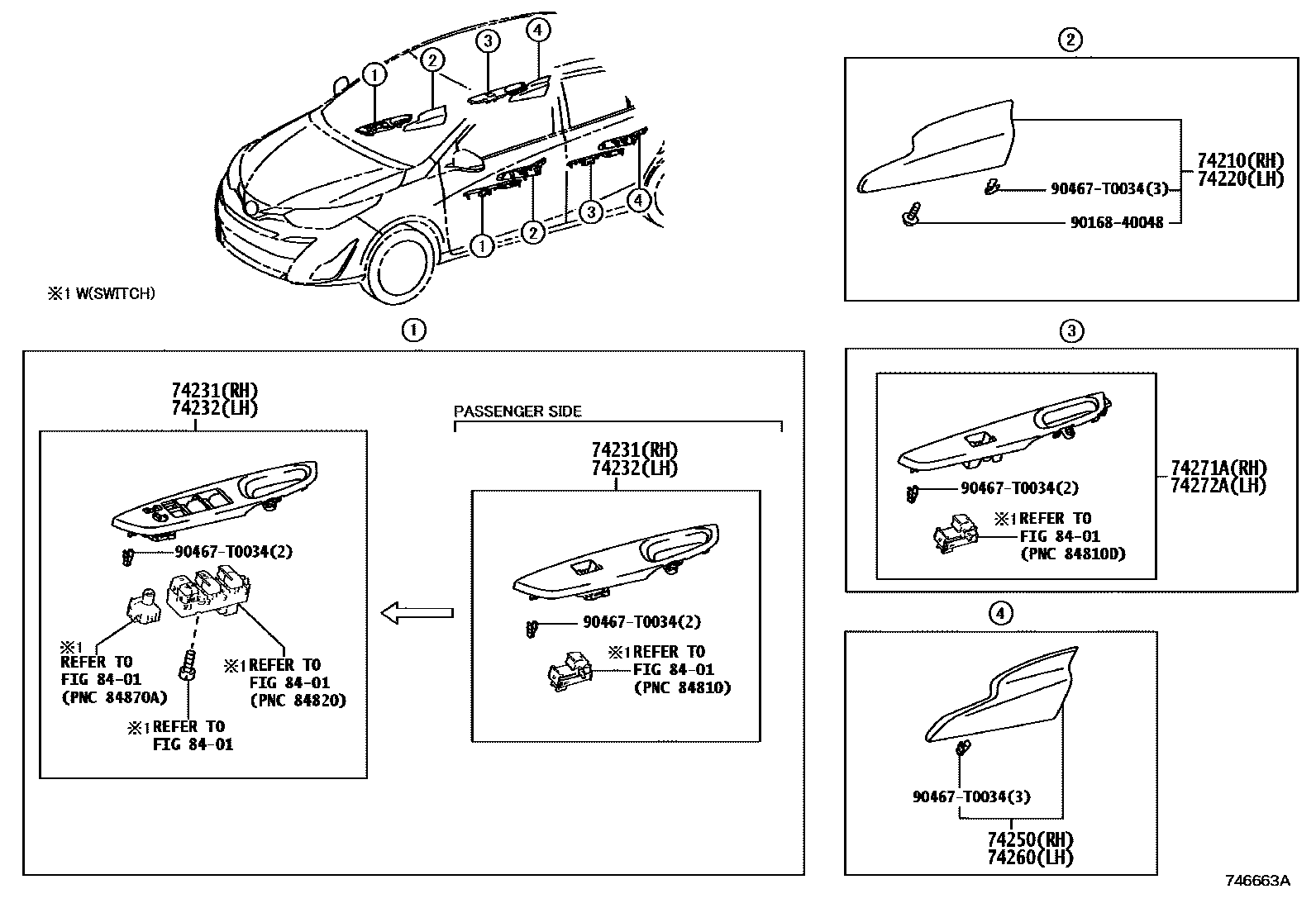

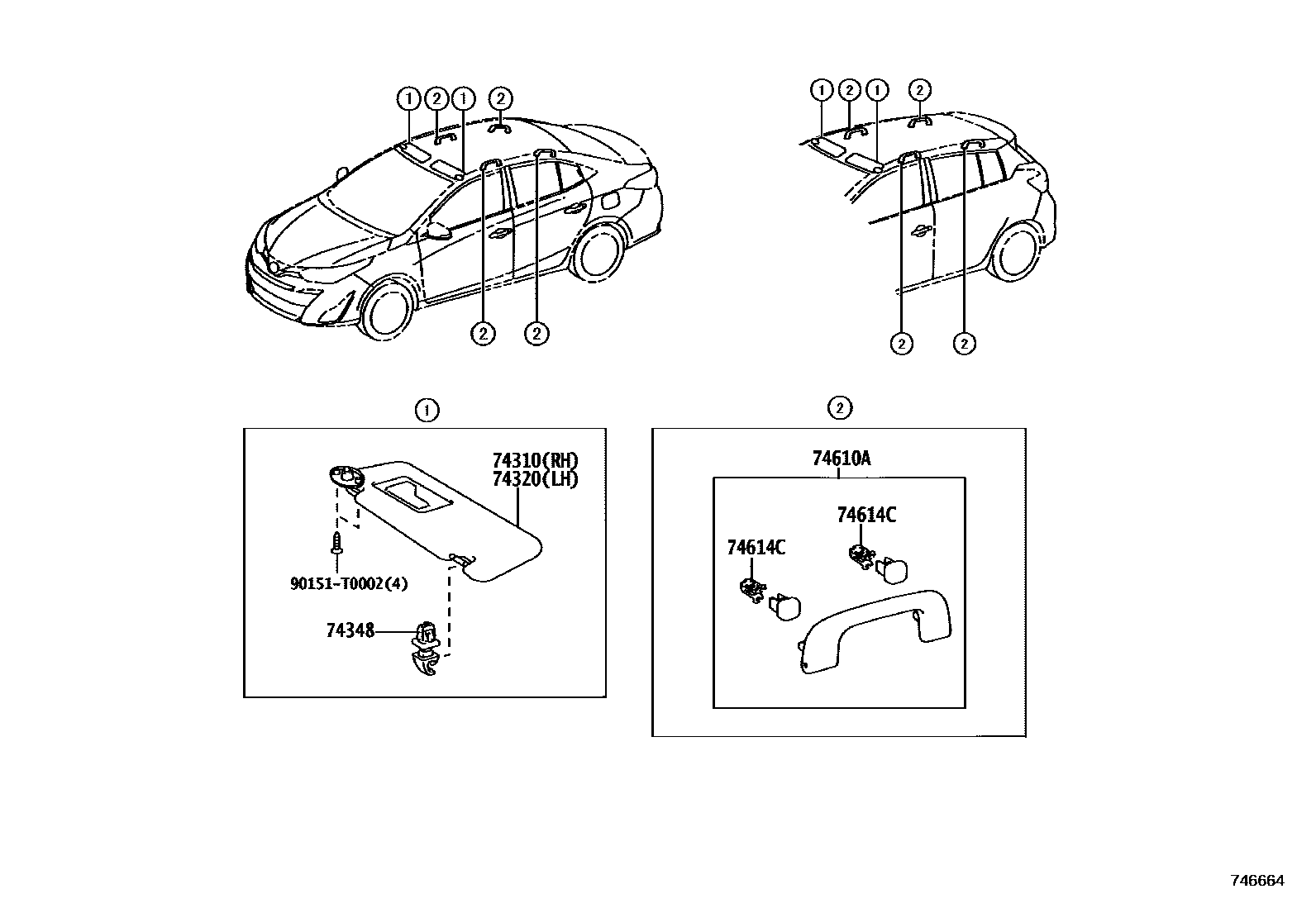

Toyota YARIS 扶手和遮阳板 — Figure 7401
Toyota YARIS EPC diagram 7401, 扶手和遮阳板, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74231 | Right front armrest upper panel | 74231-0D770 · 74231-0DA40 · 74231-0DA60 · 74231-0DA70 · 74231-0DA80 · 74231-0DB30 |
| 74232 | Left front armrest upper panel | 74232-0D750 · 74232-0DA40 · 74232-0DA50 · 74232-0DB00 · 74232-0DB10 · 74232-0DB30 · 74232-0DB70 |
| 74271A | Right rear door armrest upper panel | 74271-0D320 · 74271-0D370 · 74271-0D540 · 74271-0D580 |
| 74272A | Left rear door armrest upper panel | 74272-0D320 · 74272-0D370 · 74272-0D540 · 74272-0D580 |
| 74614C | Auxiliary handle locking plate | 74614-02020 |
