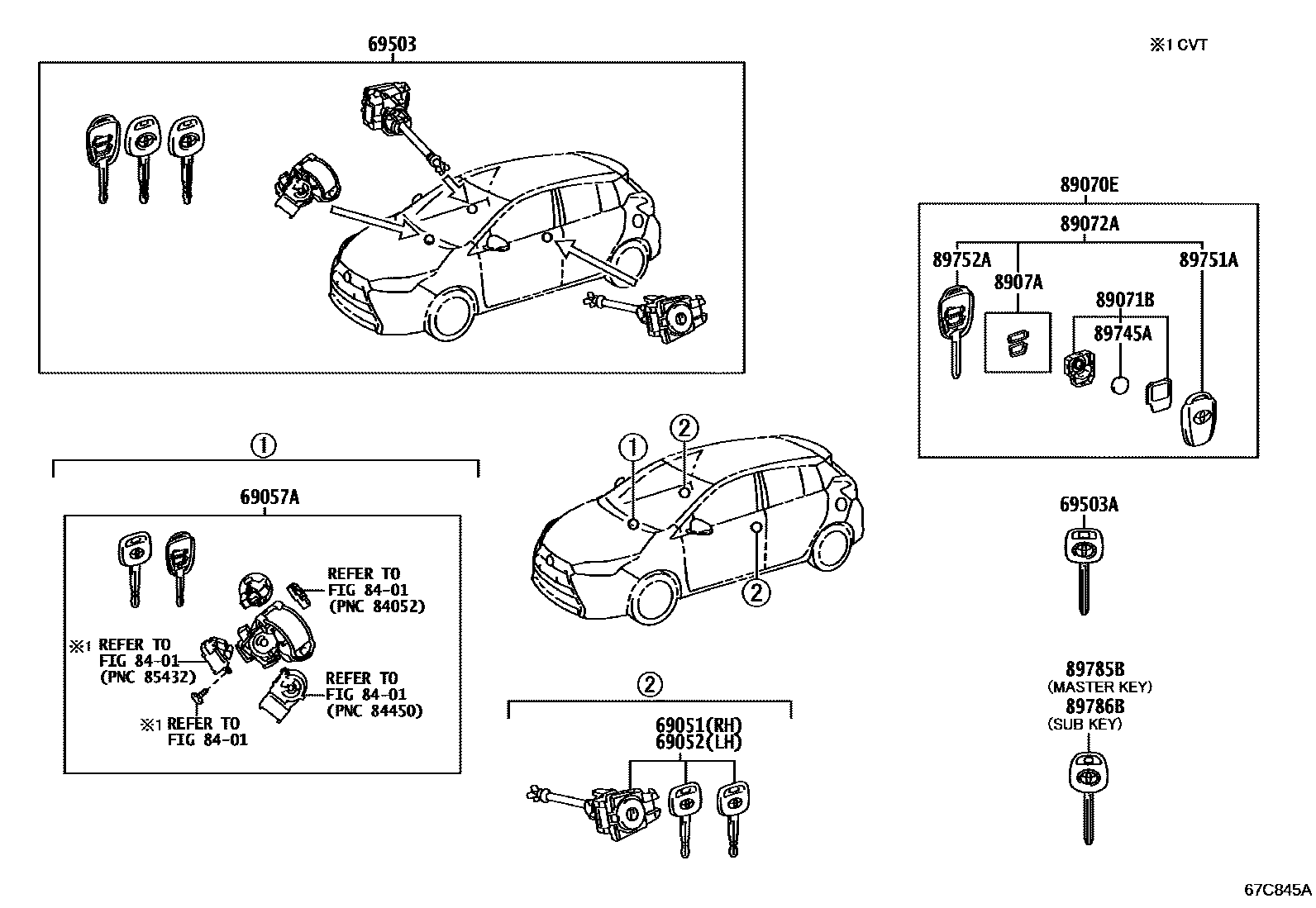

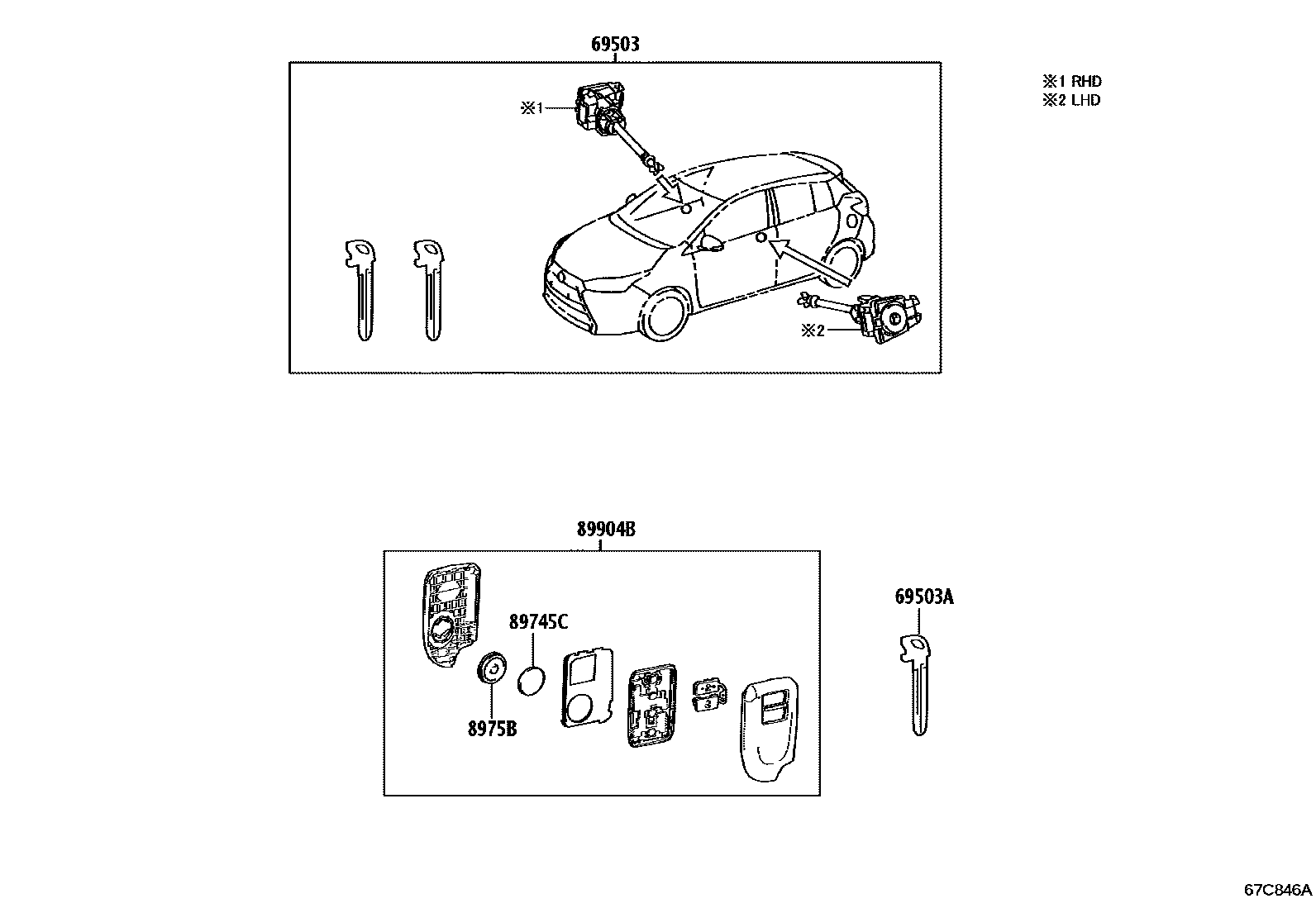

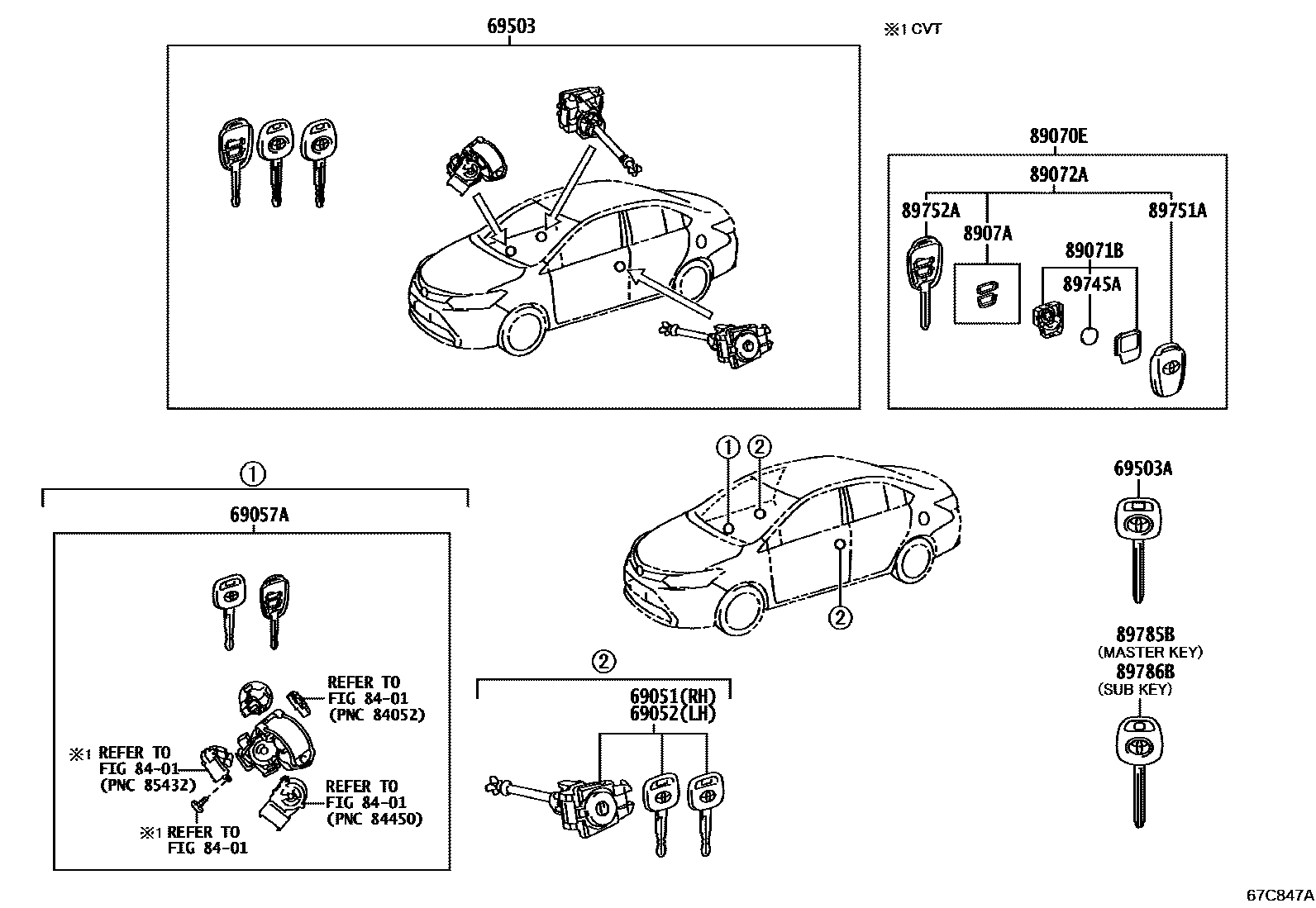

Toyota YARIS 锁芯组件 — Figure 6712
Toyota YARIS EPC diagram 6712, 锁芯组件, with 4 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-0D360 · 69051-0D370 |
| 69052 | Left door lock cylinder and key assembly | 69052-0D340 · 69052-0D350 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-0D420 · 69057-0D430 · 69057-0D840 · 69057-0D870 · 69057-0D880 · 69057-0D890 · 69057-0DA20 |
| 69503 | Door lock cylinder components | 69005-0DF90 · 69005-0DG00 · 69005-0DG40 · 69005-0DG60 · 69005-0DG61 · 69005-0DG70 · 69005-0DG90 · 69005-0DG91 · 69005-0DJ20 · 69005-0DK10 · 69005-0DK20 |
| 69503A | external tooth key | 69515-0K140 · 69515-52180 · 90999-00199 |
| 89070E | Remote key assembly | 89070-0D572 · 89070-0D581 · 89070-0D601 · 89070-0DA41 · 89070-0DA51 · 89070-0DC70 |
| 89071B | Remote key sub-assembly module assembly | 89071-0D061 · 89071-0D071 · 89071-0D160 · 89071-0D171 |
| 89072A | Remote key shell assembly | 89072-0D340 · 89072-0D341 · 89072-0D360 · 89072-0D600 · 89072-0D610 · 89072-0D650 |
| 8907A | Transmitter switch assembly | 8907A-22010 · 8907A-52010 |
| 89745A | Transmitter battery | 89745-0D040 · 89745-0D060 |
| 89745C | Transmitter battery | 89745-0K010 |
| 89751A | Transmitter housing cover | 89751-0D130 · 89751-42090 |
| 89752A | transmitter housing | 89752-0D120 · 89752-0D140 · 89752-0D190 · 89752-0D300 · 89752-0D310 |
| 8975B | Remote control battery case cover | 8975B-0D010 |
| 89785B | transceiver key master transmitter | 89785-08040 |
| 89786B | transceiver key secondary transmitter | 89786-08040 · 89786-0D040 |
| 89904B | Electronic key transmitter sub-assembly | 89904-0D160 · 89904-0D200 · 89904-0D390 · 89904-0D420 |
