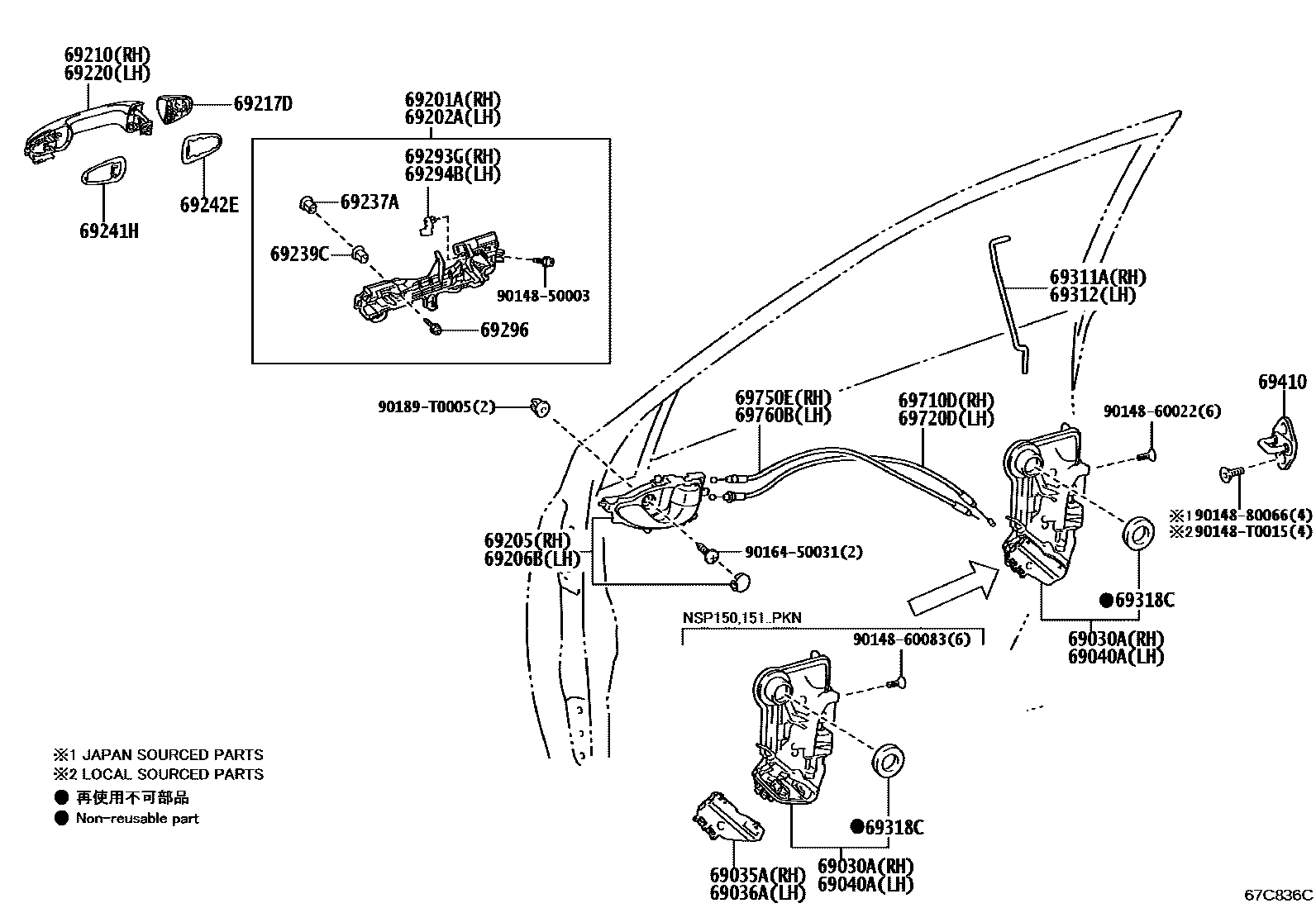

Toyota YARIS 前门锁和车门把手 — Figure 6703
Toyota YARIS EPC diagram 6703, 前门锁和车门把手, with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69030A | Right front door lock assembly with motor | 69030-0D370 · 69030-0D380 · 69030-0D390 · 69030-0K090 |
| 69035A | Right front door lock cover sub-assembly | 69035-02040 |
| 69036A | Left front door lock cover sub-assembly | 69036-02040 |
| 69040A | Left front door door lock assembly with motor | 69040-0D400 · 69040-0D410 · 69040-0D420 · 69040-0D670 · 69040-0K030 |
| 69201A | Right front door outer handle frame sub-assembly | 69201-0D220 · 69201-0K061 · 69201-0K090 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-0D220 · 69202-0K061 · 69202-0K090 |
| 69210 | Right front door outer handle assembly | 69210-0D140 · 69210-0D984 · 69210-0K200 · 69210-0K901 |
| 69217D | Front door outer handle cover | 69217-0D926 · 69217-0K370 · 69217-0K380 · 69217-0K690 · 69217-0K710 · 69217-0K909 · 69217-0K910 · 69217-0K923 · 69217-0K924 |
| 69220 | Left front door outer handle assembly | 69210-0D140 · 69210-0D984 · 69210-0K200 · 69210-0K370 · 69210-0K901 · 69210-0K938 |
| 69237A | Front door handle nut | 69237-0E010 · 69237-0K040 · 69237-0K060 |
| 69239C | Front door handle bushing | 69239-0K040 · 69239-0K080 |
| 69241H | Front door exterior handle pad | 69241-0K041 · 69241-0K100 |
| 69242E | Front door rear outer handle pad | 69242-0K030 · 69242-0K090 |
| 69293G | Right front door outer handle buckle | 69293-0K070 · 69293-12030 |
| 69294B | Left front door outer handle buckle | 69293-0K080 · 69293-12040 |
| 69296 | Car door inner handle screws | 69296-0K040 · 69296-0M010 |
| 69311A | Right front door lock opening lever | 69311-0D230 · 69311-0D250 |
| 69312 | Left front door lock opening lever | 69312-0D230 · 69312-0D250 |
| 69318C | door lock harness seal | 69318-51010 |
| 69410 | Front door lock plate assembly | 69410-0D060 · 69410-0D070 |
| 69710D | Right front door lock remote control cable (for opening lever) | 69710-0D280 · 69710-0D300 |
| 69720D | Left front door lock remote control cable (for opening lever) | 69710-0D280 · 69710-0D300 |
| 69750E | Right front door inner locking cable (for locking/unlocking handle) | 69750-0D220 · 69750-0D240 |
| 69760B | Left front door inner locking cable (for locking/unlocking handle) | 69750-0D220 · 69750-0D240 |
