Toyota YARIS 杂物箱板和行李箱垫 — Figure 6403

Toyota YARIS EPC diagram 6403, 杂物箱板和行李箱垫, with 2 images and 14 PNC and OE references.

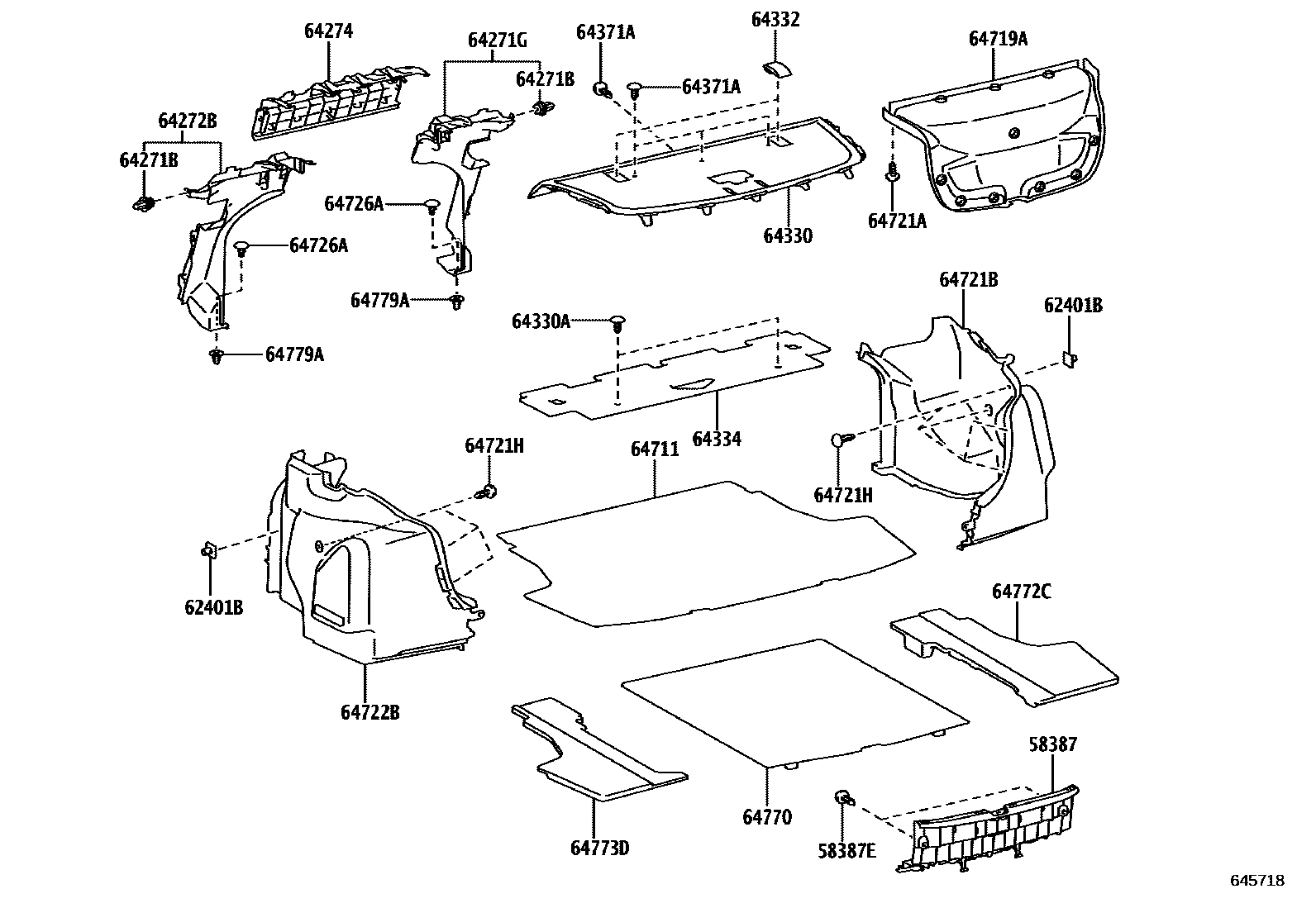

Toyota YARIS 杂物箱板和行李箱垫 EPC diagram — 645718
杂物箱板和行李箱垫 — 645718 (202304 – 999999)

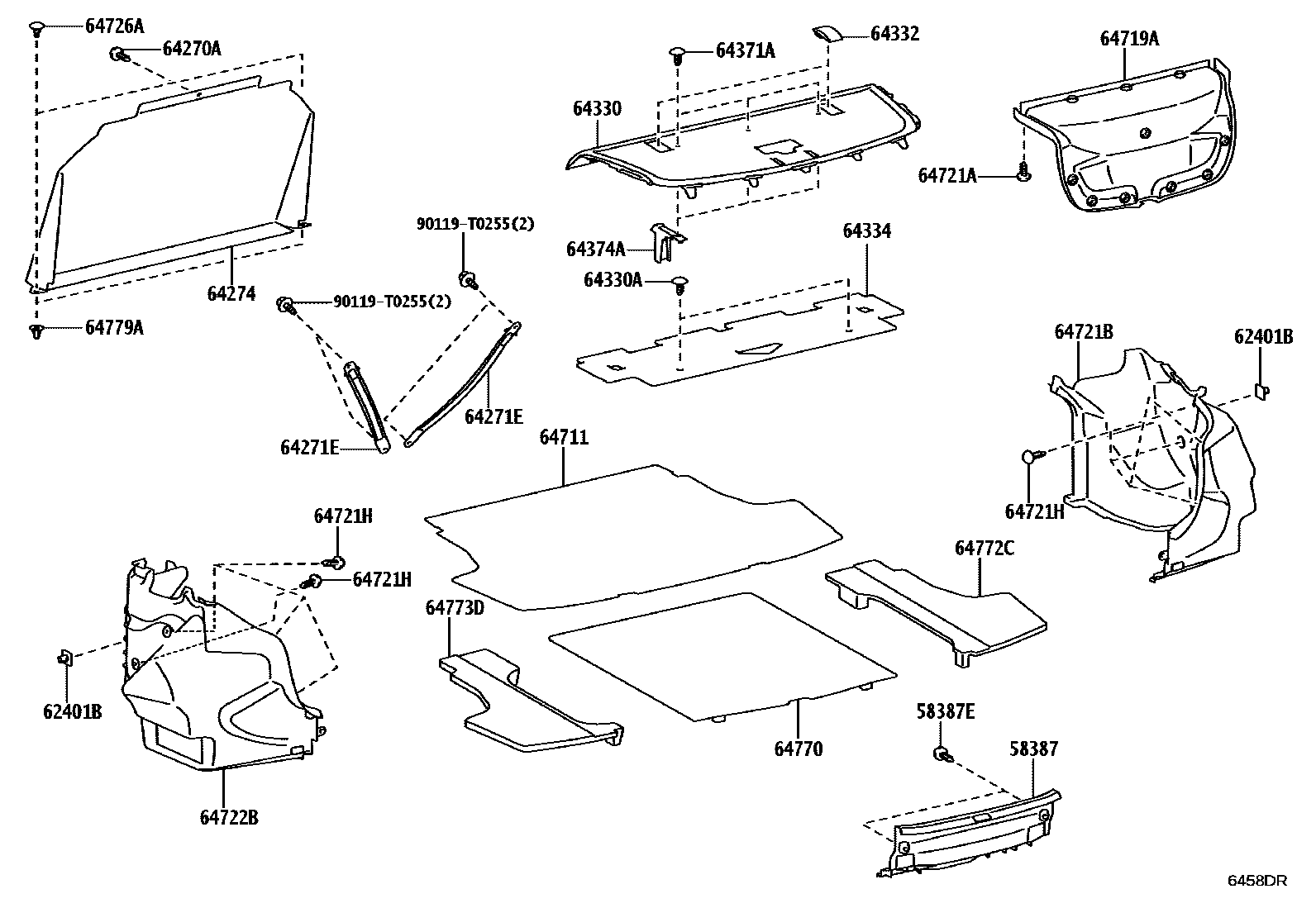

Toyota YARIS 杂物箱板和行李箱垫 EPC diagram — 6458DR
杂物箱板和行李箱垫 — 6458DR (202407 – 999999)

PNC and OE references

PNCPart nameOE numbers
58387Rear floor decorative panel58387-0D260 · 58387-0D280
62401Bhook fasteners90530-25010
64271BClip (for compartment partition)90467-T0021
64271Ecompartment partition64241-0D140
64271GRight compartment partition64271-0D060 · 64271-0D130
64272BLeft compartment partition64272-0D050 · 64272-0D130
64274Car Partition Decorative Mat No. 164275-0D270
64334Glove box decorative panel muffler pad64334-0D520 · 64334-0D530
64374AGlove box decorative panel bracket64374-0D030
64726ALuggage rear trim clip64726-0D020
64770Spare tire cover assembly64770-0D390 · 64770-0D420
64772CSpare tire cover liner64772-0D120
64773DNo. 2 spare tire cover64773-0D060
64779ASpare tire cover stop64779-0D050
