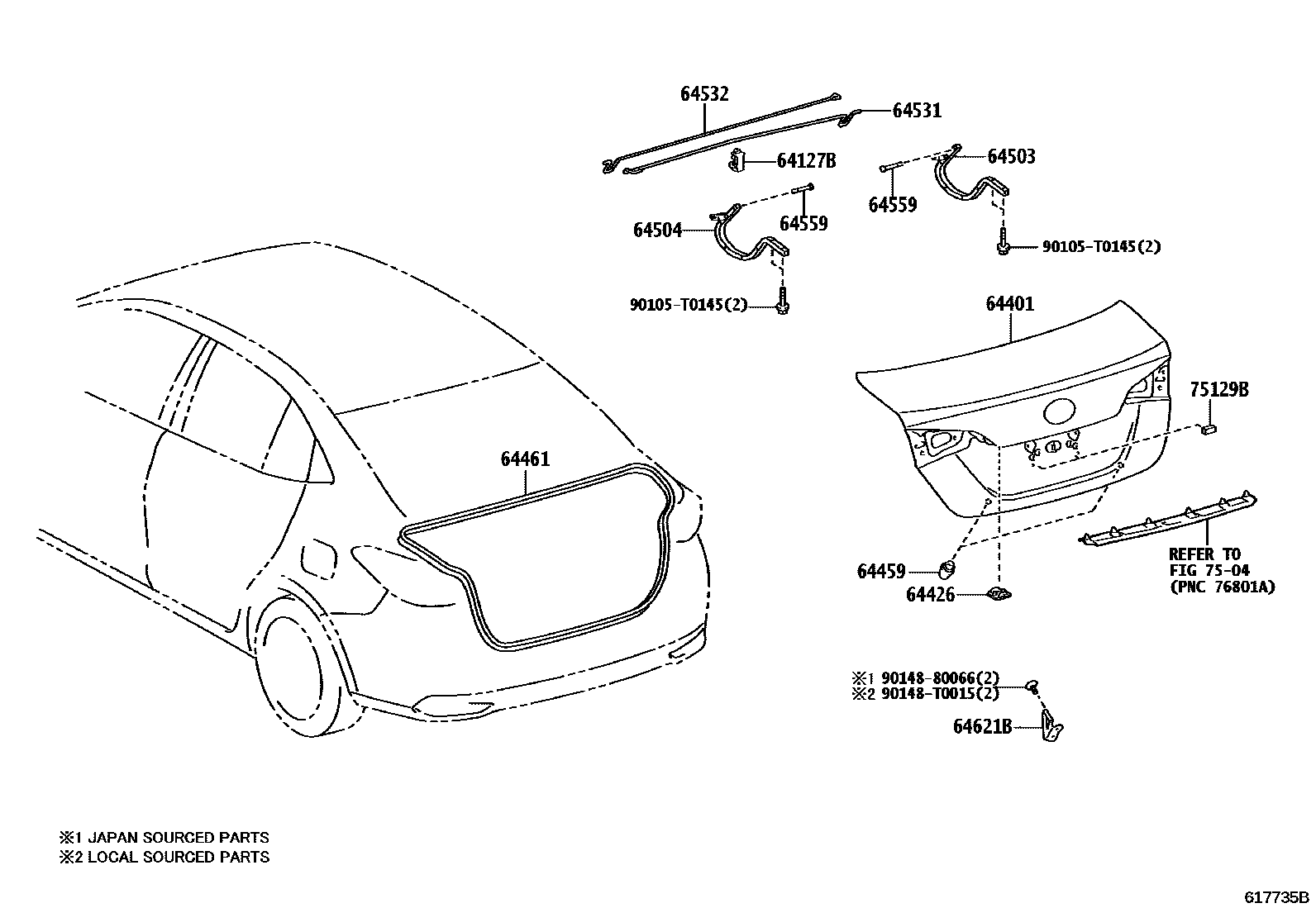

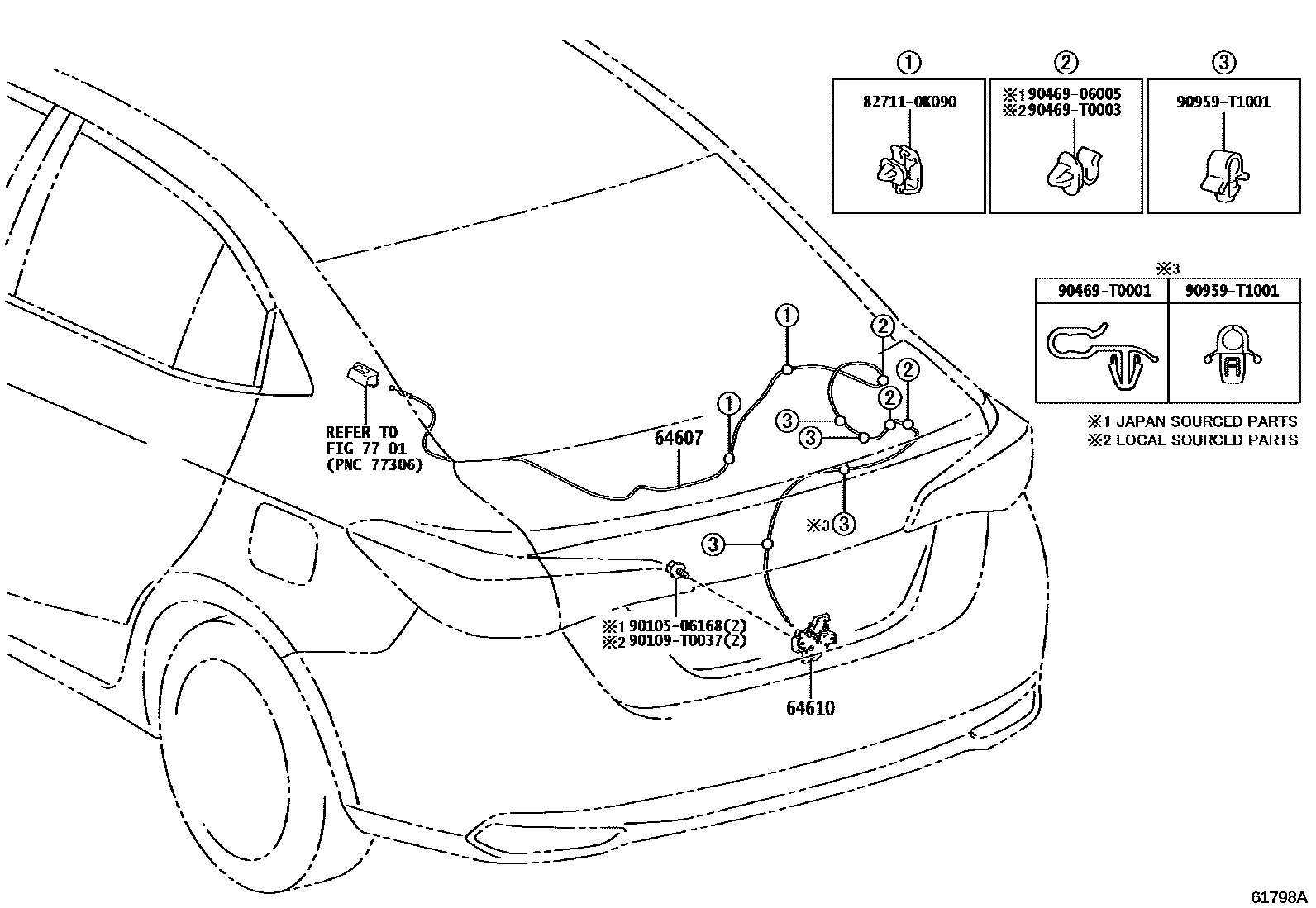

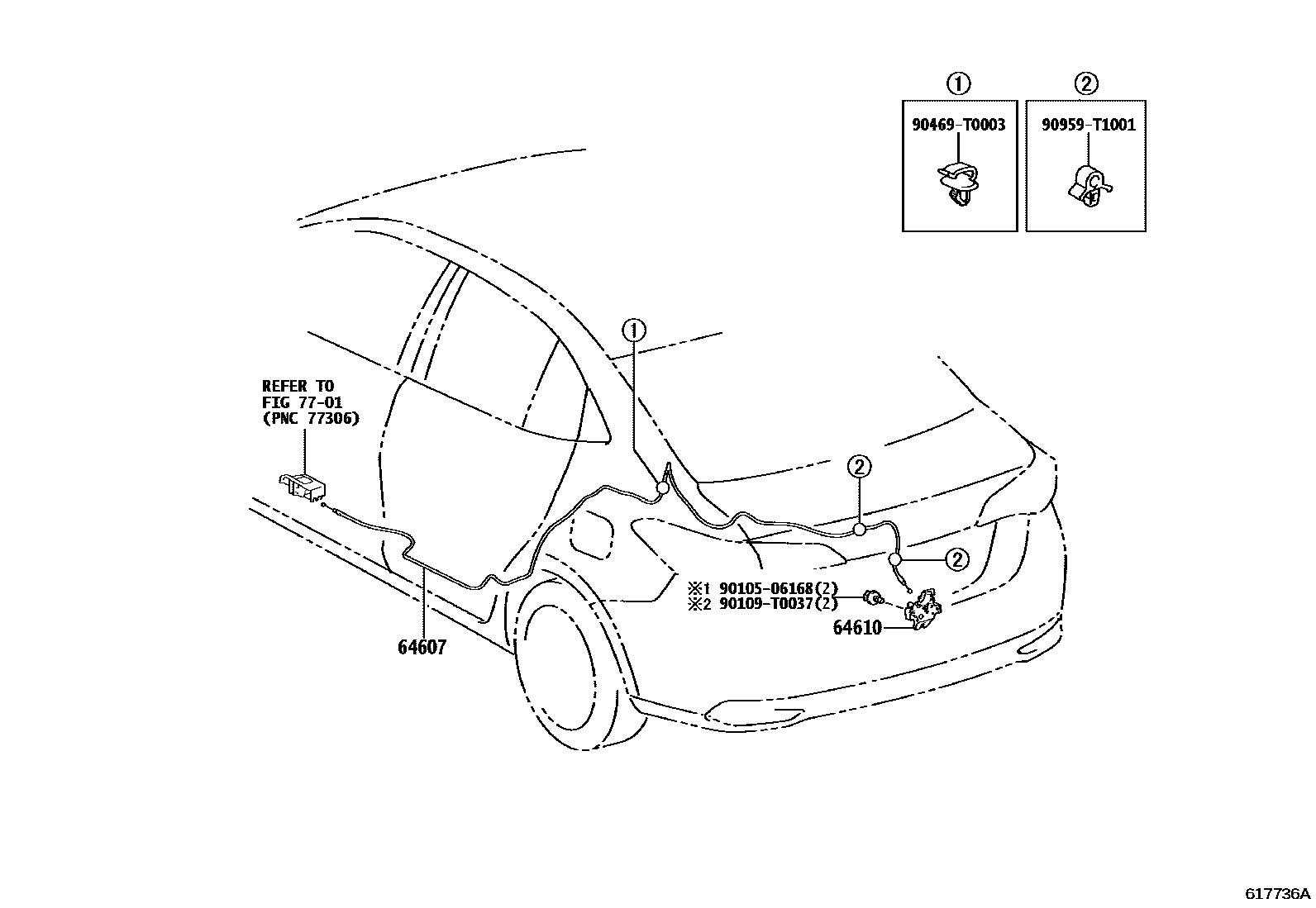

Toyota YARIS 行李箱门和行李箱锁 — Figure 6105
Toyota YARIS EPC diagram 6105, 行李箱门和行李箱锁, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64127B | Trunk door torsion bar bracket | 64127-0D060 |
| 64401 | Trunk door panel sub-assembly | 64401-0D490 · 64401-0D630 · 64401-0D640 · 64401-0D660 · 64401-0D700 |
| 64426 | Trunk door left screw plug | 64426-0D010 |
| 64459 | Trunk door cushion | 90541-09069 |
| 64461 | Trunk door seal | 64461-0D180 · 64461-0D250 |
| 64503 | Trunk door right hinge arm sub-assembly | 64503-0D090 · 64503-0D140 |
| 64504 | Trunk door left hinge arm sub-assembly | 64503-0D090 · 64503-0D140 |
| 64531 | Trunk door right hinge torsion bar | 64531-0D300 · 64531-0D390 |
| 64532 | Trunk door left hinge torsion bar | 64532-0D290 · 64532-0D380 |
| 64559 | Trunk door hinge pin | 64559-12040 |
| 64607 | Trunk door lock control cable sub-assembly | 64607-0D480 · 64607-0D510 |
| 64610 | Trunk door lock assembly | 64600-0D040 |
| 64621B | Trunk door latch | 64621-06080 |
| 75129B | rear license plate cushion | 75129-0D030 · 75129-0D080 |
