Toyota YARIS 车侧通风装置 — Figure 6102

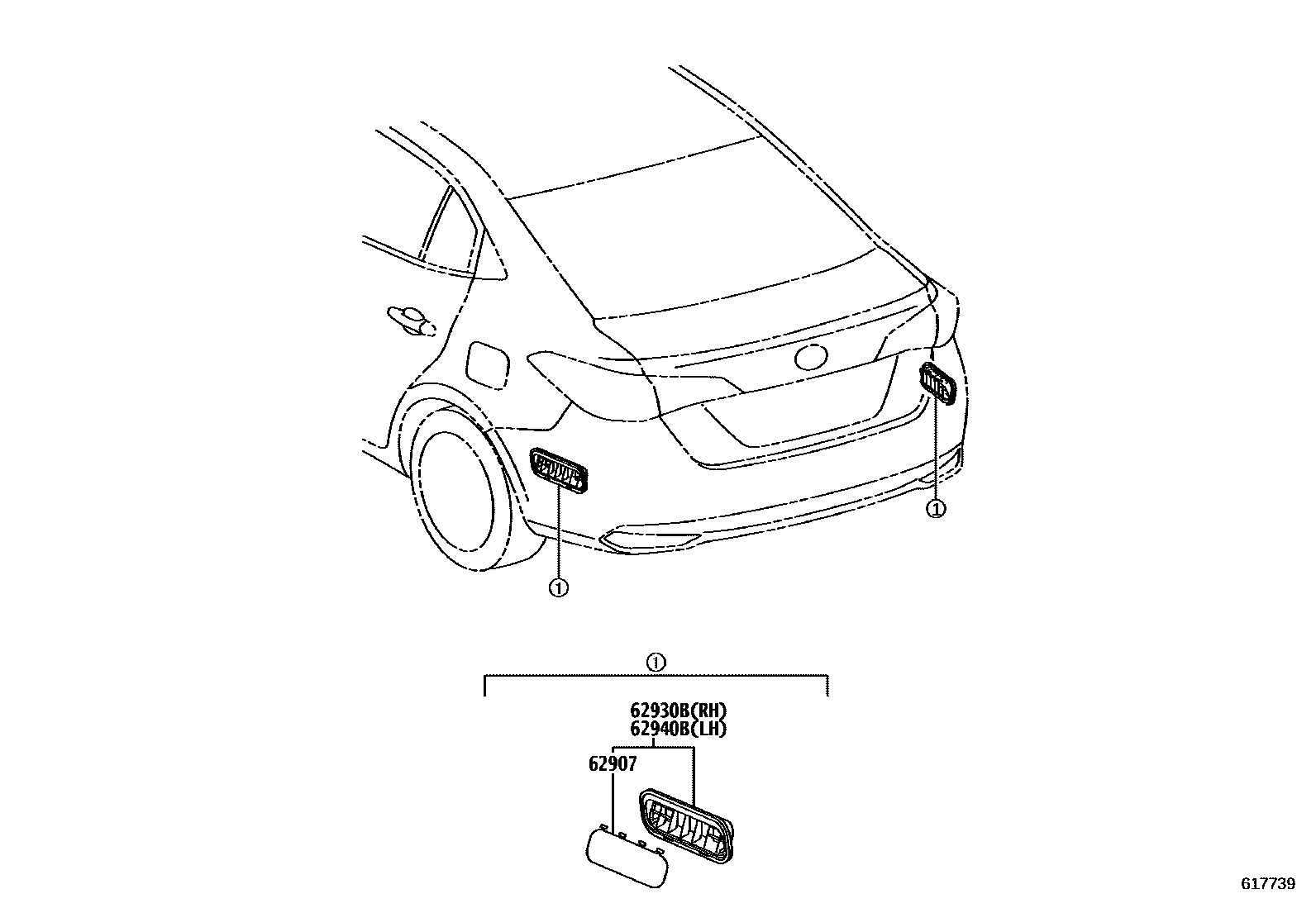

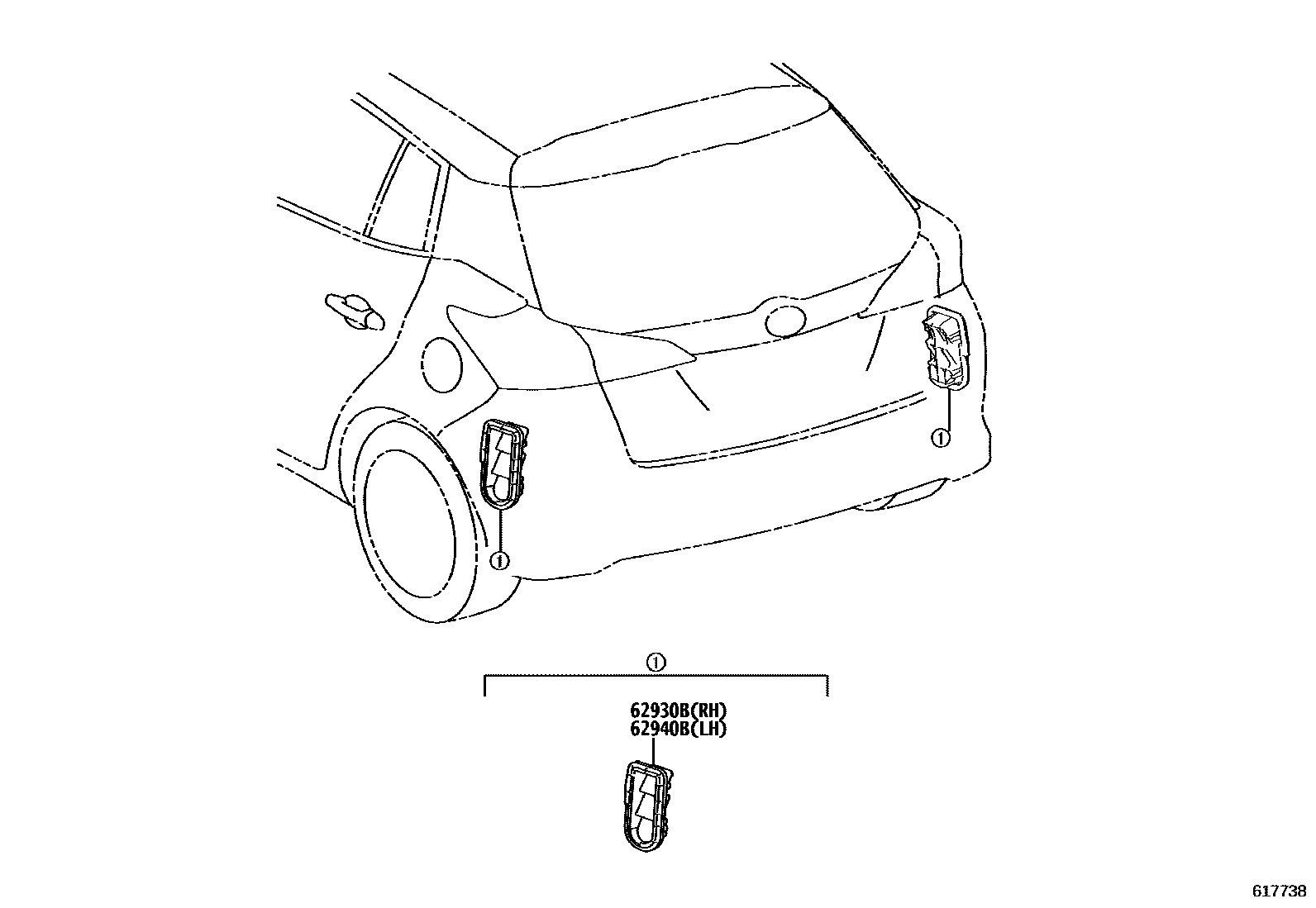

Toyota YARIS EPC diagram 6102, 车侧通风装置, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62907 | Ventilation butterfly plate sub-assembly | 62935-0D090 · 62935-0D170 |
| 62930B | Right side ventilation duct assembly | 62930-0D030 · 62940-0D060 · 62940-0D100 |
| 62940B | Left side ventilation duct assembly | 62930-0D030 · 62940-0D060 · 62940-0D100 |
