Toyota YARIS 仪表板和手套箱 — Figure 5501

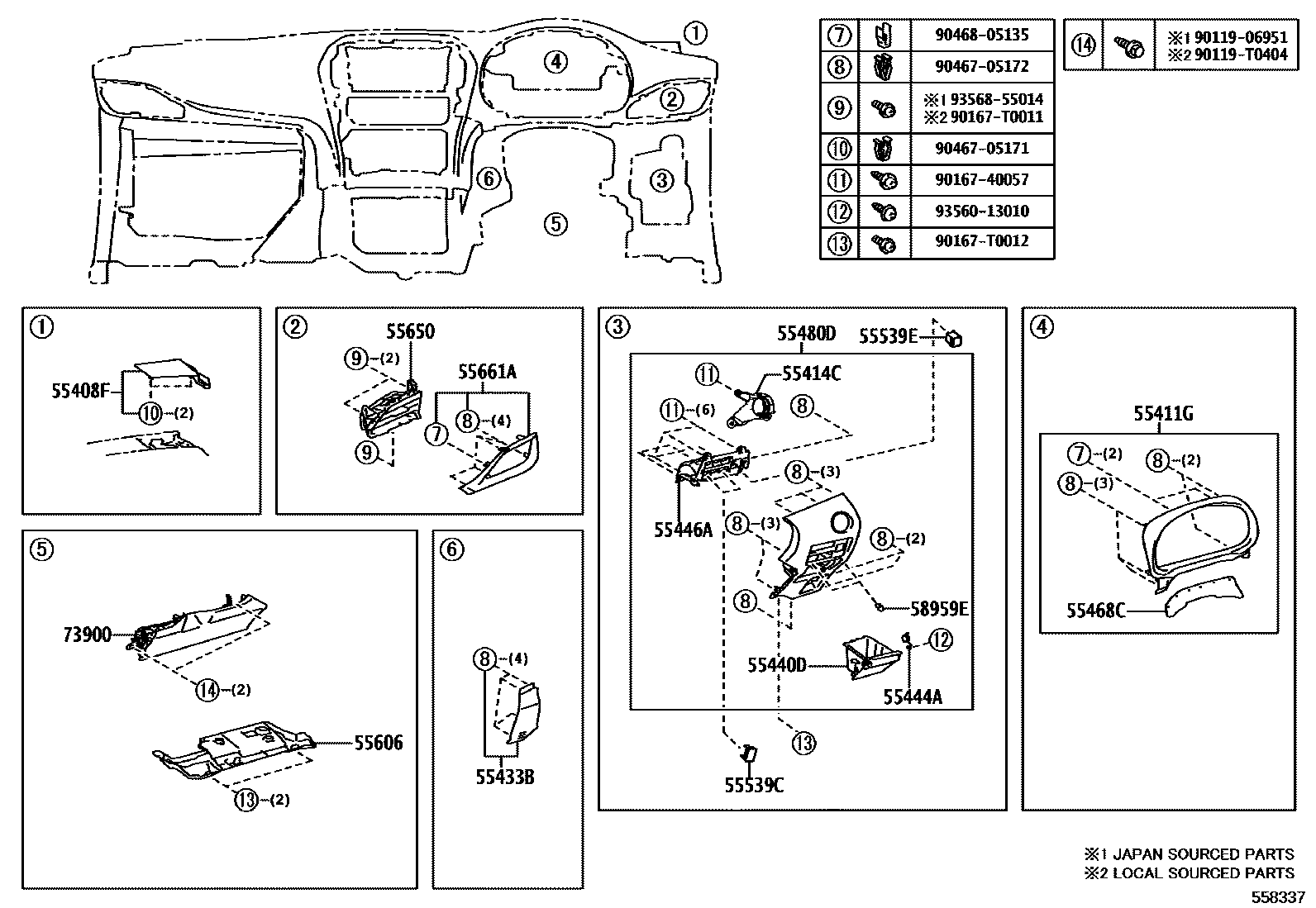

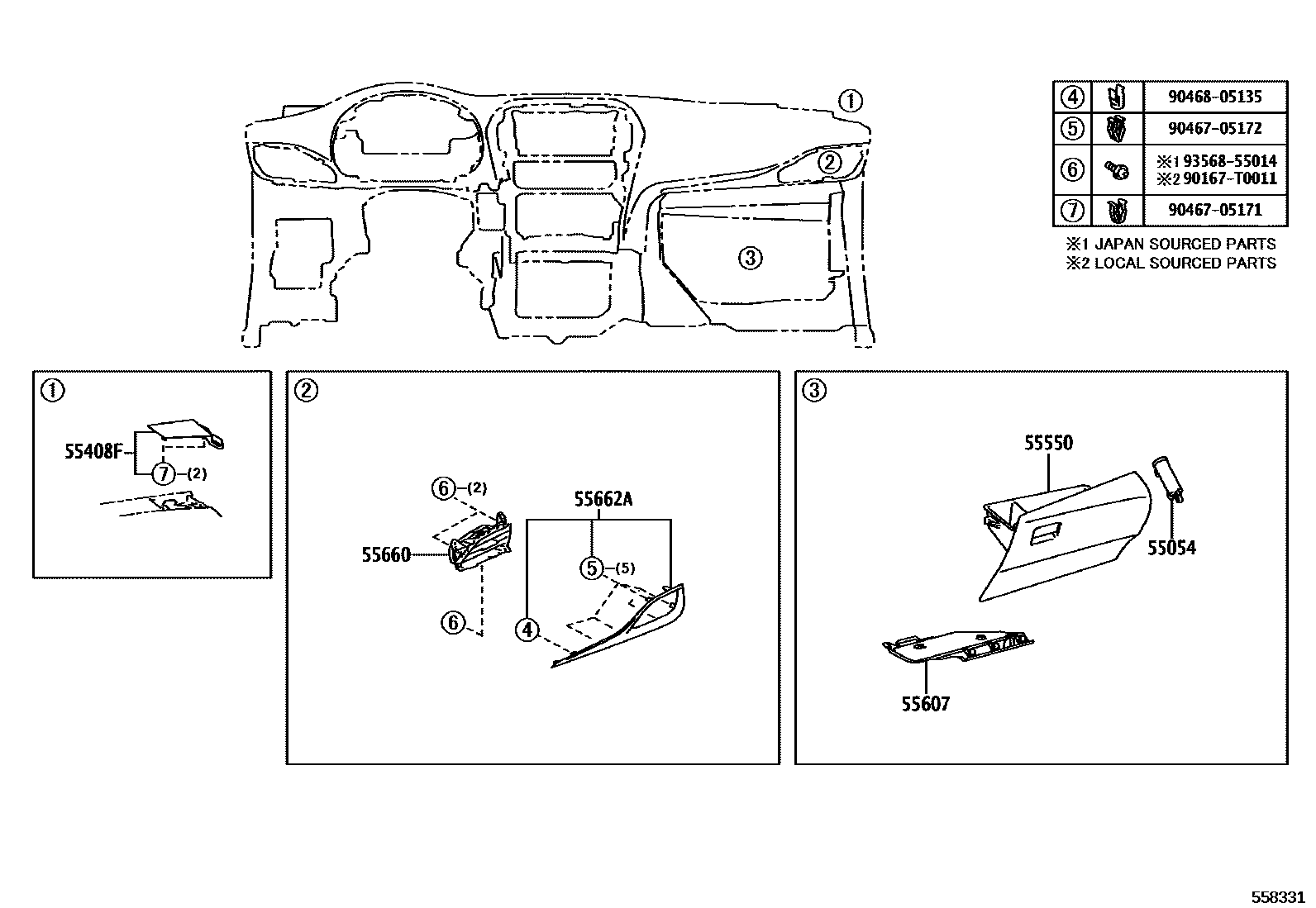

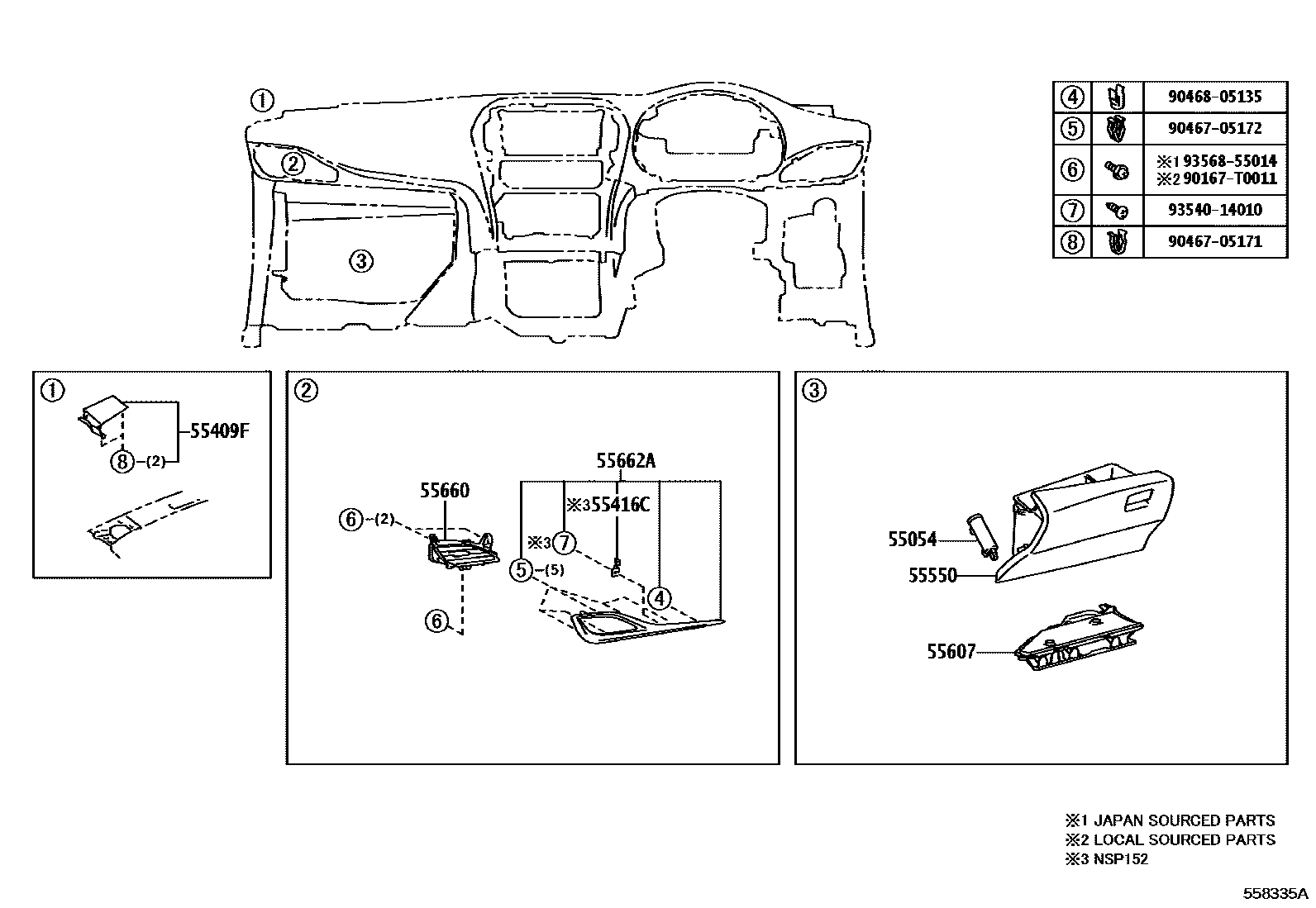

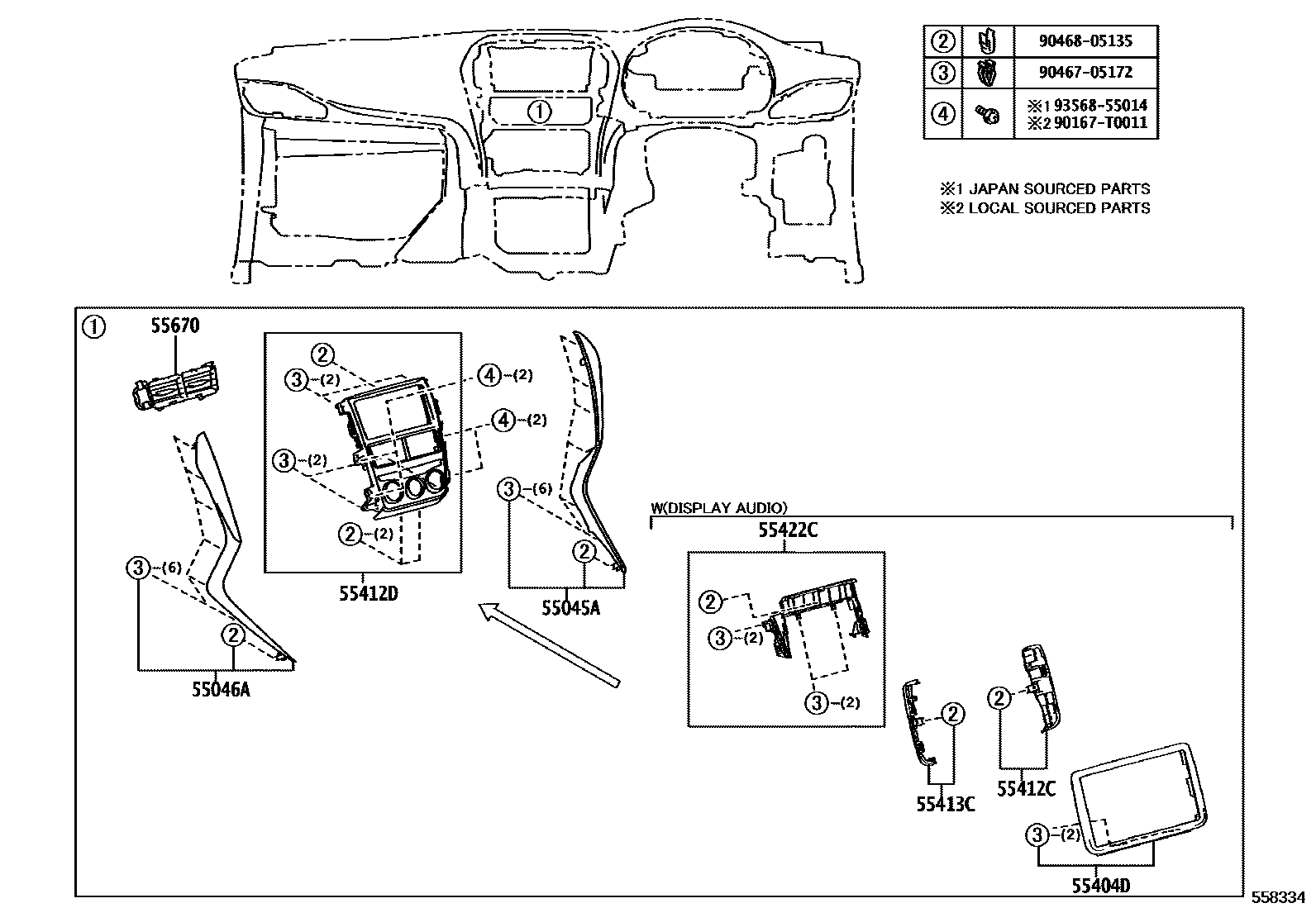

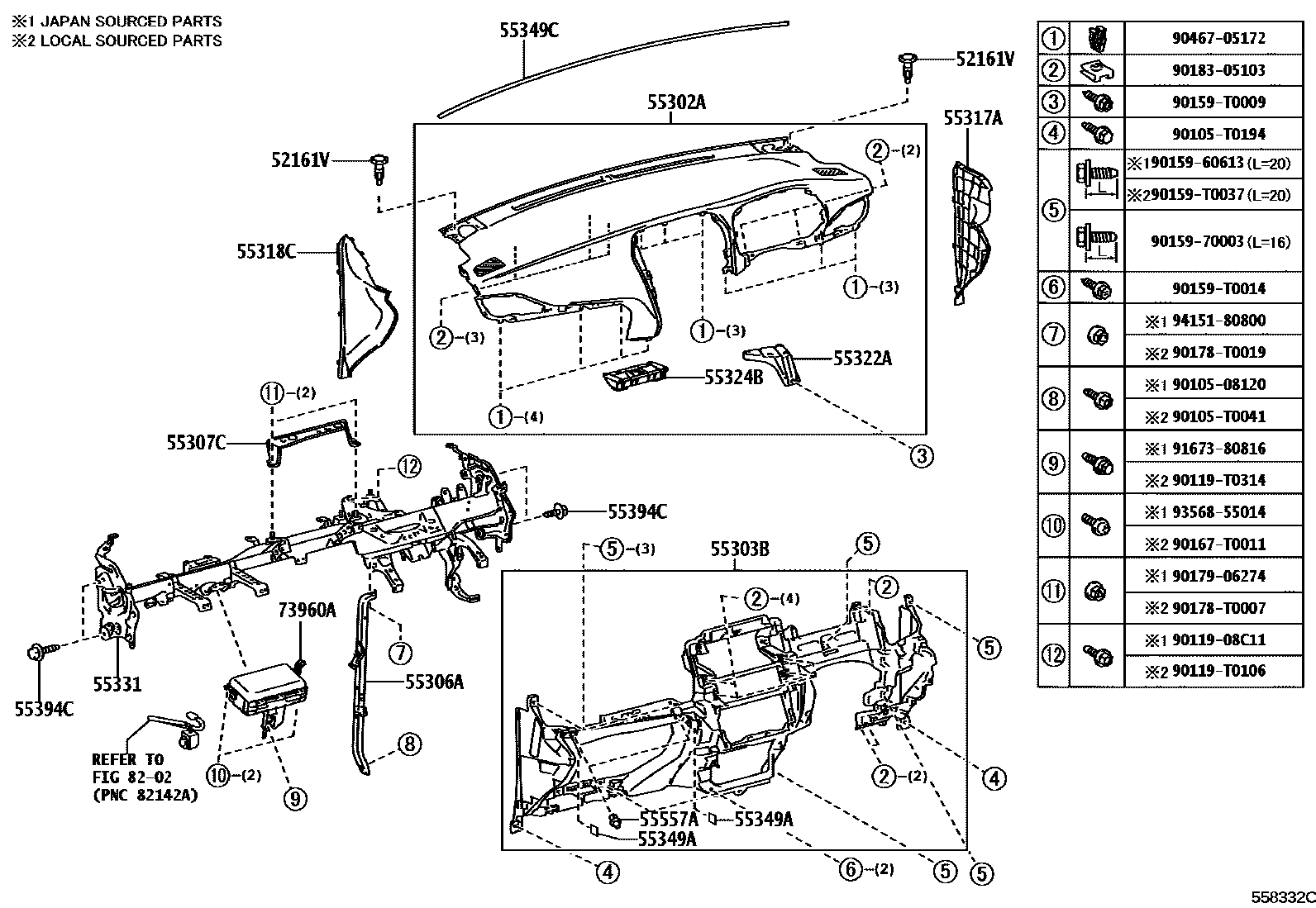

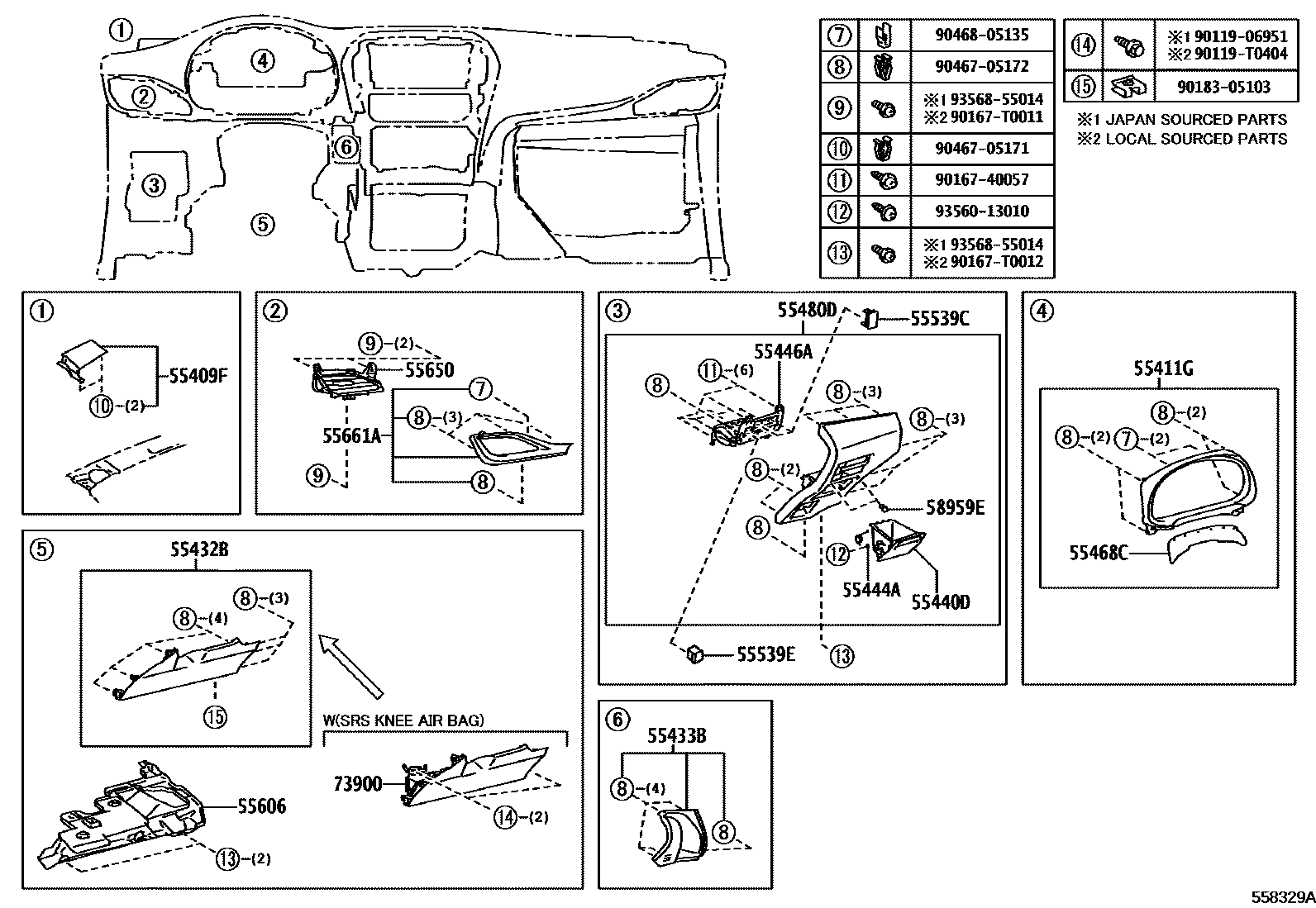

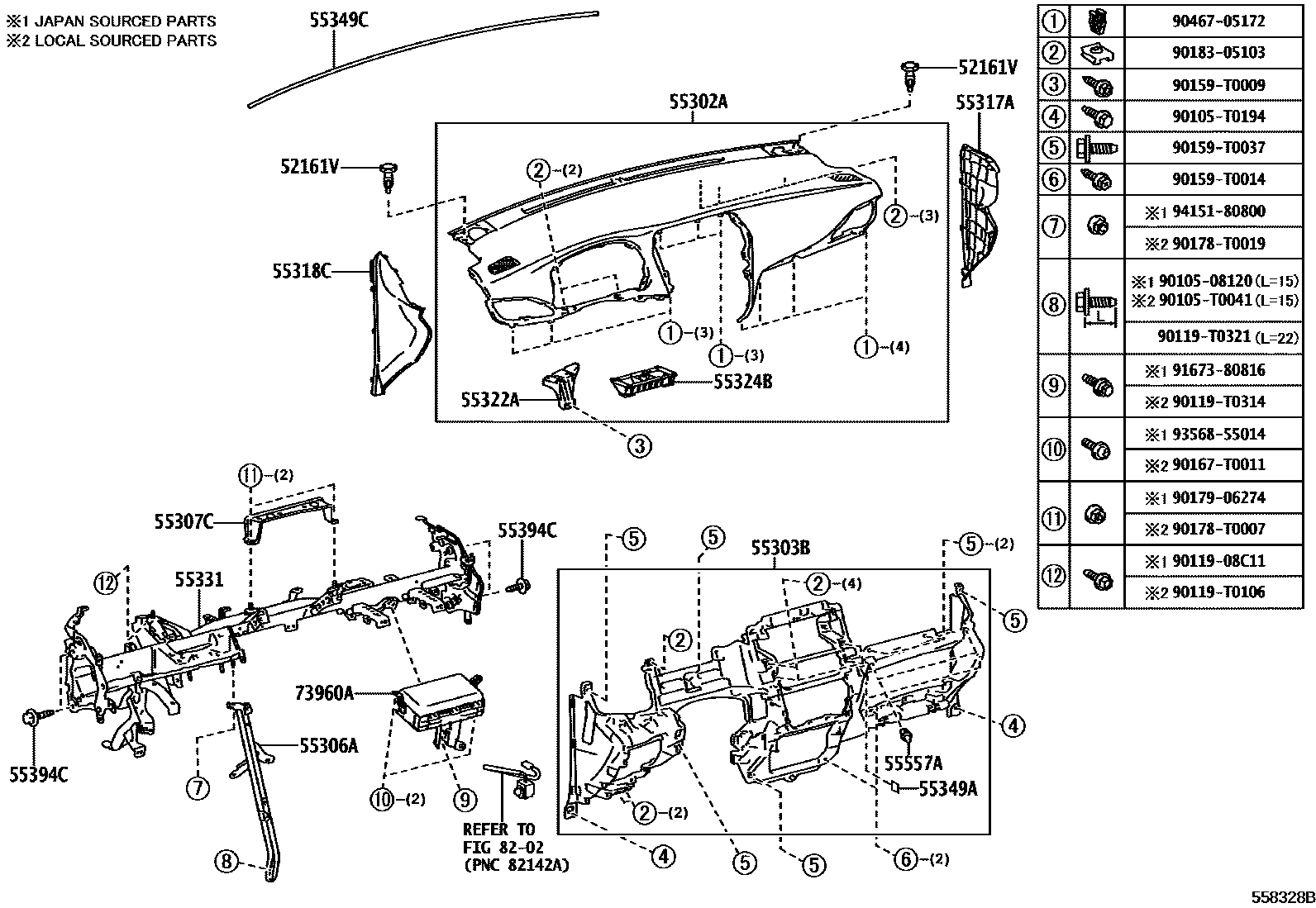

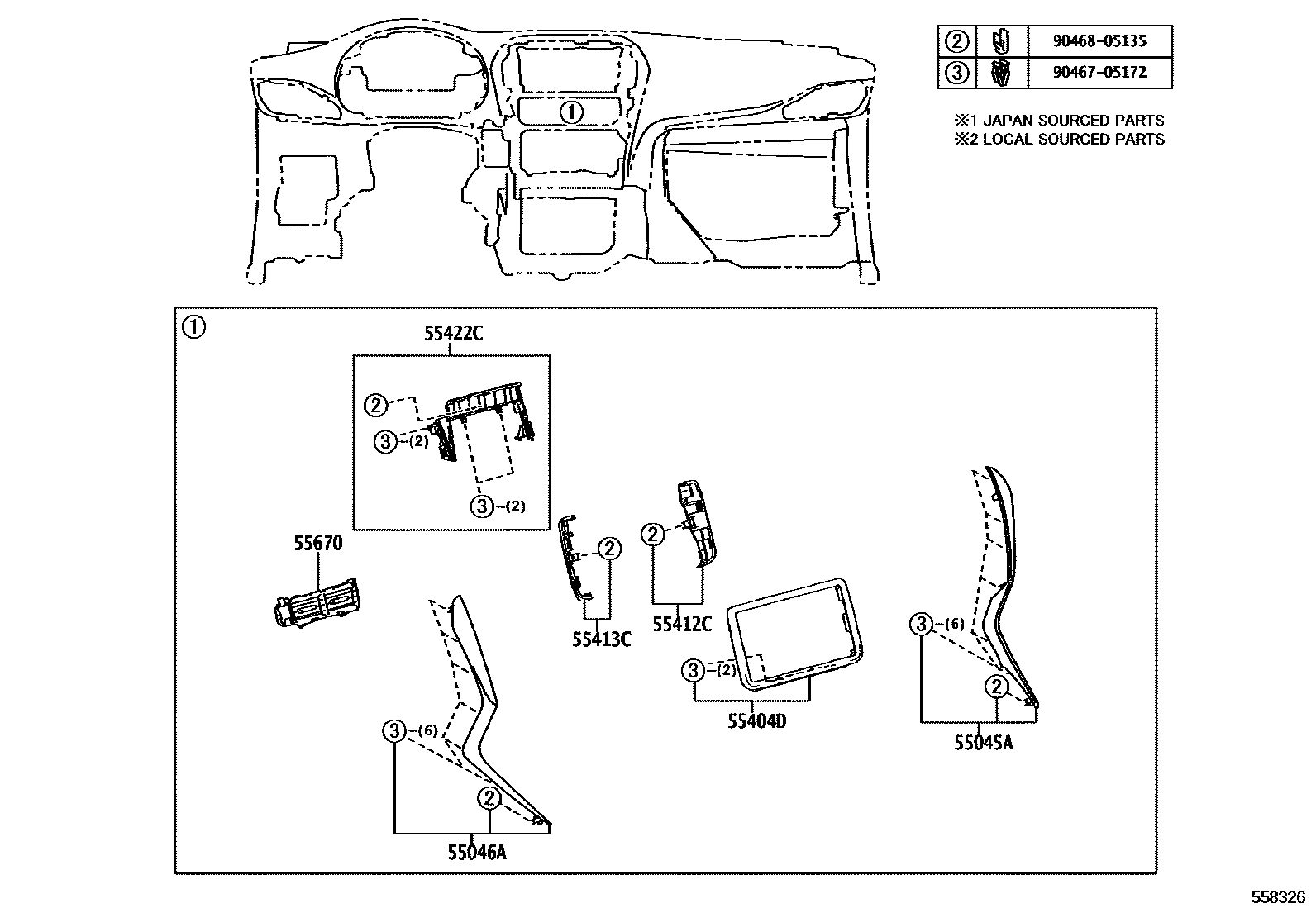

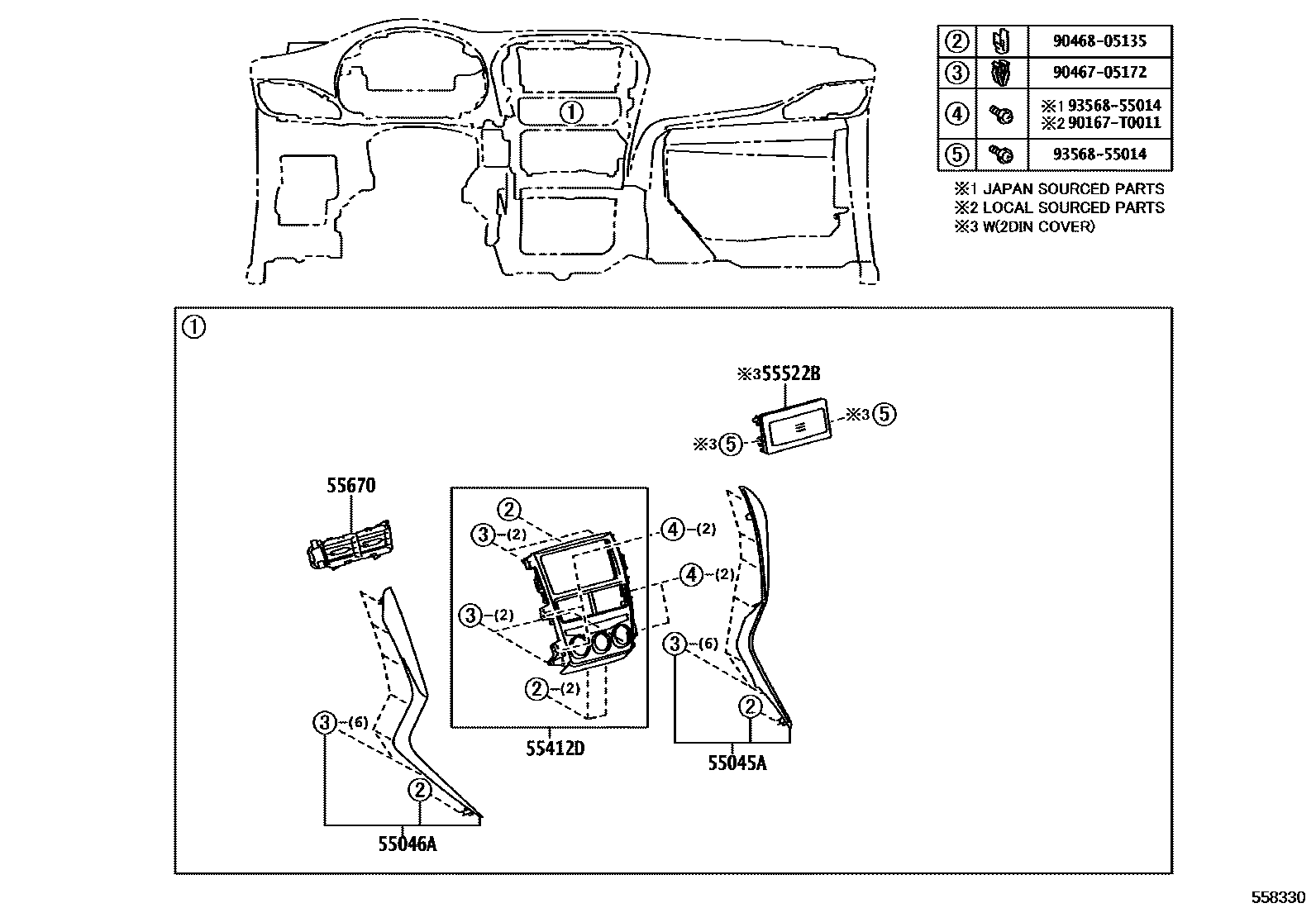

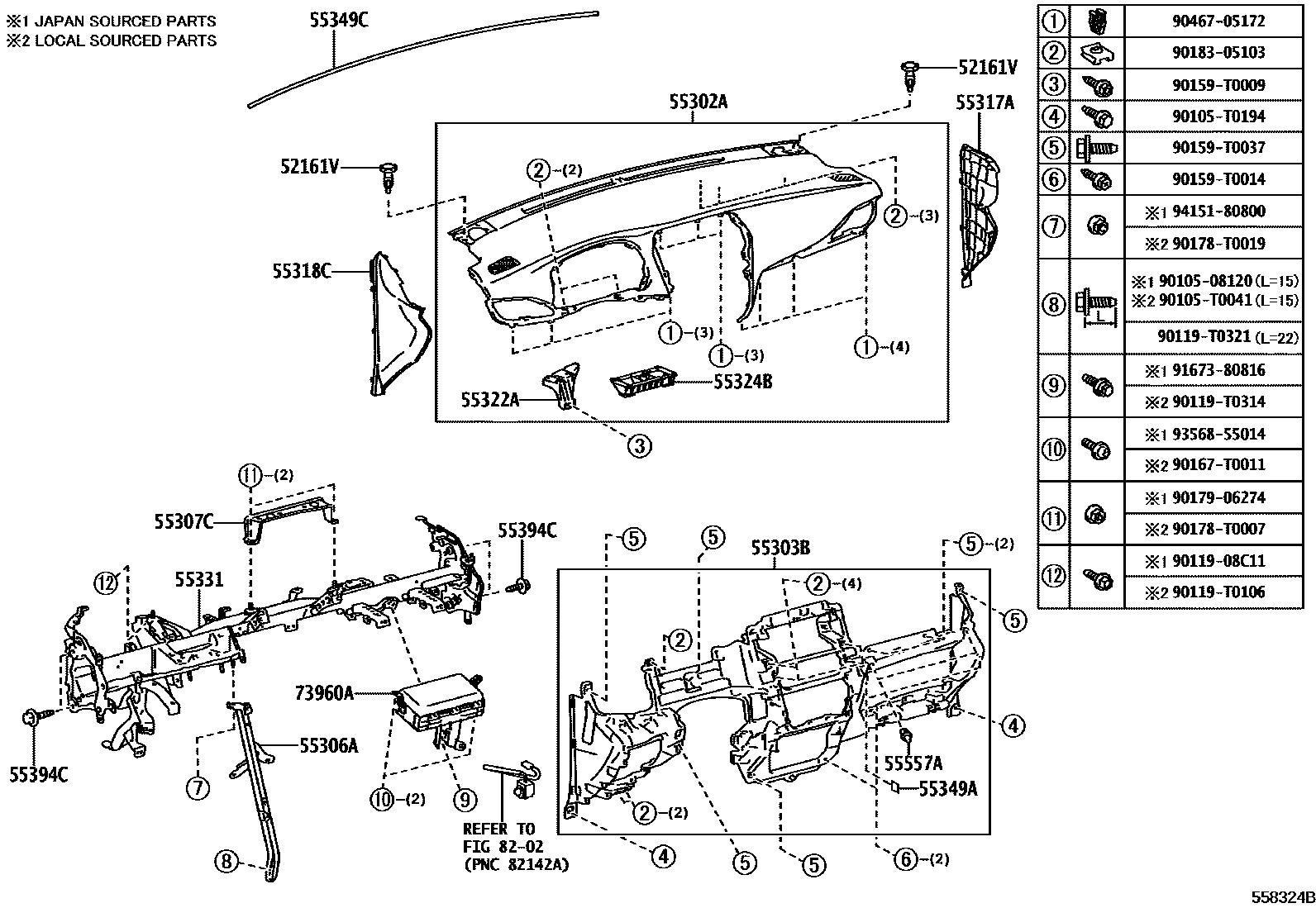

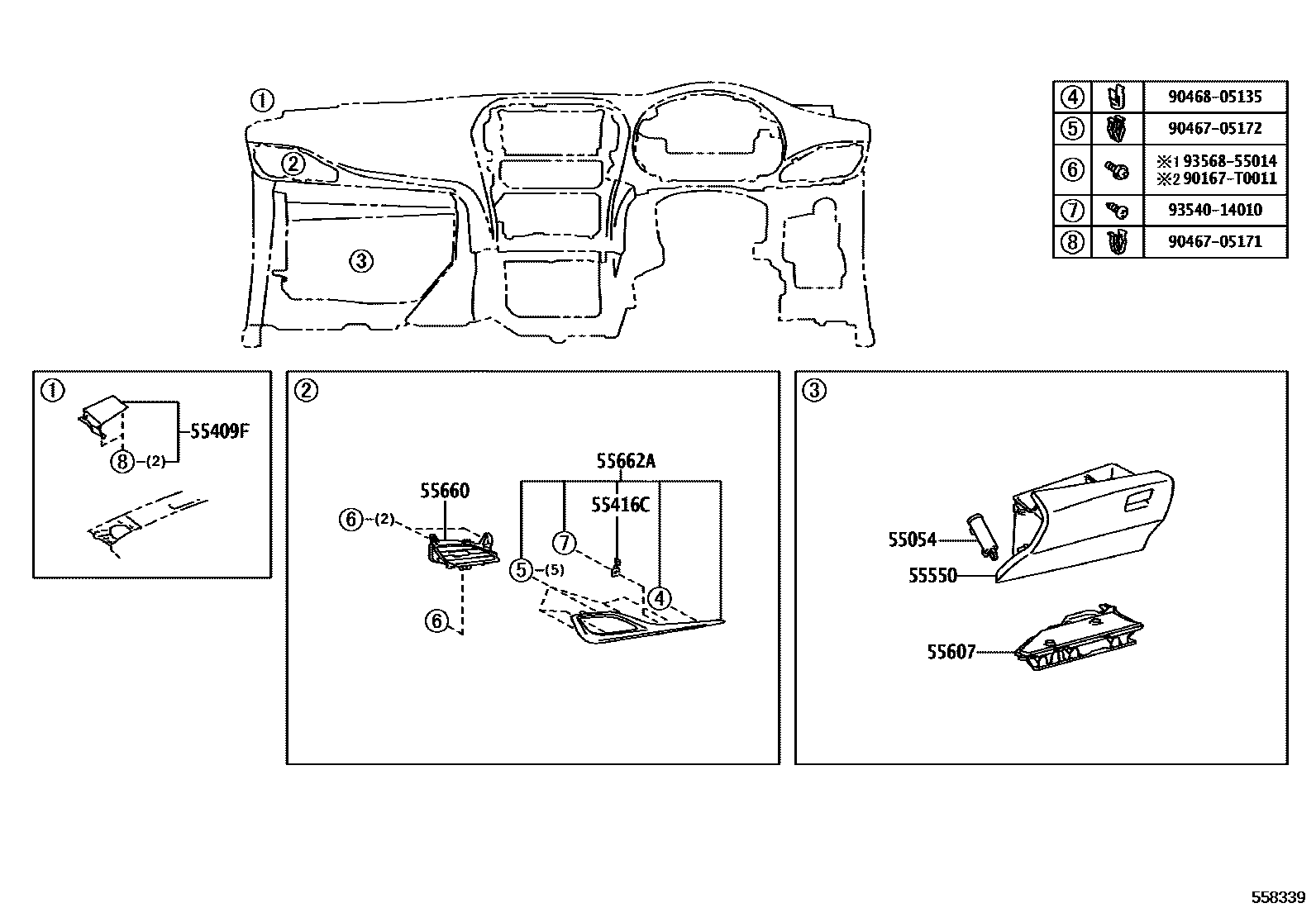

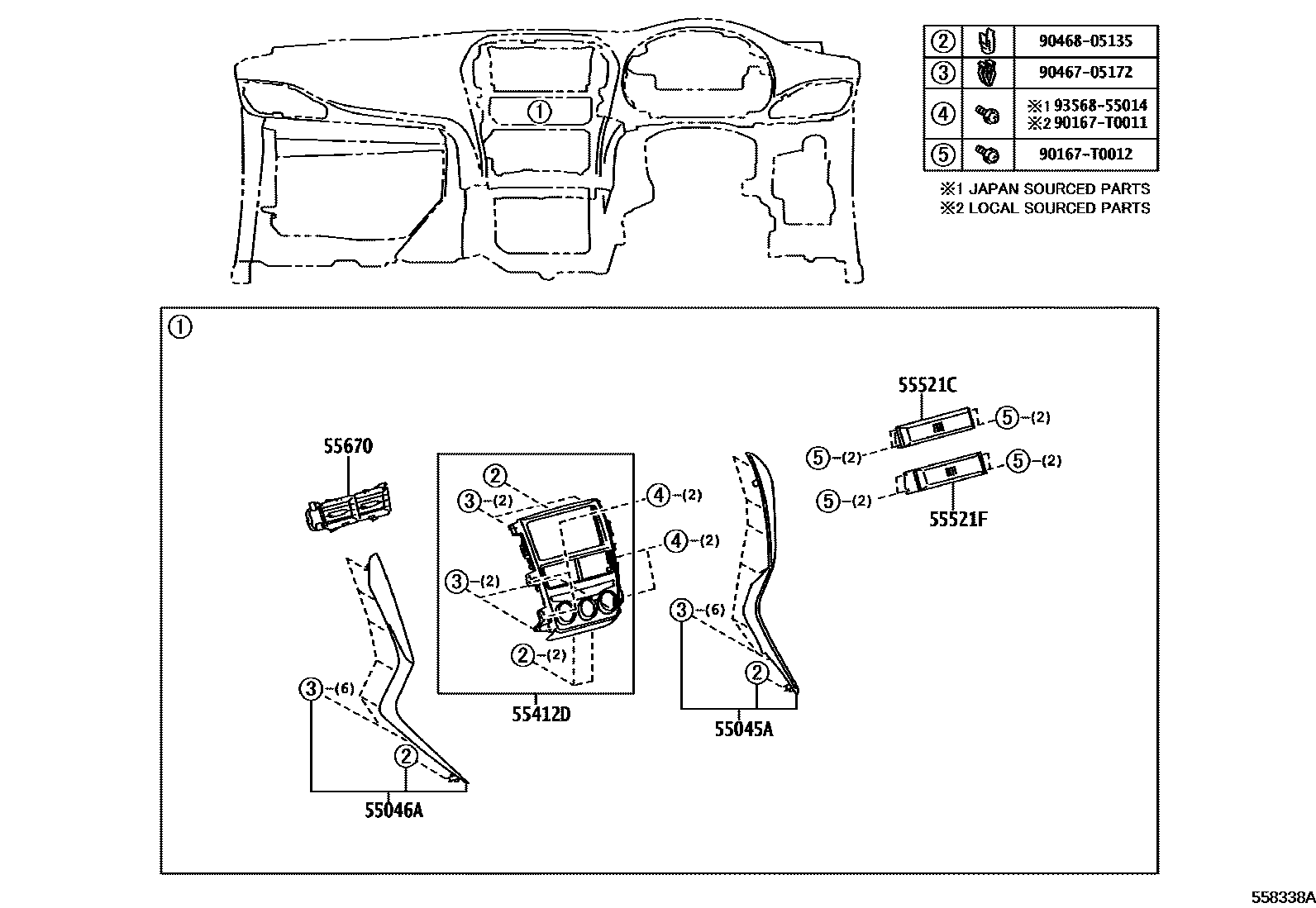

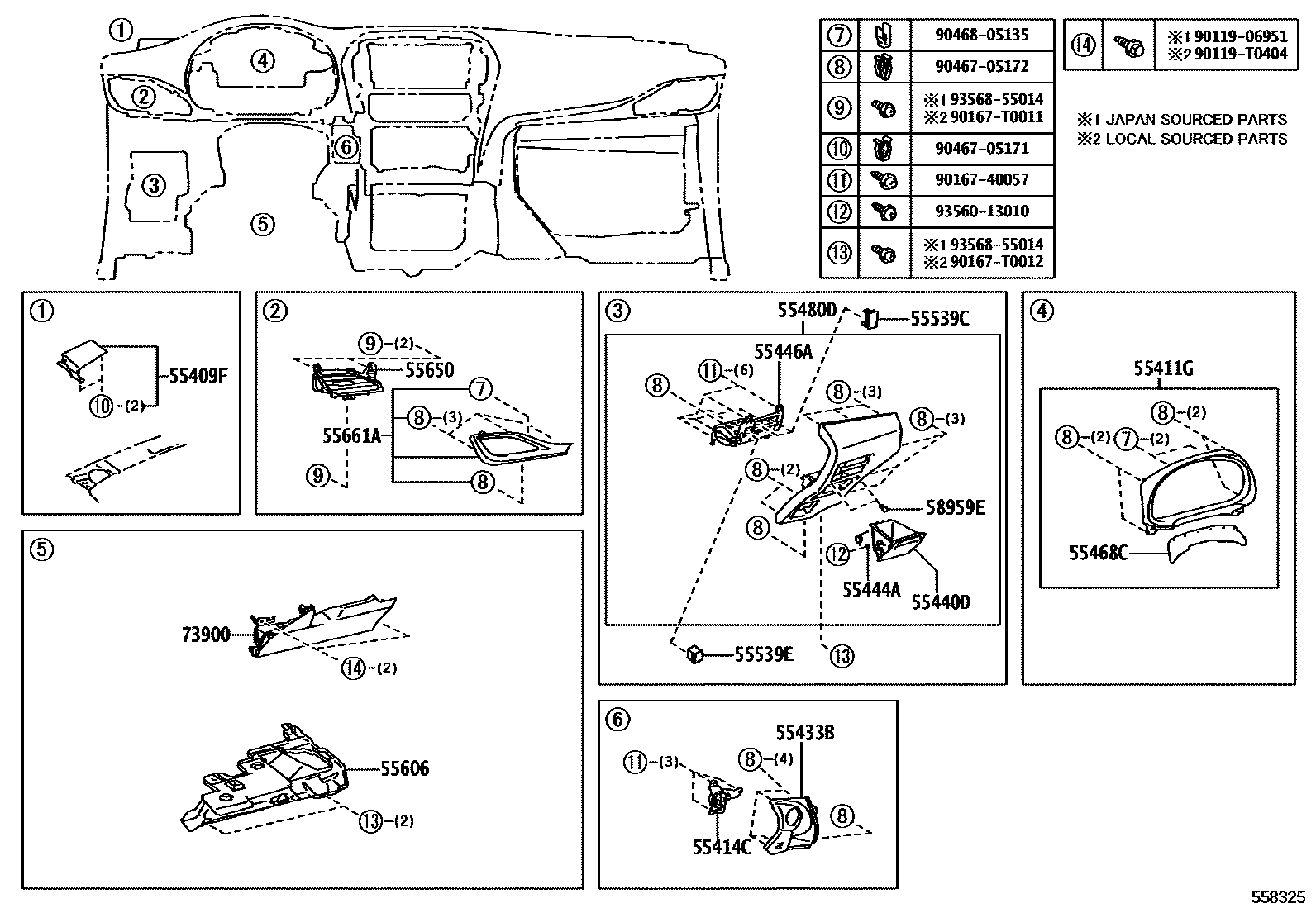

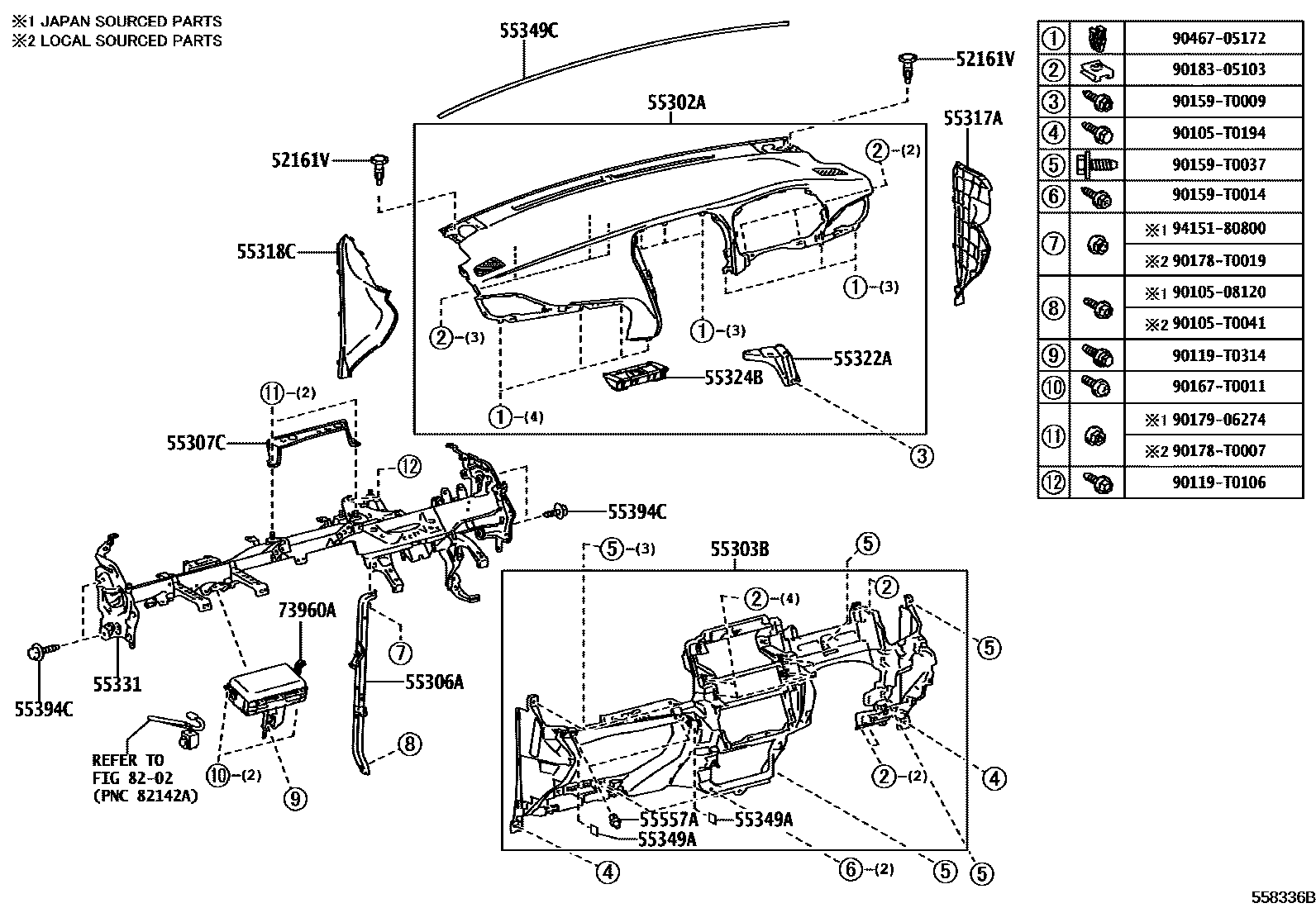

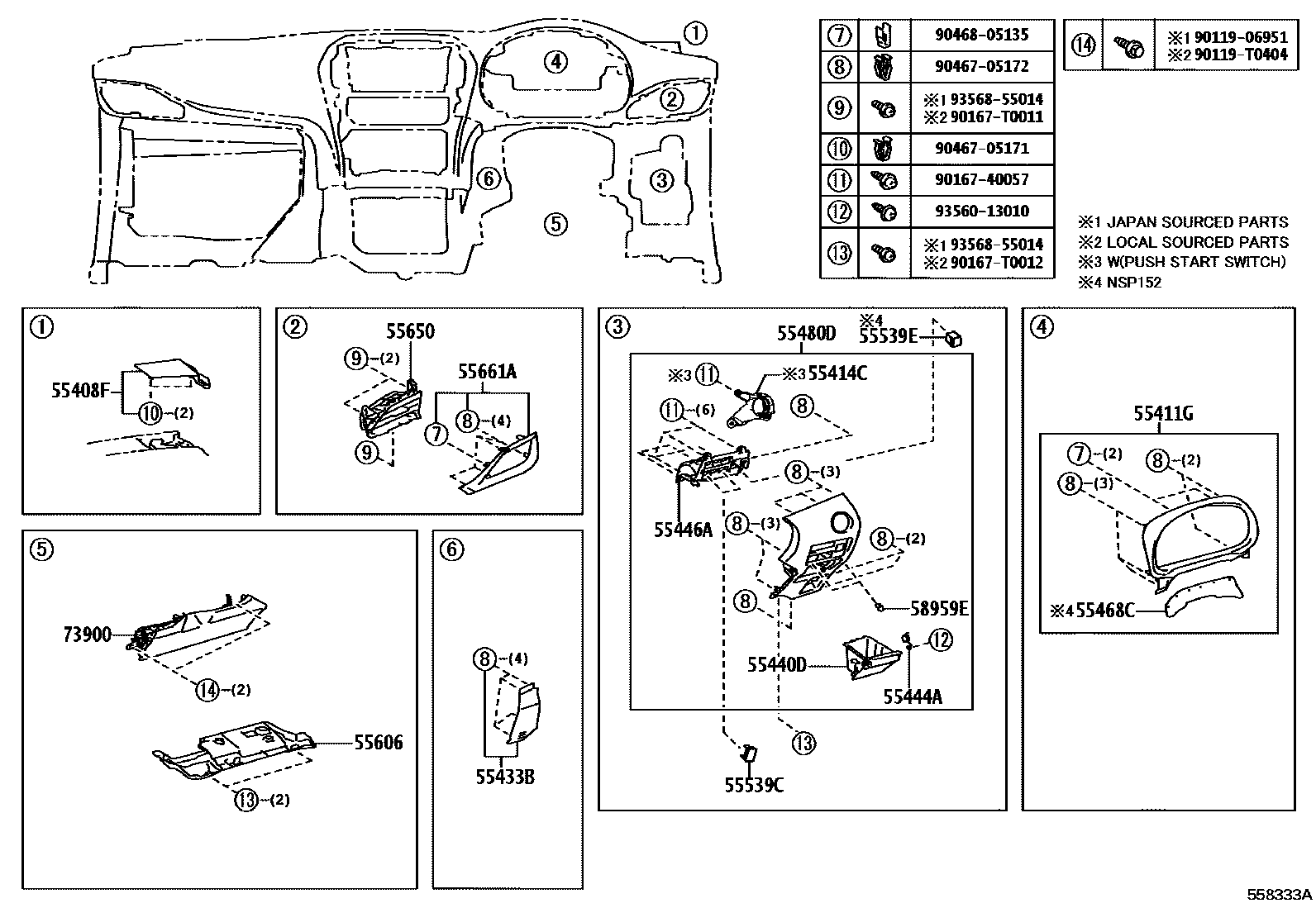

Toyota YARIS EPC diagram 5501, 仪表板和手套箱, with 16 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161V | instrument panel insert | 52161-0K040 |
| 55045A | Instrument panel lower right decorative panel sub-assembly | 55045-0D170 · 55045-0D190 · 55045-0D220 · 55045-52090 · 55046-0D160 · 55046-52040 |
| 55046A | Instrument panel lower left decorative panel sub-assembly | 55045-0D180 · 55045-52100 · 55046-0D150 · 55046-0D170 · 55046-0D200 · 55046-52030 |
| 55054 | Glove box cover stopper sub-assembly | 55054-0K030 · 55054-47010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-0D390 · 55306-0D400 · 55306-0D460 · 55306-0D480 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55308-0D070 · 55308-0D080 · 55308-0D170 |
| 55322A | Instrument panel bracket No. 2 | 55322-0D220 · 55322-0D230 · 55322-0D240 |
| 55324B | Instrument panel bracket No. 4 | 55324-0D220 · 55324-0D230 · 55324-0D240 |
| 55331 | Dashboard reinforcement | 55330-0D610 · 55330-0D751 · 55330-0D771 · 55330-0D880 · 55330-0DA10 |
| 55349A | Dashboard cushion | 55349-0D360 · 55349-0D370 |
| 55349C | Dashboard cushion | 55349-0D240 · 55349-0D320 |
| 55394C | Dashboard bolts | 55394-52010 |
| 55404D | Instrument cluster decorative panel sub-assembly | 55404-YP010 · 55404-YP020 · 55404-YP030 |
| 55412C | Center instrument cluster No. 1 decorative panel | 55412-YP010 · 55412-YP020 |
| 55412D | Center instrument cluster decorative panel | 55405-0D860 · 55405-0DA80 · 55405-0DB00 · 55405-0DC00 · 55405-0DC10 |
| 55413C | Center instrument cluster No. 2 decorative panel | 55413-YP010 · 55413-YP020 |
| 55414C | starter switch box | 55414-0D060 |
| 55416C | Instrument cluster decorative panel fixings | 55416-0D200 |
| 55422C | Center instrument cluster upper decorative panel | 55422-YP010 · 55422-YP020 |
| 55444A | Dashboard storage box spring | 55444-0D230 · 55444-0D280 · 55444-0D290 · 55444-0D350 |
| 55468C | Instrument cluster No. 1 decorative panel seal | 55468-0D250 · 55468-0D260 · 55468-0D270 |
| 55521C | stereo system hole cover | 55521-12190 |
| 55521F | Stereo system hole cover No. 2 | 55521-05030 |
| 55522B | Radio tuner opening cover | 55522-0K010 |
| 55539C | Spare switch hole cover | 55539-06130 |
| 55557A | Glove box cover limit pad | 55557-52030 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-0D180 · 55606-0D190 · 55606-0D200 · 55606-0D270 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-0D190 · 55607-0D200 · 55607-0D210 · 55607-0D280 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-0D590 · 55650-0D600 · 55650-YP100 · 55660-0D440 · 55660-0D450 · 55660-YP050 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55650-0D590 · 55650-0D600 · 55650-YP100 · 55660-0D440 · 55660-0D450 · 55660-YP050 |
| 55661A | Dashboard air register bezel | 55661-0D110 · 55661-0D200 · 55661-0D300 |
| 55662A | No. 2 air regulator frame on dashboard | 55662-0D200 · 55662-0D210 · 55662-0D270 |
| 55670 | Instrument panel No. 3 air regulator assembly | 55670-0D400 · 55670-0D410 · 55670-0D500 · 55670-YP010 |
| 58959E | Armrest box cover cushion | 58959-60060 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-0D160 · 73960-0D170 |
