Toyota YARIS 发动机盖锁和铰链 — Figure 5303

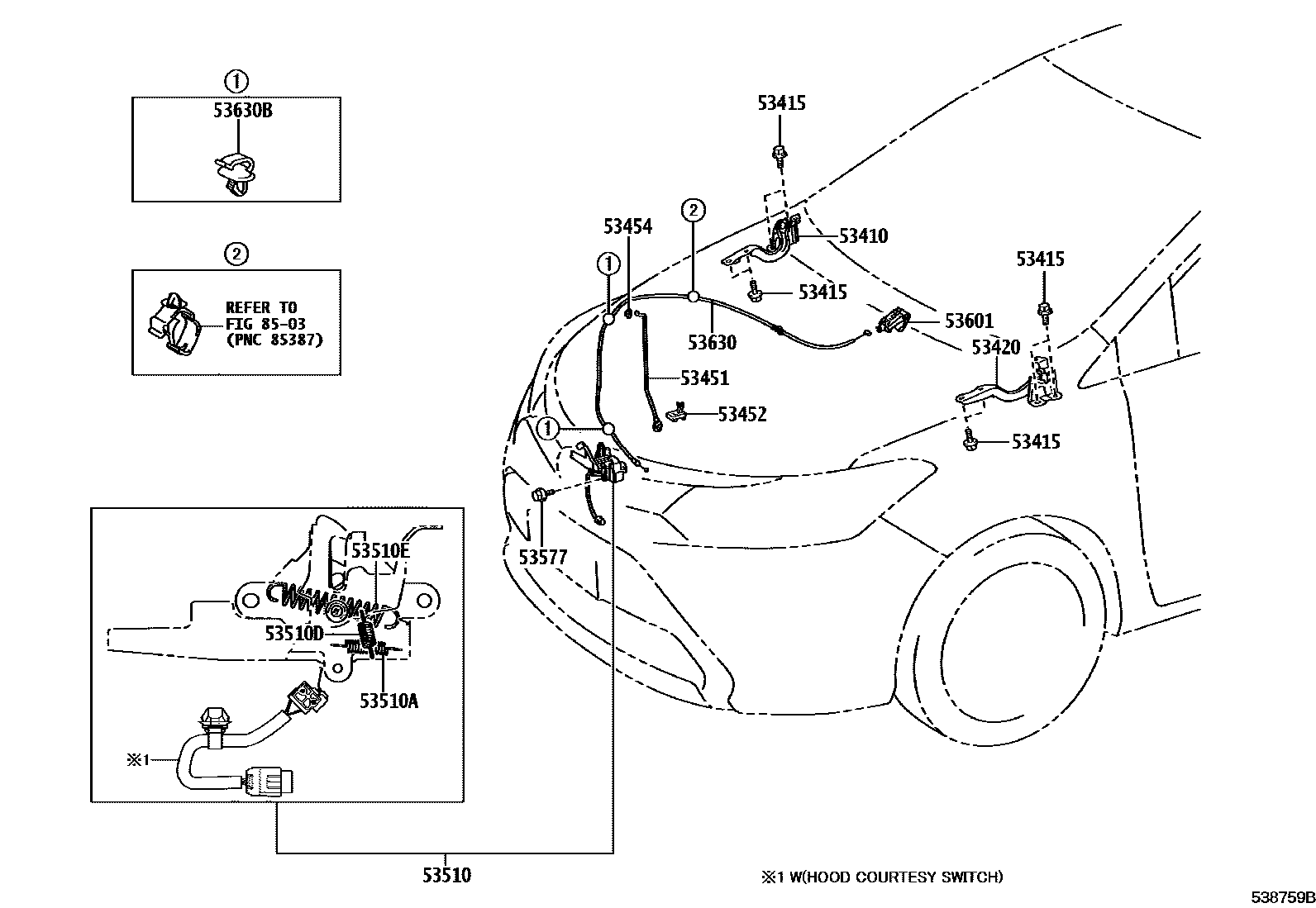

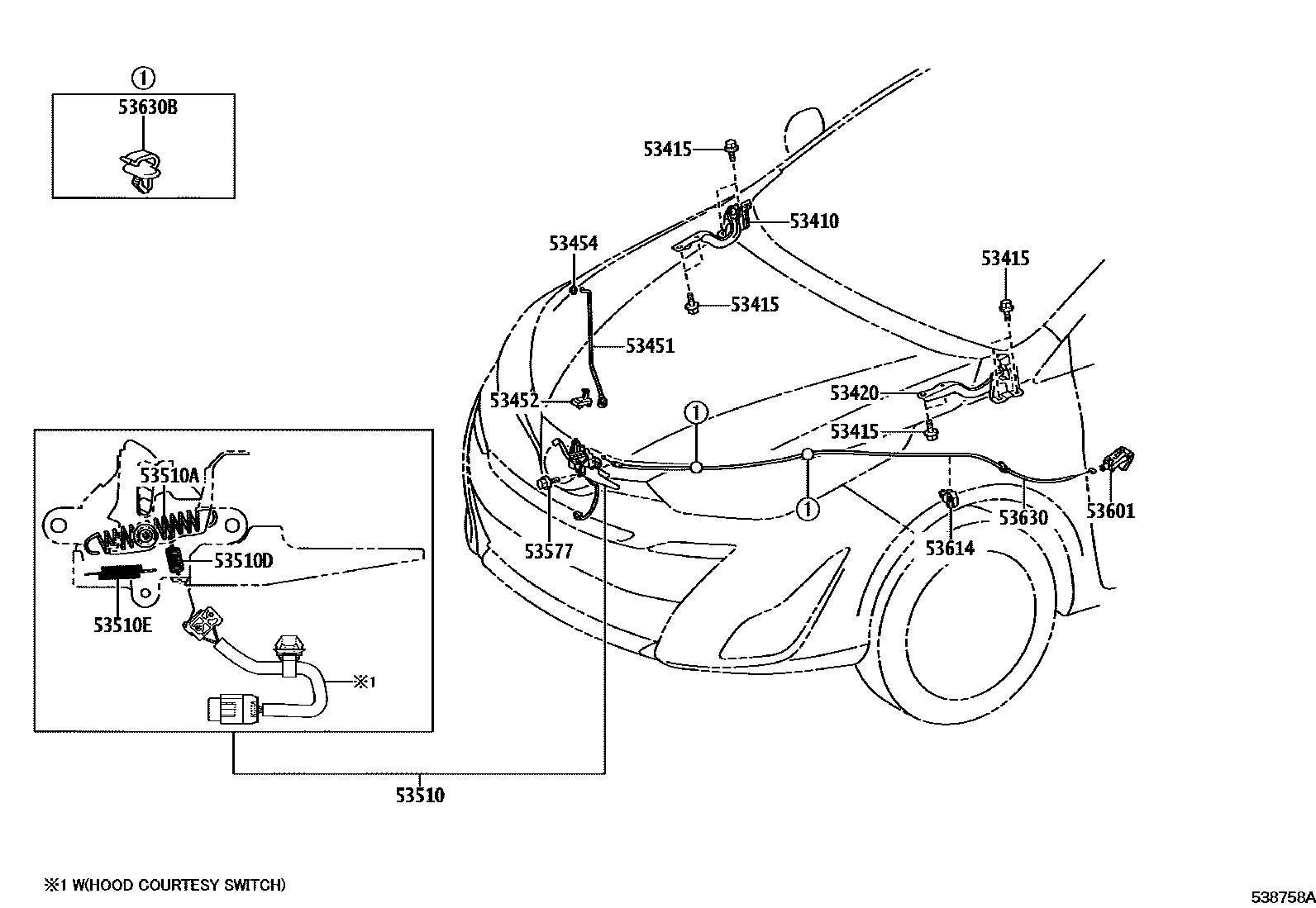

Toyota YARIS EPC diagram 5303, 发动机盖锁和铰链, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-0D400 · 53410-0D820 |
| 53415 | Engine cover hinge bolts | 90105-T0120 |
| 53420 | Engine cover left hinge assembly | 53420-0D400 · 53420-0D820 |
| 53451 | Engine cover support rod | 53440-0D220 · 53440-0D280 |
| 53452 | Engine cover stay rod fixing | 53452-0D090 |
| 53454 | Engine cover support rod clip | 90480-T0009 |
| 53510 | Engine cover lock assembly | 53510-0D600 · 53510-0D770 · 53510-0D790 · 53510-0D800 · 53510-0D830 · 53510-0D850 · 53510-0D860 · 53510-0DA90 |
| 53510A | Tension spring (for hood lock) | 90506-16077 |
| 53510D | Tension spring (for hood lock) | 90506-T0004 |
| 53510E | Tension spring (for hood lock) | 90506-T0005 |
| 53577 | engine cover lock bolt | 90119-T0273 |
| 53614 | Engine hood lock control cable clip | 82711-16790 |
| 53630 | Engine hood lock control cable assembly | 53630-0D340 · 53630-0D380 · 53630-0D390 |
| 53630B | Clip (for hood lock control cable) | 90469-06005 |
