Toyota YARIS radiator grille — Figure 5301

Toyota YARIS EPC diagram 5301, radiator grille, with 3 images and 12 PNC and OE references.

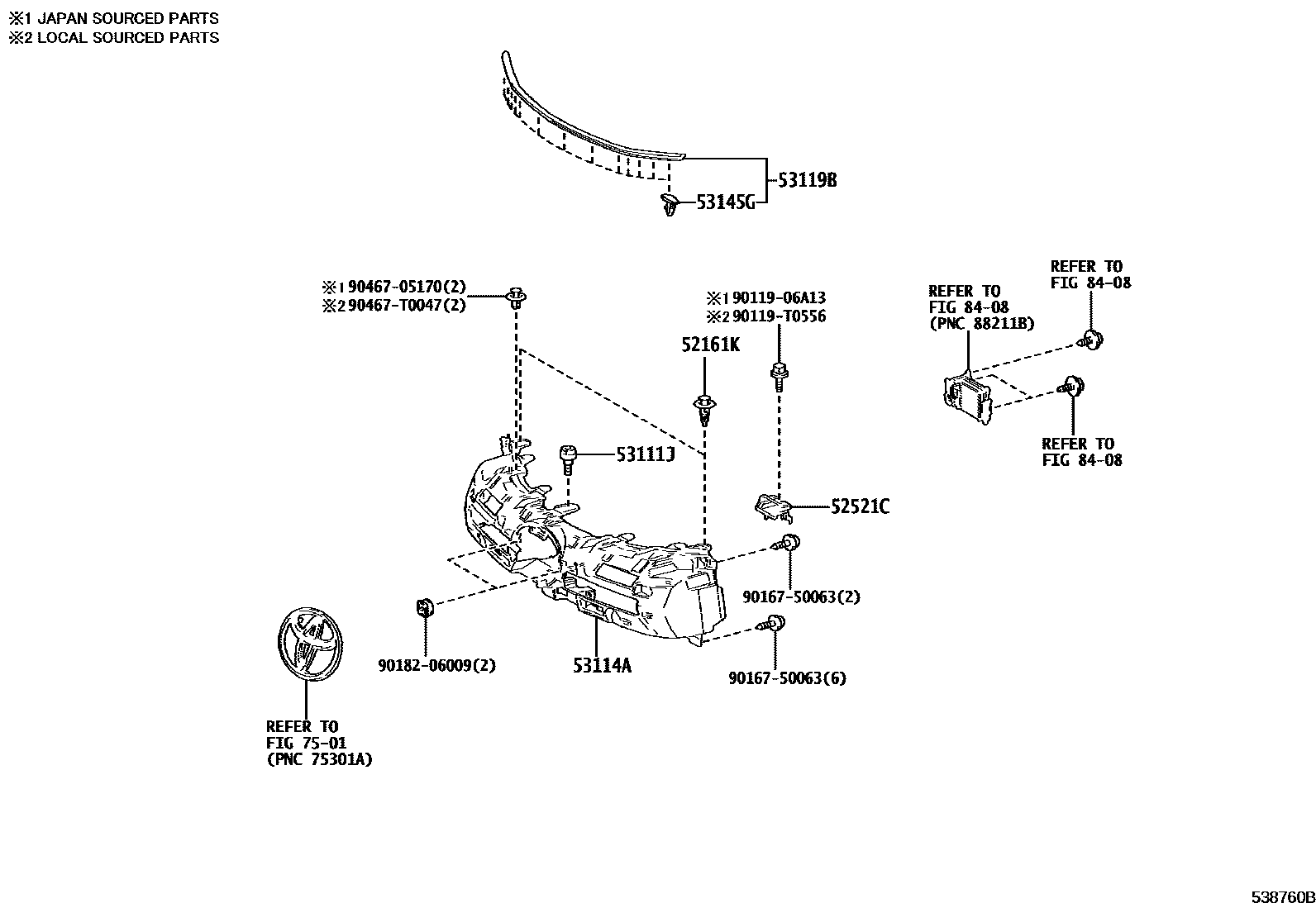

Toyota YARIS radiator grille EPC diagram — 538760B
radiator grille — 538760B (202303 – 999999)

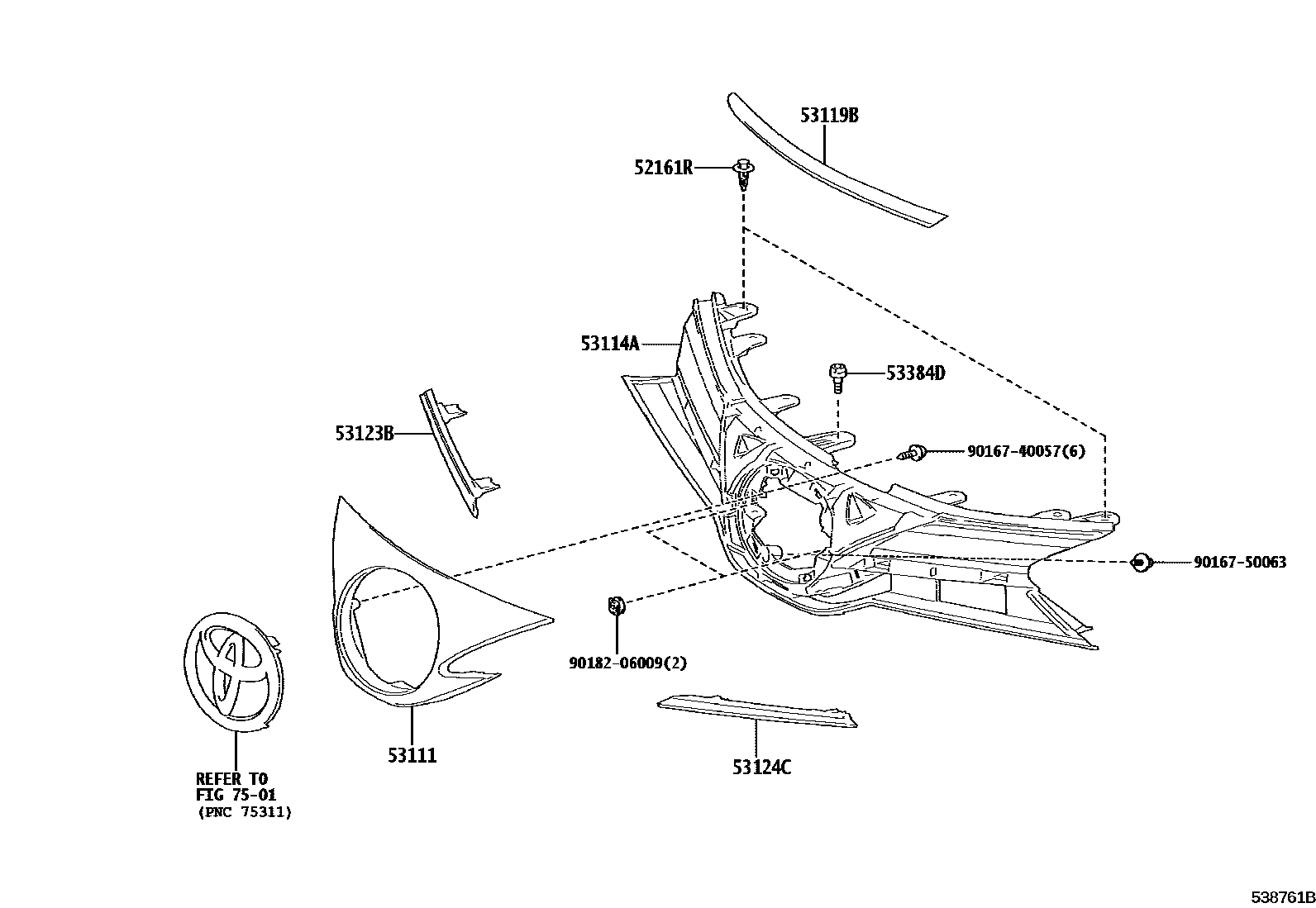

Toyota YARIS radiator grille EPC diagram — 538761B
radiator grille — 538761B (202305 – 999999)

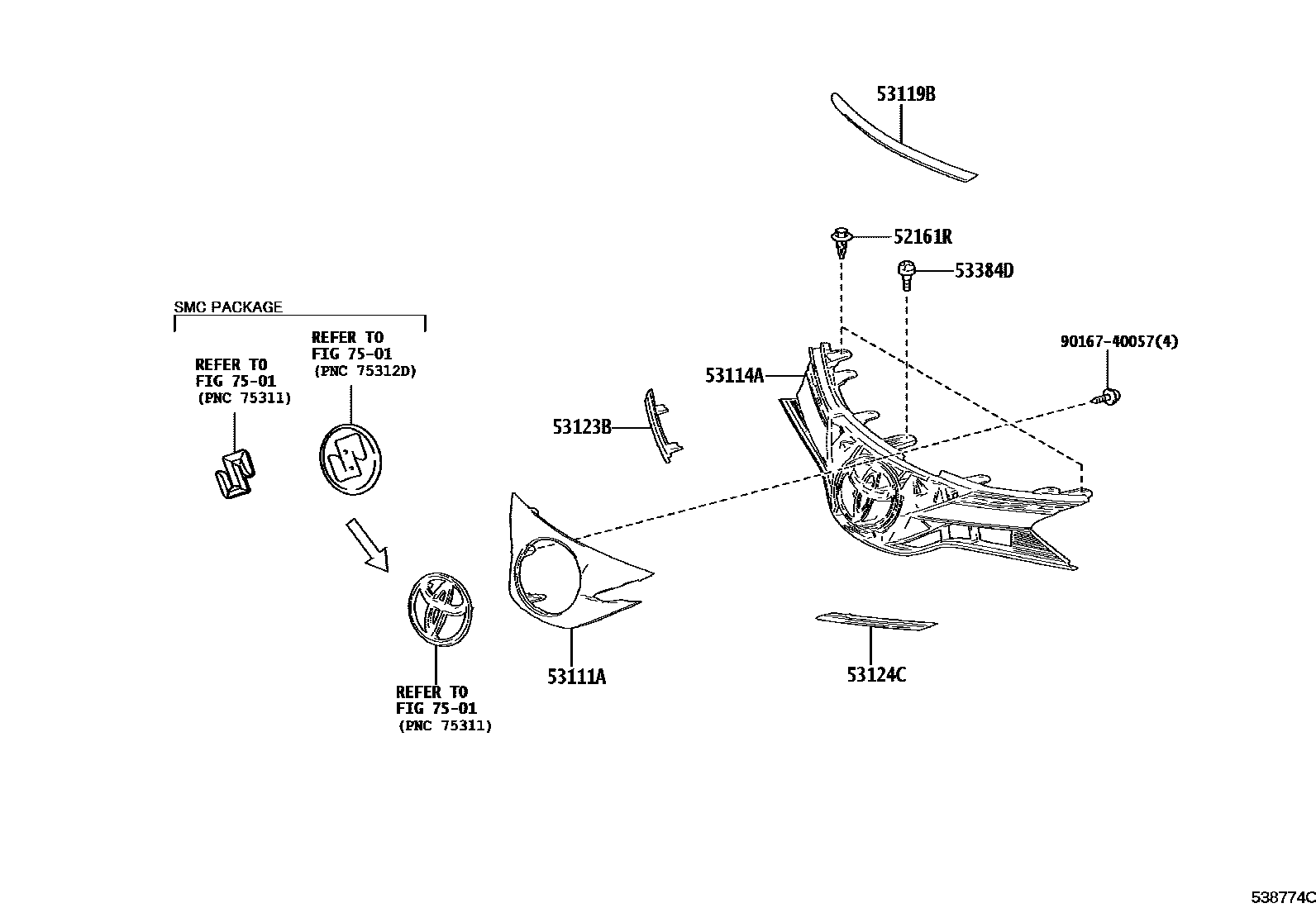

Toyota YARIS radiator grille EPC diagram — 538774C
radiator grille — 538774C (202303 – 999999)

PNC and OE references

PNCPart nameOE numbers
52161Kfront bumper insert52161-0K040
52161Rfront bumper insert52161-0K040
52521CFront bumper upper fixing bracket52521-YP010
53111radiator grille53111-YP906
53111ARadiator grille outside53111-0D912 · 53111-0D913 · 53111-0D916 · 53111-0DB40 · 53111-0DD20
53111JRadiator grille protector53119-12150
53114Ainner radiator grille53114-0D020 · 53114-0D030 · 53114-0D120 · 53114-YP050 · 53114-YP130 · 53114-YP160 · 53114-YP170
53119BRadiator grille protector53119-0D010 · 53119-0D020 · 53119-0D070 · 53119-YP030
53123BProtective strip on the right side of the radiator grille53123-0D050 · 53123-0D140 · 53123-0D260 · 53123-0D310 · 53123-0D390 · 53123-0D400 · 53123-YP240
53124CRadiator grille upper left protective strip53124-0D040 · 53124-0D130 · 53124-0D380 · 53124-0D430 · 53124-0D530 · 53124-0D540 · 53124-YP240
53145GRadiator grille clip53145-0K010
53384DEngine cover center cushion53119-12150
