Toyota YARIS 前保险杠及附件 — Figure 5201

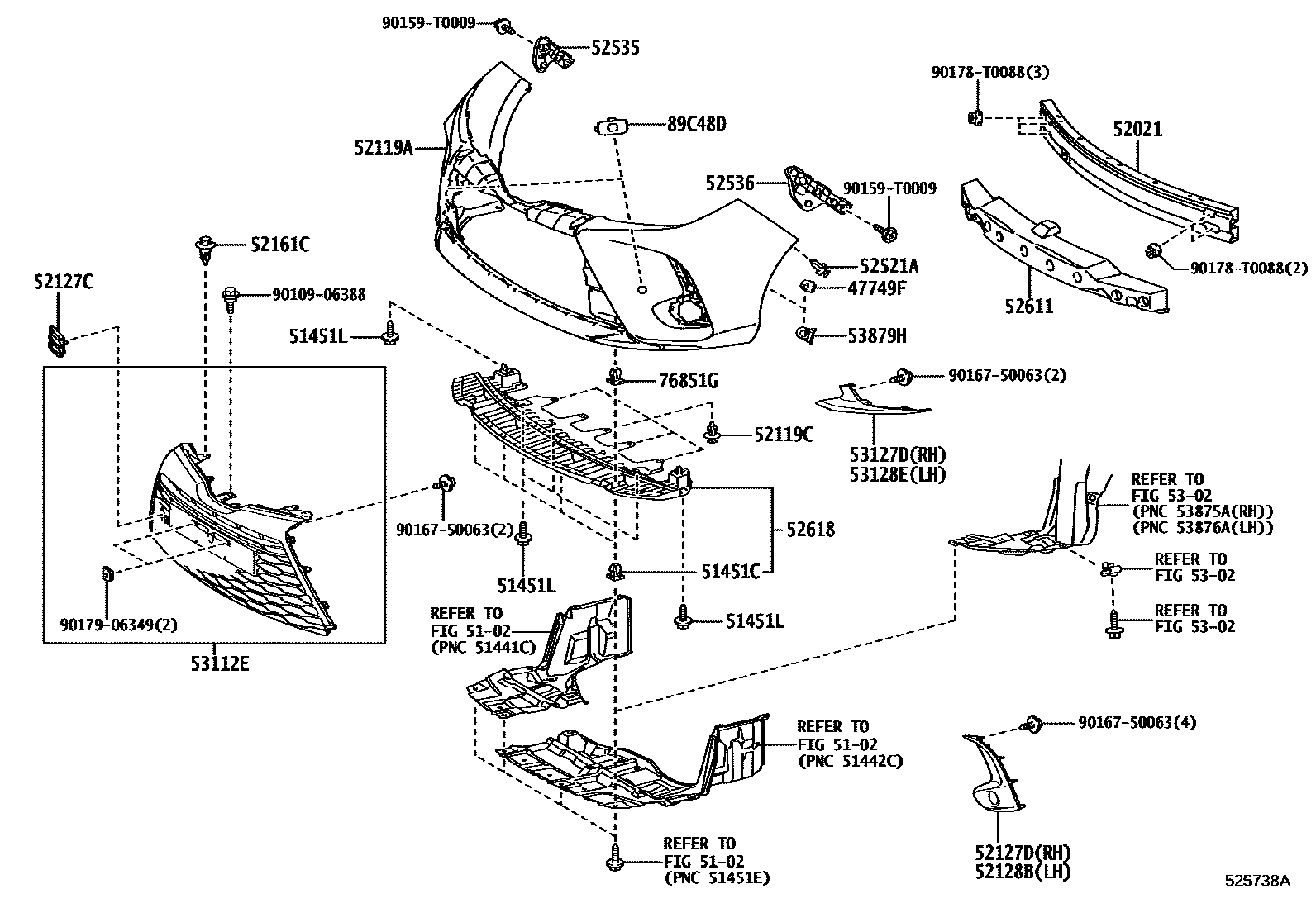

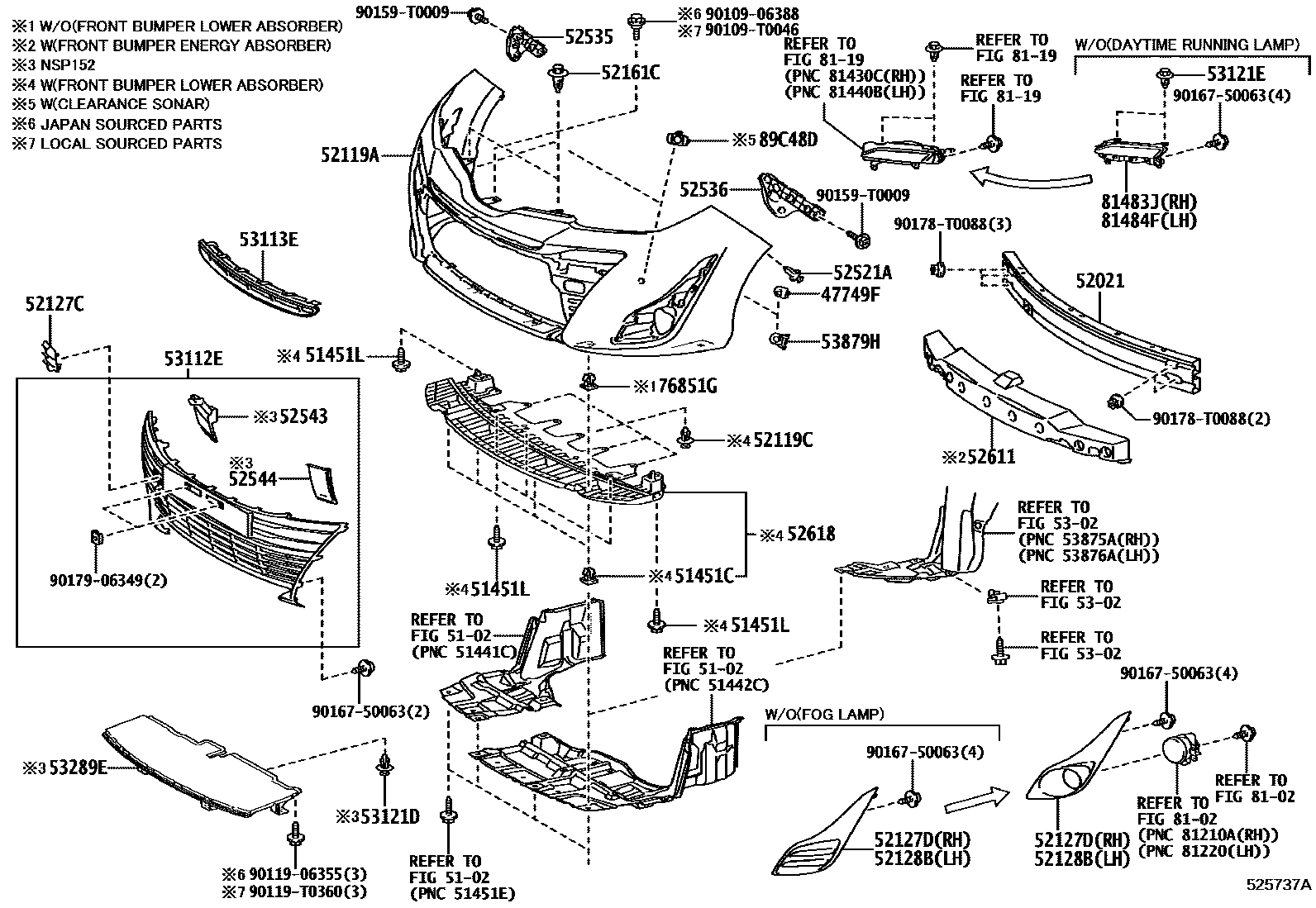

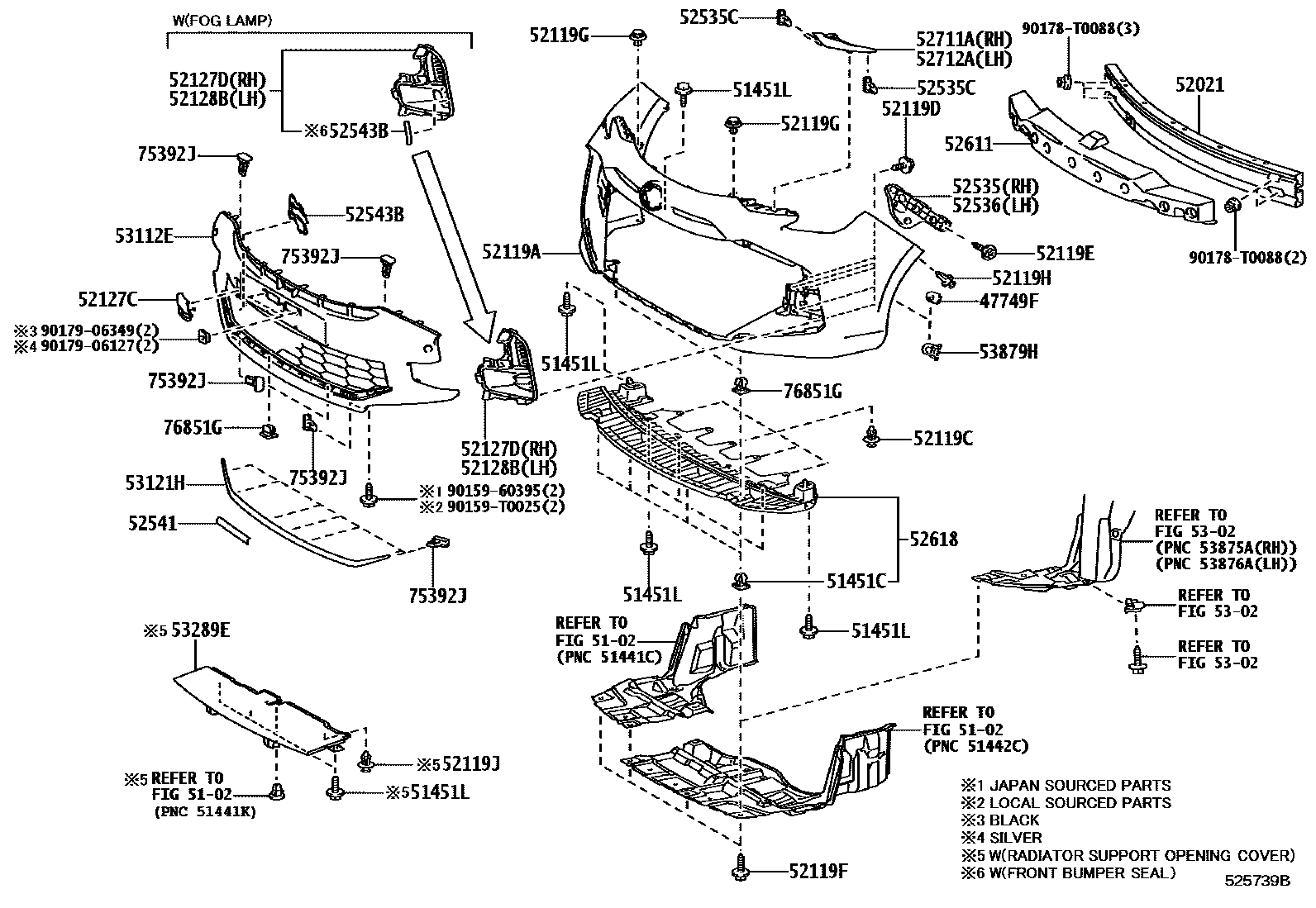

Toyota YARIS EPC diagram 5201, 前保险杠及附件, with 3 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749F | pin fixing clip | 47749-33030 |
| 51451C | Gasket (for engine underhood) | 90189-06237 · 90189-T0024 |
| 51451L | Bolt No. 1 | 90119-06355 · 90119-06A13 · 90119-T0360 · 90119-T0556 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-0D140 |
| 52119A | front bumper cover | 52119-0U932 · 52119-0U938 · 52119-0U939 · 52119-0U941 · 52119-0U948 · 52119-1K902 · 52119-YP932 · 52119-YP933 · 52119-YP976 · 52119-YP978 |
| 52119C | Front bumper cover clip | 90467-10216 · 90467-T0049 |
| 52119D | Screw No. 1 | 90167-50063 |
| 52119E | No. 2 screw | 90159-T0009 |
| 52119F | No. 3 screw | 90159-T0033 |
| 52119G | No. 1 clip | 90467-07215 · 90467-T0050 |
| 52119H | No. 2 clip | 90467-05170 · 90467-T0047 |
| 52119J | No. 3 clip | 90467-10216 · 90467-T0049 |
| 52127C | Front bumper hole cover | 52721-0D290 · 52721-0D300 · 52721-0D440 · 52721-0D450 · 52721-0D470 · 52721-1K901 · 52721-YP290 · 52721-YP320 · 52721-YP330 |
| 52127D | Front bumper right hole cover | 52030-YP160 · 52127-0DA80 · 52127-0DA90 · 52127-0DB70 · 52127-0DC10 · 52127-0DC40 · 52127-0DC50 · 52127-0DF80 · 52127-1K901 · 52127-YP390 · 52127-YP540 · 52127-YP590 · 52127-YP600 |
| 52128B | Front bumper left hole cover | 52040-YP160 · 52128-0D730 · 52128-0D740 · 52128-0D780 · 52128-0D820 · 52128-0D830 · 52128-0D840 · 52128-0DF10 · 52128-1K901 · 52128-YP390 · 52128-YP540 · 52128-YP590 · 52128-YP600 |
| 52161C | front bumper insert | 52161-0K040 |
| 52521A | Clip (for front bumper mount) | 90467-T0047 |
| 52535 | Front bumper right side fixing bracket | 52535-0D230 · 52535-0D330 |
| 52535C | Front bumper side fixing bracket | 52535-28020 |
| 52536 | Front bumper left fixed bracket | 52536-0D230 · 52536-0D330 |
| 52541 | front bumper protector | 52541-YP040 |
| 52543 | Front bumper right seal | 52543-0D070 |
| 52543B | front bumper seal | 52543-YP060 · 52543-YP090 |
| 52544 | Front bumper left seal | 52544-0D020 |
| 52611 | front bumper energy absorber | 52611-0D102 · 52611-0D181 |
| 52618 | Front bumper lower shock absorber | 52618-0D111 |
| 52711A | front bumper decorative panel | 53147-1K901 · 53147-YP030 · 53147-YP050 |
| 52712A | Front bumper left decorative panel | 53148-1K901 · 53148-YP030 · 53148-YP050 |
| 53112E | No. 1 radiator lower grille | 53112-0D660 · 53112-0D670 · 53112-0DA00 · 53112-0DA90 · 53112-0DB00 · 53112-0DB10 · 53112-1K901 · 53112-YP590 · 53112-YP610 · 53112-YP640 · 53112-YP650 · 53112-YP660 |
| 53113E | No. 2 radiator lower grille | 53113-0D020 · 53113-0D030 · 53113-0D060 · 53113-0D110 |
| 53121D | No. 2 clip (for front bumper) | 90467-10216 · 90467-T0049 |
| 53121H | Radiator grille No. 1 protective strip | 53121-YP260 · 53121-YP270 · 53121-YP300 |
| 53127D | Lower right radiator grille | 53127-YP110 |
| 53128E | Lower left radiator grille | 53128-YP110 |
| 53289E | Radiator bracket opening cover | 53289-0D220 · 53289-YP020 |
| 53879H | Front fender lining fixing parts | 53879-33030 |
| 75392J | External protective strip fixings | 75392-0K010 |
| 76851G | No. 1 screw seal | 90189-06237 · 90189-T0024 |
| 81483J | Right daytime running light cover | 81483-0D030 · 81483-0D150 · 81483-0D180 |
| 81484F | Left daytime running light cover | 81484-0D010 · 81484-0D130 · 81484-0D160 |
| 89C48D | Front angle ultrasonic sensor holder | 89348-06110 · 89348-0D030 |
