Toyota YARIS Front Drive Shaft — Figure 4302

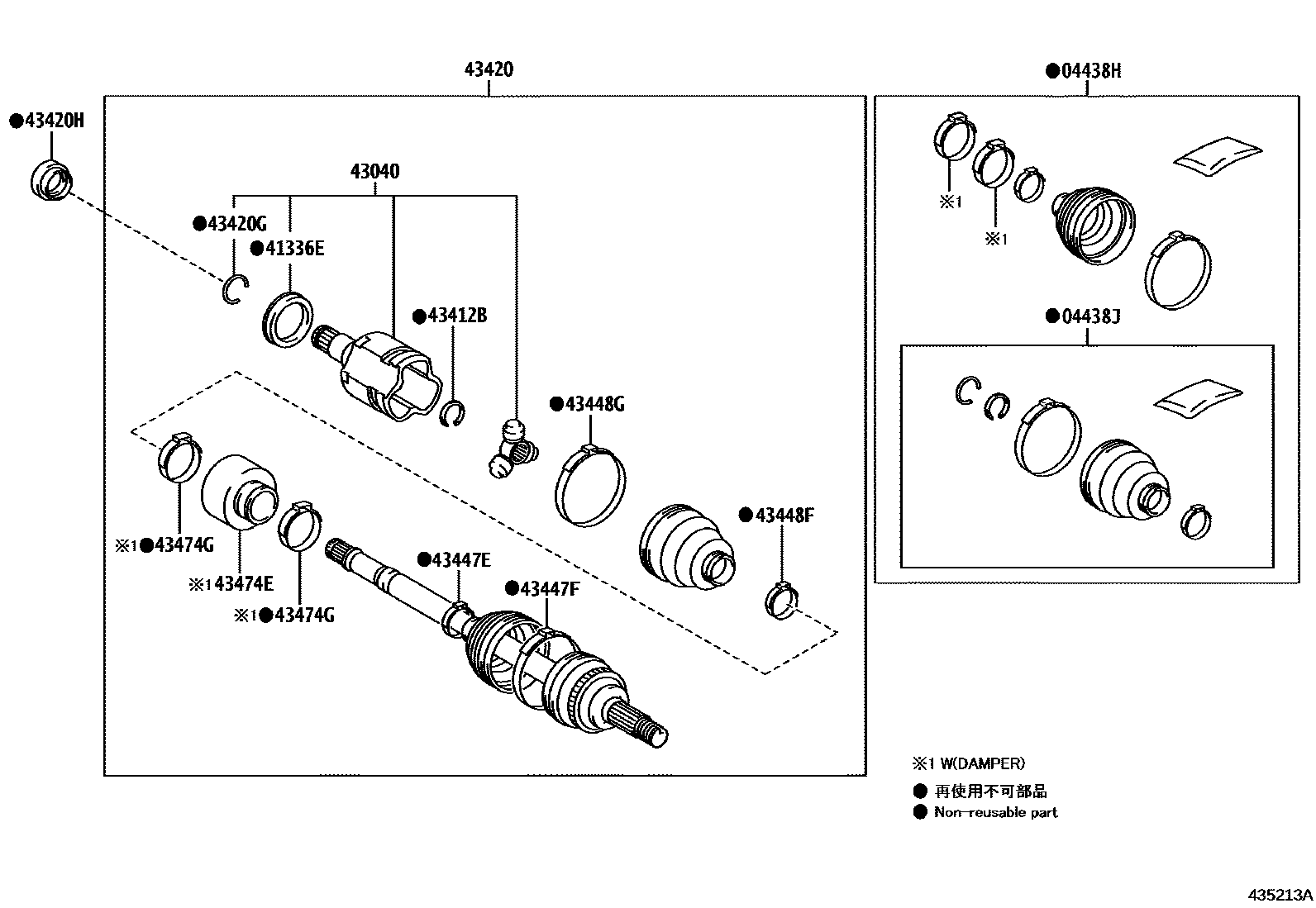

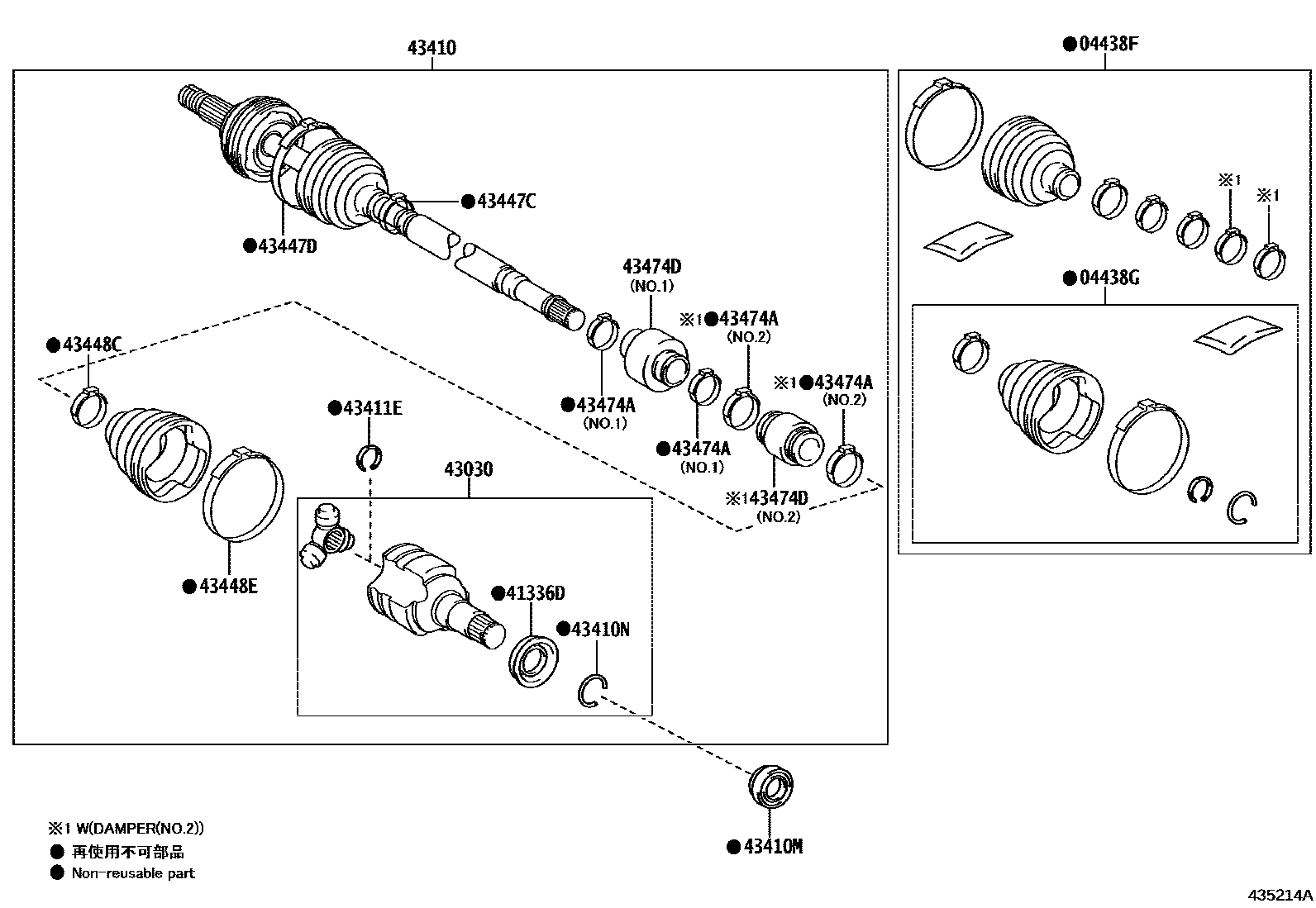

Toyota YARIS EPC diagram 4302, Front Drive Shaft, with 2 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-0D340 · 04427-0D351 · 04428-0D371 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-0D240 · 04437-0D250 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04428-0D320 · 04428-0D331 · 04428-0D371 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-0D240 · 04437-0D250 |
| 41336D | Right front driveshaft dust cover | 41336-0D040 · 41336-0D120 |
| 41336E | Left front driveshaft dust cover | 41336-0D040 · 41336-0D120 |
| 43030 | Right front drive shaft inner universal joint assembly | 43040-0D030 · 43040-0D040 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-0D030 · 43040-0D040 |
| 43410 | Right front driveshaft assembly | 43410-0D451 · 43410-0D570 · 43410-0D700 |
| 43410M | Front drive shaft right oil seal | 90311-34047 · 90311-34050 · 90311-T0104 |
| 43410N | Hole snap ring (for right front driveshaft) | 43425-0D130 · 43425-0D390 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-0D370 · 43425-0D380 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-0D370 · 43425-0D380 |
| 43420 | Left front drive shaft assembly | 43420-0D280 · 43420-0D441 · 43420-0D560 |
| 43420G | Hole snap ring (for left front driveshaft) | 43425-0D130 · 43425-0D390 |
| 43420H | Front drive shaft left oil seal | 90311-34044 · 90311-34057 · 90311-T0103 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-0DA10 · 42345-0DA70 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-0D680 · 42345-0DA80 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-0DA10 · 42345-0DA70 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-0D680 · 42345-0DA80 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-0D890 · 42345-0DA70 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-0D880 · 42345-0DA60 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-0D890 · 42345-0DA70 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-0D880 · 42345-0DA60 |
| 43474A | Clamp (for securing driveshaft damper) | 42345-0D890 · 42345-0DA50 · 42345-0DB40 |
| 43474D | Right front driveshaft shock absorber | 43474-0D140 · 43474-0D230 · 43474-0D290 · 43474-0D310 |
| 43474E | Left front driveshaft shock absorber | 43474-0D300 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-0DB40 |
