Toyota YARIS 前桥壳和差速器 — Figure 4301

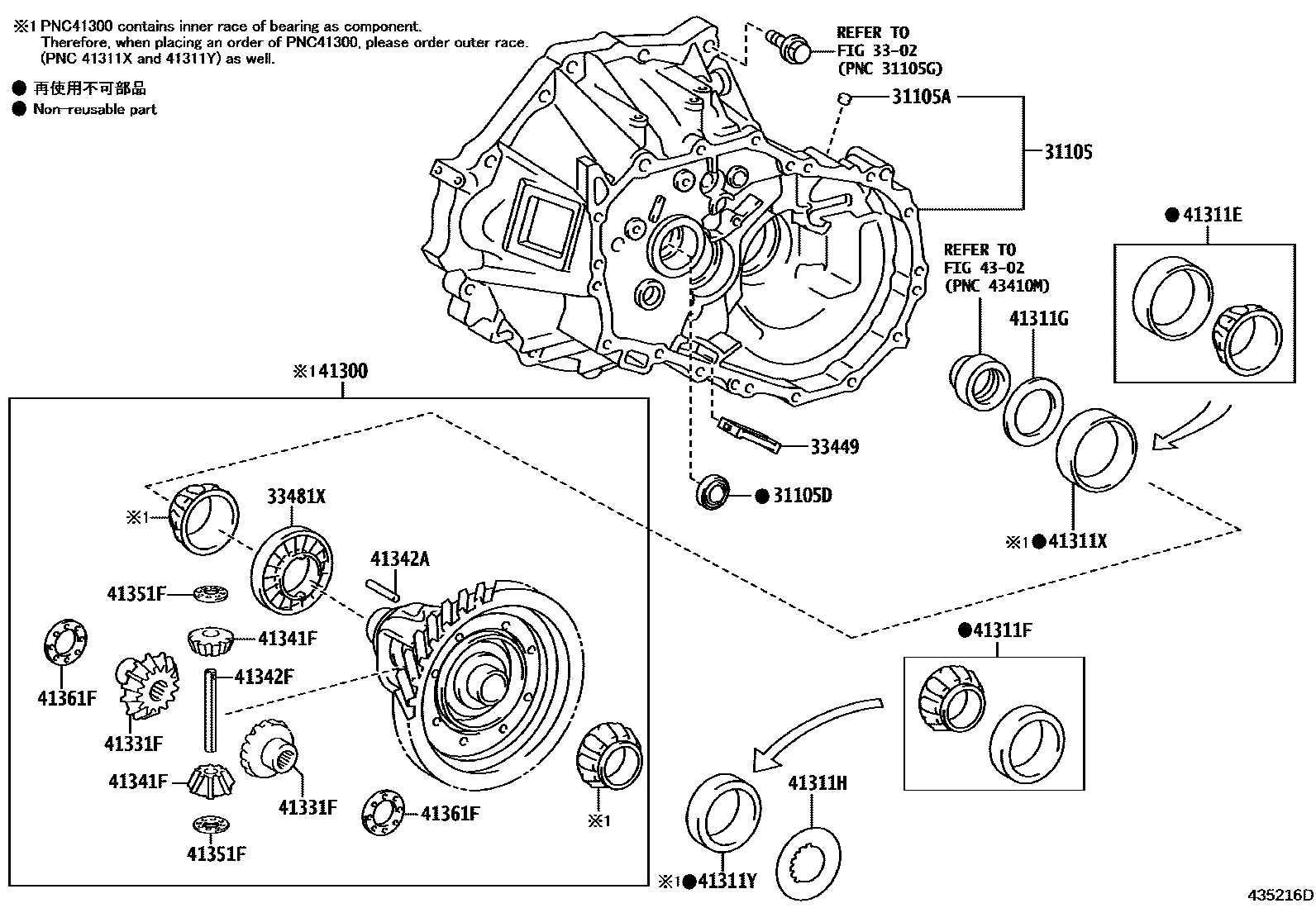

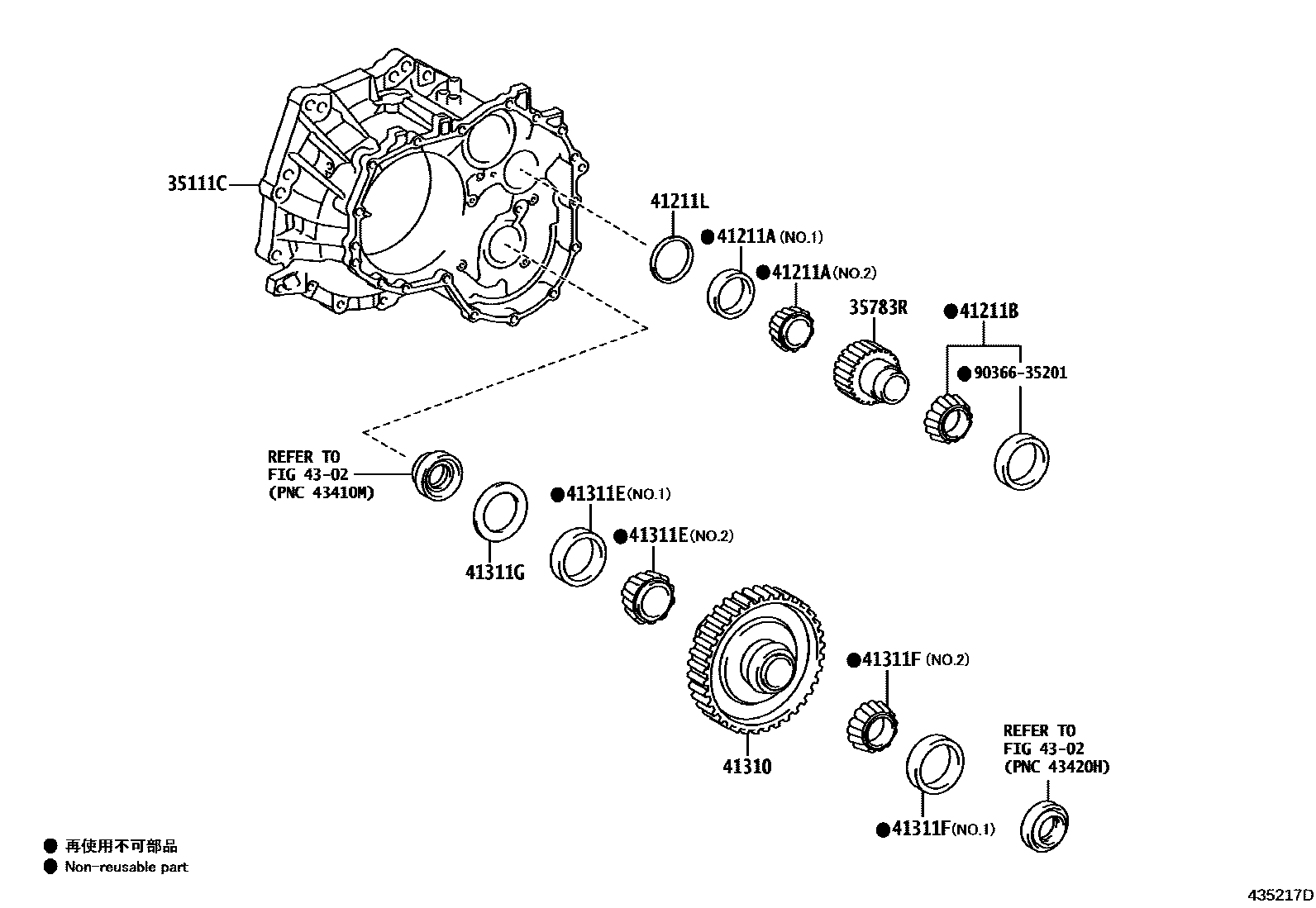

Toyota YARIS EPC diagram 4301, 前桥壳和差速器, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105 | Transmission axle housing sub-assembly (MTM) | 31105-0D080 |
| 31105A | Sealing plug (for front transaxle housing) | 90331-08002 |
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-T0078 |
| 33449 | derailleur magnet | 33449-12020 |
| 33481X | speedometer drive gear | 33481-12040 |
| 35111C | Transmission axle housing | 35105-52280 |
| 35783R | countershaft driven gear | 35705-52110 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90366-24002 · 90366-24003 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90366-35200 |
| 41211L | Spacer (for differential drive pinion) | 90564-43016 · 90564-43017 · 90564-43018 · 90564-43019 · 90564-43020 · 90564-43021 · 90564-43022 · 90564-43023 · 90564-43024 · 90564-43025 · 90564-43026 · 90564-43027 · 90564-43028 · 90564-43029 · 90564-43030 · 90564-43031 · 90564-43032 · 90564-43033 · 90564-43034 · 90564-43035 · 90564-43036 · 90564-43037 · 90564-43038 · 90564-43039 · 90564-43040 · 90564-43041 · 90564-43042 · 90564-43043 · 90564-43044 · 90564-43045 · 90564-43046 · 90564-43047 · 90564-43048 · 90564-43049 · 90564-43050 · 90564-43051 · 90564-43052 · 90564-43053 · 90564-43054 · 90564-43055 · 90564-43056 |
| 41300 | Front differential case assembly with ring gear | 41300-0D110 · 41300-0D120 · 41300-0D140 · 41300-0D150 |
| 41310 | Differential case assembly | 41310-52040 |
| 41311E | Roller cone bearing (for front differential housing) | 90366-38064 · 90366-38065 · 90366-T0087 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-38061 · 90366-38062 · 90366-T0086 |
| 41311G | Front flat washer (for front differential case) | 90560-41003 · 90564-42123 · 90564-42124 · 90564-42125 · 90564-42126 · 90564-42127 · 90564-42128 · 90564-42129 · 90564-42130 · 90564-42131 · 90564-42132 · 90564-42133 · 90564-42134 · 90564-42135 · 90564-42136 · 90564-42137 · 90564-42138 · 90564-42139 · 90564-42140 · 90564-42141 · 90564-42142 · 90564-42143 · 90564-42144 · 90564-42145 · 90564-42146 · 90564-42147 · 90564-42148 · 90564-42149 · 90564-42150 · 90564-42151 · 90564-42152 · 90564-42153 · 90564-42154 · 90564-42155 · 90564-42156 · 90564-42157 · 90564-42158 · 90564-42159 · 90564-42160 · 90564-42161 · 90564-42162 · 90564-42163 · 90564-42164 · 90564-42165 · 90564-42166 · 90564-42167 |
| 41311H | Rear flat washer (for front differential case) | 90564-41014 · 90564-41015 · 90564-41016 · 90564-41017 · 90564-41018 · 90564-41019 · 90564-41020 · 90564-41021 · 90564-41022 · 90564-41023 · 90564-41024 · 90564-41025 · 90564-41026 · 90564-41027 · 90564-41028 · 90564-41029 · 90564-41030 · 90564-41031 · 90564-41032 |
| 41311X | Roller cone bearing outer race (for front differential) | 90366-T0089 |
| 41311Y | Roller cone bearing outer race (for rear differential) | 90366-T0088 |
| 41331F | Front differential side gear | 41331-12011 |
| 41341F | Front differential planetary gear | 41341-12030 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-0D030 |
| 41351F | Front differential planetary gear thrust washer | 41351-12020 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-22020 · 41361-22030 · 41361-22040 · 41361-22140 · 41361-22150 · 41361-22160 |
