Toyota YARIS 车轮和车轮盖 — Figure 4103

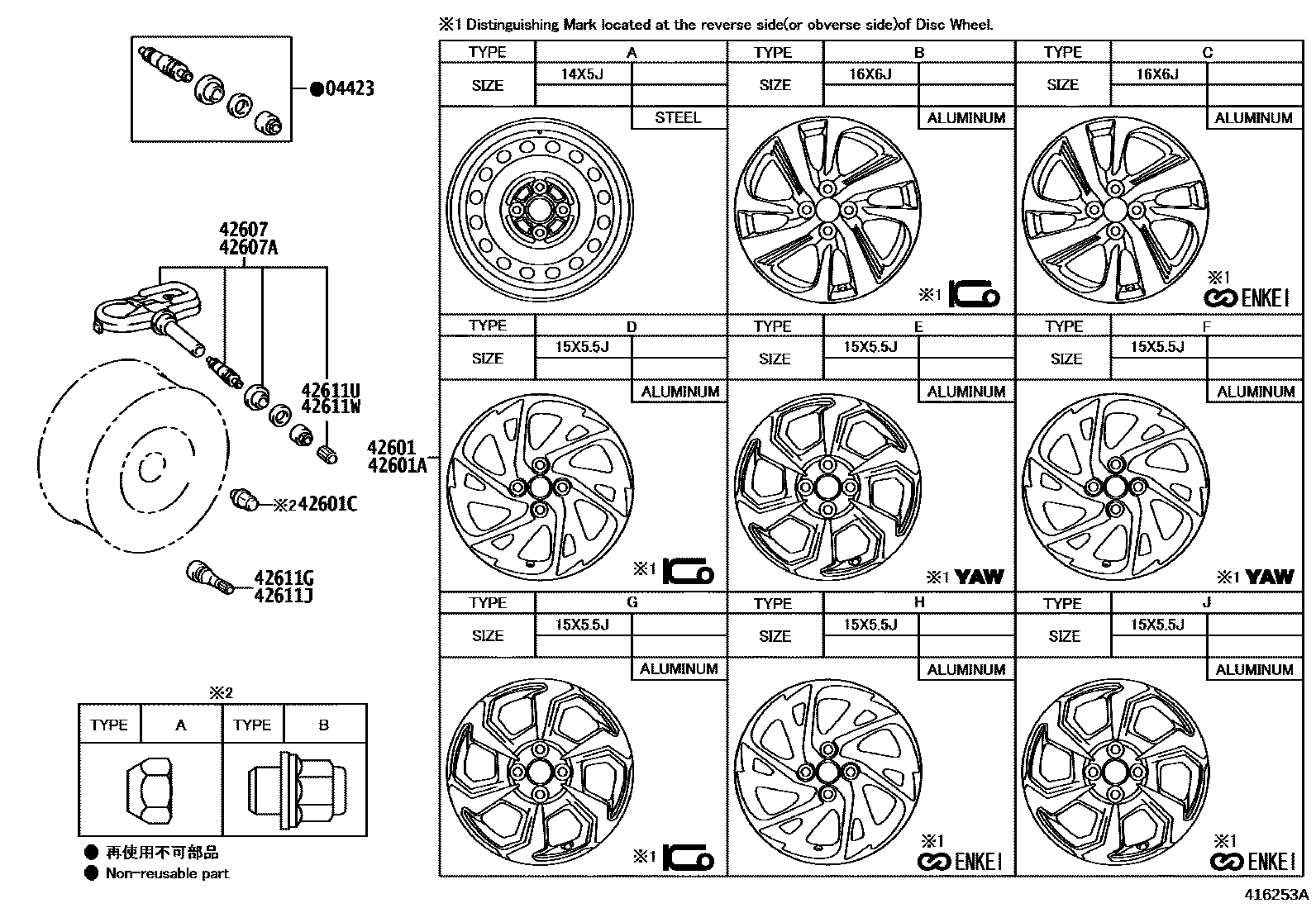

Toyota YARIS EPC diagram 4103, 车轮和车轮盖, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-33060 |

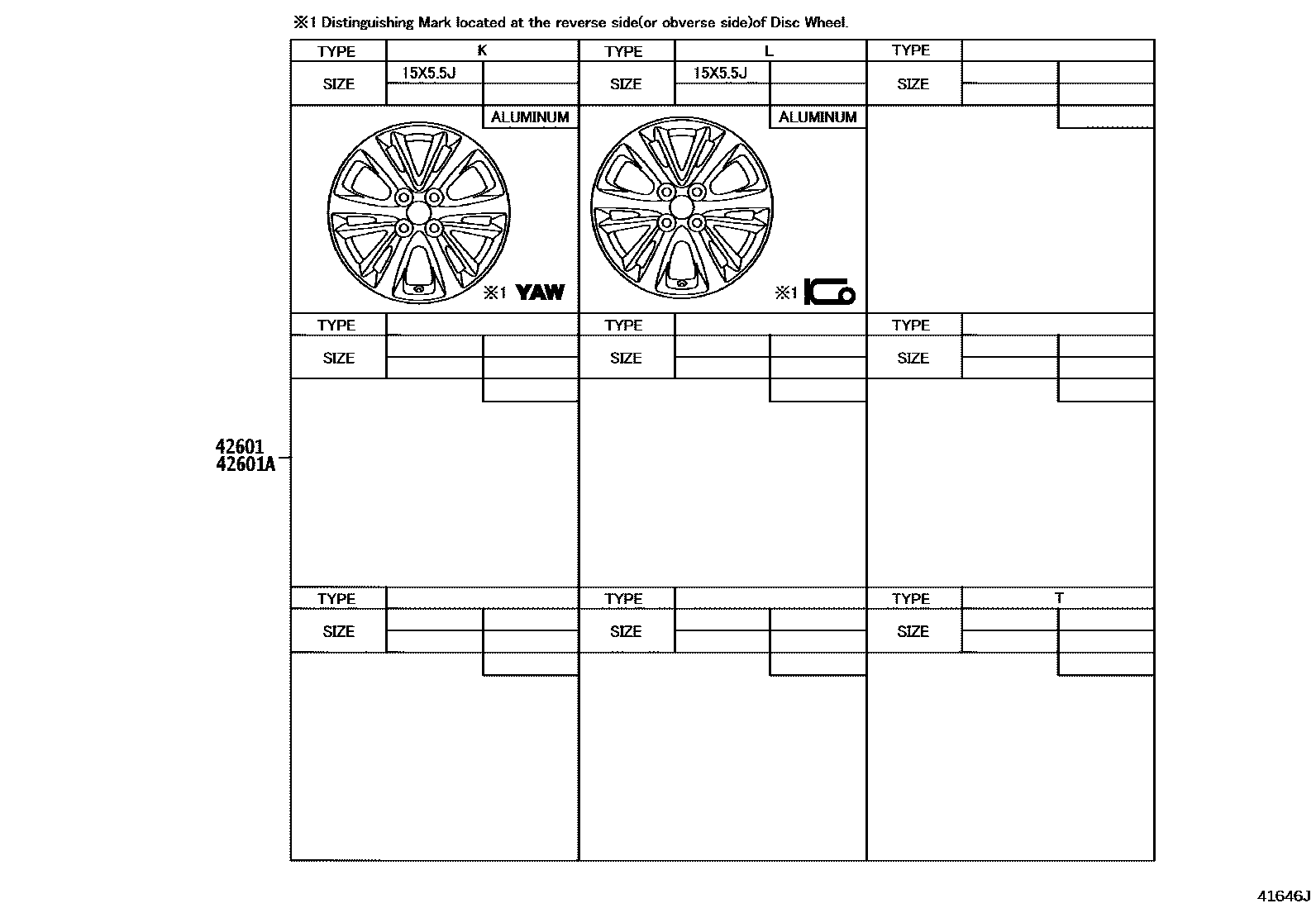

| 42601 | spoke wheel | 42611-0D691 · 42611-0D751 · 42611-0DE20 · 42611-0DE80 · 42611-0DE90 · 42611-0DF50 · 42611-0DF90 · 42611-0DL70 · 42611-0DL80 · 42611-0DM30 · 42611-YP470 · 42611-YP480 · 42611-YP490 |
| 42601A | Spoke wheel (for spare tire) | 42611-0D691 · 42611-0D751 · 42611-0DE20 · 42611-0DF50 · 42611-0DF90 · 42611-0DL70 · 42611-0DL80 · 42611-0DM30 · 42611-YP470 · 42611-YP480 · 42611-YP490 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01033 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-0D200 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-52040 · 42607-52050 |
| 42607A | Tire pressure monitoring valve sub-assembly (for spare tire) | 42607-52040 · 42607-52050 |
| 42611G | Valve (for tubeless tires) | 90080-94031 · 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90080-94031 · 90942-05009 |
| 42611U | tire valve cover | 90942-05039 |
| 42611W | Tire valve cap (for spare tire) | 90942-05039 |
| 42621 | wheel cover | 42602-0D380 · 42602-0D400 · 42602-0D420 · 42602-0D430 |
