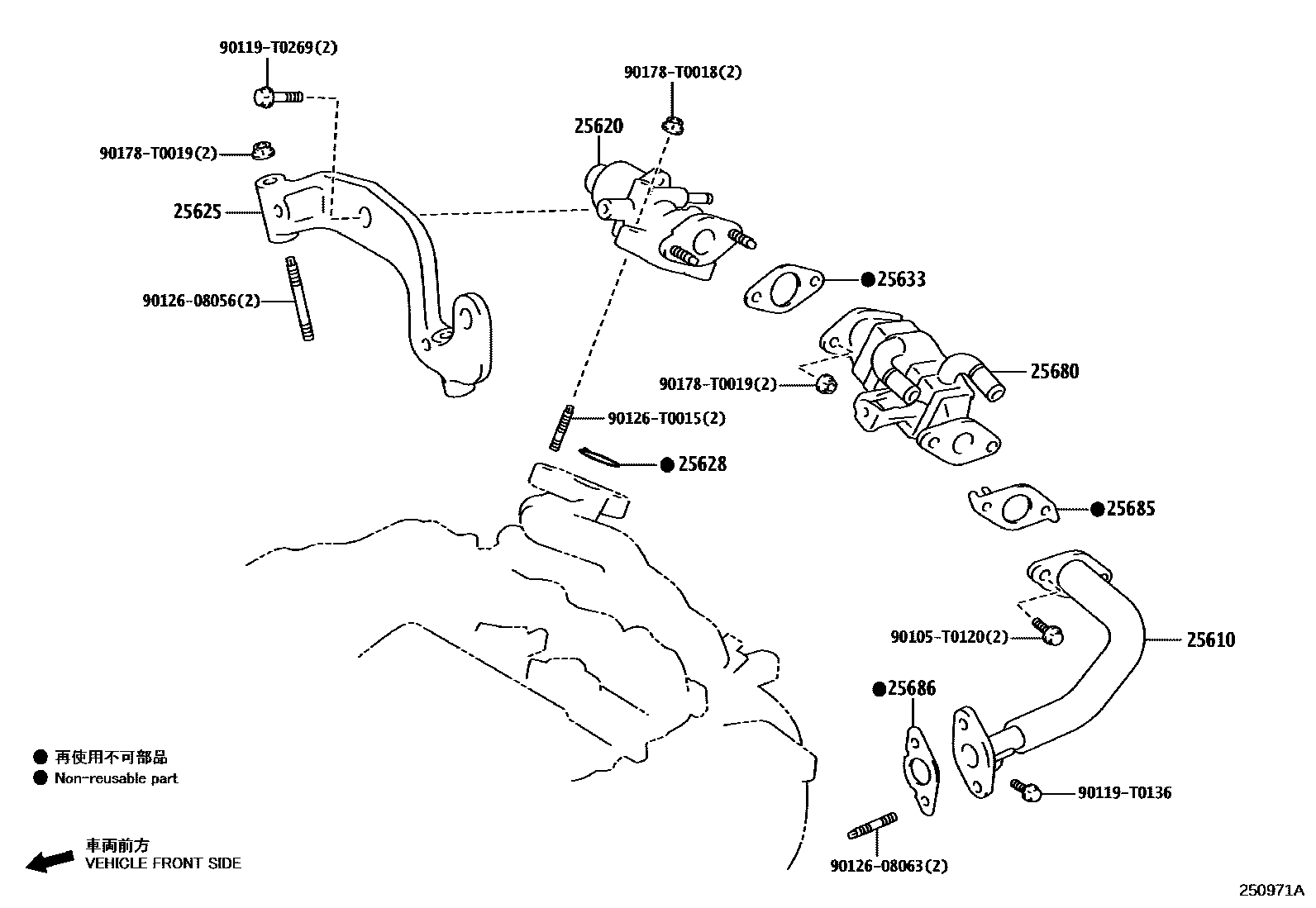

Toyota YARIS 废气再循环系统 — Figure 2501
Toyota YARIS EPC diagram 2501, 废气再循环系统, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25610 | EGR tube assembly | 25610-0Y040 |
| 25620 | EGR valve assembly | 25620-47060 |
| 25625 | EGR valve bracket | 25625-0Y040 |
| 25628 | EGR air intake gasket | 25628-0Y010 |
| 25633 | EGR valve gasket | 25633-0Y030 |
| 25680 | EGR cooler assembly | 25680-0Y010 |
| 25685 | No. 1 EGR Cooler Gasket | 25685-0Y050 |
| 25686 | No. 2 EGR Cooler Gasket | 25685-0Y060 |
