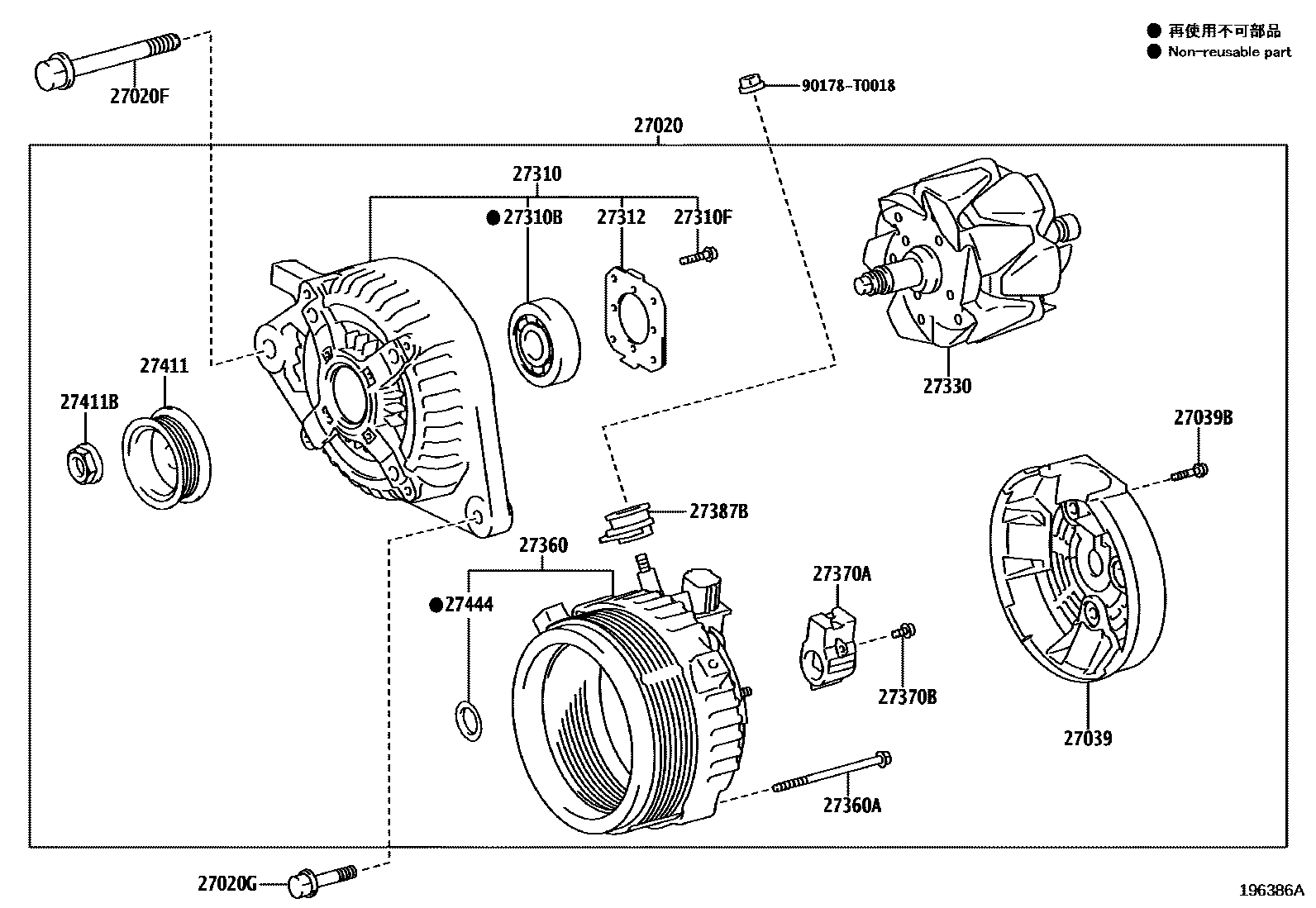

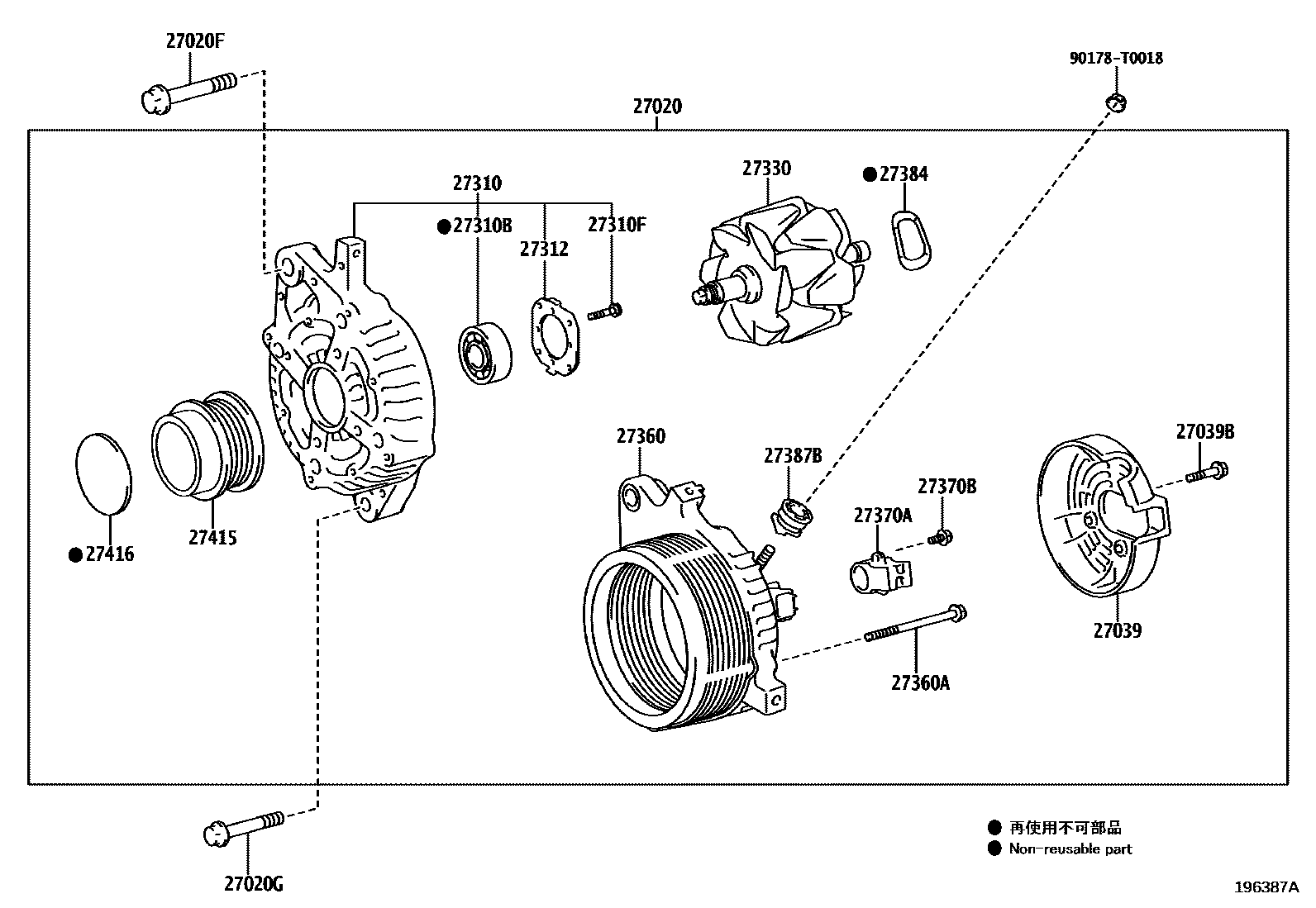

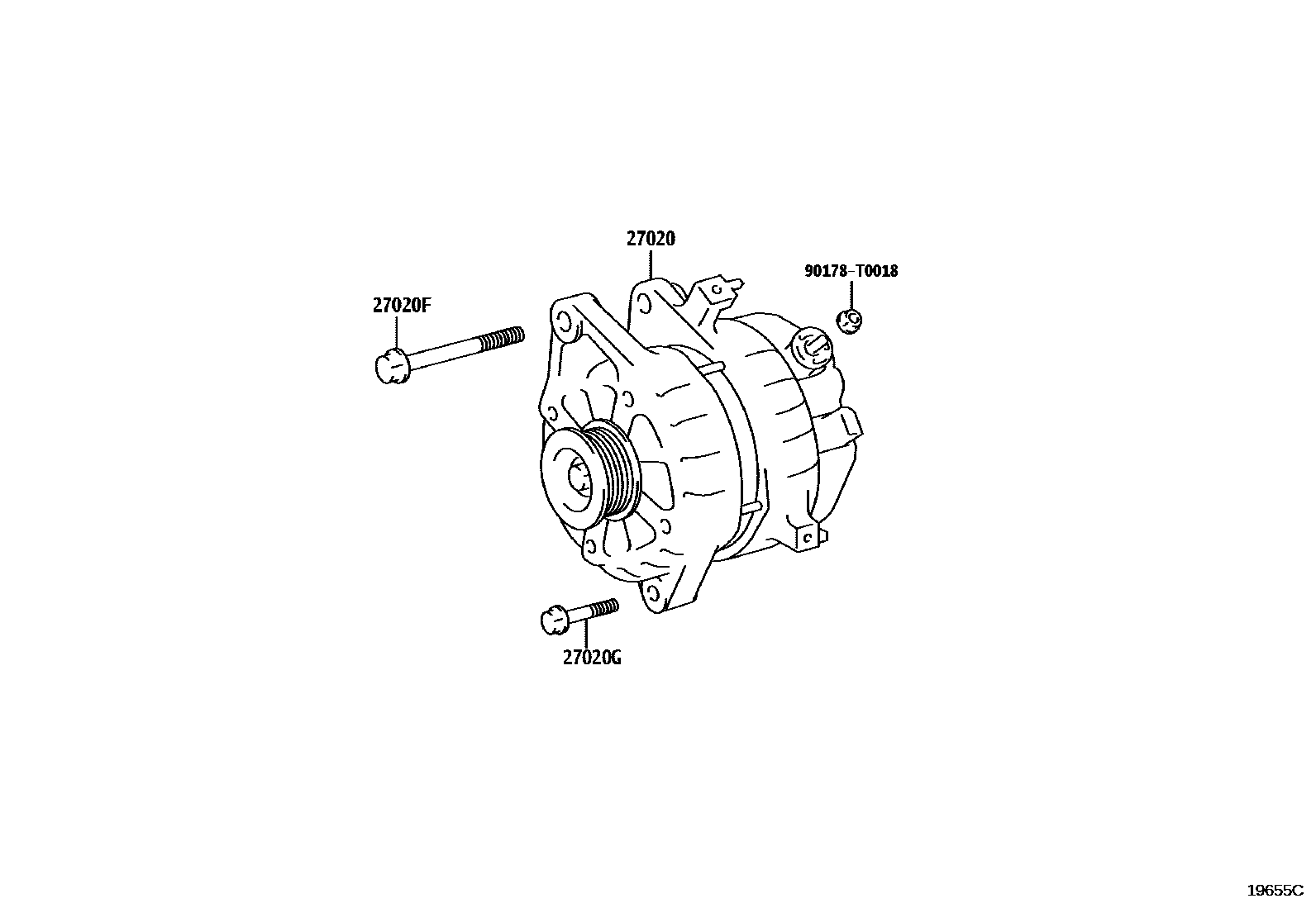

Toyota YARIS Alternator — Figure 1903
Toyota YARIS EPC diagram 1903, Alternator, with 3 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-0Y240 · 27060-0Y300 · 27060-0Y320 · 27060-0Y410 |
| 27020F | Bolt No. 1 (for generator) | 90105-T0172 |
| 27020G | Bolt No. 2 (for generator) | 90105-T0130 |
| 27039 | Alternator Rear End Cover | 27039-0M100 · 27039-0Y200 |
| 27039B | Bolts (for generator rear end cover) | 90068-04046 · 90068-04047 · 90099-04628 |
| 27310 | Alternator Drive End Frame Assembly | 27310-0Y180 · 27310-0Y190 · 27310-0Y380 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90068-10029 · 90068-10033 · 90068-10050 |
| 27310F | Screws (for generator drive end cover) | 90068-00022 · 90099-00268 |
| 27312 | Retainer Plate | 27312-0C020 |
| 27330 | Alternator Rotor Assembly | 27330-0M100 · 27330-0V220 |
| 27360 | Alternator Stator Coil Assembly | 27360-0Y280 · 27360-0Y380 |
| 27360A | Bolt (for generator coil) | 90068-04048 · 90099-04626 |
| 27370A | Alternator Brush Holder Assembly | 27370-0M040 · 27370-31220 |
| 27370B | Screws (for generator brush holder) | 90068-00023 · 90099-00197 |
| 27384 | Washer | 27384-38130 |
| 27387B | Generator terminal insulation pad | 27387-0C020 |
| 27411 | Alternator Pulley | 27411-0D200 |
| 27411B | Nut (for generator pulley) | 90068-05009 · 90099-05171 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-0Y120 |
| 27416 | Generator pulley cover | 27416-0W050 |
| 27444 | Generator bearing cap seals | 27444-0Y180 |
