Toyota YARIS Air Cleaner — Figure 1703

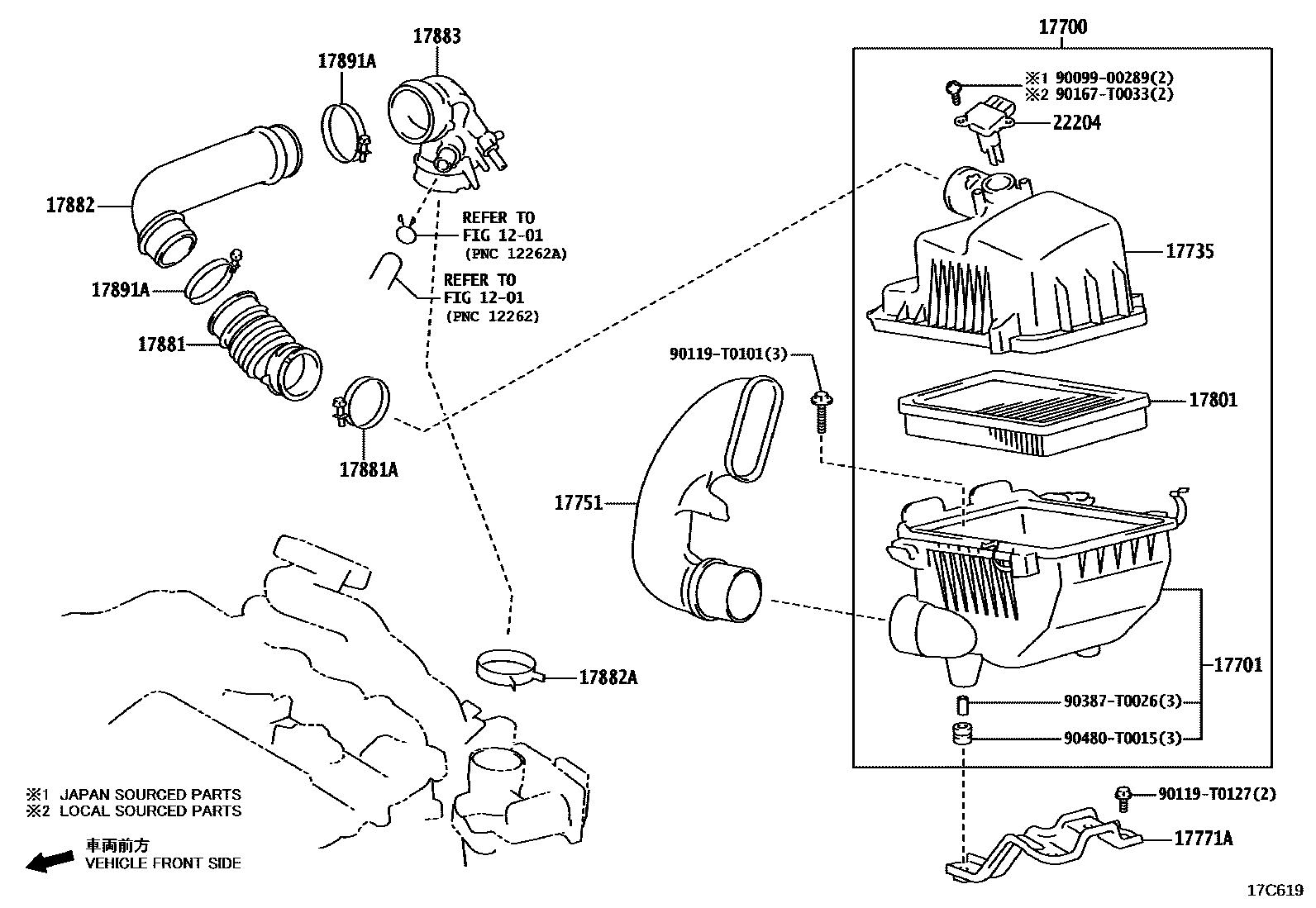

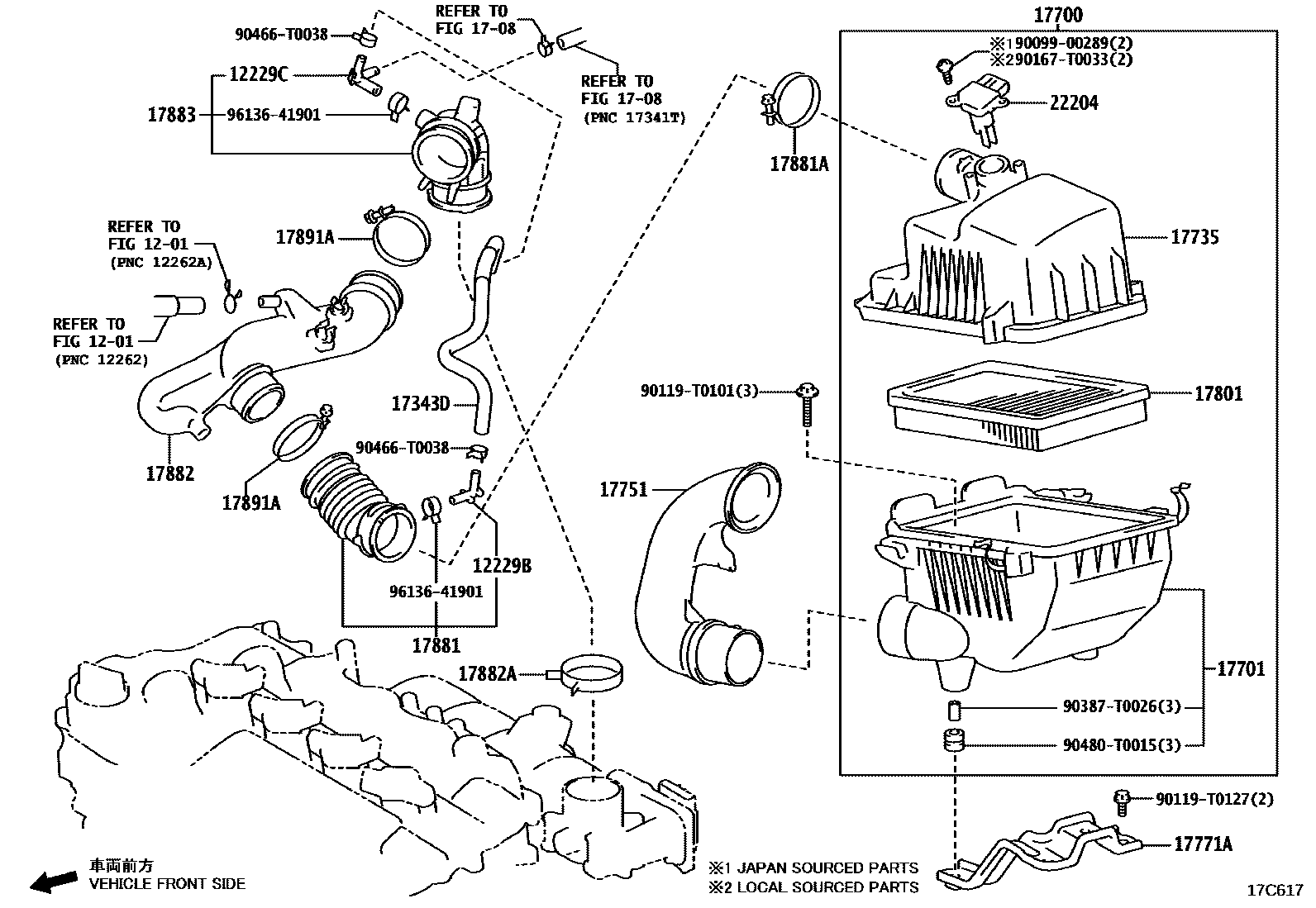

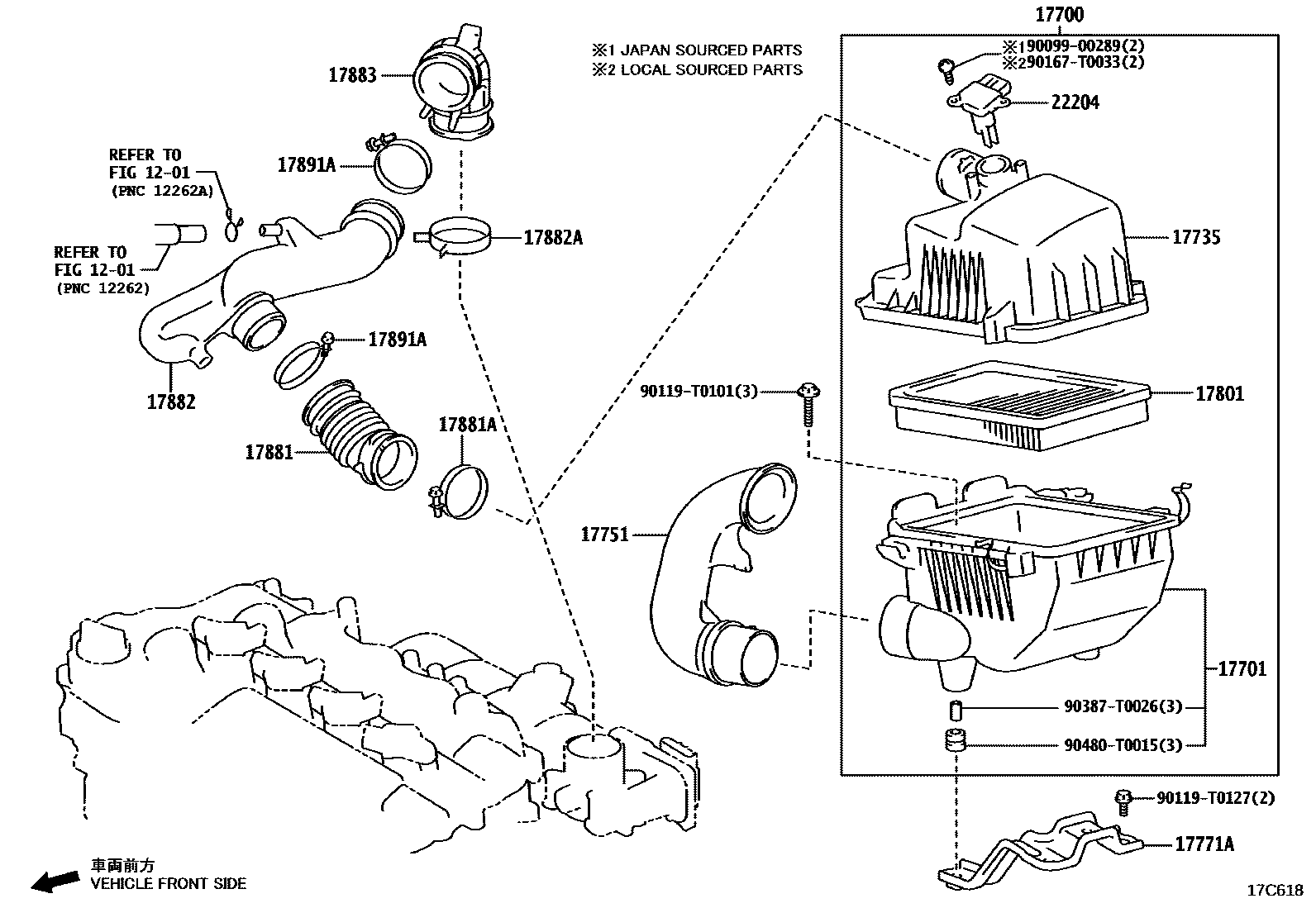

Toyota YARIS EPC diagram 1703, Air Cleaner, with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12229B | Ventilation duct No. 1 | 12229-0Y100 |
| 12229C | Ventilation duct No. 2 | 12229-0Y150 |
| 17343D | No. 3 air hose | 17343-0Y011 |
| 17700 | air filter assembly | 17700-0Y190 · 17700-0Y370 |
| 17701 | Air filter housing sub-assembly | 17701-0M070 · 17701-0Y270 |
| 17735 | air filter cover | 17735-0Y130 · 17735-0Y140 |
| 17751 | No. 1 air filter air inlet | 17751-0Y261 · 17751-0Y320 · 17751-0Y330 |
| 17771A | air filter bracket | 17771-0Y080 |
| 17801 | Air filter element sub-assembly | 17801-0Y040 |
| 17881 | No. 1 air cleaner hose | 17881-0Y160 · 17881-0Y240 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 90460-T0017 · 96111-10690 |
| 17882 | No. 2 air cleaner hose | 17882-0Y130 · 17882-0Y140 · 17882-0Y240 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90466-54002 · 90466-62002 |
| 17883 | No. 3 air cleaner hose | 17883-0Y031 · 17883-0Y041 · 17883-0Y190 |
| 17891A | Air filter hose clamp | 96111-10730 |
| 22204 | Intake air flow meter assembly | 22204-0V020 |
