Toyota YARIS Exhaust Pipe — Figure 1702

Toyota YARIS EPC diagram 1702, Exhaust Pipe, with 2 images and 5 PNC and OE references.

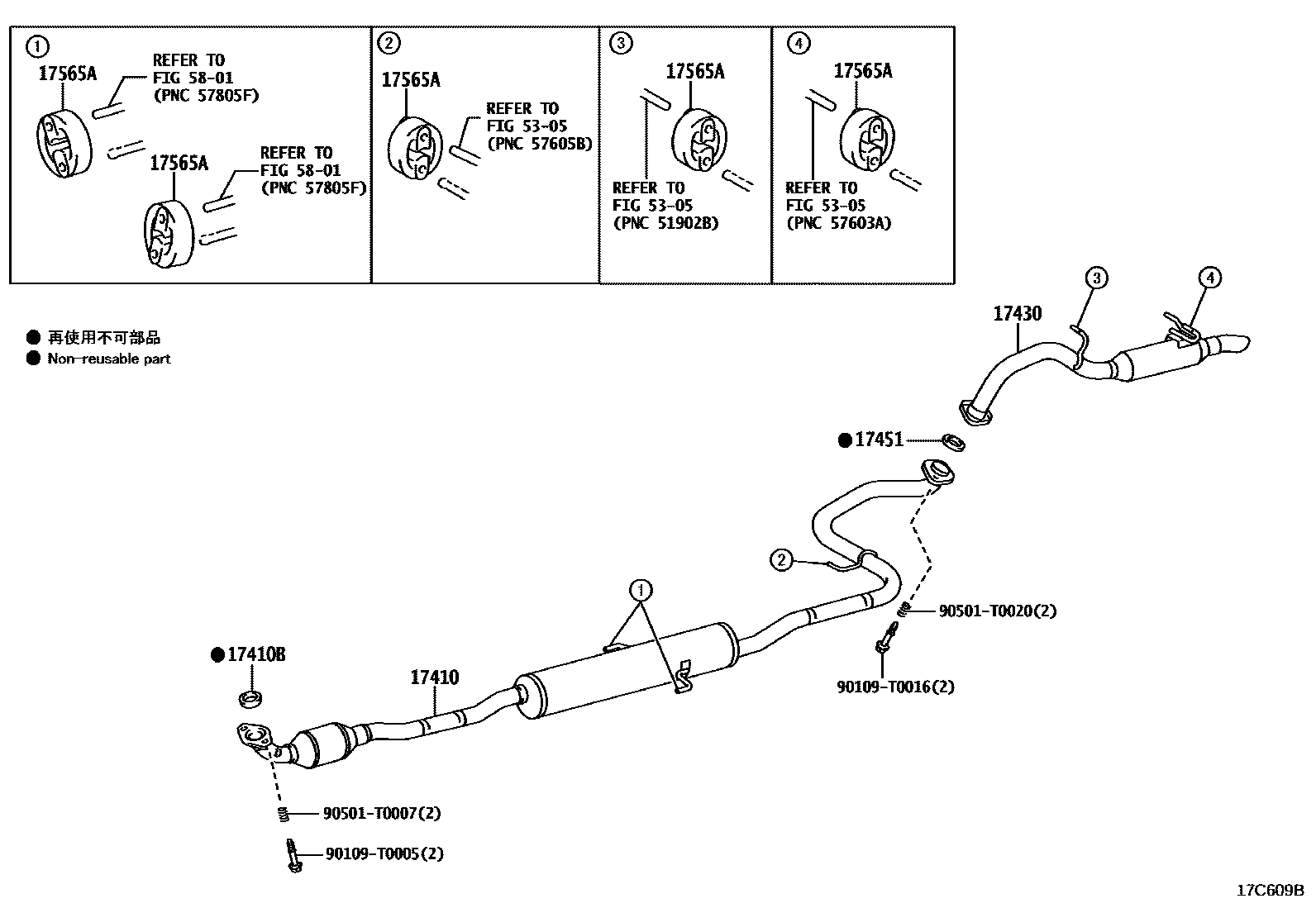

Toyota YARIS Exhaust Pipe EPC diagram — 17C609B
Exhaust Pipe — 17C609B (202303 – 999999)

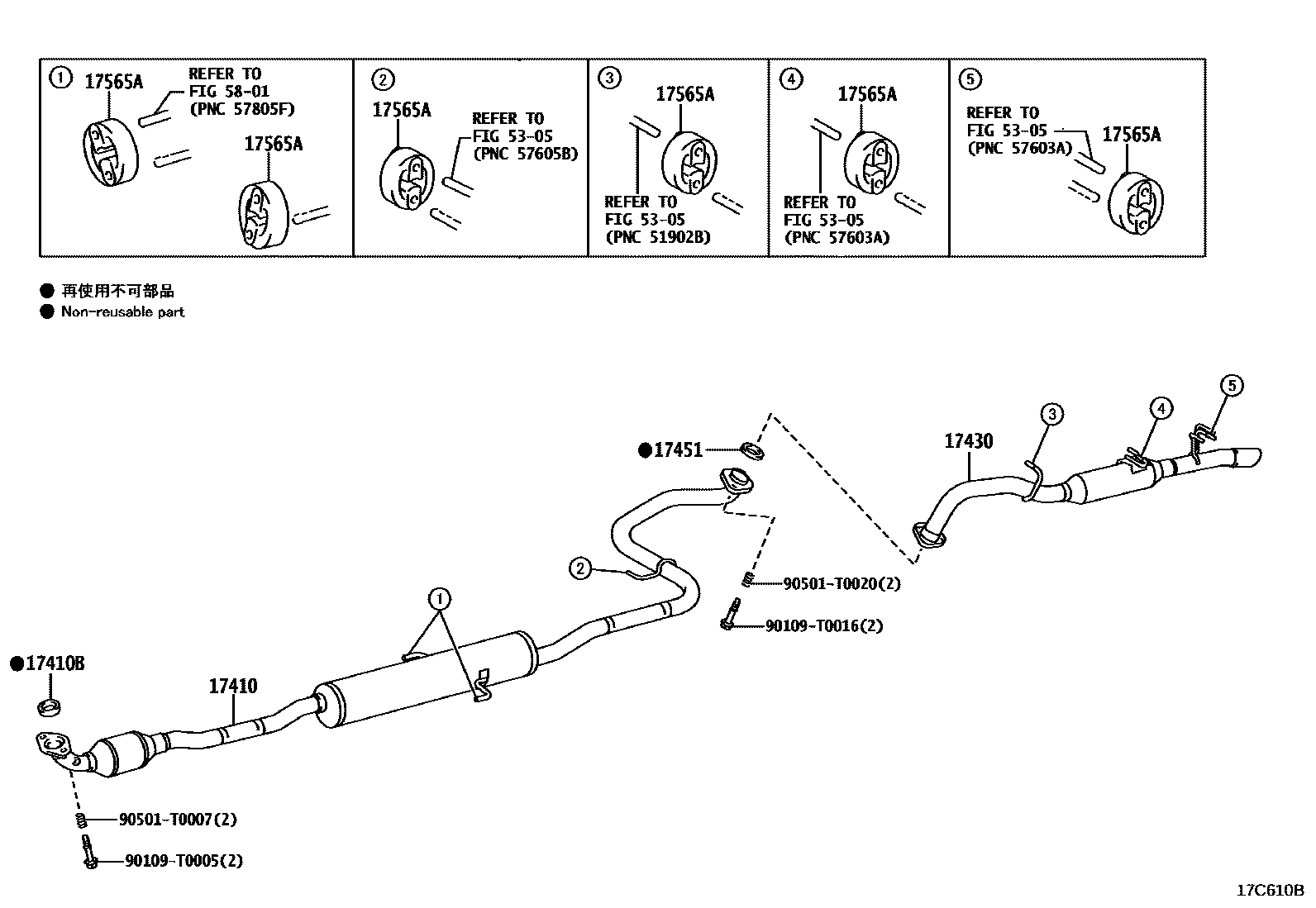

Toyota YARIS Exhaust Pipe EPC diagram — 17C610B
Exhaust Pipe — 17C610B (202304 – 999999)

PNC and OE references

PNCPart nameOE numbers
17410Front exhaust pipe assembly17410-0Y460 · 17410-0Y481 · 17410-0Y491 · 17410-0Y532 · 17410-0YA50 · 17410-0YB10
17410BExhaust pipe gasket17451-0M020
17430Exhaust tailpipe assembly17430-0Y210 · 17430-0Y480 · 17430-0Y490 · 17430-0Y520 · 17430-0Y540
17451Exhaust pipe gasket17451-0M032
17565ANo. 4 exhaust pipe lifting lug17565-0M030
