Toyota YARIS Manifold — Figure 1701

Toyota YARIS EPC diagram 1701, Manifold, with 2 images and 9 PNC and OE references.

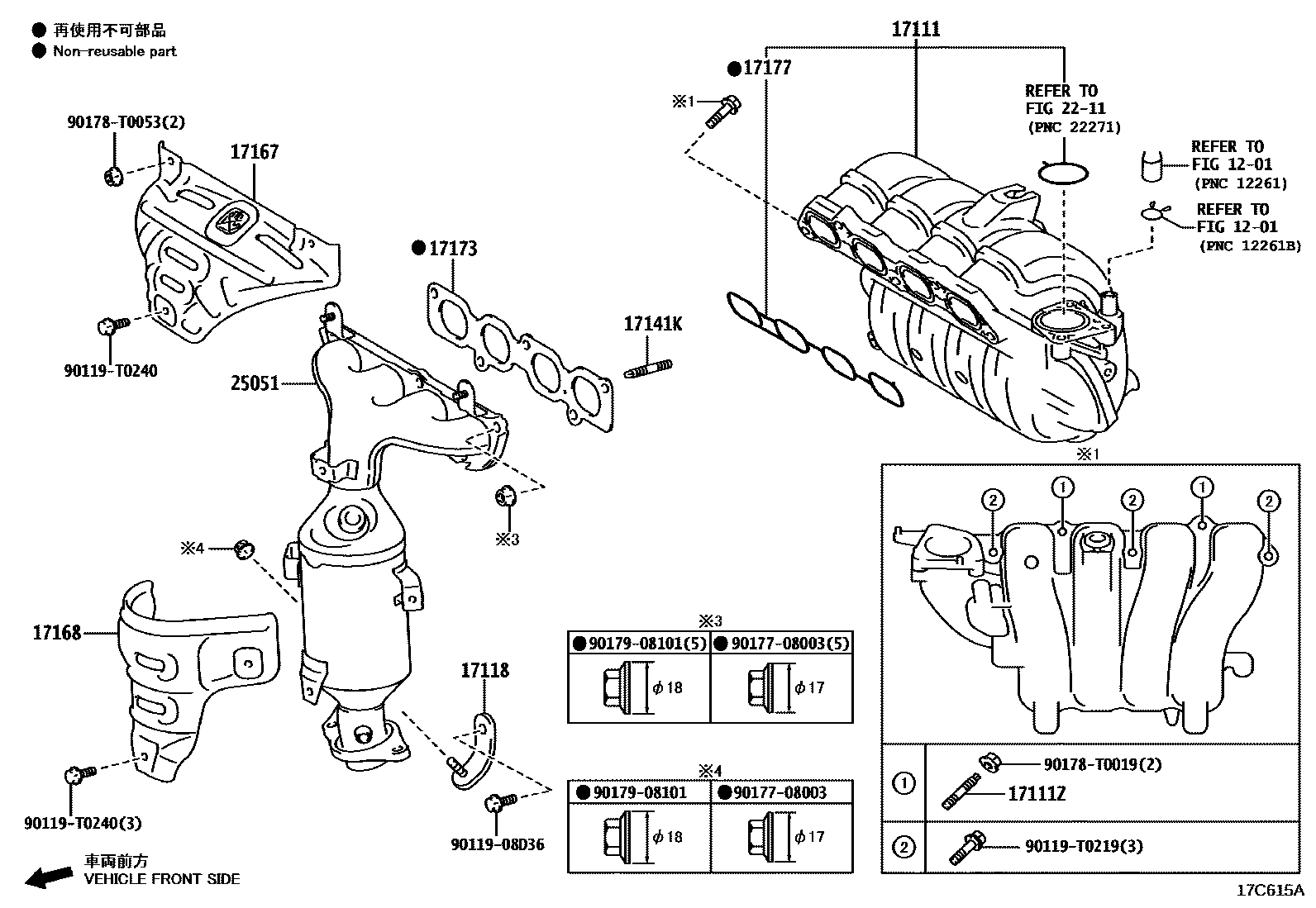

Toyota YARIS Manifold EPC diagram — 17C615A
Manifold — 17C615A (202303 – 999999)

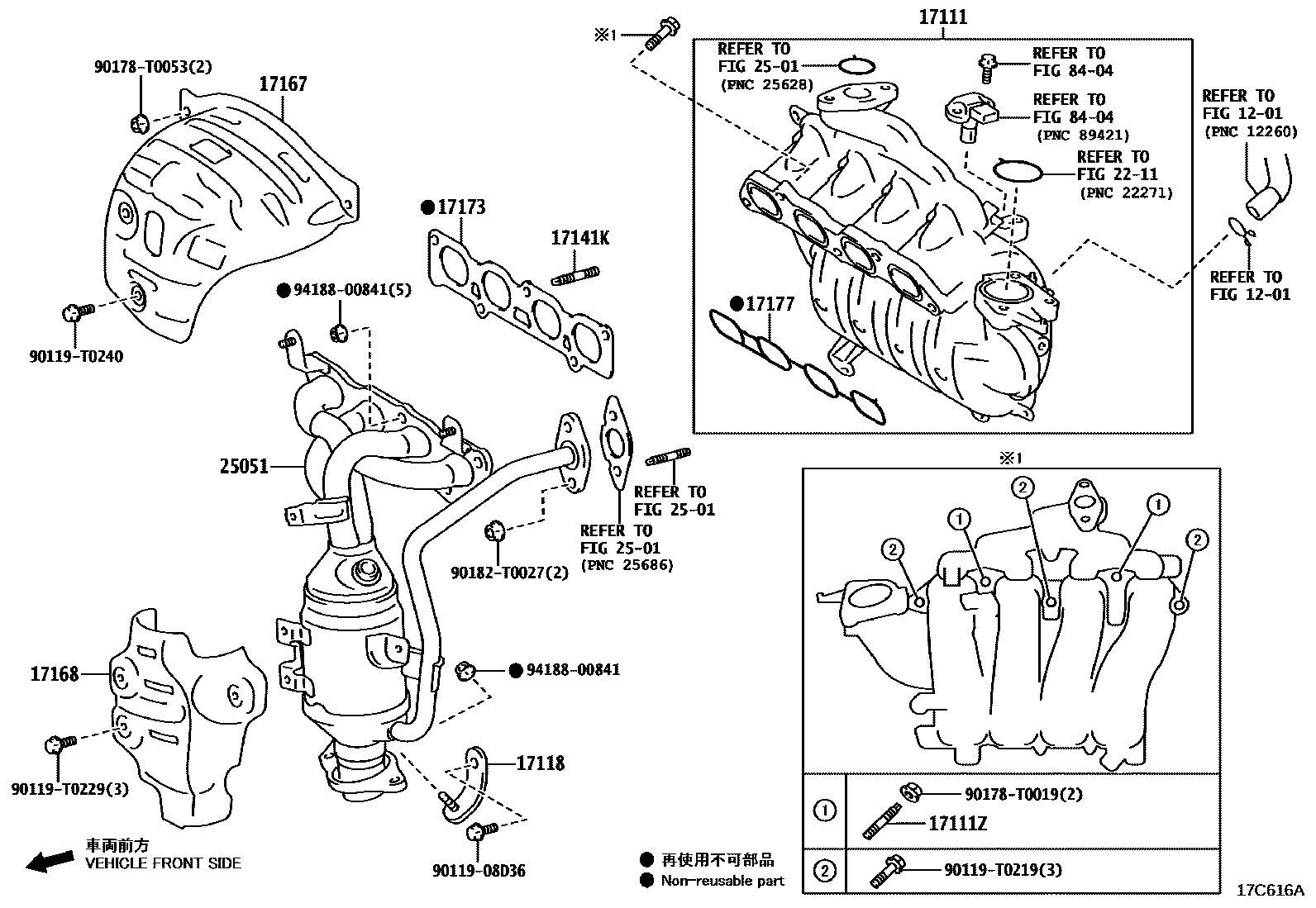

Toyota YARIS Manifold EPC diagram — 17C616A
Manifold — 17C616A (202303 – 999999)

PNC and OE references

PNCPart nameOE numbers
17111Intake Manifold17120-0Y040 · 17120-0Y051 · 17120-0Y071
17111ZStud bolts (for intake manifold to cylinder head)9004A-12004 · 90126-T0019
17118Manifold stays17118-0Y031 · 17118-0Y061
17141KStud bolts (for exhaust manifold to cylinder head)90126-08063
17167Exhaust manifold No. 1 heat shield17167-0Y020 · 17167-0Y050 · 17167-0Y060 · 17167-47011
17168Exhaust manifold No.2 insulation pad17168-0Y020 · 17168-0Y050 · 17168-0Y100
17173Gasket (exhaust manifold to cylinder head)17173-0Y030 · 17173-0Y060 · 17173-47021
17177No. 1 gasket (intake manifold to cylinder head)17177-0Y030
25051Exhaust manifold three-way catalytic converter sub-assembly25051-0Y050 · 25051-0Y060 · 25051-0Y110 · 25051-0Y150 · 25051-0Y250
