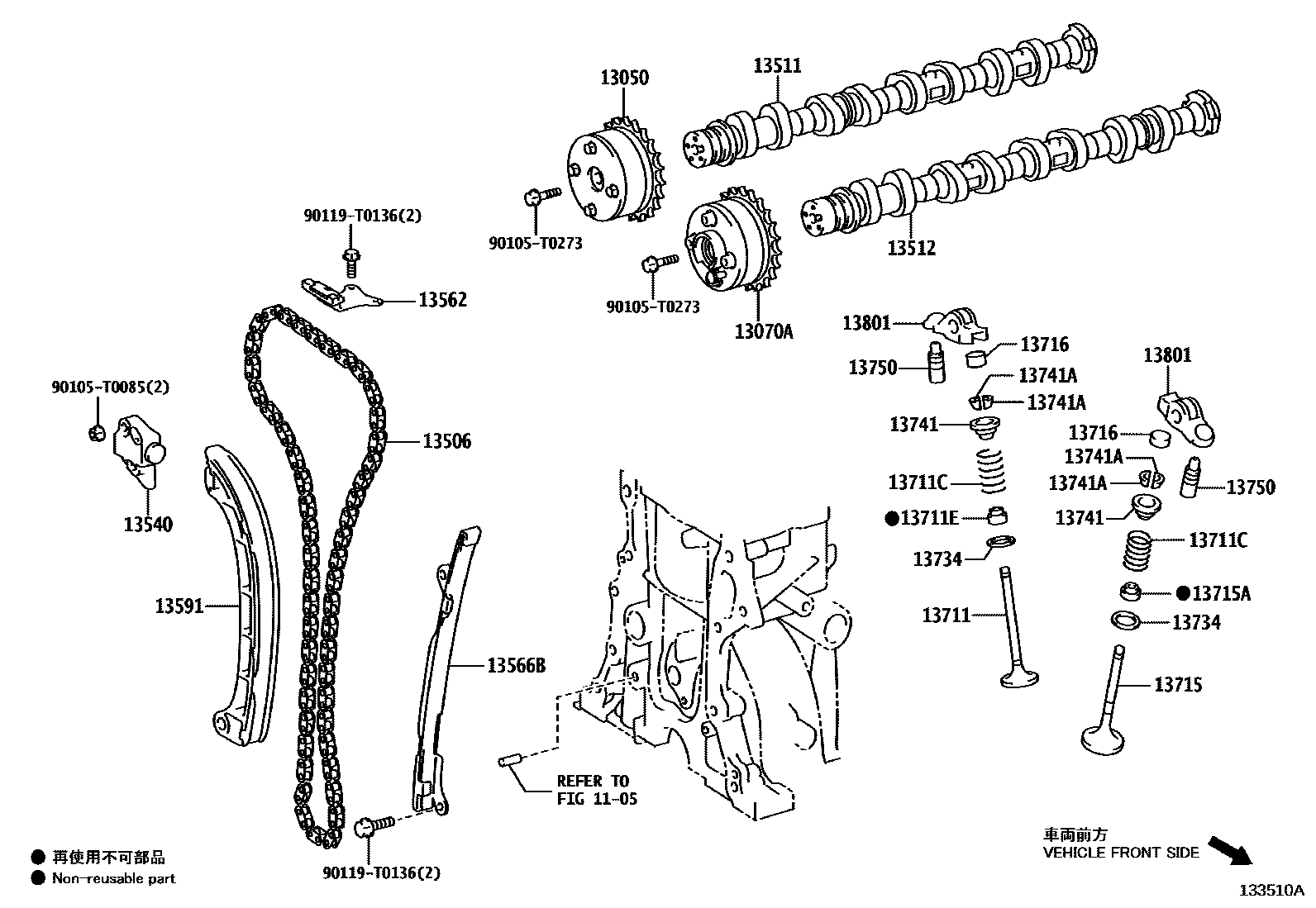

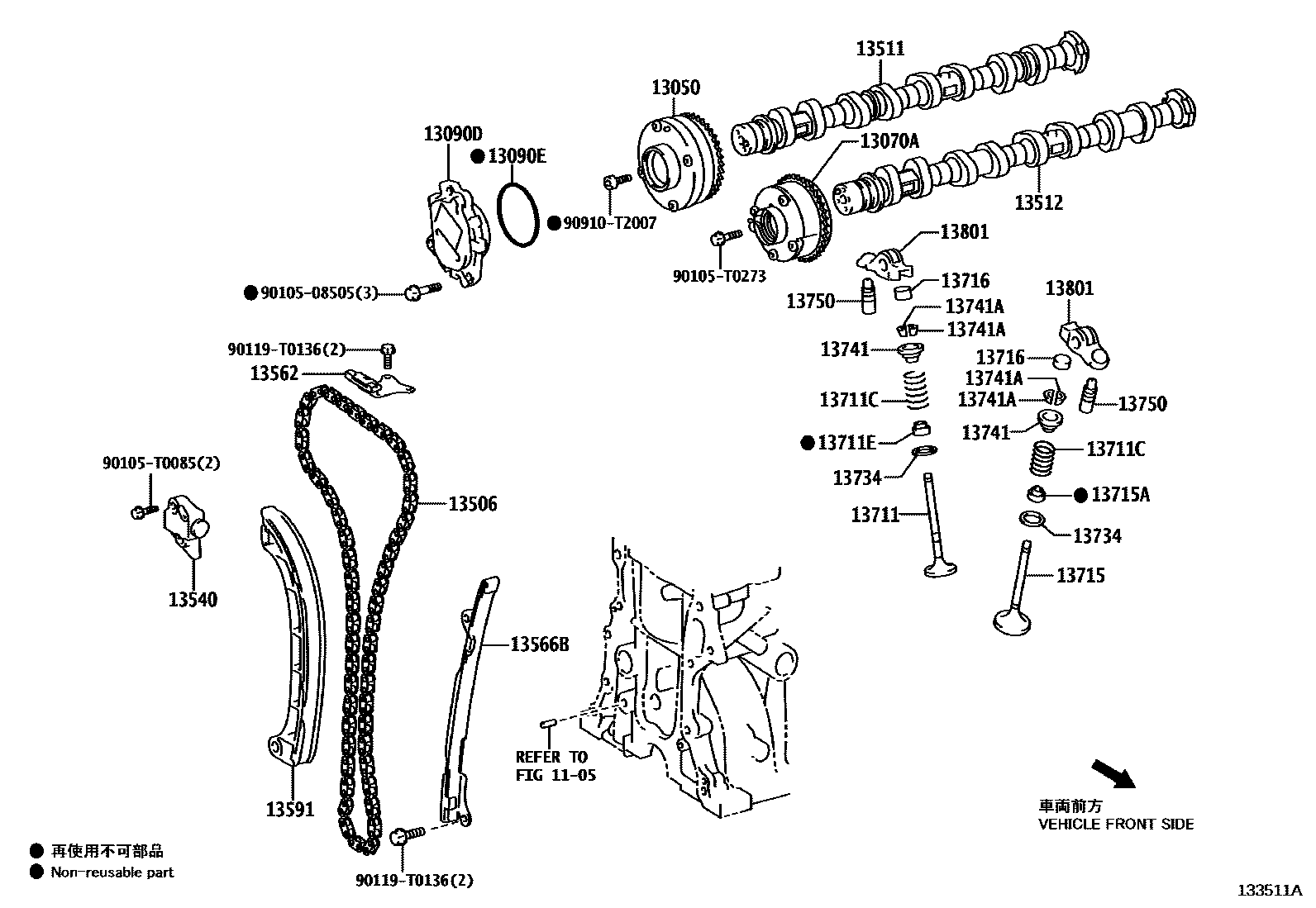

Toyota YARIS Camshaft & Valve — Figure 1302
Toyota YARIS EPC diagram 1302, Camshaft & Valve, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13050 | Camshaft timing gear assembly | 13050-0Y020 · 13050-47040 |
| 13070A | Exhaust camshaft timing gear assembly | 13070-0Y020 · 13070-0Y060 |
| 13090D | Cam timing control motor assembly with EDU | 13090-47020 |
| 13090E | O-ring (for cam timing control motor) | 90301-T0095 |
| 13506 | Chain sub-assembly | 13506-0Y040 |
| 13511 | camshaft | 13501-0Y050 · 13501-0Y100 · 13501-0Y140 · 13501-BZ040 |
| 13512 | Camshaft No. 2 | 13502-0Y050 · 13502-0Y080 · 13502-0Y120 · 13502-BZ030 |
| 13540 | No. 1 chain tensioner assembly | 13540-0Y010 |
| 13562 | No. 2 chain shock absorber | 13562-0Y020 |
| 13566B | Timing chain guide plate | 13566-0Y010 |
| 13591 | Timing chain tensioner arm | 13591-0Y010 |
| 13711 | intake valve | 13711-0Y020 |
| 13711C | Compression spring (for outside) | 90501-T0045 |
| 13711E | Intake valve stem oil seal | 90080-31085 |
| 13715 | exhaust valve | 13715-0Y020 |
| 13715A | Exhaust valve stem oil seal | 90080-31084 |
| 13716 | valve stem cover | 13716-0C010 · 13716-0C030 · 13716-75020 |
| 13734 | Valve spring seat | 13734-0C010 |
| 13741 | Valve spring seat ring | 13741-0C030 · 13741-0Y010 |
| 13741A | Valve spring seat lock plate | 90913-03028 |
| 13750 | Valve lash adjuster assembly | 13750-0C030 · 13750-0C040 |
| 13801 | No. 1 valve rocker arm sub-assembly | 13801-0C020 · 13801-0C030 |
