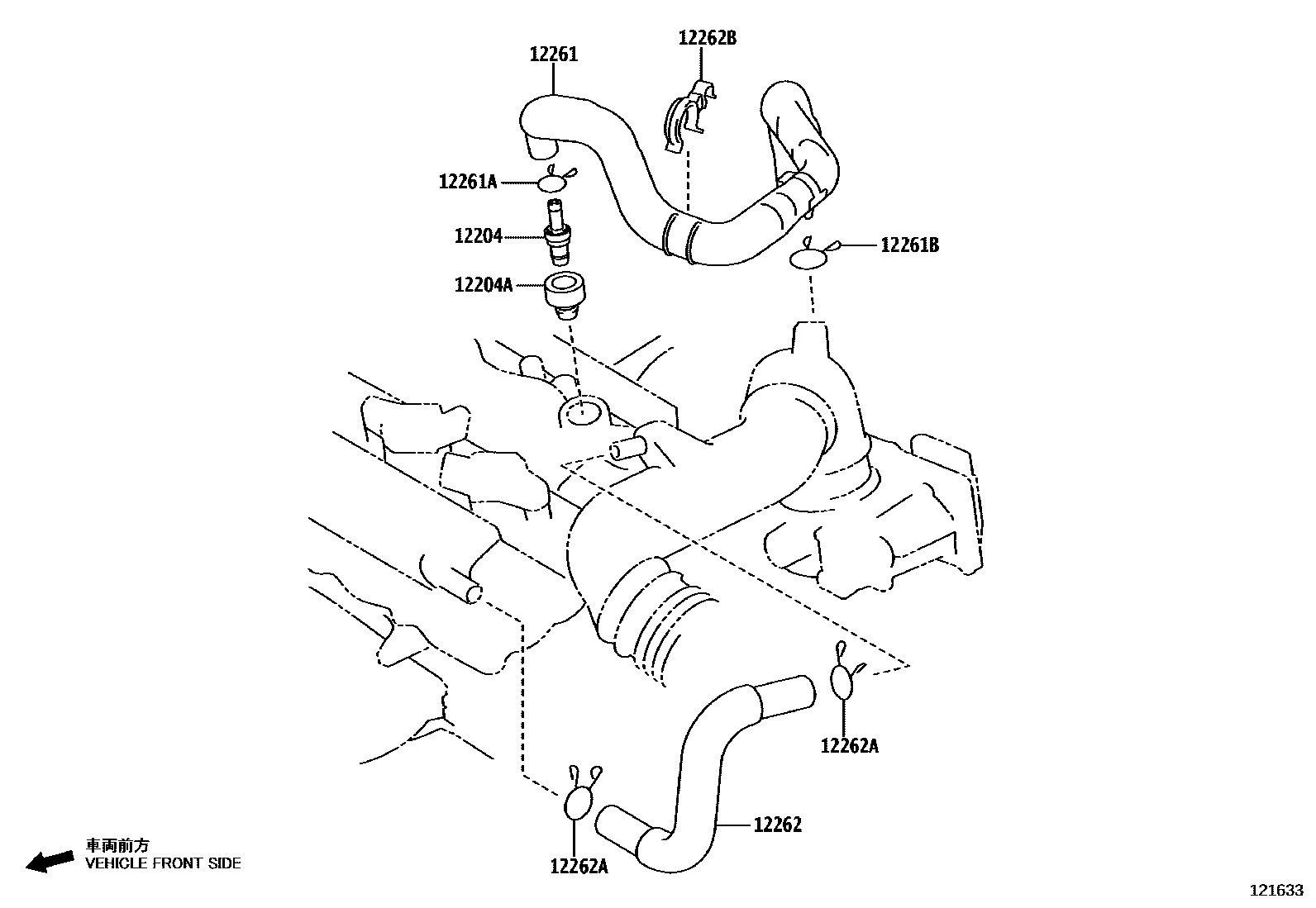

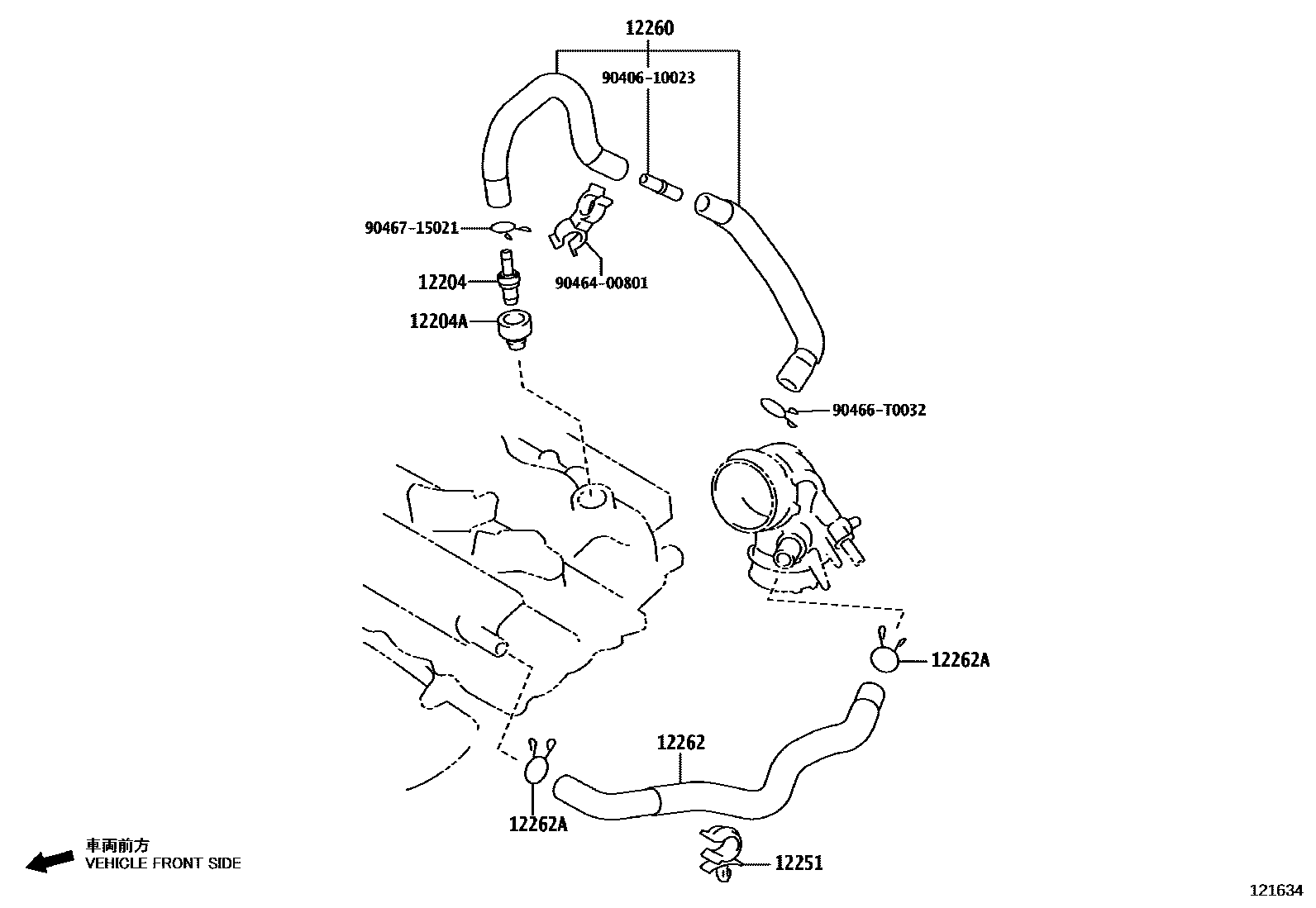

Toyota YARIS Ventilation Hose — Figure 1201
Toyota YARIS EPC diagram 1201, Ventilation Hose, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12204 | Ventilation valve sub-assembly | 12204-0Y020 · 12204-0Y040 |
| 12204A | Gasket (for ventilation system) | 90480-T0013 |
| 12251 | Ventilation duct clamp | 12251-47030 |
| 12260 | Ventilation hose assembly | 12260-0Y010 |
| 12261 | Ventilation Hose | 12261-0Y041 · 12261-0Y050 |
| 12261A | Clip or clip (for vent hose) | 90466-T0060 · 90466-T0061 |
| 12261B | Clip or clip (for vent hose) | 90466-T0032 · 90466-T0062 |
| 12262 | Ventilation hose No. 2 | 12262-0Y110 · 12262-0Y200 · 12262-47060 |
| 12262A | Clamp (for vent hose No. 2) | 90466-T0027 |
| 12262B | Clamp (for ventilation hose) | 16581-47020 |
