Toyota YARIS Engine Mounting — Figure 1107

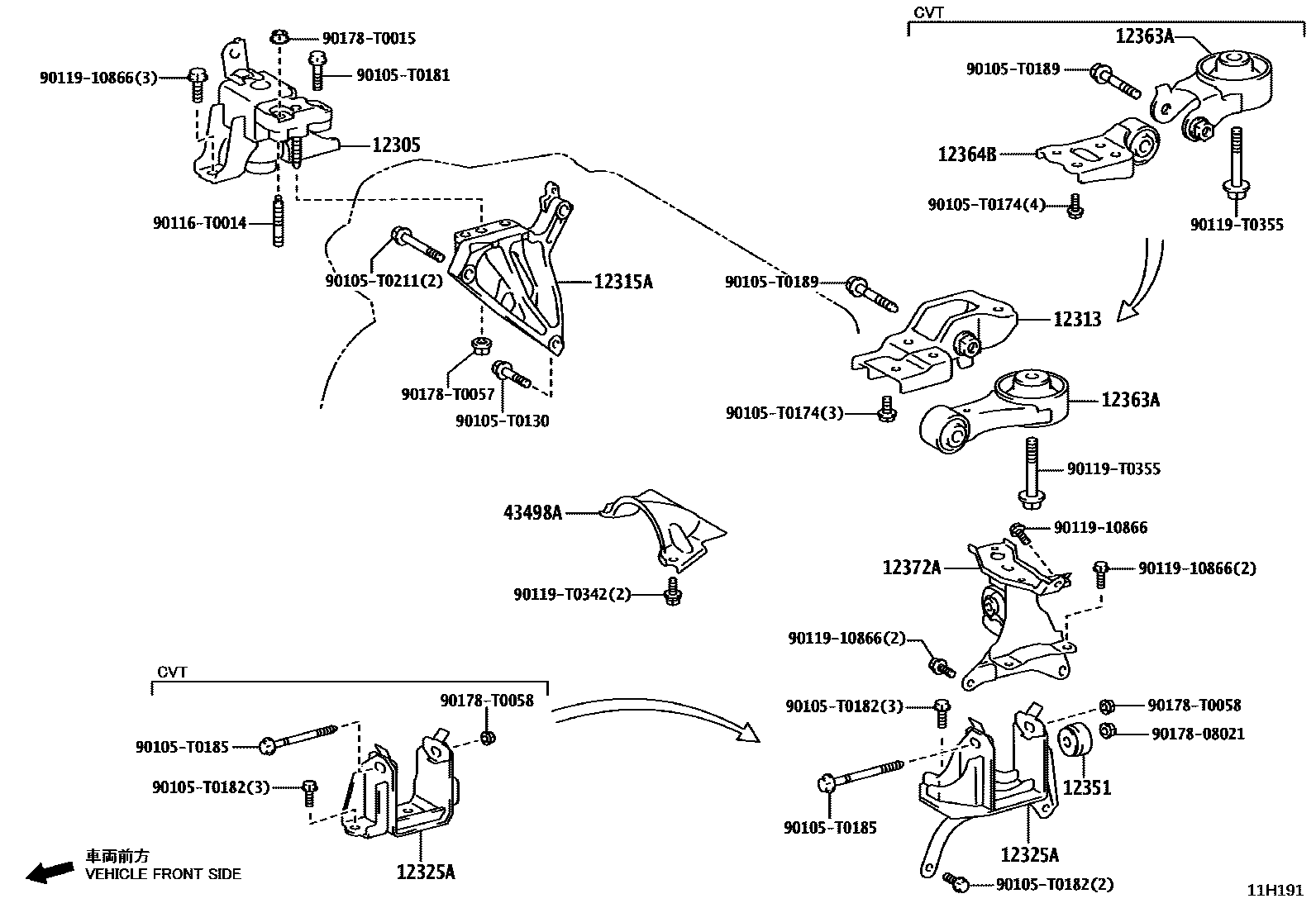

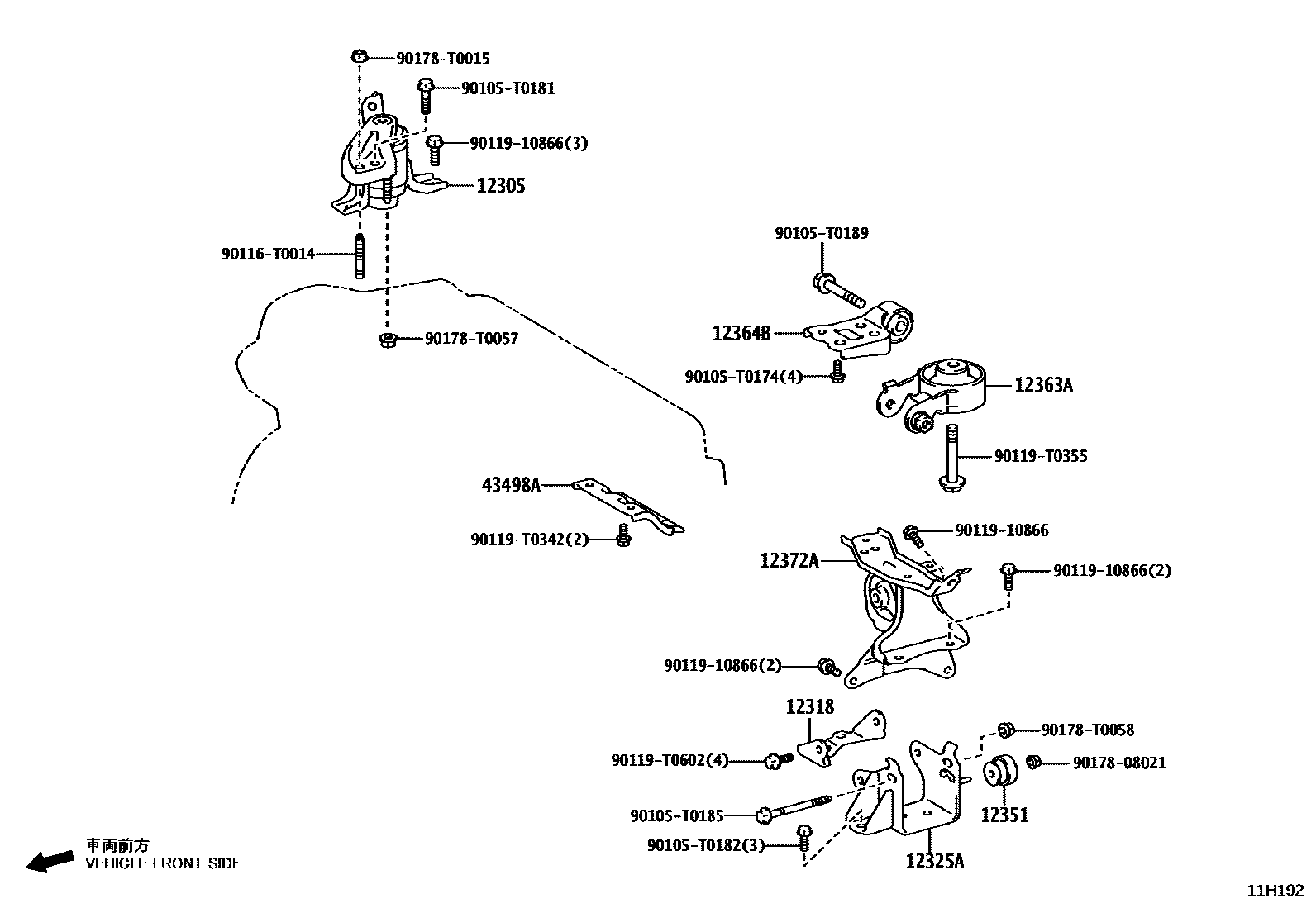

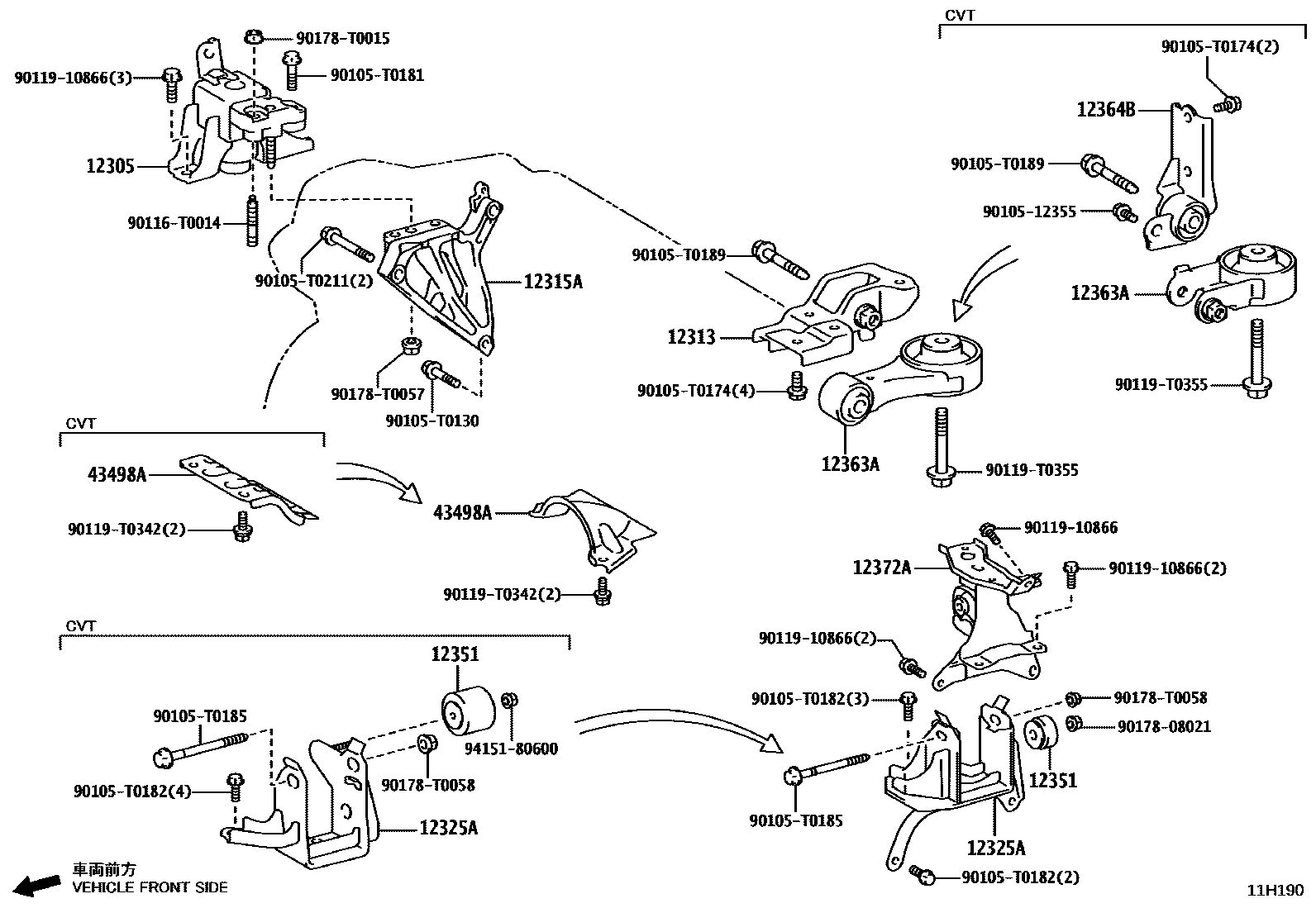

Toyota YARIS EPC diagram 1107, Engine Mounting, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-0Y110 · 12305-0Y270 |
| 12313 | Engine mount control bracket (for transversely mounted engines) | 12313-0M010 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-0Y010 · 12315-0Y070 · 12315-0Y100 |
| 12318 | Engine left mounting bracket | 12318-0Y040 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-0Y140 · 12325-0Y260 · 12325-0Y311 · 12325-0Y410 |
| 12351 | engine mount shock absorber | 12351-0T260 · 12351-0Y120 · 12351-37100 |
| 12363A | Engine movement control lever | 12363-0M080 · 12363-0Y100 · 12363-0Y200 |
| 12364B | Engine No. 2 motion control lever | 12364-0Y040 · 12364-0Y110 · 12364-0Y210 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-0Y141 · 12372-0Y230 · 12372-0Y251 · 12372-0Y350 |
| 43498A | No. 1 drive shaft insulation pad | 43498-0D200 · 43498-52130 |
