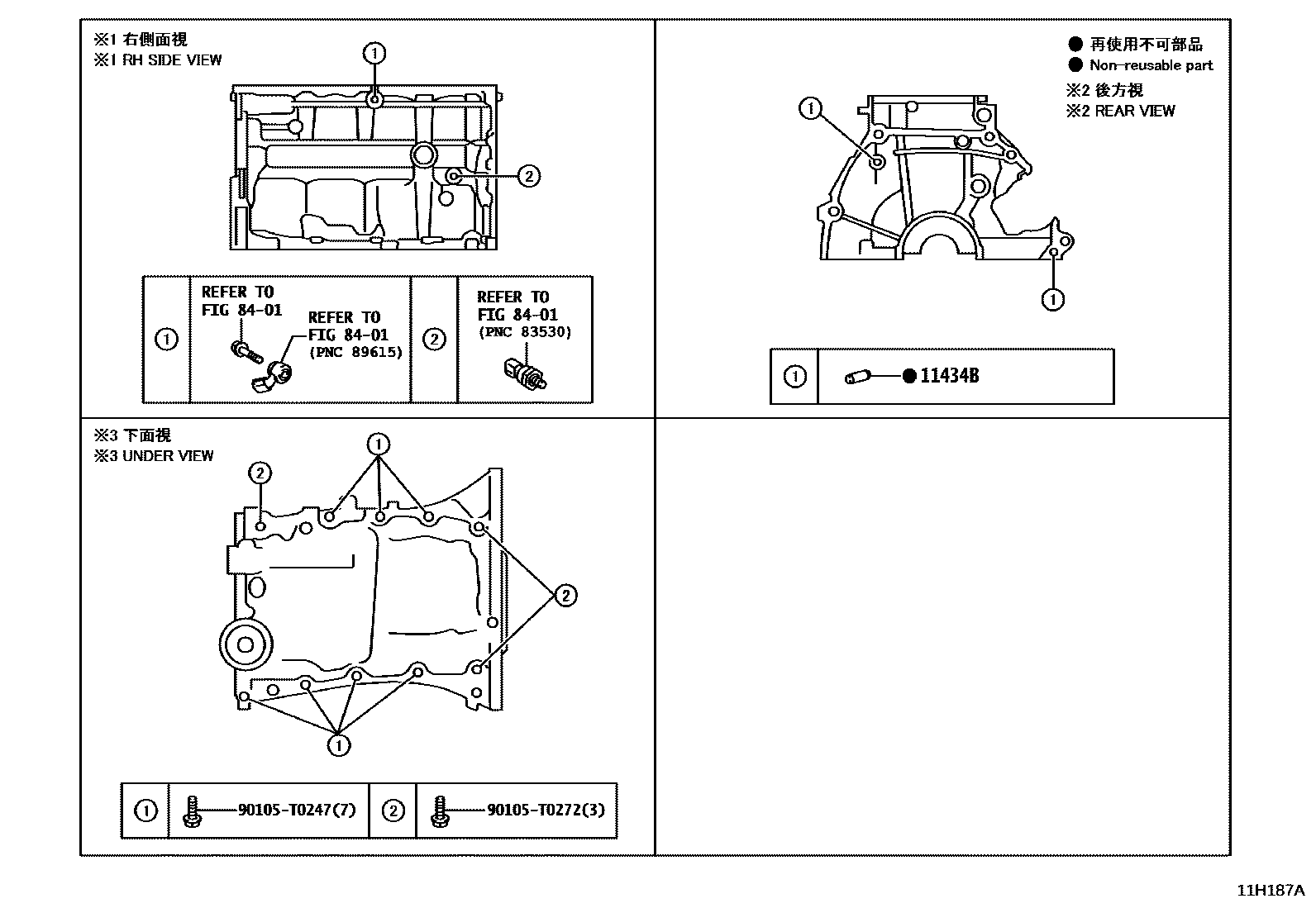

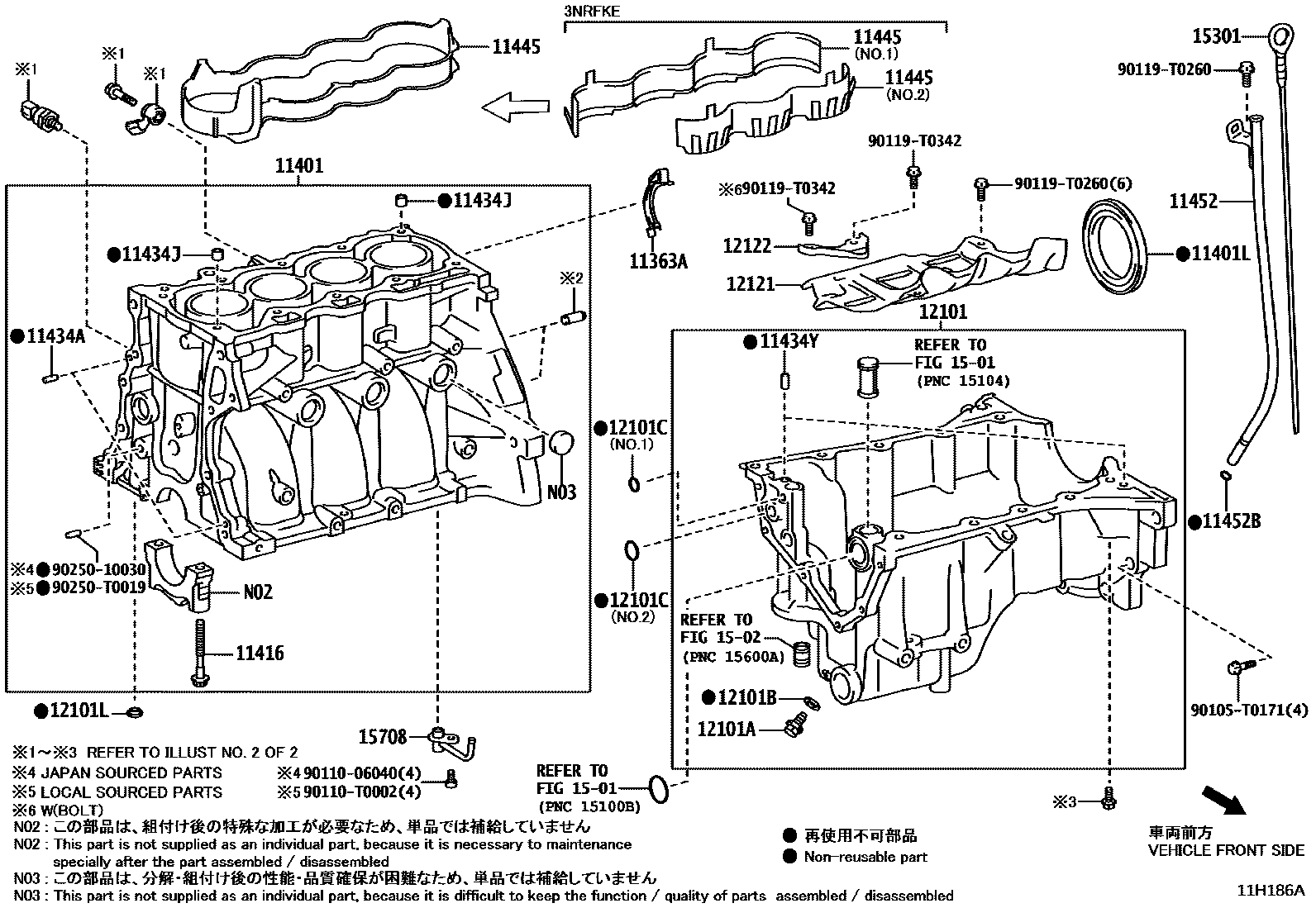

Toyota YARIS Cylinder Block — Figure 1105
Toyota YARIS EPC diagram 1105, Cylinder Block, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11363A | Flywheel housing side cover | 11363-0Y020 |
| 11401 | Cylinder block sub-assembly | 11410-09700 · 11410-09710 · 11410-09740 · 11410-09750 · 11410-09760 · 11410-B9050 |
| 11401L | SEAL, ENGINE REAR OIL | 90311-T0073 · 90311-T0074 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90910-02175 · 90910-T2013 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-04097 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 · 90250-T0018 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-13017 |
| 11434Y | Direct sales (for oil pan) | 90250-08120 |
| 11445 | Cylinder block water jacket spacer | 11445-0Y020 · 11445-47050 · 11445-47060 |
| 11452 | Engine oil level gauge guide | 11452-0Y020 · 11452-0Y030 · 11452-0Y080 |
| 11452B | O-ring (for oil level gauge guide) | 9004A-30058 · 90301-T0025 · 90301-T0060 |
| 12101 | Oil pan sub-assembly | 12101-0Y040 · 12101-0Y070 · 12101-0Y080 · 12101-0Y090 · 12101-0Y150 · 12101-0Y160 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12032 · 90341-T0017 |
| 12101B | Gasket (for oil pan drain plug) | 90430-T0024 |
| 12101C | O-ring (for oil pan) | 90301-T0054 · 90301-T0055 · 90301-T0056 · 90301-T0057 |
| 12101L | Gasket No. 1 (for oil pan) | 90430-T0022 · 90430-T0023 |
| 12121 | No. 1 oil pan baffle | 12121-0Y030 · 12121-0Y060 · 12121-0Y090 · 12121-47030 · 12121-BZ090 |
| 12122 | No. 2 oil pan baffle | 12122-0Y010 · 12122-0Y011 · 12122-0Y020 · 12122-BZ020 · 12122-BZ040 |
| 15301 | Engine oil level scoring assembly | 15301-0Y010 · 15301-0Y040 · 15301-0Y070 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-0Y040 · 15708-BZ020 |
