Toyota YARIS Partial Engine Assembly — Figure 1101

Toyota YARIS EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

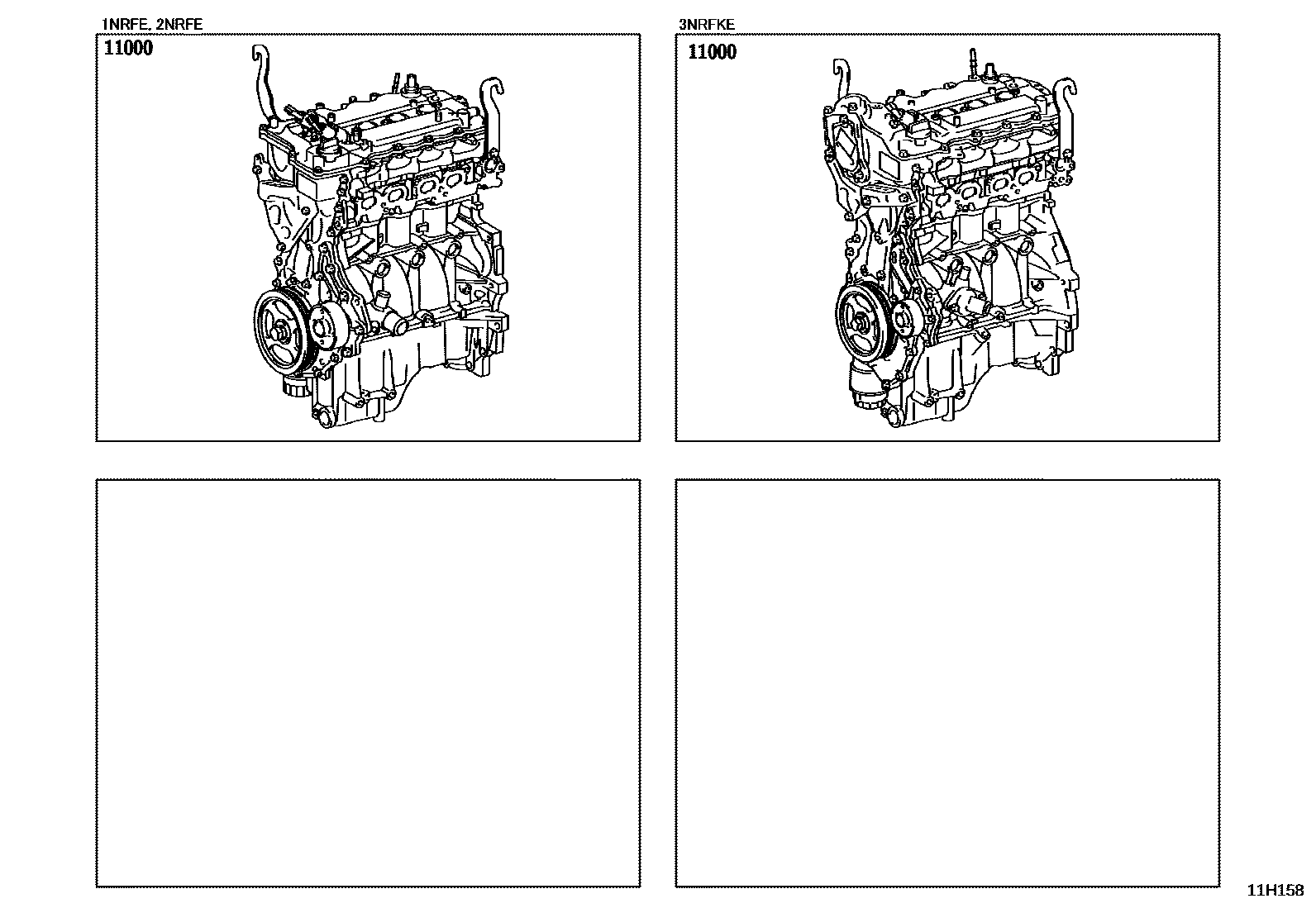

Toyota YARIS Partial Engine Assembly EPC diagram — 11H158
Partial Engine Assembly — 11H158 (202303 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-0Y110 · 19000-0Y120 · 19000-0Y130 · 19000-0Y180 · 19000-0Y190 · 19000-0Y200 · 19000-0Y370 · 19000-0Y430
