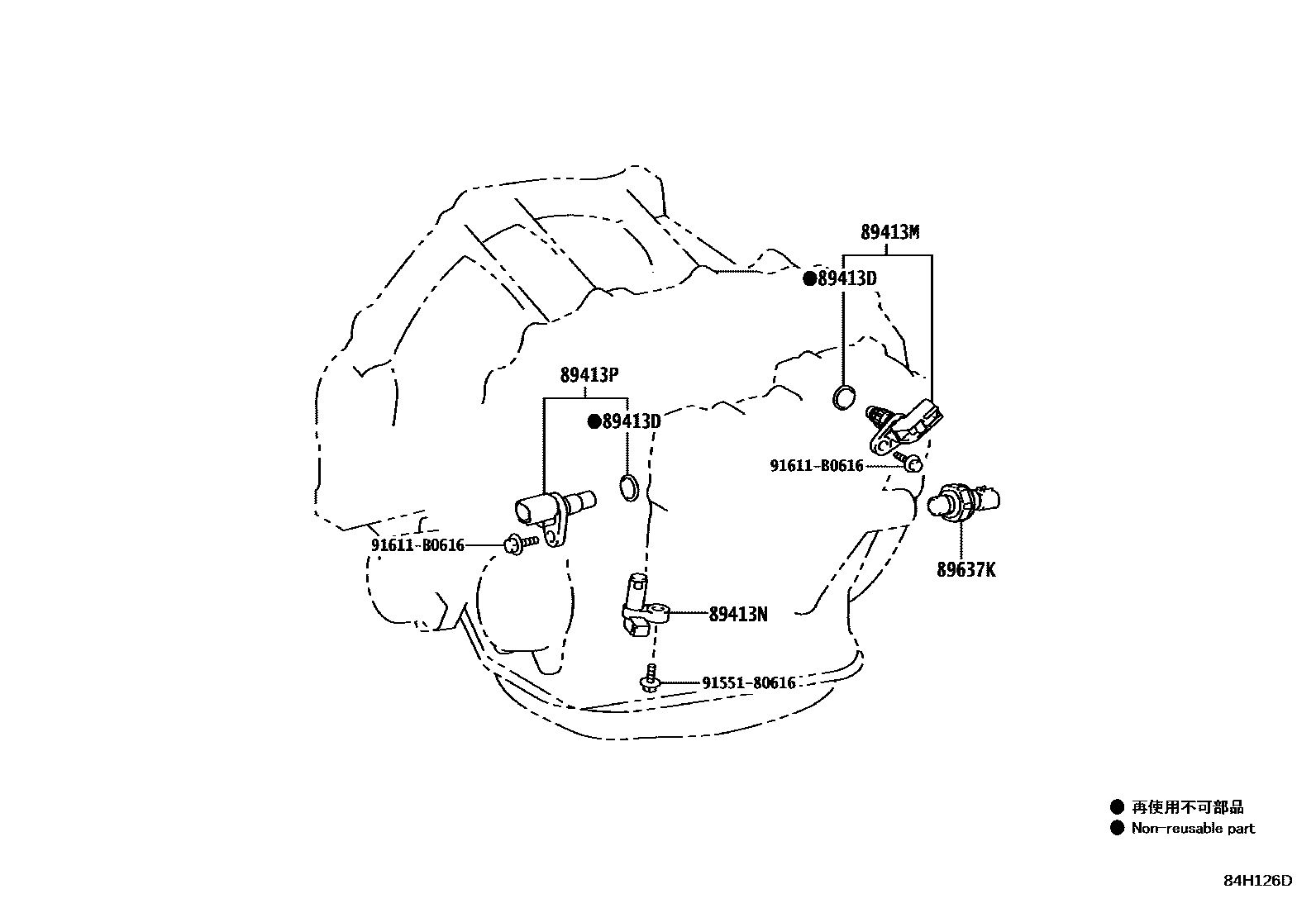

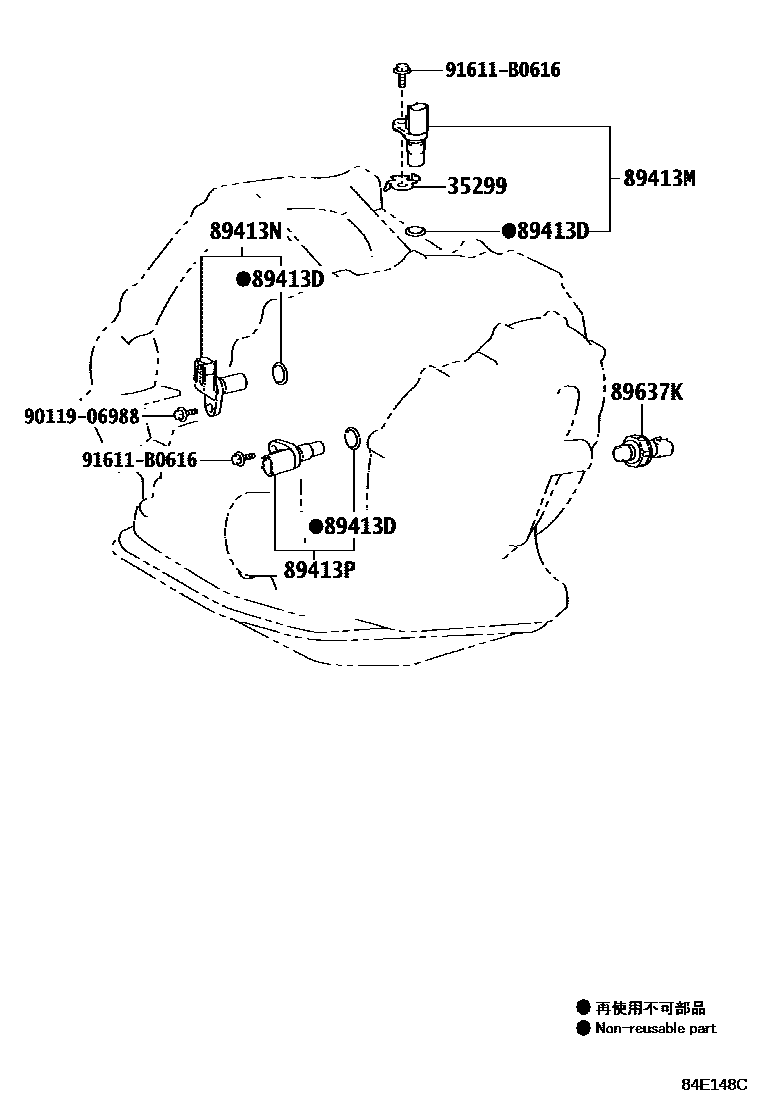

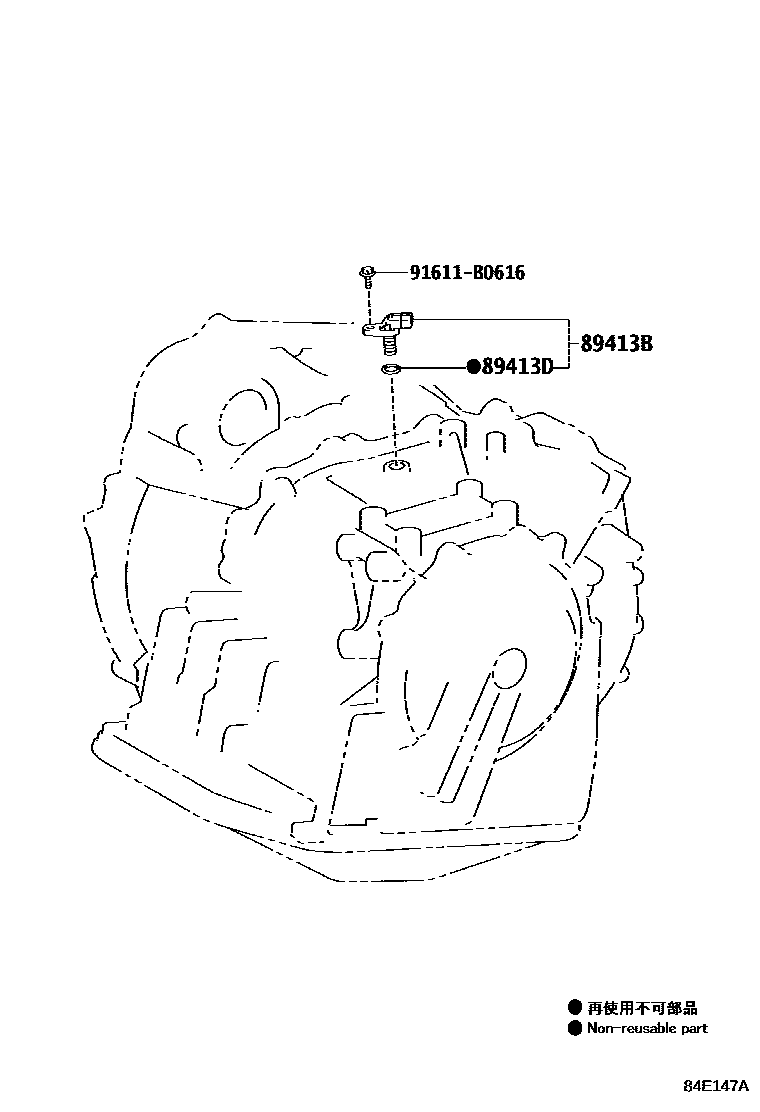

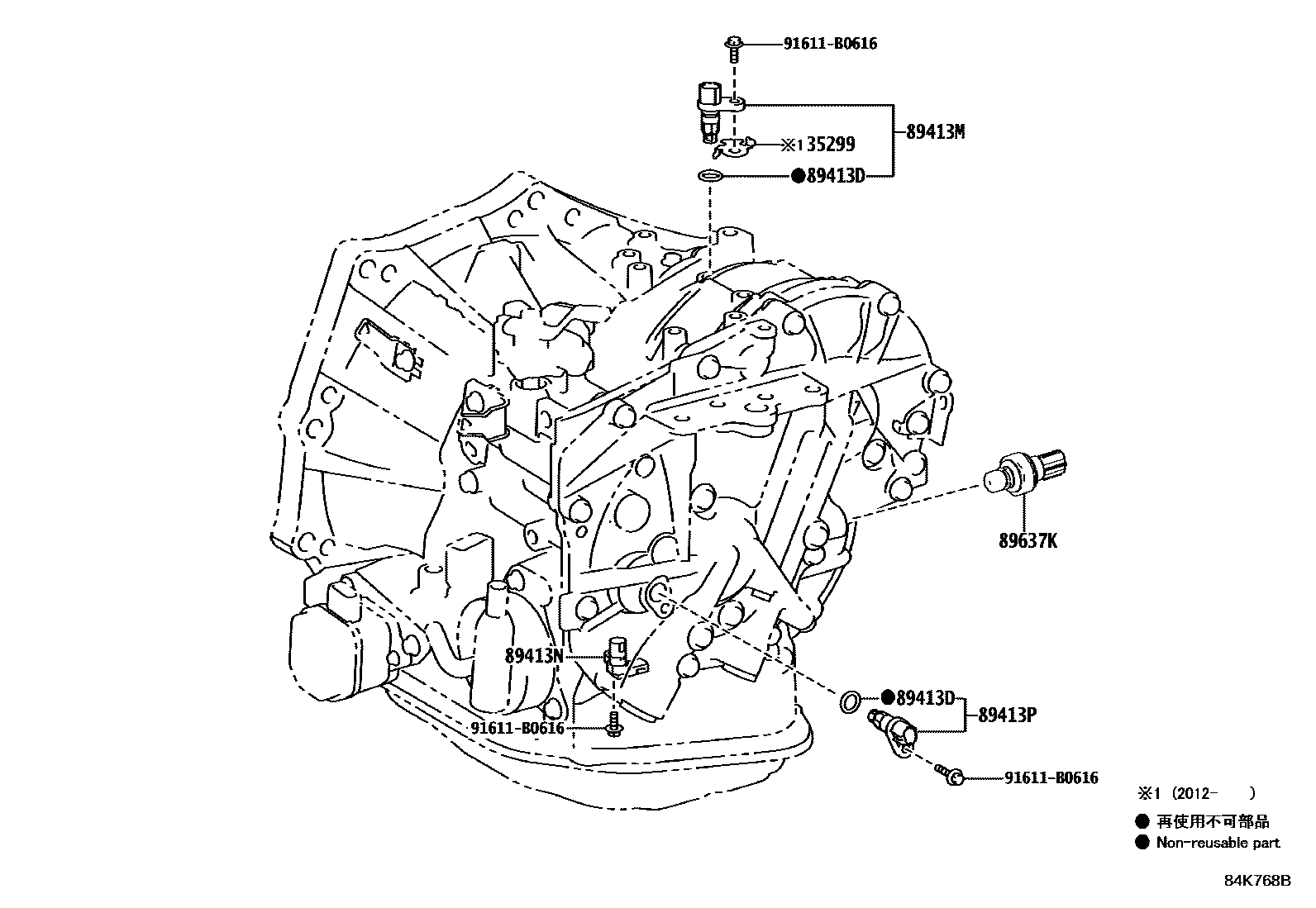

Toyota YARIS 超速档和电子控制变速器 — Figure 8410
Toyota YARIS EPC diagram 8410, 超速档和电子控制变速器, with 4 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35299 | Transmission speed sensor spacer | 35469-52020 |
| 89413B | Transmission speed sensor | 89413-32010 |
| 89413D | O-ring (for transmission speed sensor) | 90301-11008 |
| 89413M | Transmission speed sensor (NOUT) | 89413-12020 · 89413-28010 · 89413-28011 · 89413-52080 |
| 89413N | Transmission speed sensor (NT) | 89413-11021 · 89413-12020 · 89413-50020 |
| 89413P | Transmission speed sensor (NIN) | 89413-52090 · 89413-60020 · 89413-60021 |
| 89637K | oil pressure sensor | 89637-12040 · 89637-63010 |
