Toyota YARIS 车内灯 — Figure 8121

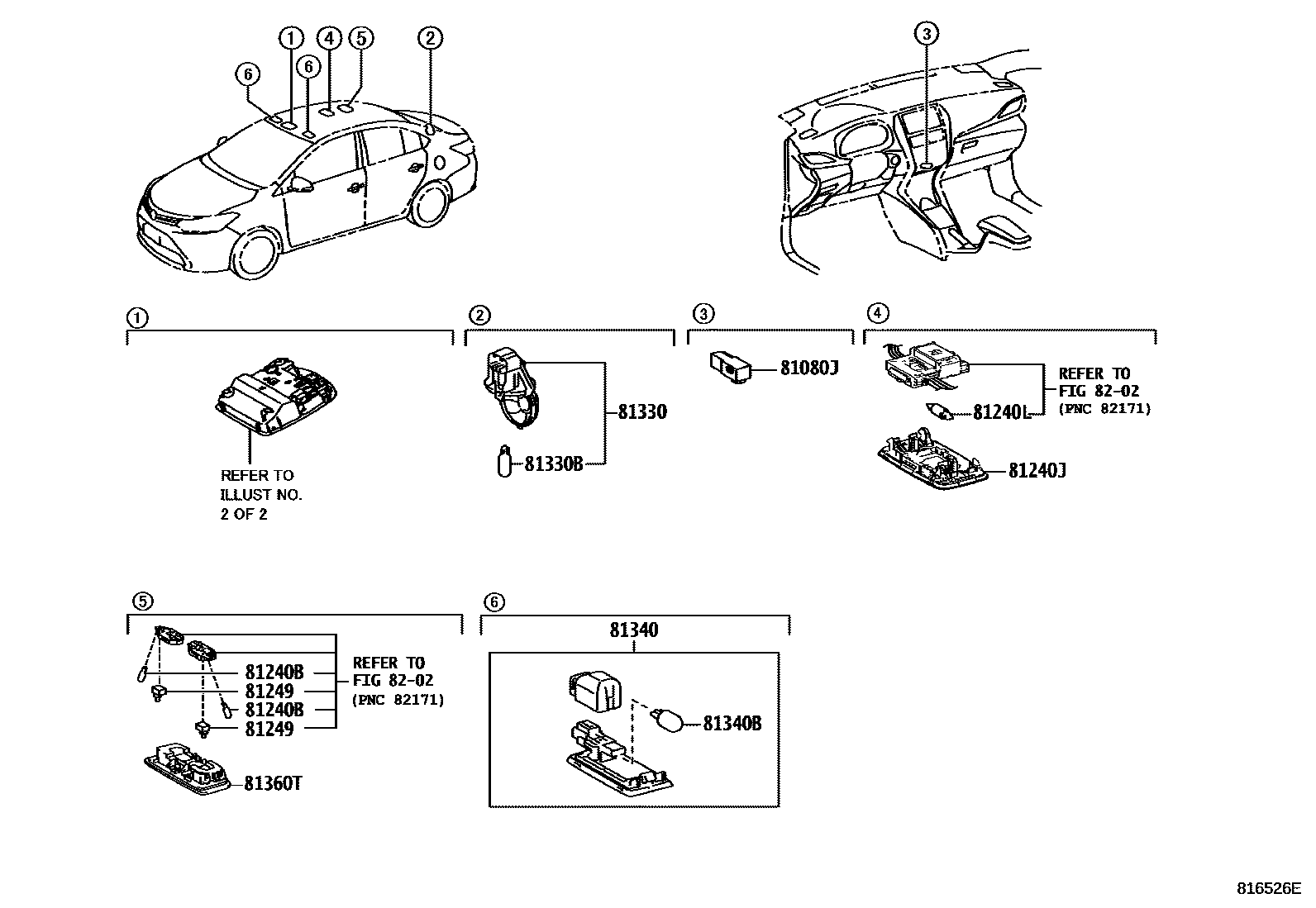

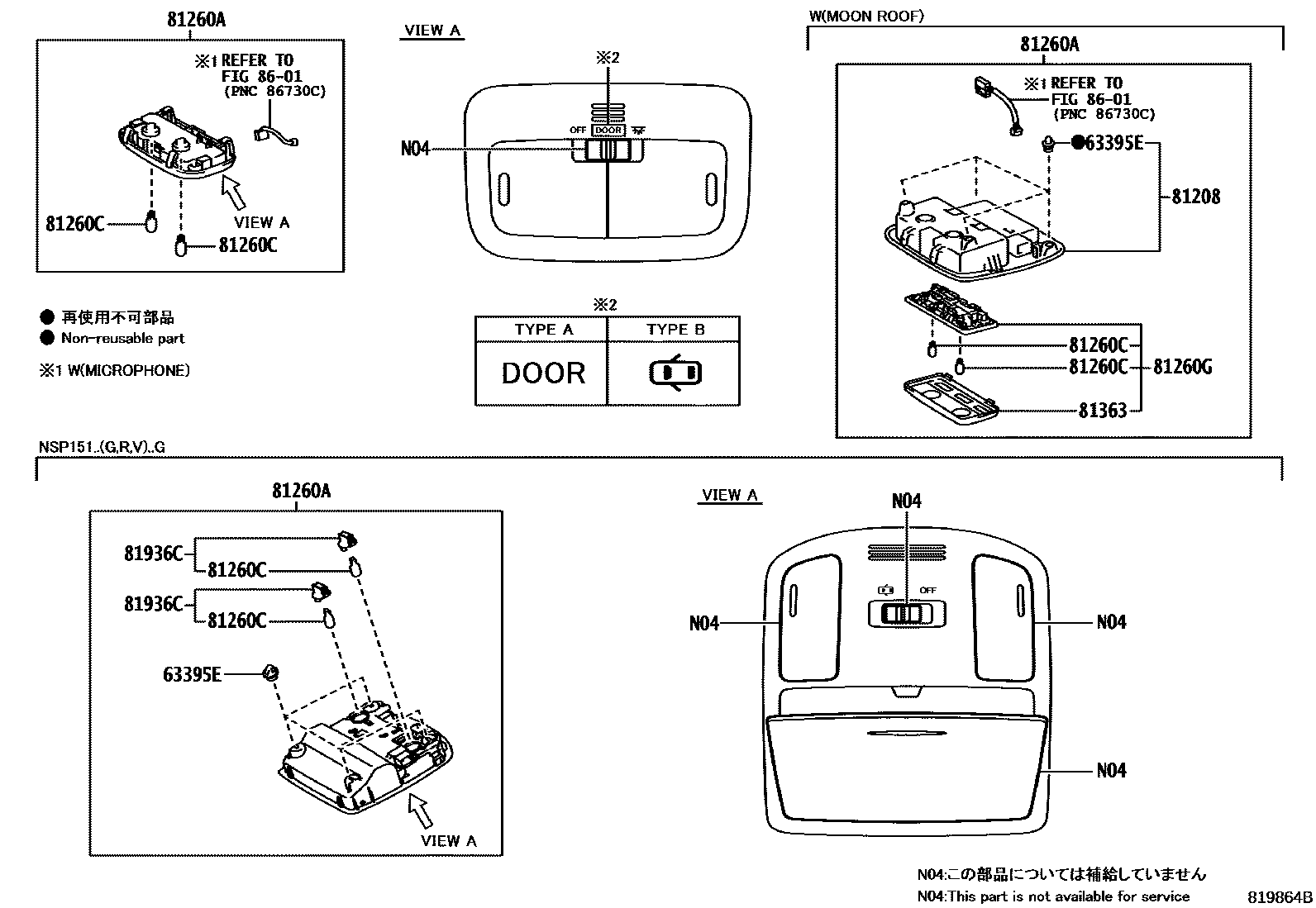

Toyota YARIS EPC diagram 8121, 车内灯, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63395E | Clip (for reading lamp) | 63395-12150 · 90467-09240 |
| 81080J | No. 1 interior lighting assembly | 81080-48020 |
| 81240B | Interior light bulb No. 1 | 99132-12050 |
| 81240L | car interior light bulb | 90981-14011 |
| 81249 | interior light switch | 84532-58010 |
| 81260C | Light bulb (for reading lamp) | 90981-11062 · 90981-11067 · 99132-12050 |
| 81330 | No. 1 trunk light assembly | 81330-02030 · 81330-0D020 · 81330-12020 |
| 81330B | trunk light bulb | 90981-11020 |
| 81340B | Bulb (for vanity lights) | 99132-12050 |
| 81363 | Car interior light exterior lampshade | 81363-52010 |
| 81936C | Bulb assembly | 81936-12150 |
