Toyota YARIS 高位刹车灯 — Figure 8117

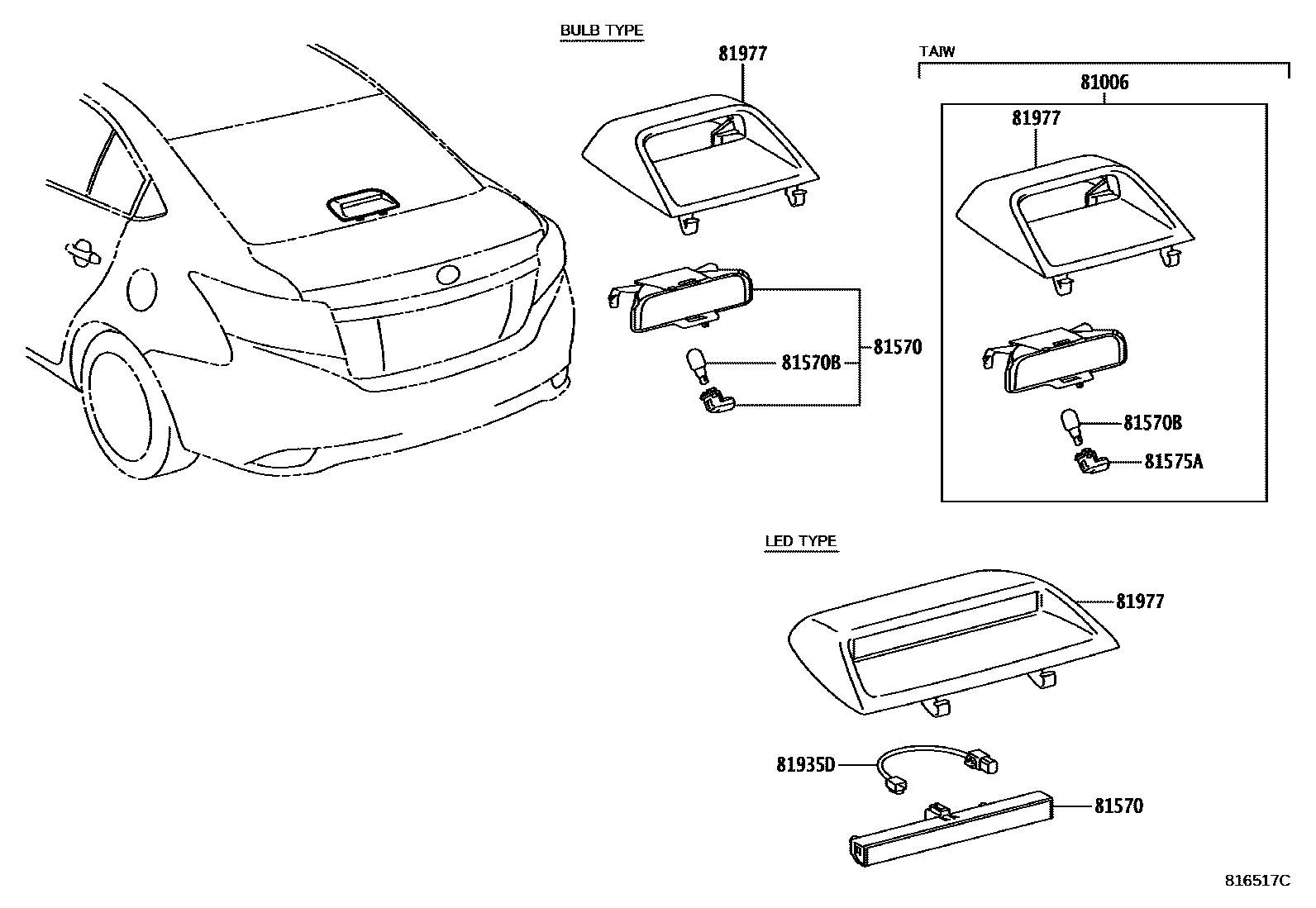

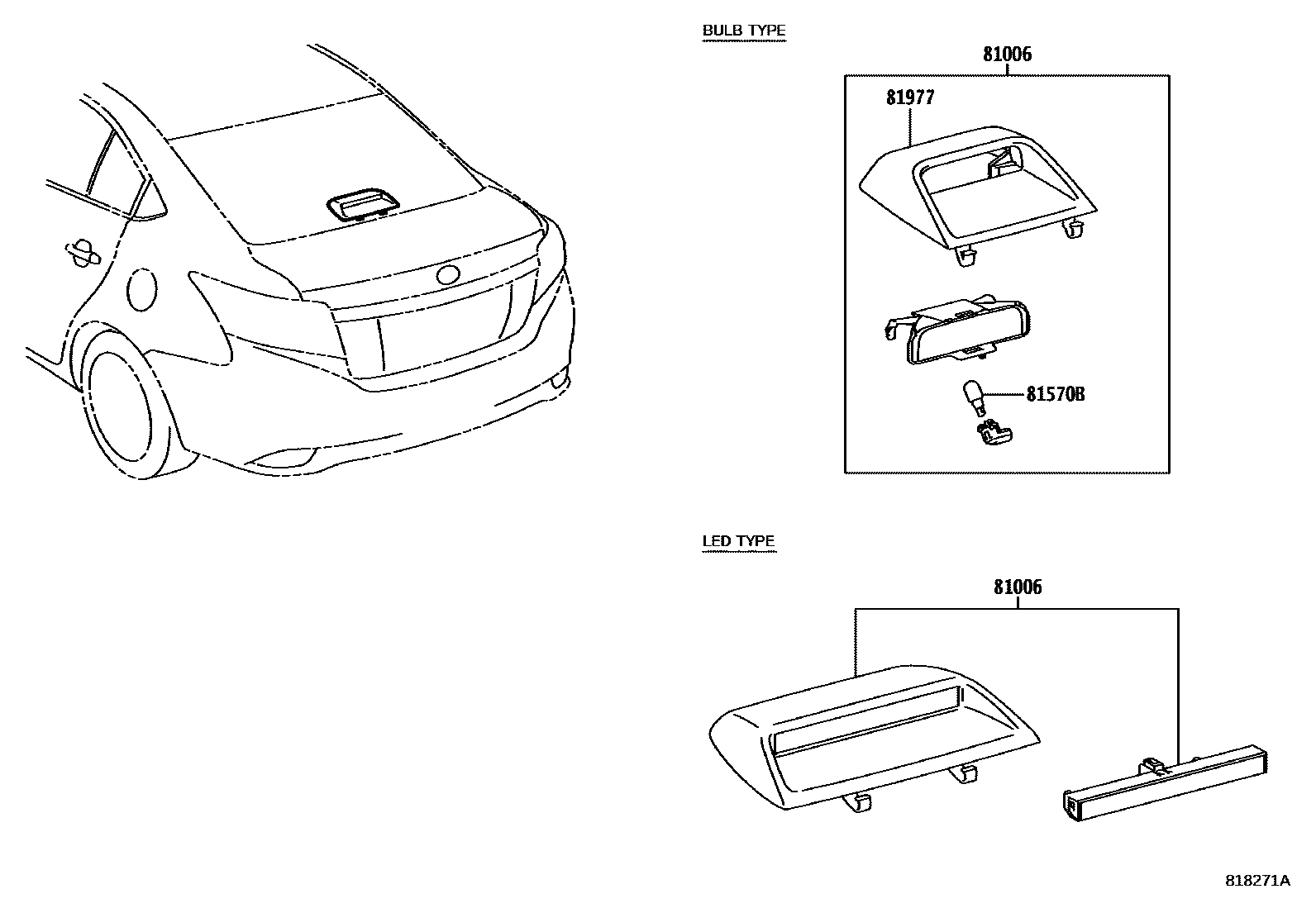

Toyota YARIS EPC diagram 8117, 高位刹车灯, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81006 | central brake light assembly | 81006-0D281 |
| 81570 | Central brake light assembly | 81570-0D170 · 81570-12430 |
| 81570B | Bulb (for center brake light) | 90981-11059 · 90981-TB002 |
| 81575A | Central brake light lamp holder | 90075-99005 |
| 81935D | Central brake light wire assembly | 81935-0D020 · 81935-0D030 |
