Toyota YARIS reflector — Figure 8115

Toyota YARIS EPC diagram 8115, reflector, with 1 images and 2 PNC and OE references.

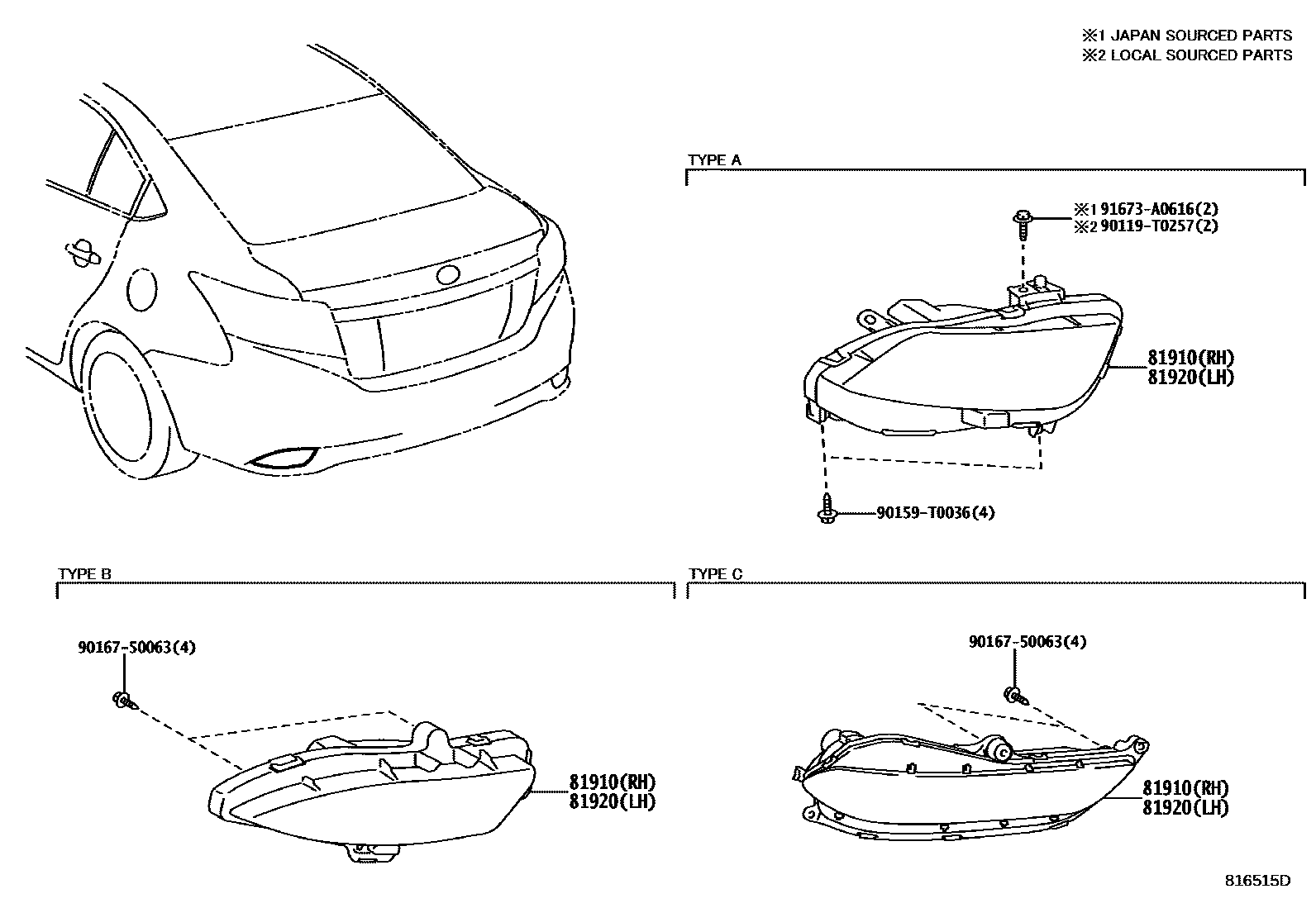

Toyota YARIS reflector EPC diagram — 816515D
reflector — 816515D (201304 – 999999)

PNC and OE references

PNCPart nameOE numbers
81910Right reflector assembly81580-0D130 · 81580-0D190 · 81580-0D570 · 81580-YP010 · 81910-0D050 · 81910-0D060 · 81910-0D070 · 81910-0D080
81920Left reflector assembly81590-0D110 · 81590-0D150 · 81590-0D570 · 81590-YP010 · 81920-0D050 · 81920-0D060 · 81920-0D070 · 81920-0D080
