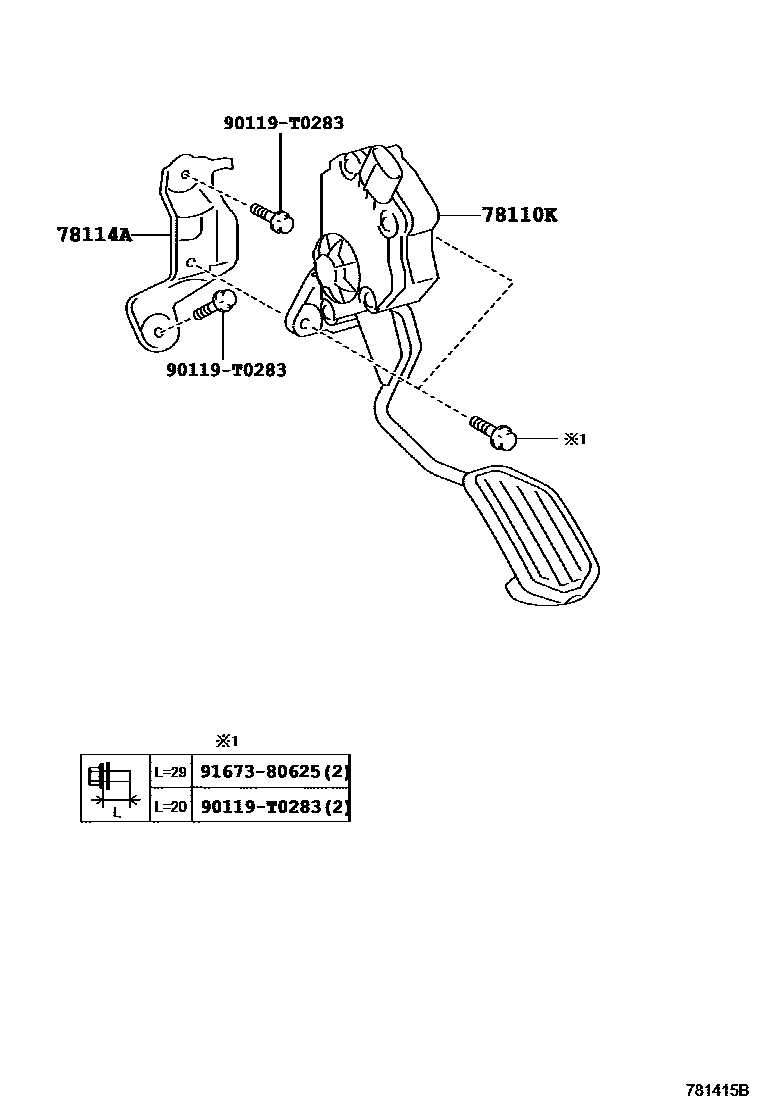

Toyota YARIS accelerator pedal connecting rod — Figure 7801
Toyota YARIS EPC diagram 7801, accelerator pedal connecting rod, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78110K | Accelerator pedal connecting rod assembly with sensor | 78110-0D130 · 78110-0D190 · 78110-0D200 · 78110-0D210 · 78110-0D260 |
| 78114A | accelerator pedal bracket | 78114-0D040 · 78114-0D060 · 78114-0D080 |
