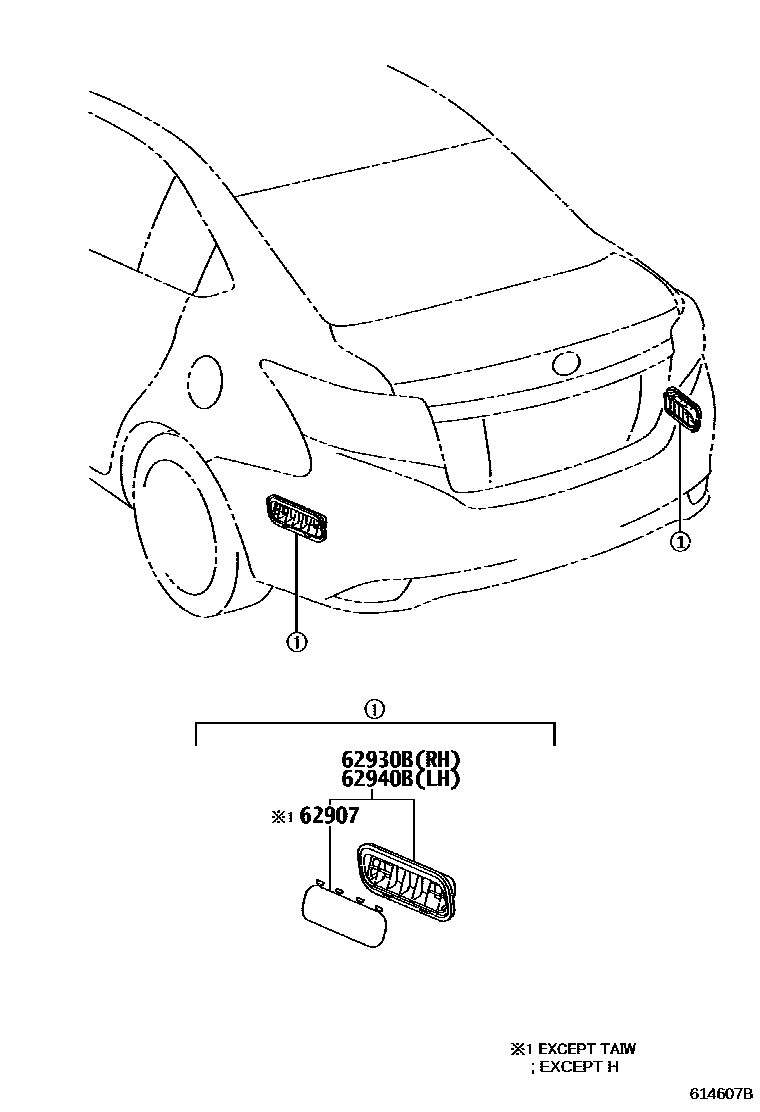

Toyota YARIS 车侧通风装置 — Figure 6102
Toyota YARIS EPC diagram 6102, 车侧通风装置, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62907 | Ventilation butterfly plate sub-assembly | 62935-0D090 · 62935-0D140 · 62935-0D150 · 62935-0D170 · 62935-0D250 |
| 62930B | Right side ventilation duct assembly | 62940-0D060 · 62940-0D070 · 62940-0D080 · 62940-0D090 · 62940-0D100 · 62940-0D180 · 62940-0D190 |
| 62940B | Left side ventilation duct assembly | 62940-0D060 · 62940-0D070 · 62940-0D080 · 62940-0D090 · 62940-0D100 · 62940-0D180 · 62940-0D190 |
