Toyota YARIS 发动机盖锁和铰链 — Figure 5303

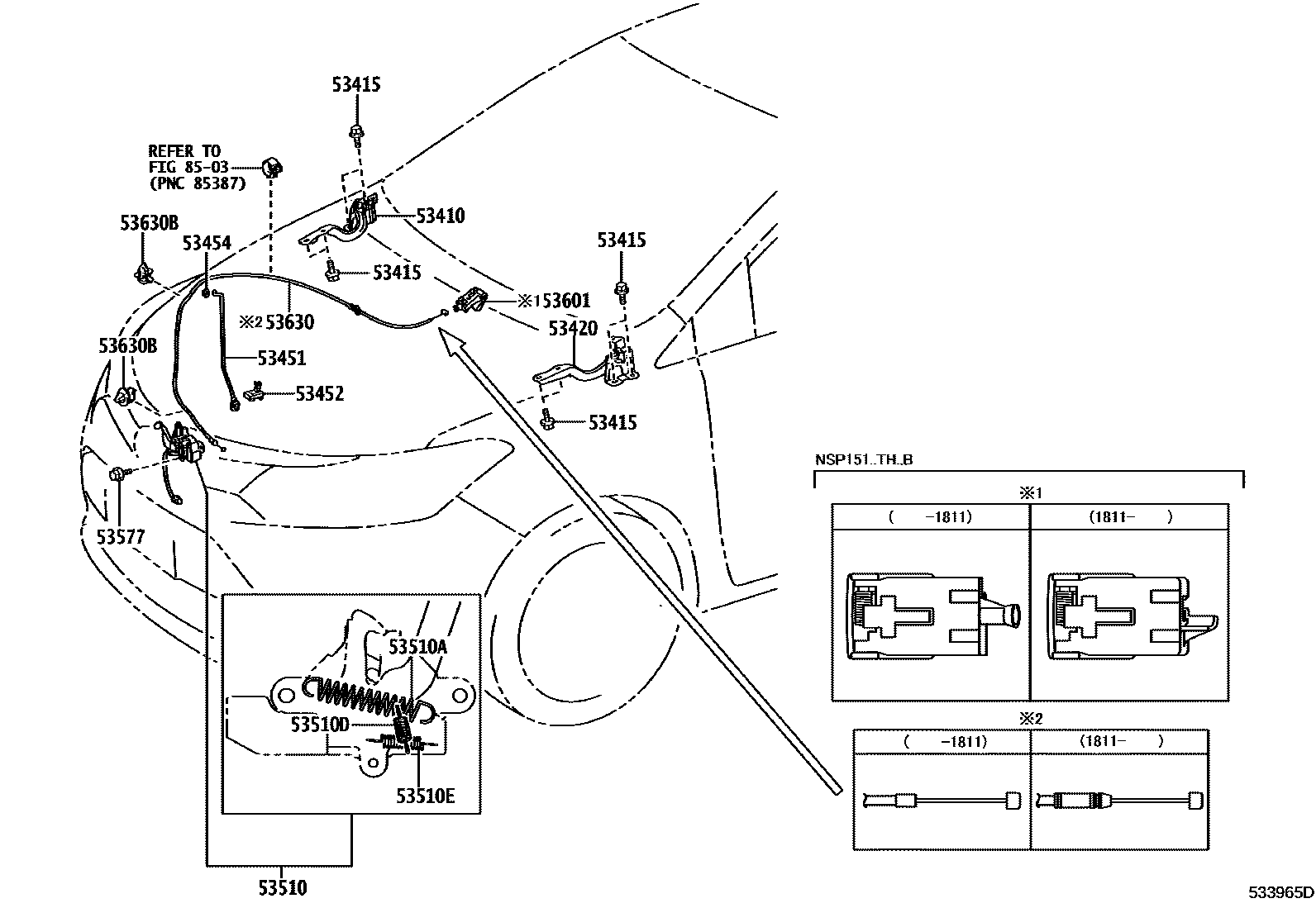

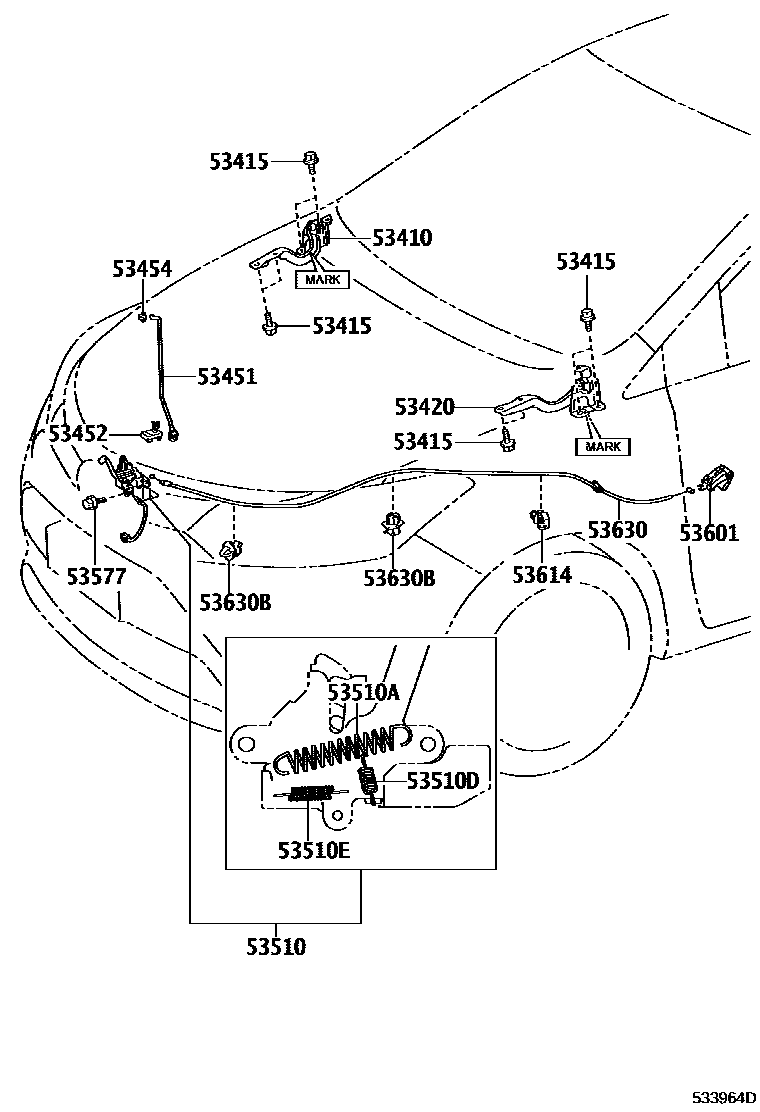

Toyota YARIS EPC diagram 5303, 发动机盖锁和铰链, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-0D400 · 53410-0D490 · 53410-0D520 · 53410-0D540 · 53410-0D630 · 53410-0D760 · 53410-0D790 · 53410-0D800 · 53410-0D810 · 53410-0D820 |
| 53415 | Engine cover hinge bolts | 90105-T0120 · 91551-80820 |
| 53420 | Engine cover left hinge assembly | 53420-0D400 · 53420-0D490 · 53420-0D520 · 53420-0D530 · 53420-0D630 · 53420-0D760 · 53420-0D790 · 53420-0D800 · 53420-0D810 · 53420-0D820 |
| 53451 | Engine cover support rod | 53440-0D140 · 53440-0D141 · 53440-0D160 · 53440-0D170 · 53440-0D180 · 53440-0D220 · 53440-0D230 · 53440-0D240 · 53440-0D250 · 53440-0D260 · 53440-0D270 · 53440-0D280 |
| 53452 | Engine cover stay rod fixing | 53452-0D090 · 53452-0D110 · 53452-0D120 · 53452-0D140 |
| 53454 | Engine cover support rod clip | 90480-15025 · 90480-T0009 |
| 53510 | Engine cover lock assembly | 53510-0D360 · 53510-0D361 · 53510-0D370 · 53510-0D371 · 53510-0D380 · 53510-0D381 · 53510-0D390 · 53510-0D391 · 53510-0D440 · 53510-0D441 · 53510-0D450 · 53510-0D451 · 53510-0D490 · 53510-0D500 · 53510-0D520 · 53510-0D540 · 53510-0D550 · 53510-0D560 · 53510-0D580 · 53510-0D590 · 53510-0D600 · 53510-0D620 · 53510-0D710 · 53510-0D730 · 53510-0D740 · 53510-0D750 · 53510-0D760 · 53510-0D770 · 53510-0D780 · 53510-0D790 · 53510-0D800 · 53510-0D810 · 53510-0D820 · 53510-0D830 · 53510-0D850 · 53510-0D860 |
| 53510A | Tension spring (for hood lock) | 90506-16077 |
| 53510D | Tension spring (for hood lock) | 90506-12063 · 90506-T0004 |
| 53510E | Tension spring (for hood lock) | 90506-09055 · 90506-T0005 |
| 53577 | engine cover lock bolt | 90119-06939 · 90119-T0273 |
| 53614 | Engine hood lock control cable clip | 82711-16790 · 82711-3F230 |
| 53630 | Engine hood lock control cable assembly | 53630-0D180 · 53630-0D181 · 53630-0D200 · 53630-0D210 · 53630-0D220 · 53630-0D230 · 53630-0D320 · 53630-0D330 · 53630-0D340 · 53630-0D350 · 53630-0D360 · 53630-0D370 · 53630-0D380 · 53630-0D390 |
| 53630B | Clip (for hood lock control cable) | 90469-06005 · 90469-T0003 |
