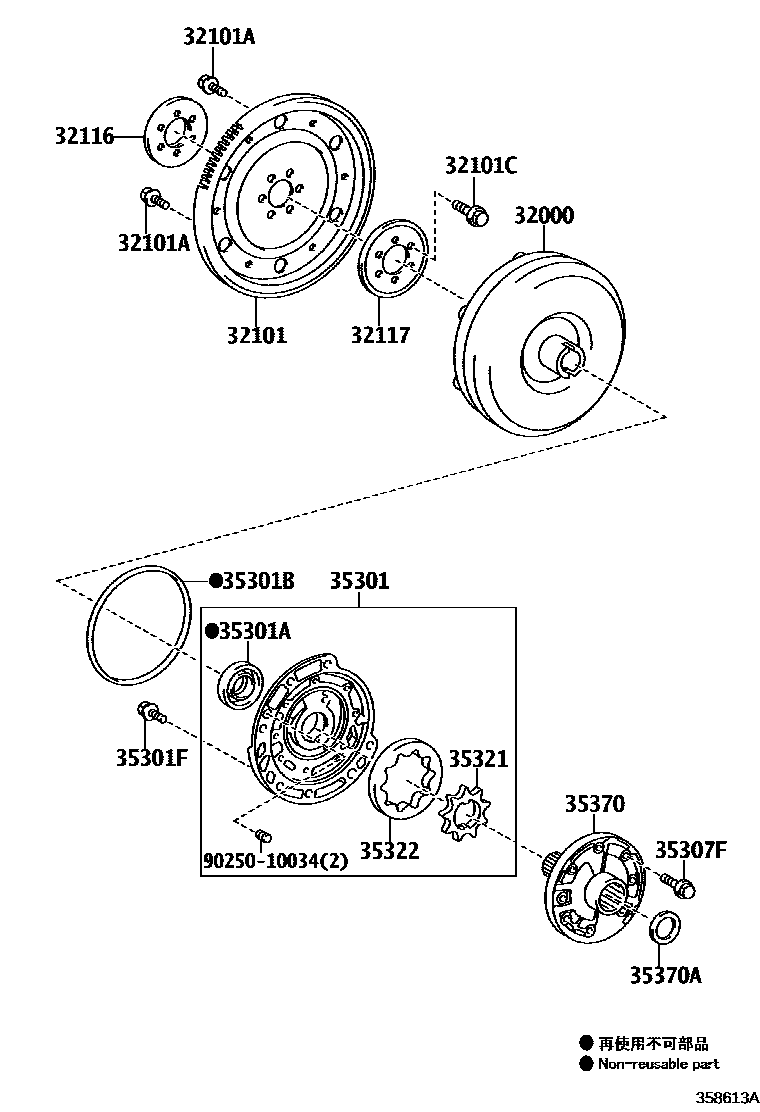

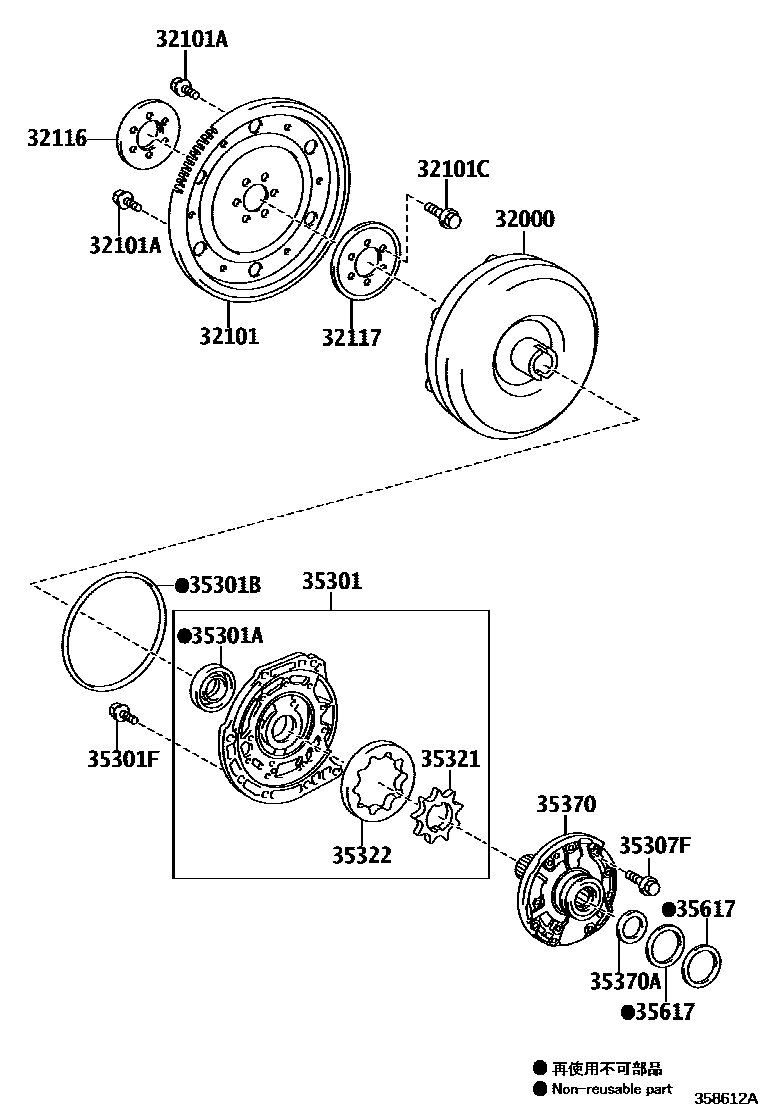

Toyota YARIS 变矩器、前油泵和链条(ATM) — Figure 3502
Toyota YARIS EPC diagram 3502, 变矩器、前油泵和链条(ATM), with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32000 | Torque converter assembly | 32000-52052 · 32000-52120 |
| 32101 | Transmission plate and ring gear sub-assembly | 32101-52021 |
| 32101A | Bolts (for securing transmission plate and torque converter) | 90109-08113 · 90119-08498 |
| 32101C | Hexagonal bolts (used to fix the transmission plate) | 90105-10048 |
| 32116 | Front transmission plate spacer | 32116-52030 |
| 32117 | Rear transmission plate spacer | 32117-52030 |
| 35301 | Front oil pump body sub-assembly | 35035-52030 · 35035-52040 |
| 35301A | Oil seal (for front oil pump) | 90311-38064 · 90311-38075 |
| 35301B | O-ring (for front oil pump body) | 35697-52010 · 90301-99123 · 90301-99124 |
| 35301F | Bolt (used to secure the front oil pump) | 90105-08301 · 90105-08376 |
| 35307F | Bolt (for stator shaft) | 90119-06559 · 90148-60027 |
| 35321 | Front oil pump driving gear | 35321-52010 · 35321-52020 · 35321-52030 · 35321-52040 · 35321-52050 · 35321-52060 · 35321-52070 · 35321-52080 · 35321-52090 · 35321-52100 |
| 35322 | Front oil pump driven gear | 35322-52010 · 35322-52020 · 35322-52030 · 35322-52040 · 35322-52050 · 35322-52060 · 35322-52070 · 35322-52080 · 35322-52090 · 35322-52100 |
| 35370 | stator shaft assembly | 35370-52010 · 35370-52070 |
| 35370A | Thrust needle roller bearing (for stator shaft) | 90374-26003 · 90374-32007 · 90374-32008 |
| 35617 | Clutch drum oil ring | 35613-52020 |
