Toyota YARIS 离合器分离缸 — Figure 3105

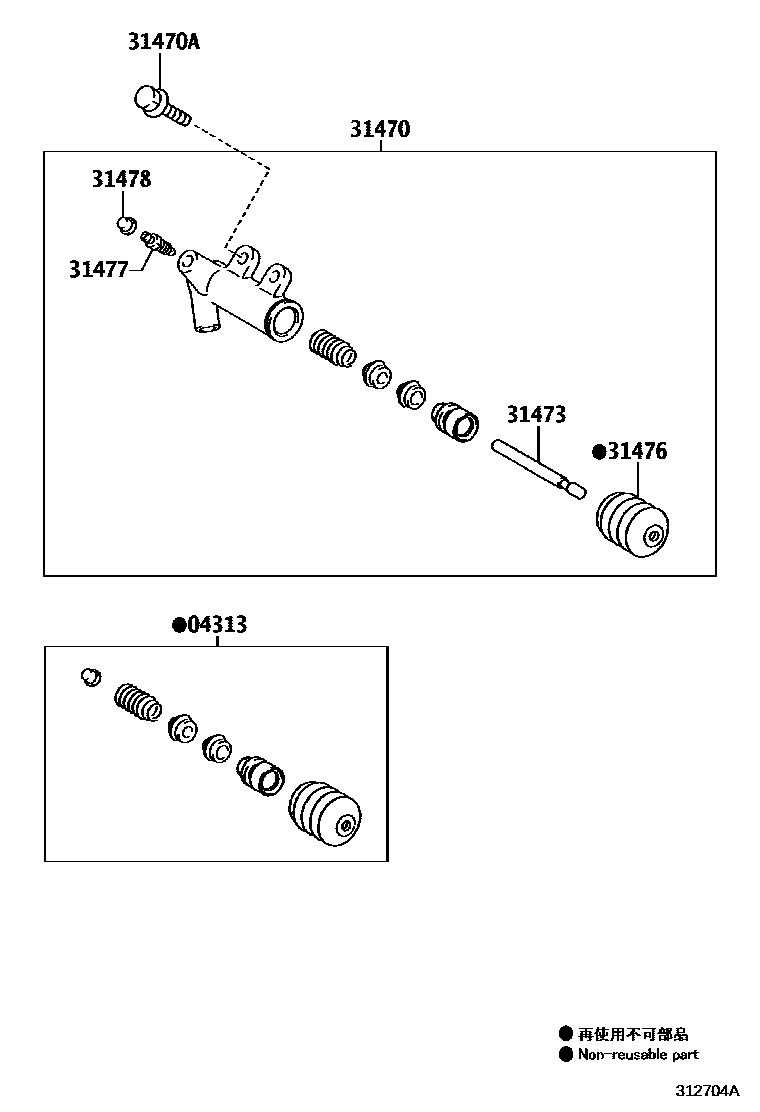

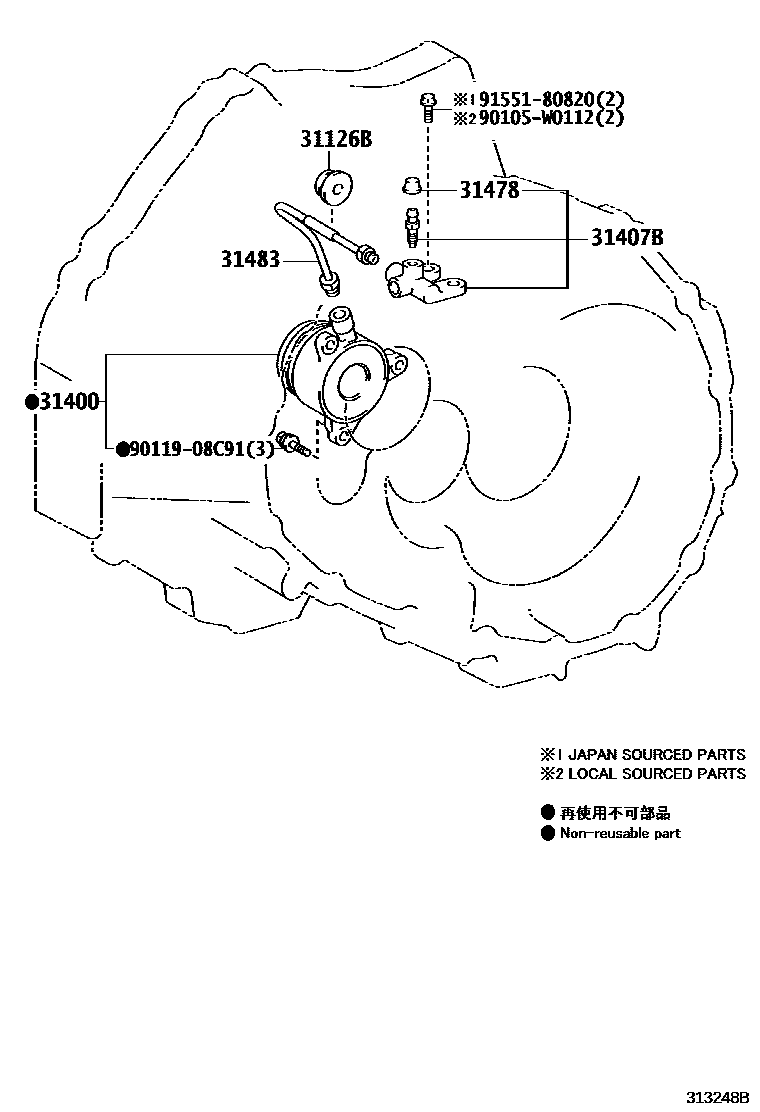

Toyota YARIS EPC diagram 3105, 离合器分离缸, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04313 | Clutch release cylinder assembly | 04313-0K030 · 04313-0K040 · 04313-35060 · 04313-52020 |
| 31126B | Clutch tube dust boot | 31126-0D070 · 31126-0D080 |
| 31400 | Clutch release cylinder assembly with bearing | 31400-09010 · 31400-09020 |
| 31407B | Clutch separation and bleeder device sub-assembly | 31407-52010 |
| 31470 | Clutch release cylinder assembly | 31470-0D060 · 31470-0D070 · 31470-0D080 · 31470-0D090 · 31470-52111 · 31470-52121 |
| 31470A | Bolt (for securing clutch release cylinder) | 90119-T0304 · 91611-60822 |
| 31473 | No. 1 clutch release cylinder push rod | 31473-0D020 · 31473-20031 |
| 31476 | Clutch release cylinder dust boot | 31476-04010 · 31476-22010 |
| 31477 | Bleed plug (for separation cylinder) | 47547-20010 |
| 31478 | Bleed plug cap (for separator cylinder) | 31478-30010 |
| 31483 | Clutch release bleeder pipe | 31482-0D300 · 31482-0D320 |
