Toyota YARIS 离合器总泵 — Figure 3103

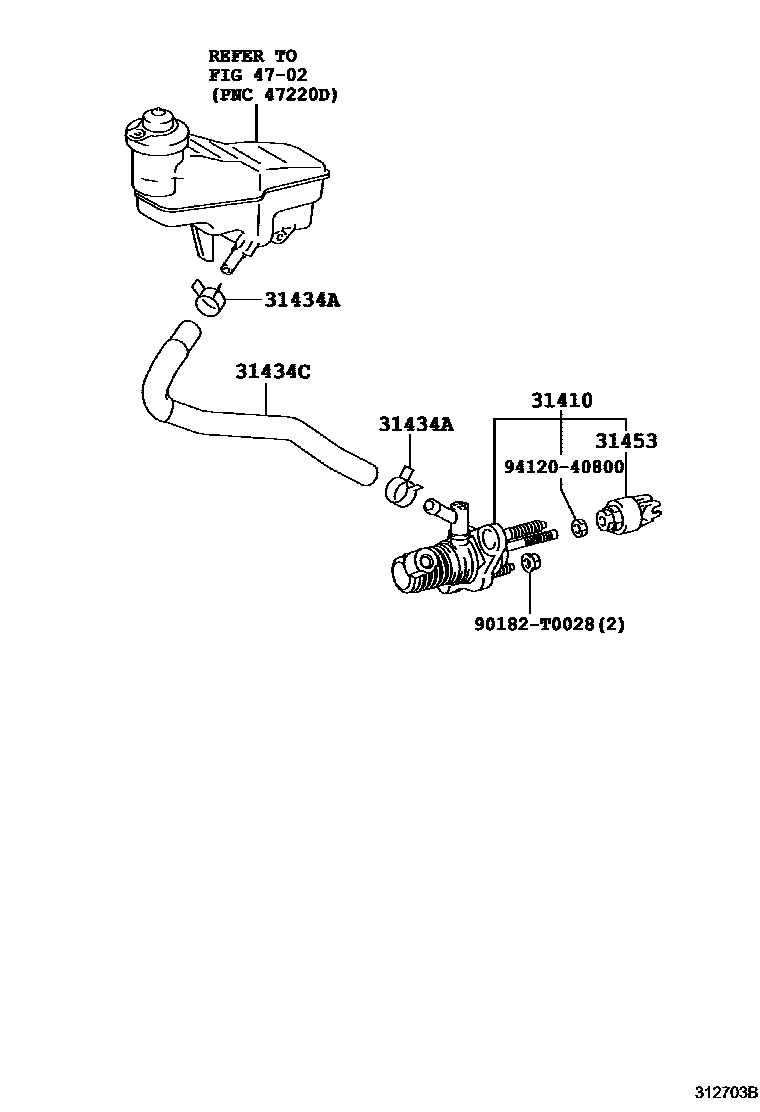

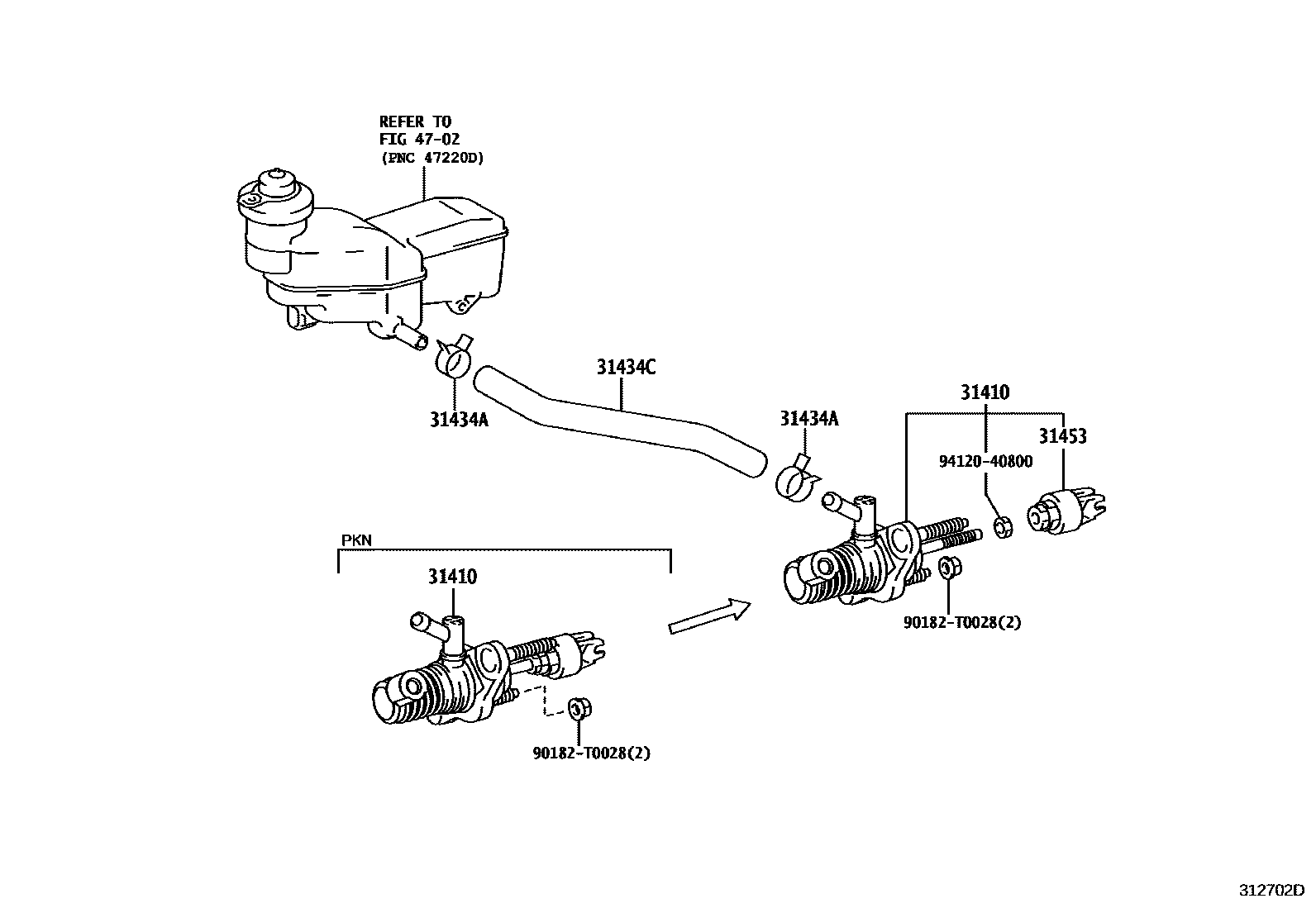

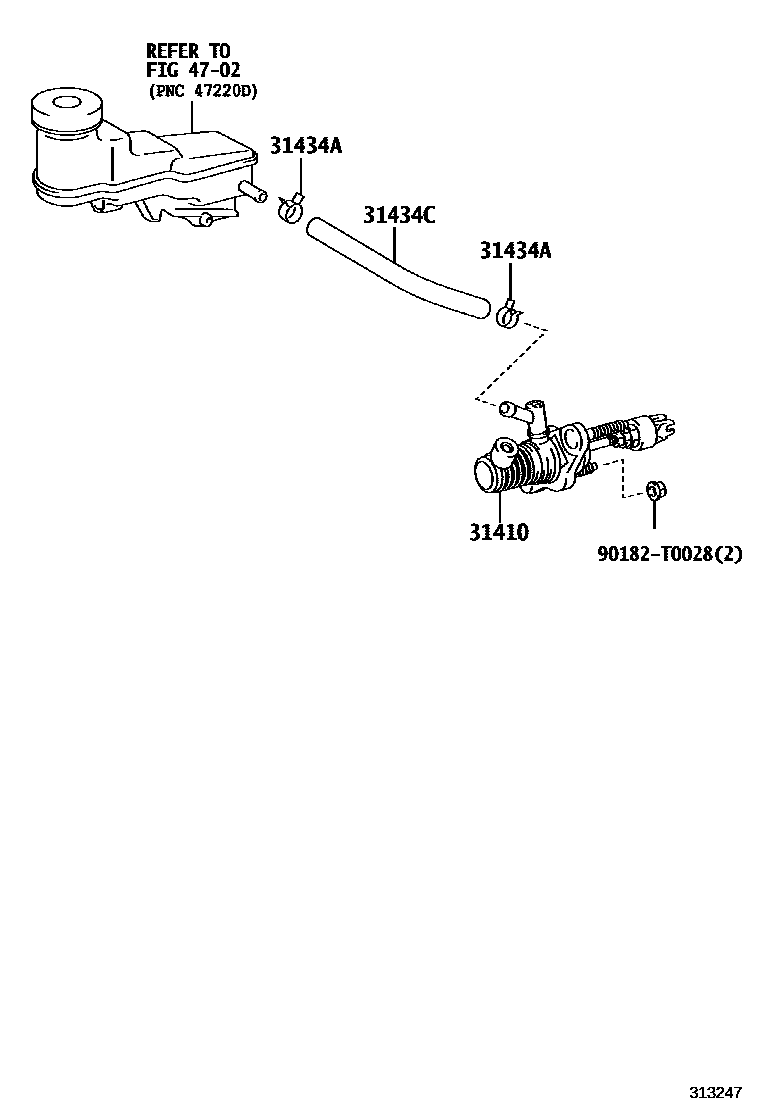

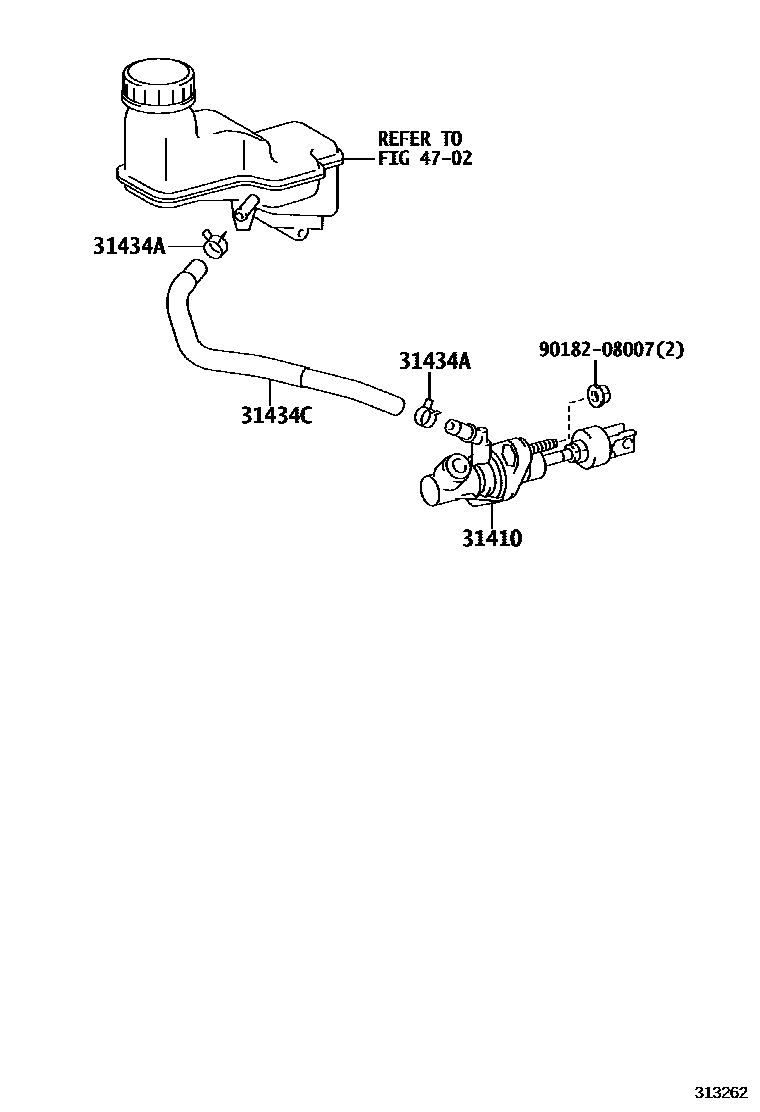

Toyota YARIS EPC diagram 3103, 离合器总泵, with 4 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31410 | Clutch master cylinder assembly | 31420-0D130 · 31420-0D220 · 31420-0D230 · 31420-0D231 · 31420-0D240 · 31420-12030 |
| 31434A | Clamp (for clutch reservoir connecting pipe) | 90466-T0052 · 96136-41801 |
| 31434C | Clutch reservoir connecting pipe | 31434-0D010 · 31434-0D030 · 31434-0D040 · 31434-0D120 · 31434-52290 · 31434-52300 |
| 31453 | Clutch master cylinder push rod U-shaped clamp | 31404-0D020 |
