Toyota YARIS 燃油喷射系统 — Figure 2211

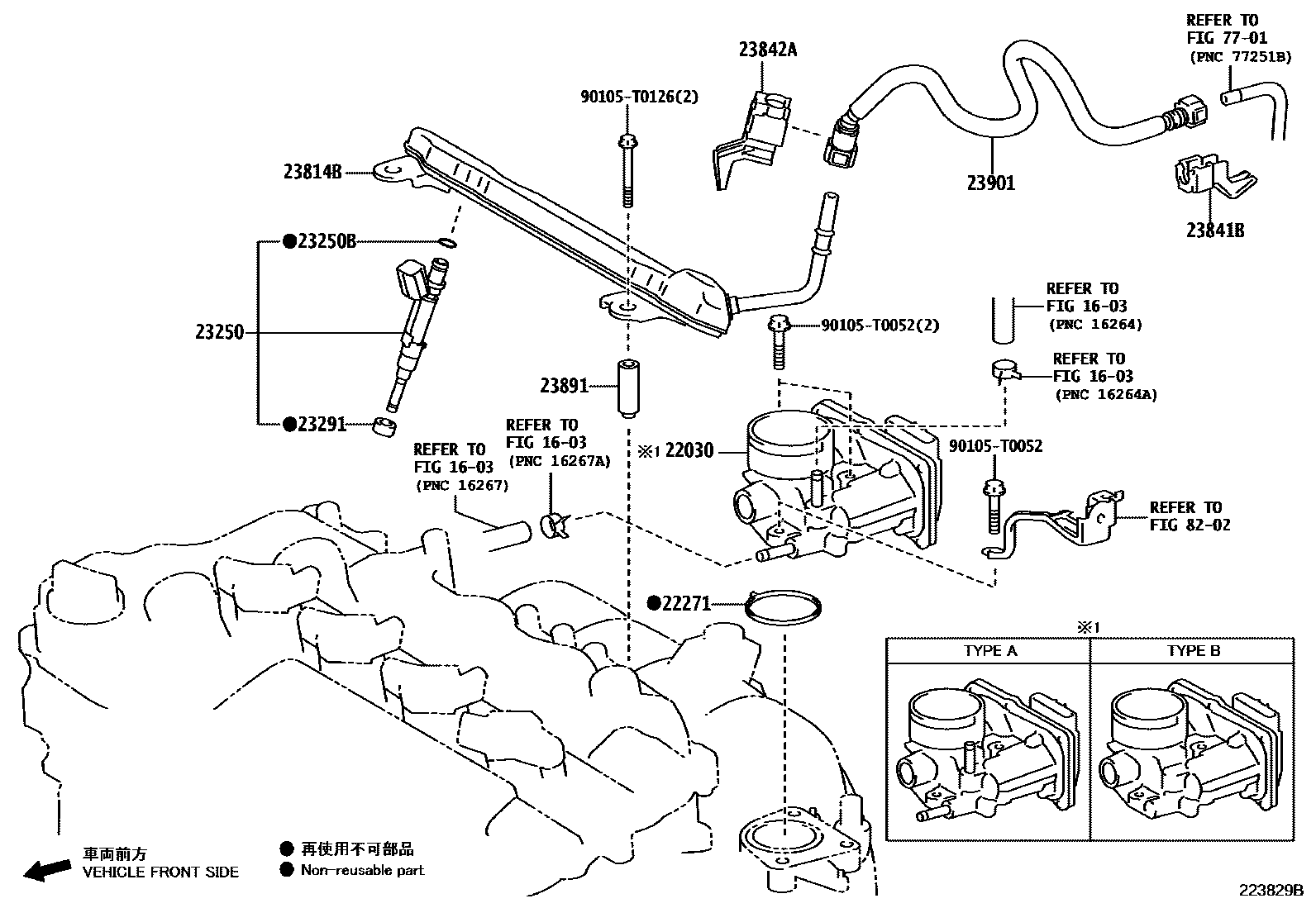

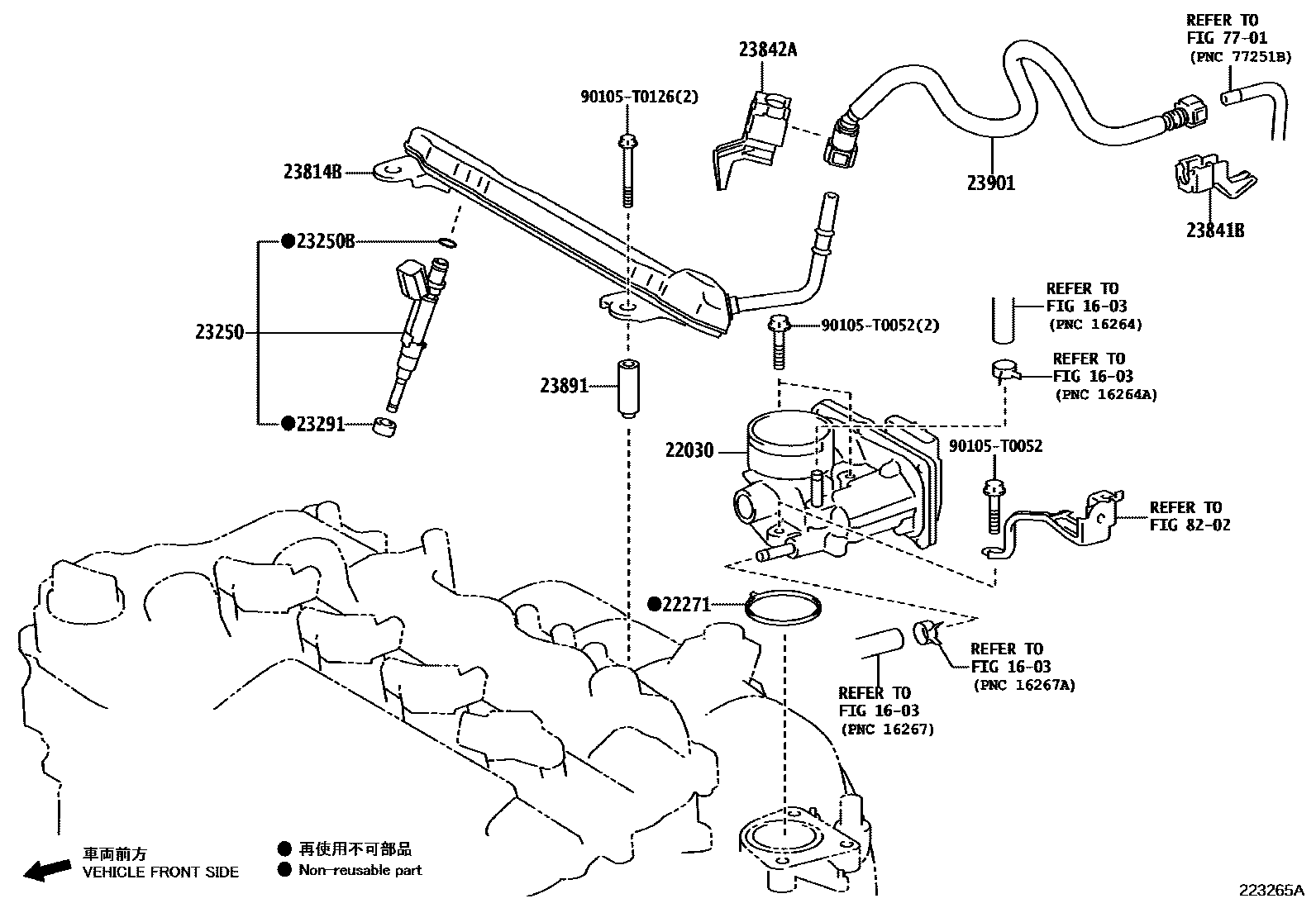

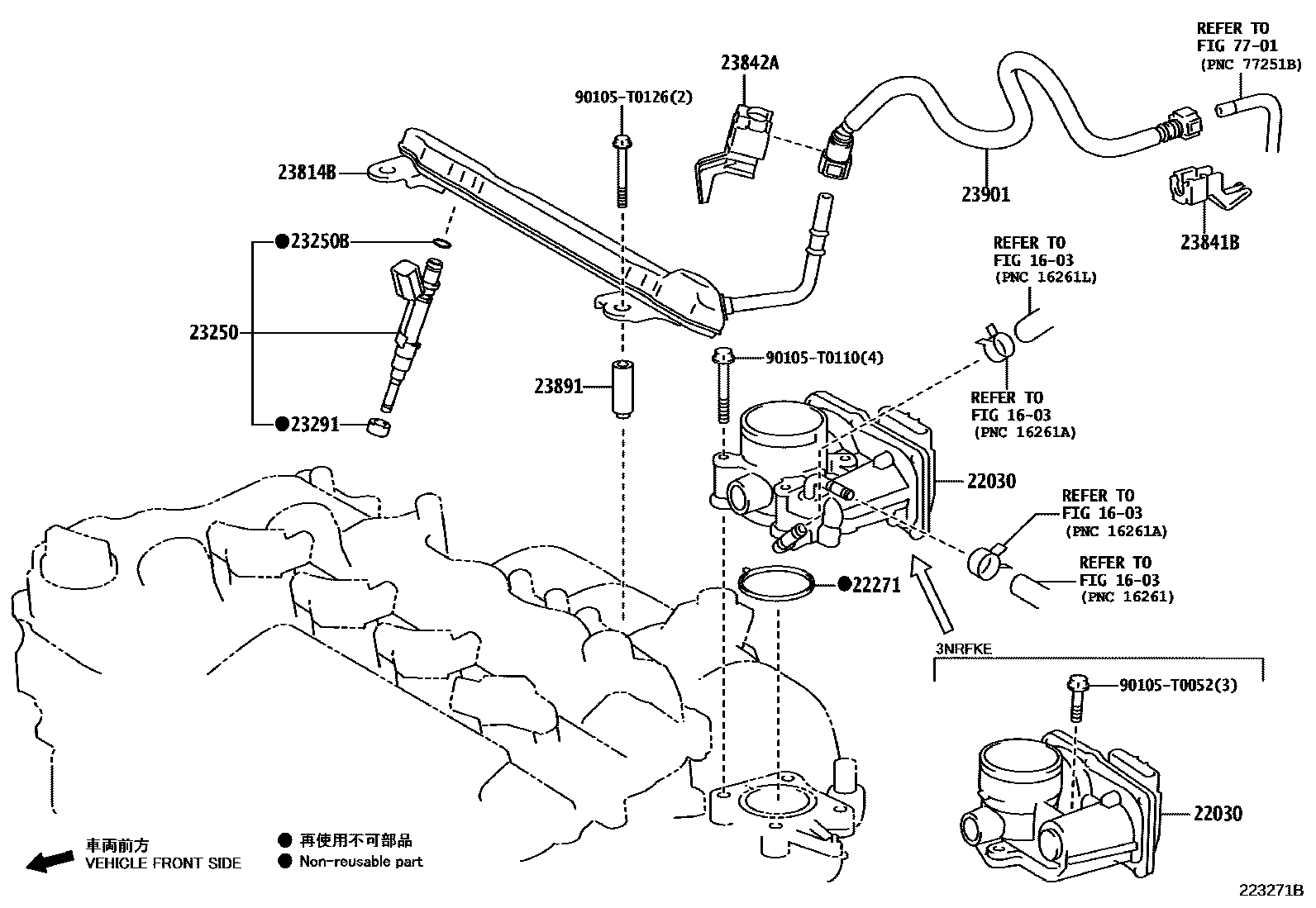

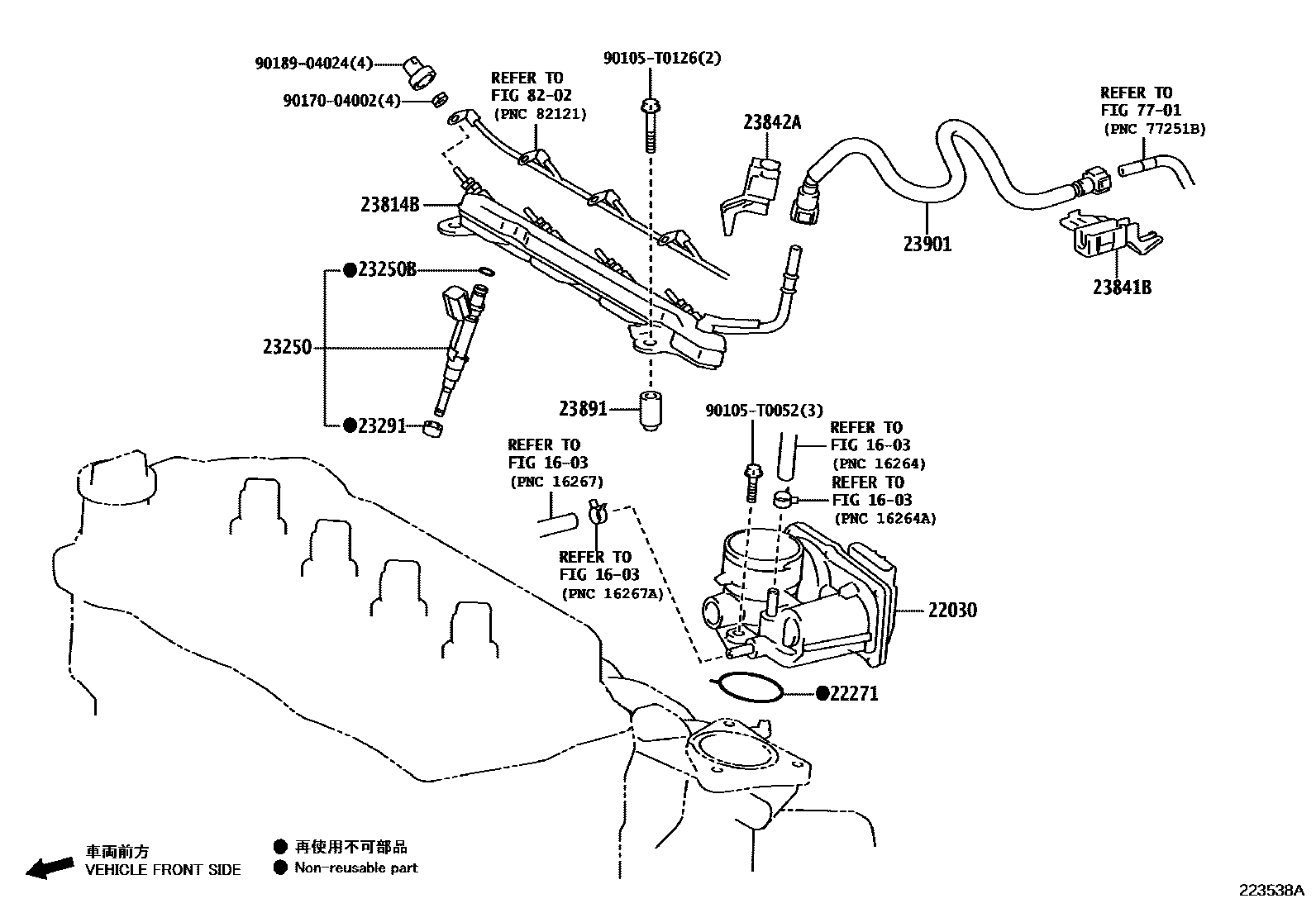

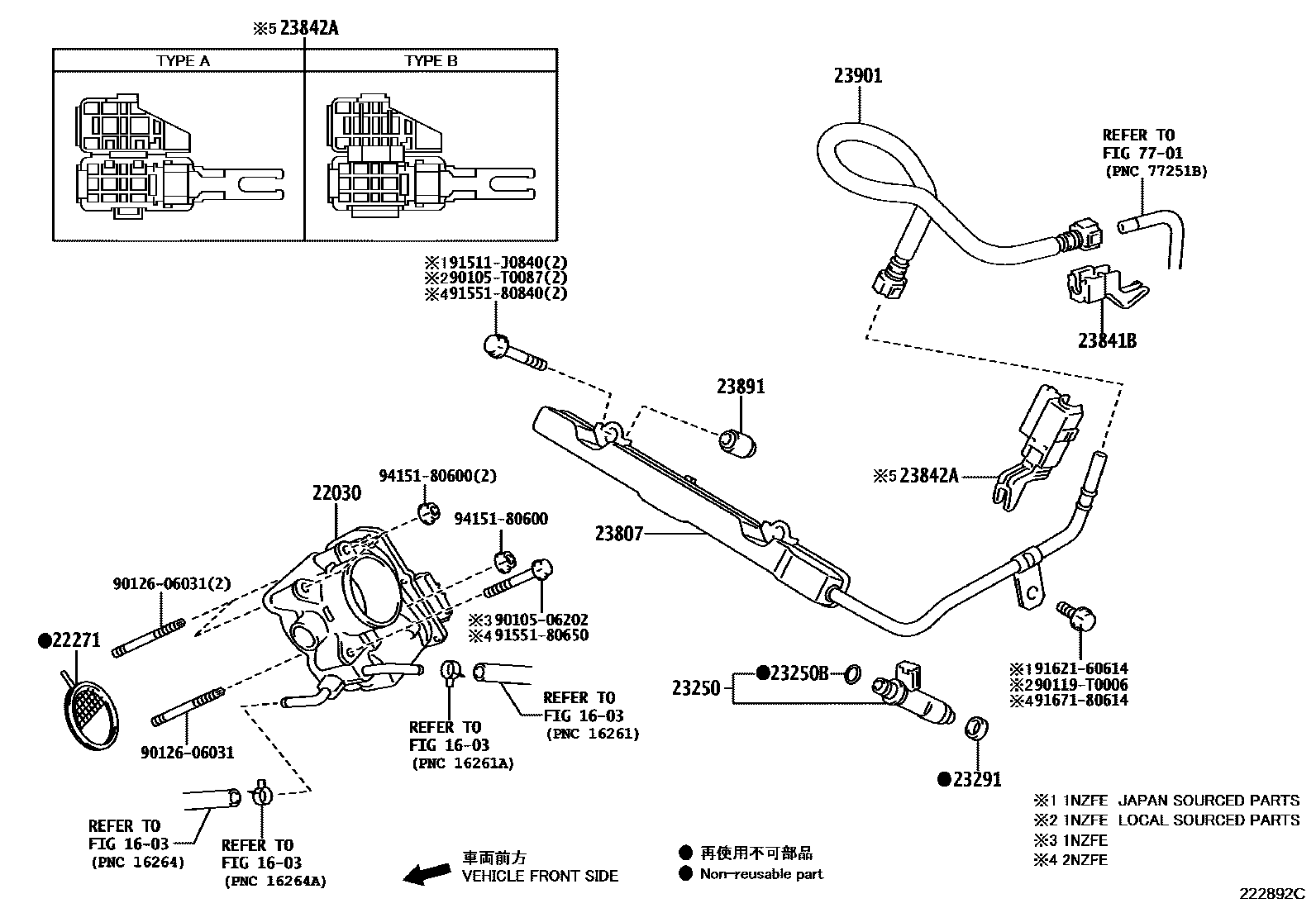

Toyota YARIS EPC diagram 2211, 燃油喷射系统, with 5 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22030 | Throttle valve body assembly with throttle position sensor | 22030-0M010 · 22030-0Y020 · 22030-0Y080 · 22030-0Y120 · 22030-0Y140 · 22030-21030 |
| 22271 | Throttle body gasket | 22271-0Y030 · 22271-0Y040 · 22271-21060 |
| 23250 | Fuel injector assembly | 23209-09340 · 23209-09350 · 23209-09351 · 23209-09390 · 23209-09400 · 23209-09401 · 23209-0M010 · 23209-21040 · 23209-49205 · 23209-49245 · 23209-49265 · 23209-49275 · 23209-49285 |
| 23250B | O-ring (for fuel injector) | 90301-07037 · 90301-07042 · 90301-T0051 |
| 23291 | Injector vibration isolation pad | 23291-0H020 · 23291-0Y020 · 23291-0Y050 · 23291-23010 · 23291-41010 |
| 23807 | Oil pipe sub-assembly | 23807-21090 |
| 23814B | oil pipeline | 23807-0Y010 · 23814-0Y010 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-0M040 · 23841-0Y030 · 23841-0Y050 · 23841-36020 · 23841-37081 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23841-0M010 · 23841-0M030 · 23841-0Y040 · 23841-0Y060 · 23841-36010 · 23841-37090 |
| 23891 | oil pipe septum | 23891-21010 · 23891-47040 |
| 23901 | Fuel pipe sub-assembly | 23901-0M040 · 23901-0M070 · 23901-0Y090 · 23901-0Y150 · 23901-0Y160 · 23901-0Y170 · 23901-0Y200 · 23901-0Y210 · 23901-0Y380 |
