Toyota YARIS Air Cleaner — Figure 1703

Toyota YARIS EPC diagram 1703, Air Cleaner, with 10 images and 20 PNC and OE references.

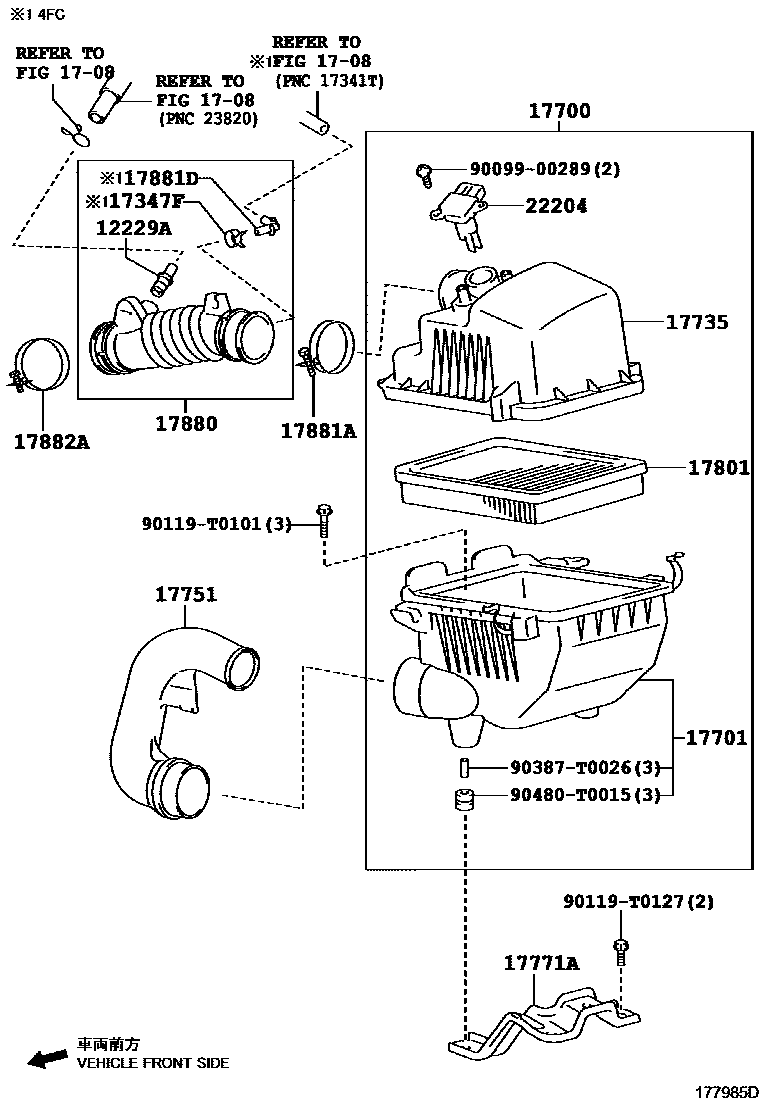

Toyota YARIS Air Cleaner EPC diagram — 177985D
Air Cleaner — 177985D (201304 – 999999)

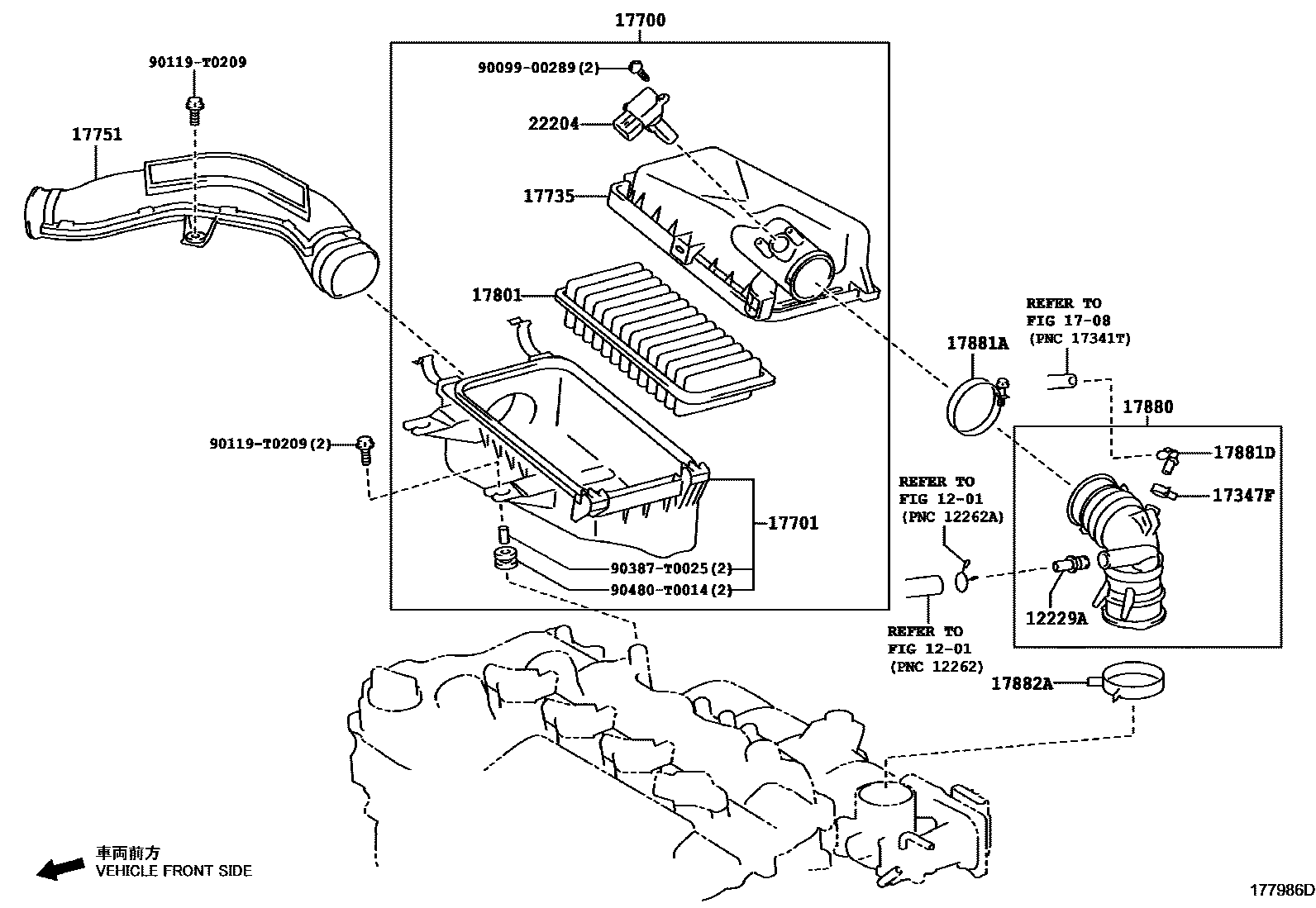

Toyota YARIS Air Cleaner EPC diagram — 177986D
Air Cleaner — 177986D (201708 – 999999)

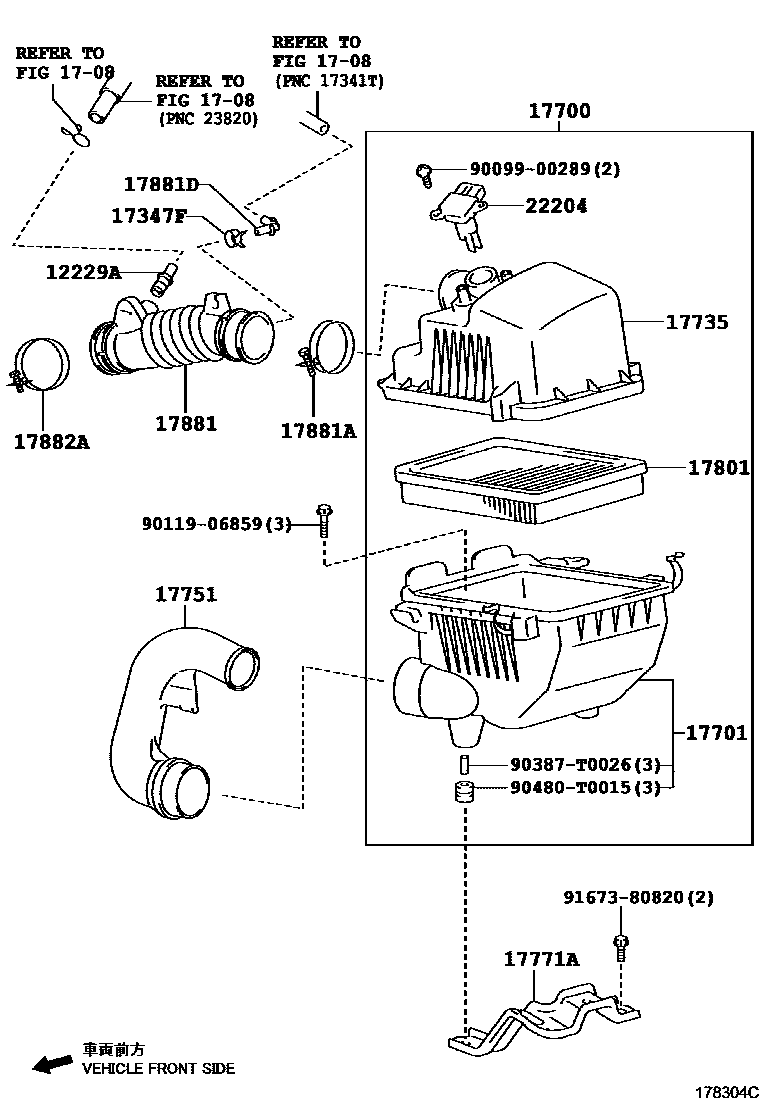

Toyota YARIS Air Cleaner EPC diagram — 178304C
Air Cleaner — 178304C (201404 – 999999)

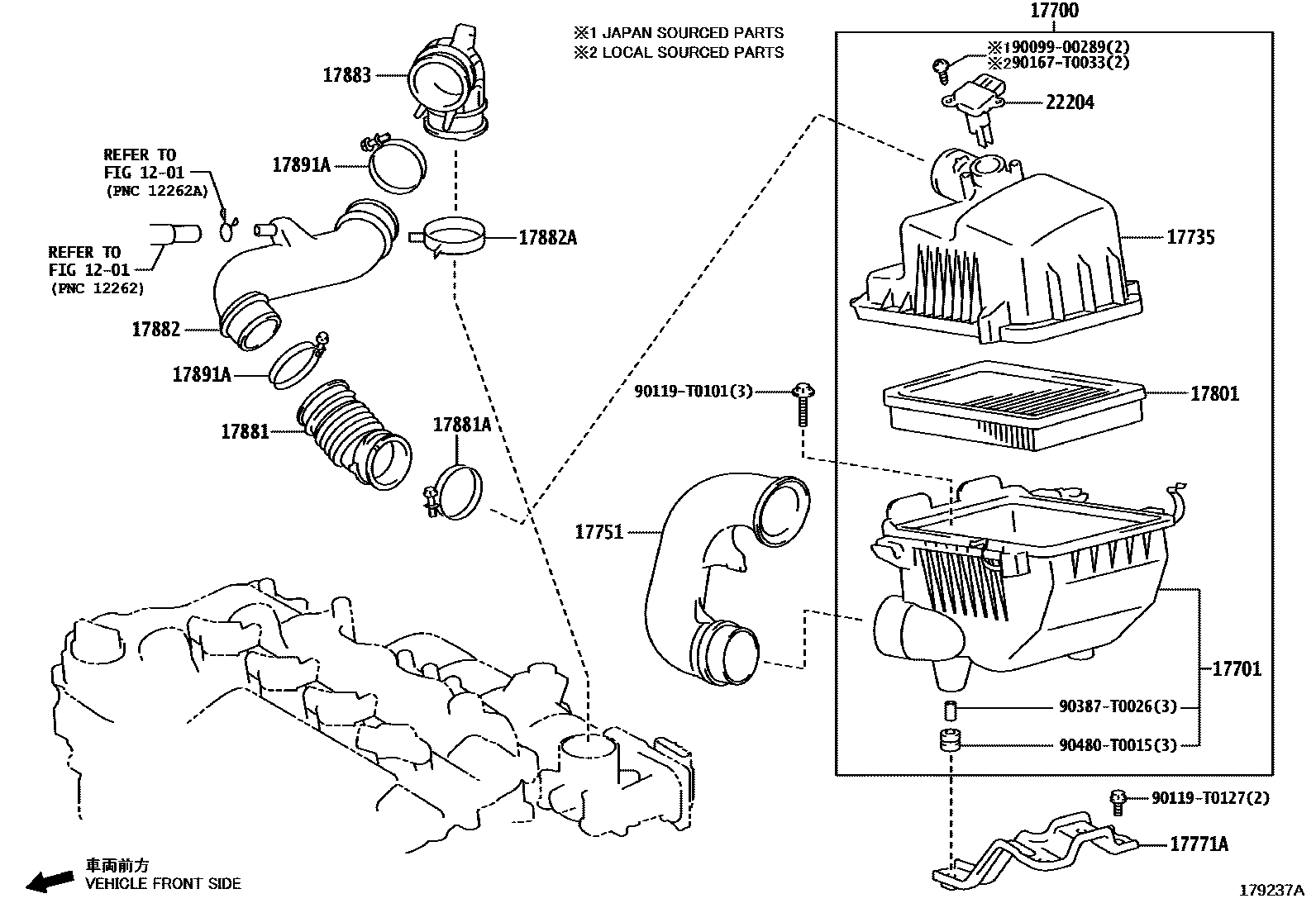

Toyota YARIS Air Cleaner EPC diagram — 179237A
Air Cleaner — 179237A (201604 – 999999)

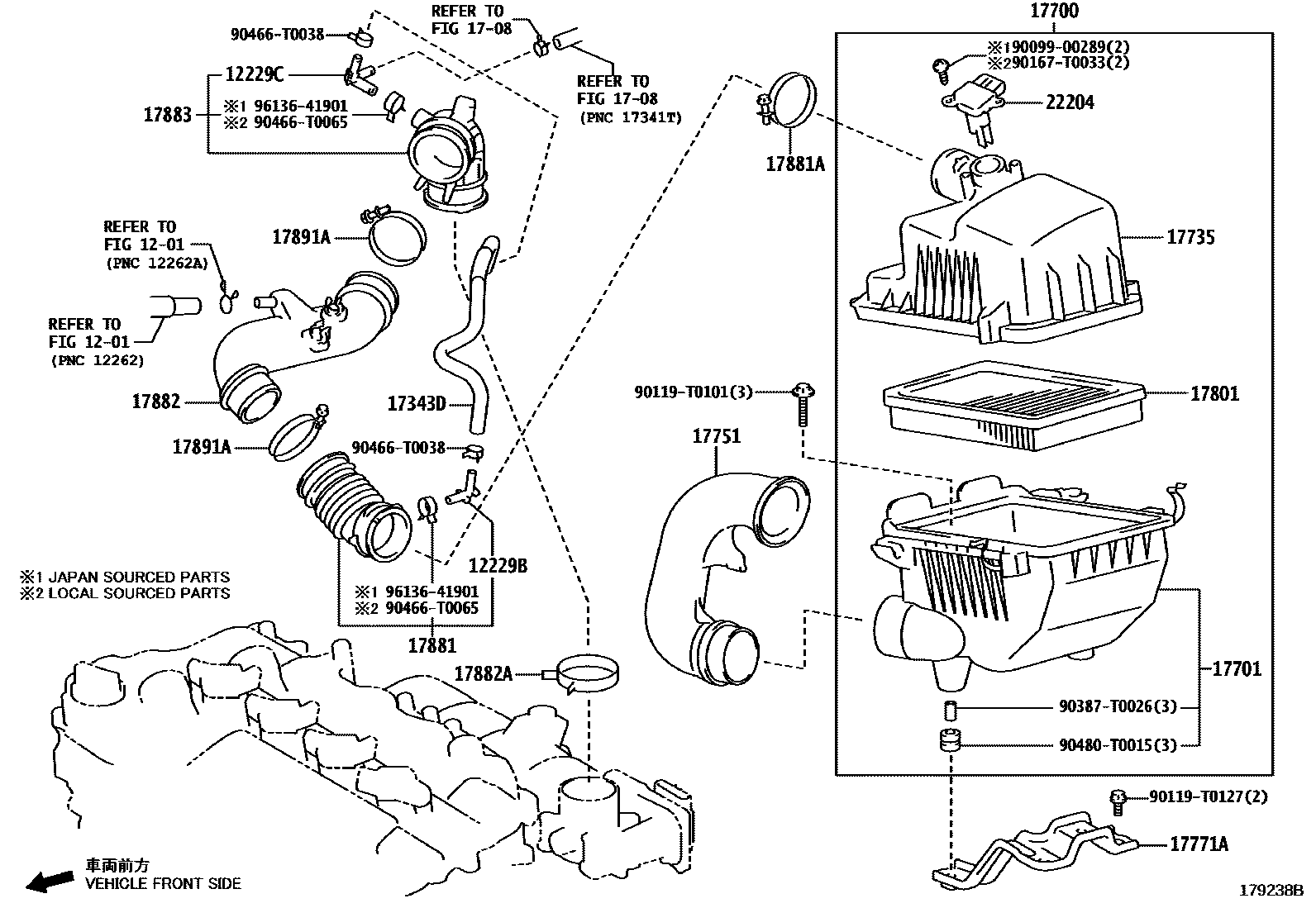

Toyota YARIS Air Cleaner EPC diagram — 179238B
Air Cleaner — 179238B (201604 – 999999)

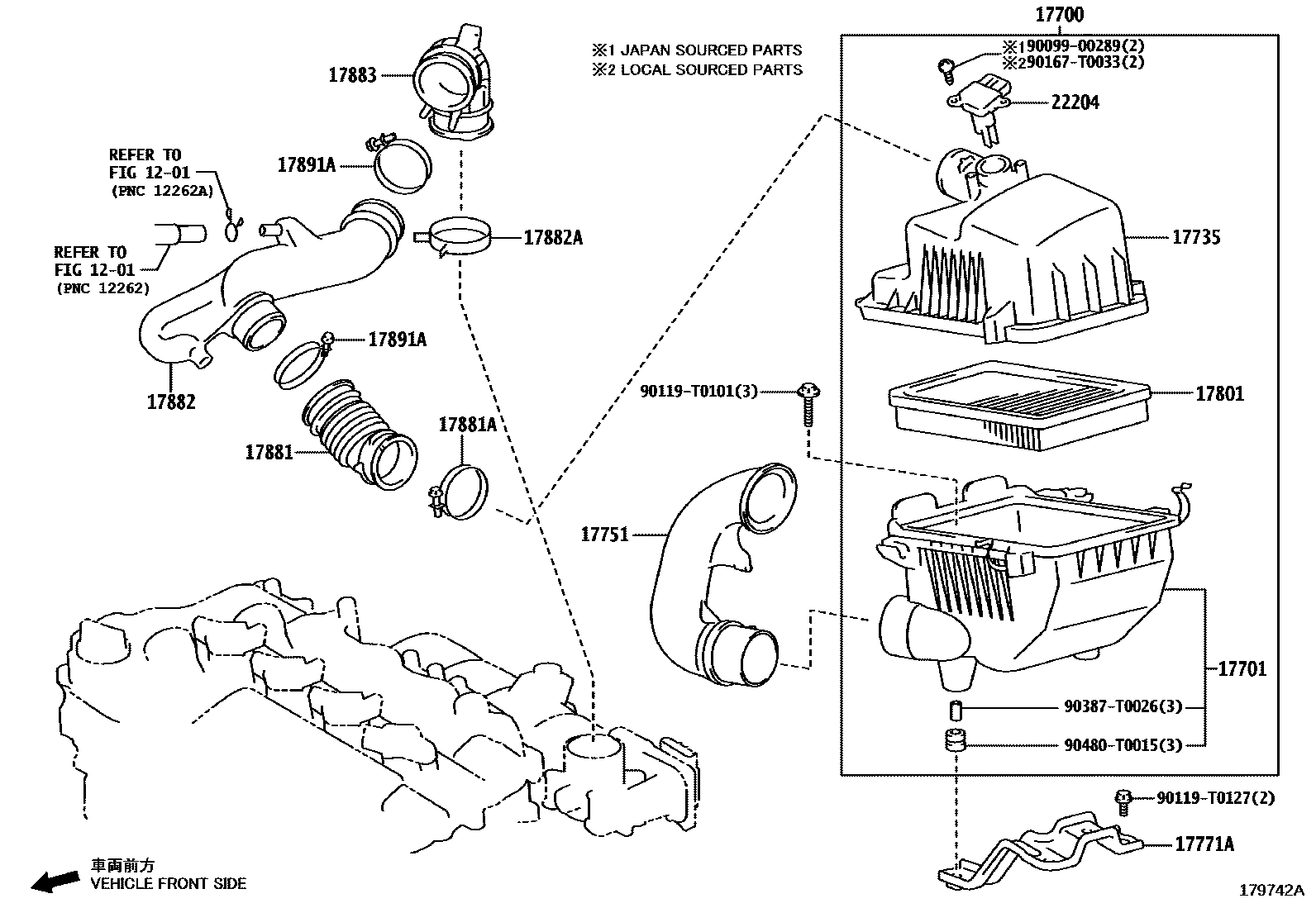

Toyota YARIS Air Cleaner EPC diagram — 179742A
Air Cleaner — 179742A (201710 – 999999)

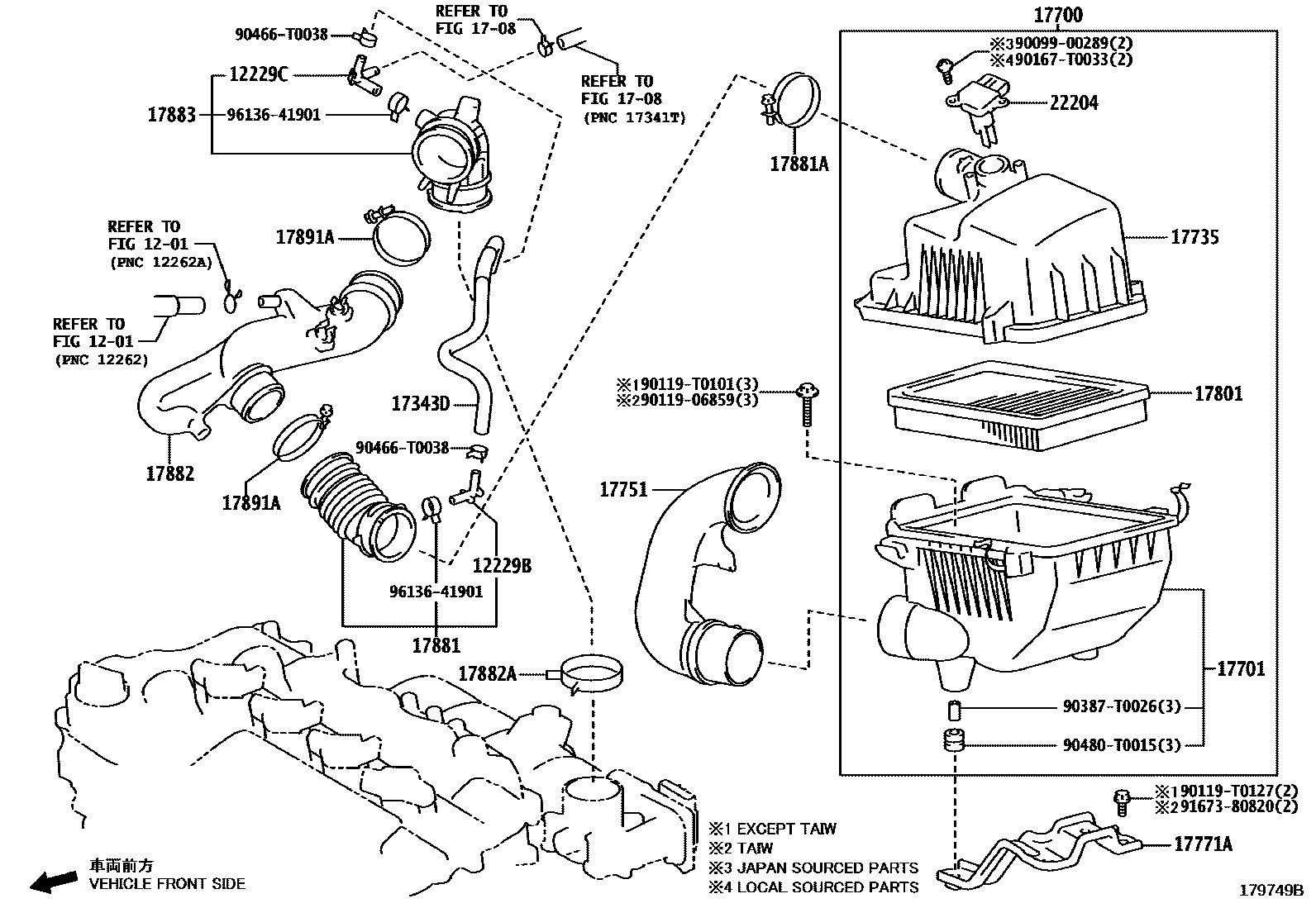

Toyota YARIS Air Cleaner EPC diagram — 179749B
Air Cleaner — 179749B (201708 – 999999)

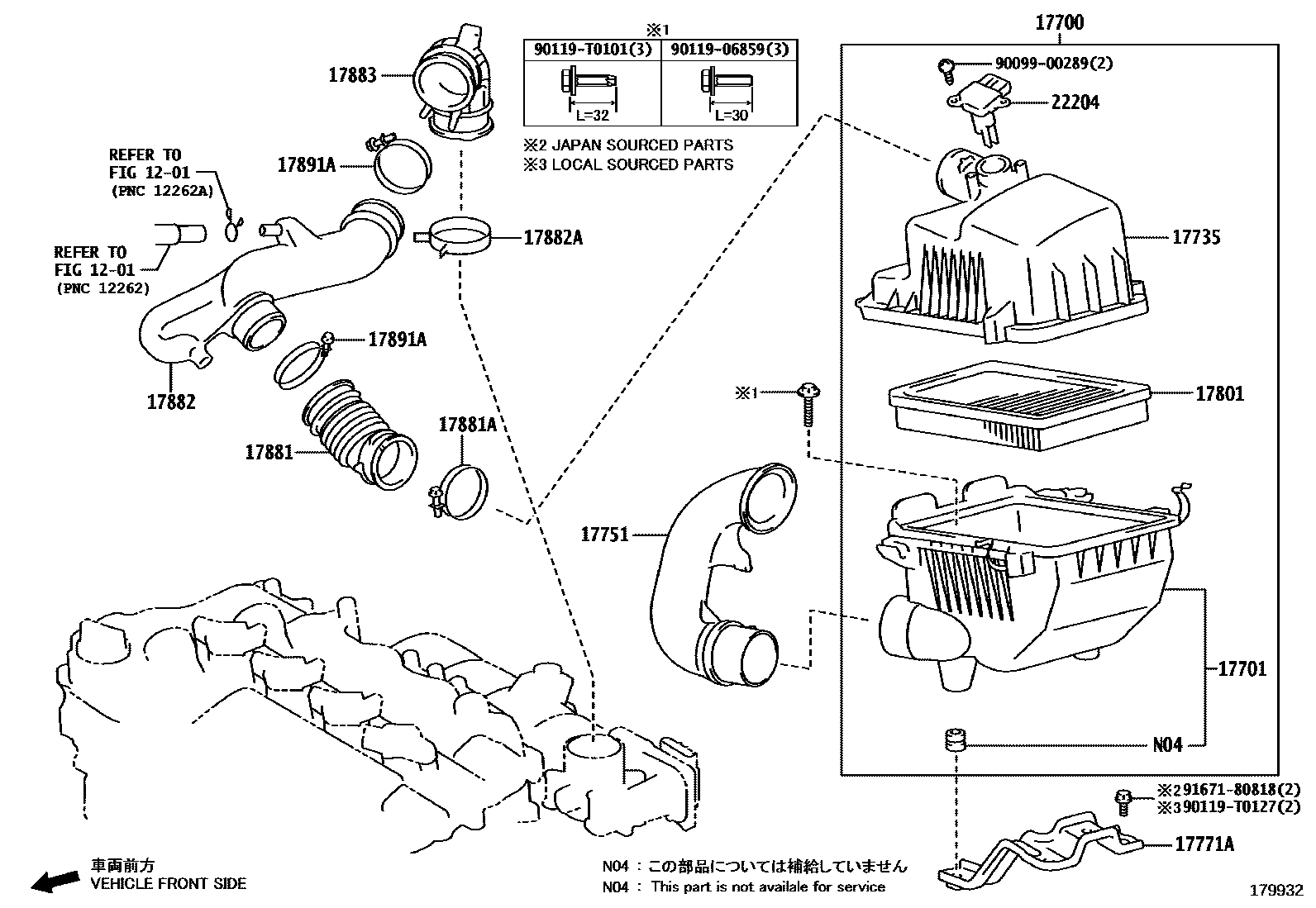

Toyota YARIS Air Cleaner EPC diagram — 179932
Air Cleaner — 179932 (201804 – 999999)

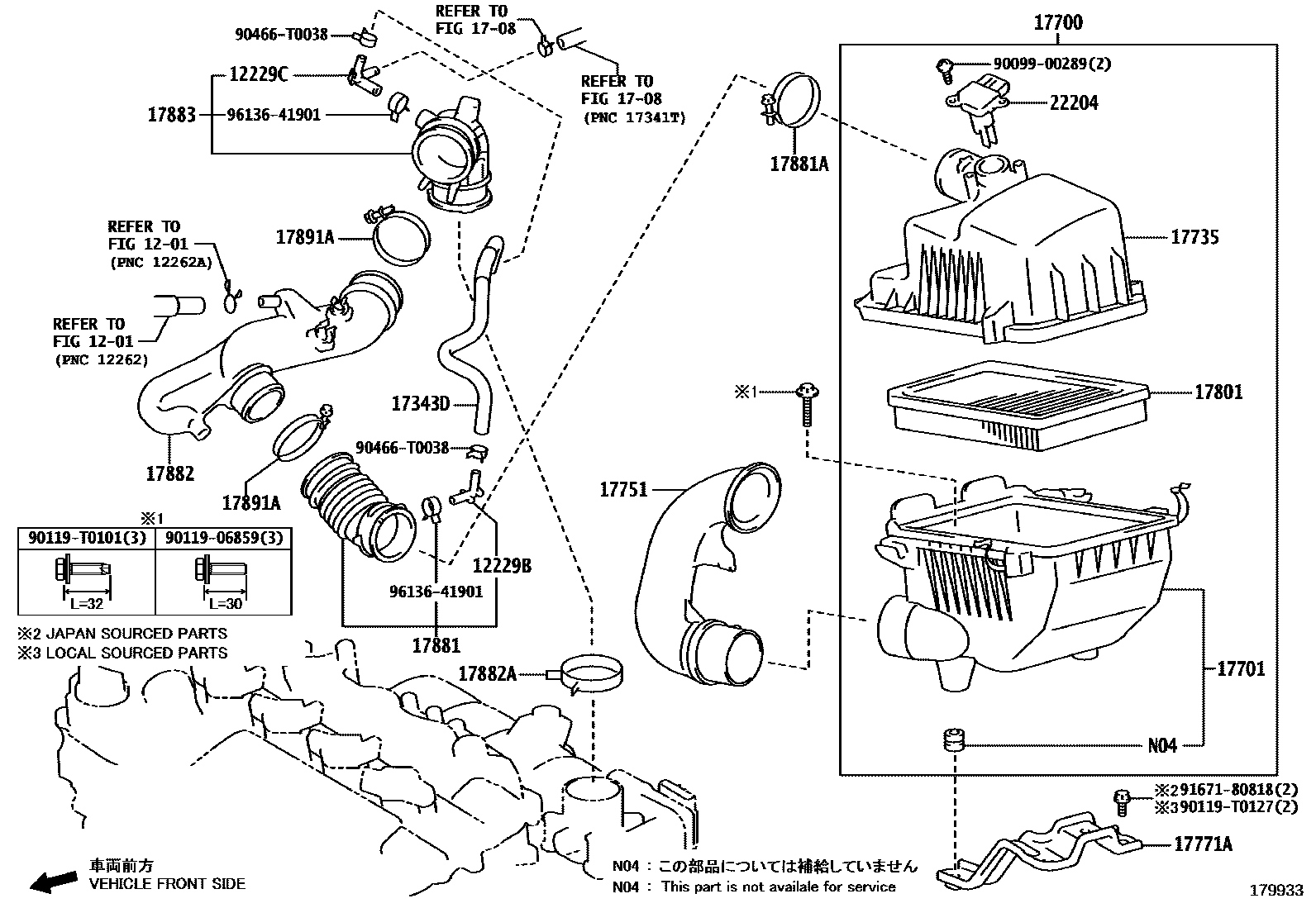

Toyota YARIS Air Cleaner EPC diagram — 179933
Air Cleaner — 179933 (201804 – 999999)

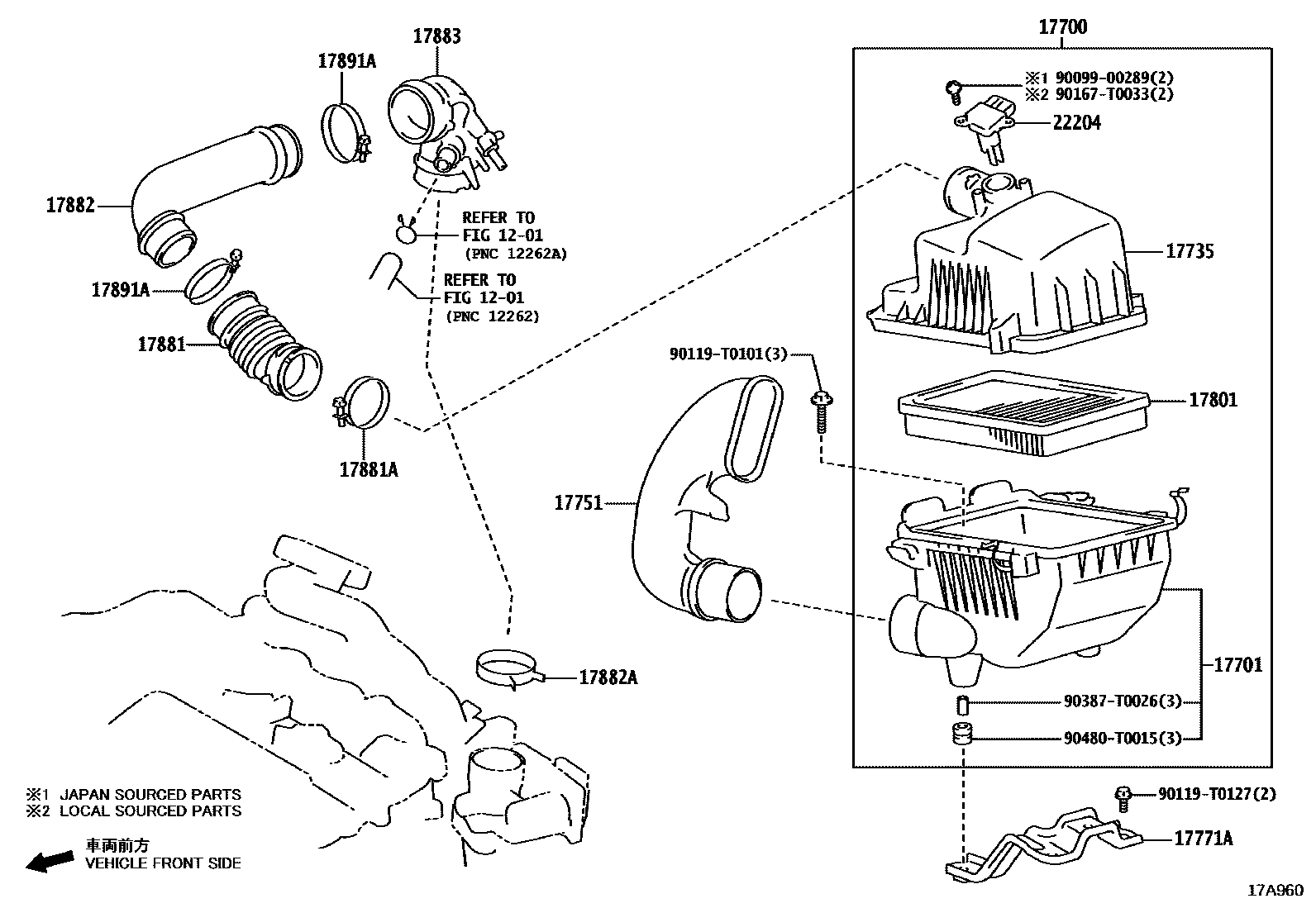

Toyota YARIS Air Cleaner EPC diagram — 17A960
Air Cleaner — 17A960 (201911 – 999999)

PNC and OE references

PNCPart nameOE numbers
12229Aventilation duct12229-0T040 · 12229-0Y030
12229BVentilation duct No. 112229-0Y100 · 12229-0Y110 · 12229-0Y120
12229CVentilation duct No. 212229-0Y150 · 12229-0Y170
17343DNo. 3 air hose17343-0Y010 · 17343-0Y011 · 17343-0Y020 · 17343-0Y021 · 17343-0Y030 · 17343-0Y031
17347FClamps or clips (for air hoses)96136-41901
17700air filter assembly17700-0M100 · 17700-0M110 · 17700-0M120 · 17700-0Y110 · 17700-0Y190 · 17700-0Y200 · 17700-0Y210 · 17700-0Y250 · 17700-0Y260 · 17700-0Y370
17701Air filter housing sub-assembly17701-0M070 · 17701-0M080 · 17701-0M090 · 17701-0Y080 · 17701-0Y180 · 17701-0Y190 · 17701-0Y270
17735air filter cover17735-0M010 · 17735-0M050 · 17735-0M060 · 17735-0Y050 · 17735-0Y130 · 17735-0Y140 · 17735-0Y150 · 17735-0Y160 · 17735-0Y200 · 17735-0Y210
17751No. 1 air filter air inlet17751-0M070 · 17751-0M080 · 17751-0Y100 · 17751-0Y190 · 17751-0Y210 · 17751-0Y240 · 17751-0Y261 · 17751-0Y271 · 17751-0Y320 · 17751-0Y330
17771Aair filter bracket17771-0M050 · 17771-0M060 · 17771-0Y030 · 17771-0Y041 · 17771-0Y050 · 17771-0Y060 · 17771-0Y080 · 17771-0Y090
17801Air filter element sub-assembly17801-0N050 · 17801-0Y040 · 17801-0Y070
17880Air cleaner hose assembly17880-0M100 · 17880-0M120 · 17880-0Y060
17881No. 1 air cleaner hose17881-0M110 · 17881-0Y160 · 17881-0Y170 · 17881-0Y180 · 17881-0Y240 · 17881-0Y250
17881AClamp (for No. 1 air cleaner hose)90460-T0017 · 96111-10690
17881DConnector tube (for air cleaner hose)12229-0M020 · 12229-0Y050
17882No. 2 air cleaner hose17882-0Y020 · 17882-0Y021 · 17882-0Y030 · 17882-0Y031 · 17882-0Y080 · 17882-0Y081 · 17882-0Y090 · 17882-0Y091 · 17882-0Y130 · 17882-0Y140 · 17882-0Y150 · 17882-0Y160 · 17882-0Y240
17882AClamp (for No. 2 air cleaner hose)90460-T0017 · 90466-54002 · 90466-62002 · 96111-10690
17883No. 3 air cleaner hose17883-0Y030 · 17883-0Y031 · 17883-0Y040 · 17883-0Y041 · 17883-0Y050 · 17883-0Y051 · 17883-0Y060 · 17883-0Y061 · 17883-0Y070 · 17883-0Y071 · 17883-0Y190
17891AAir filter hose clamp96111-10730
22204Intake air flow meter assembly22204-0V010 · 22204-0V020 · 22204-28010
