Toyota YARIS Exhaust Pipe — Figure 1702

Toyota YARIS EPC diagram 1702, Exhaust Pipe, with 9 images and 5 PNC and OE references.

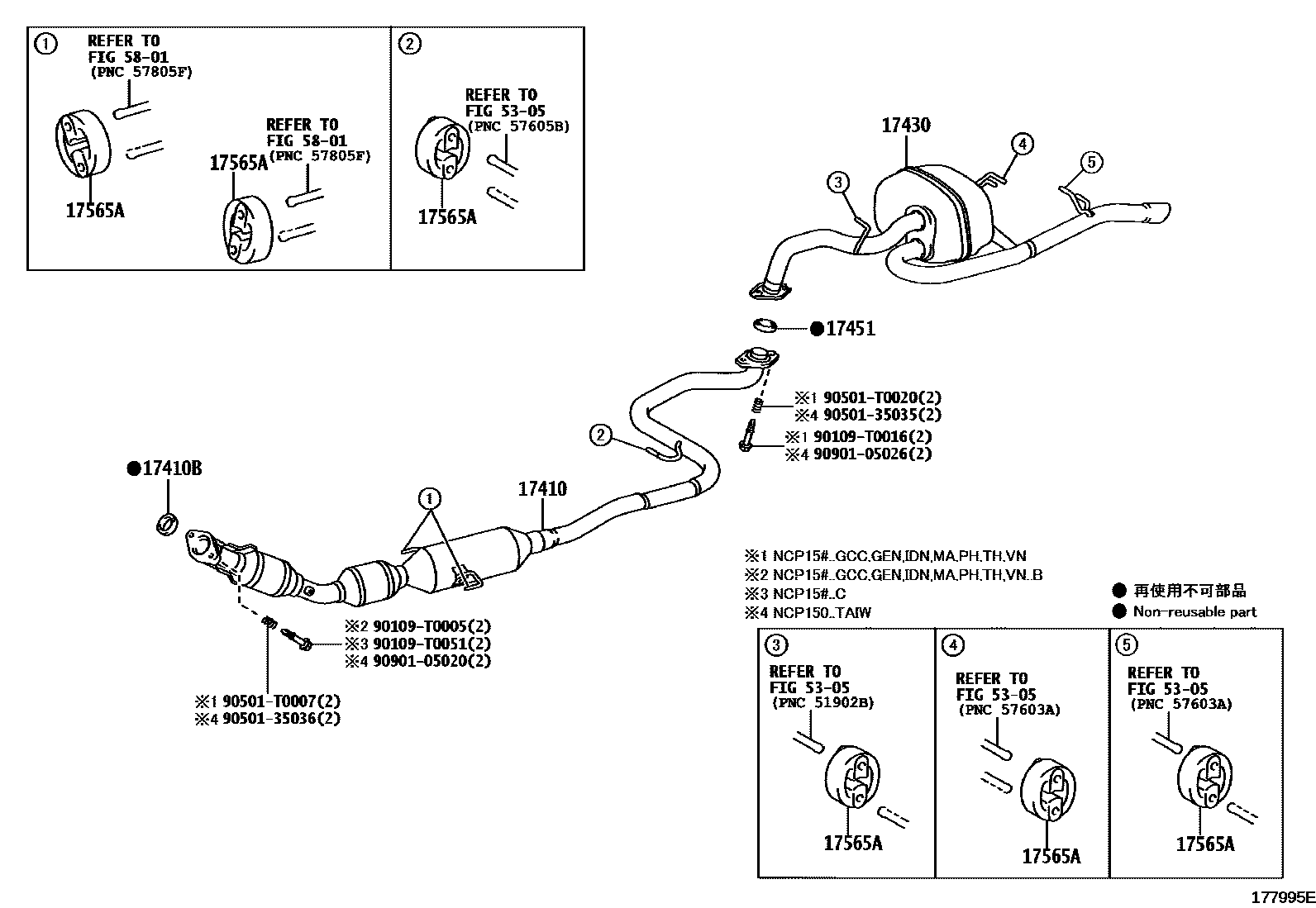

Toyota YARIS Exhaust Pipe EPC diagram — 177995E
Exhaust Pipe — 177995E (201304 – 999999)

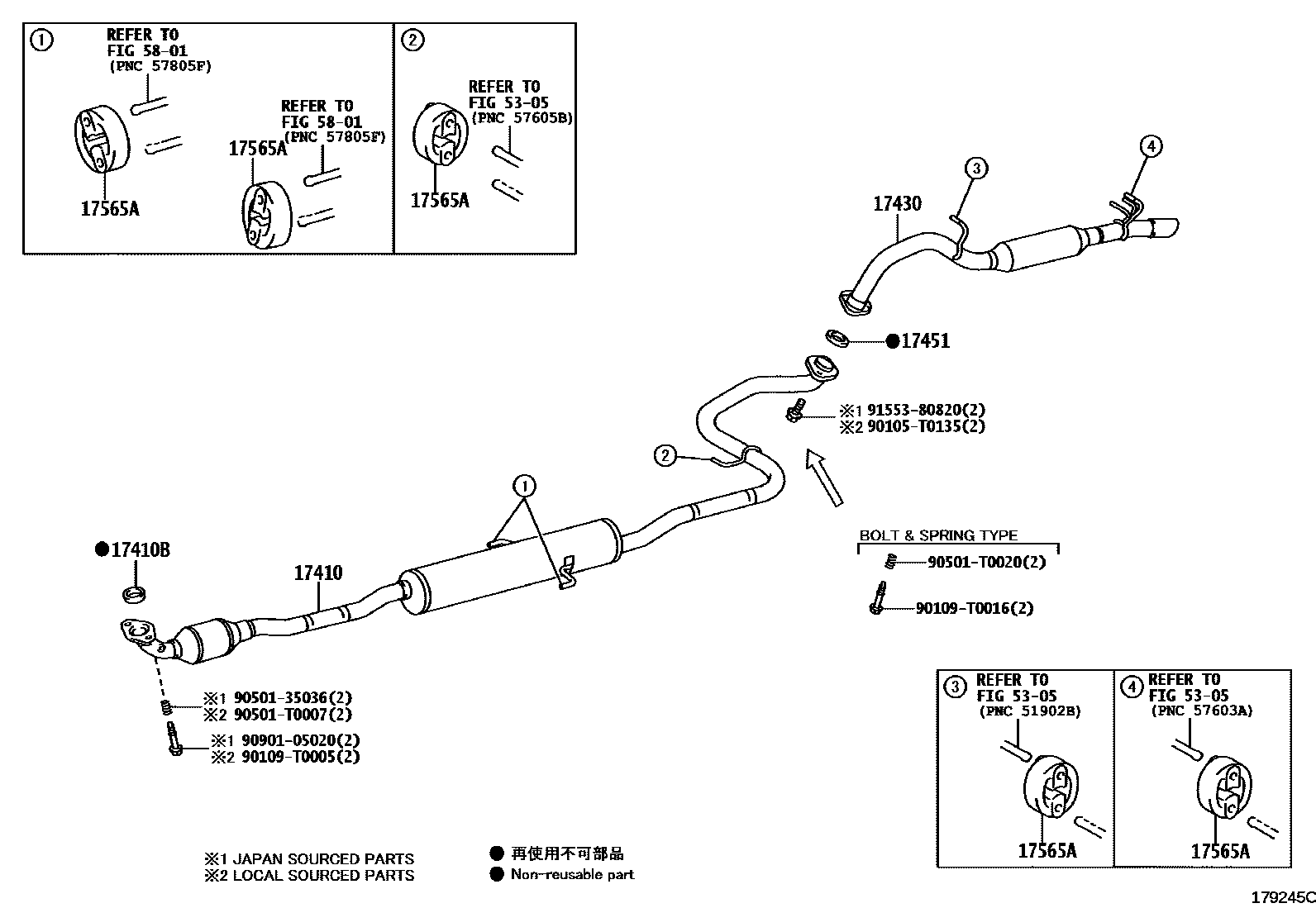

Toyota YARIS Exhaust Pipe EPC diagram — 179245C
Exhaust Pipe — 179245C (201604 – 999999)

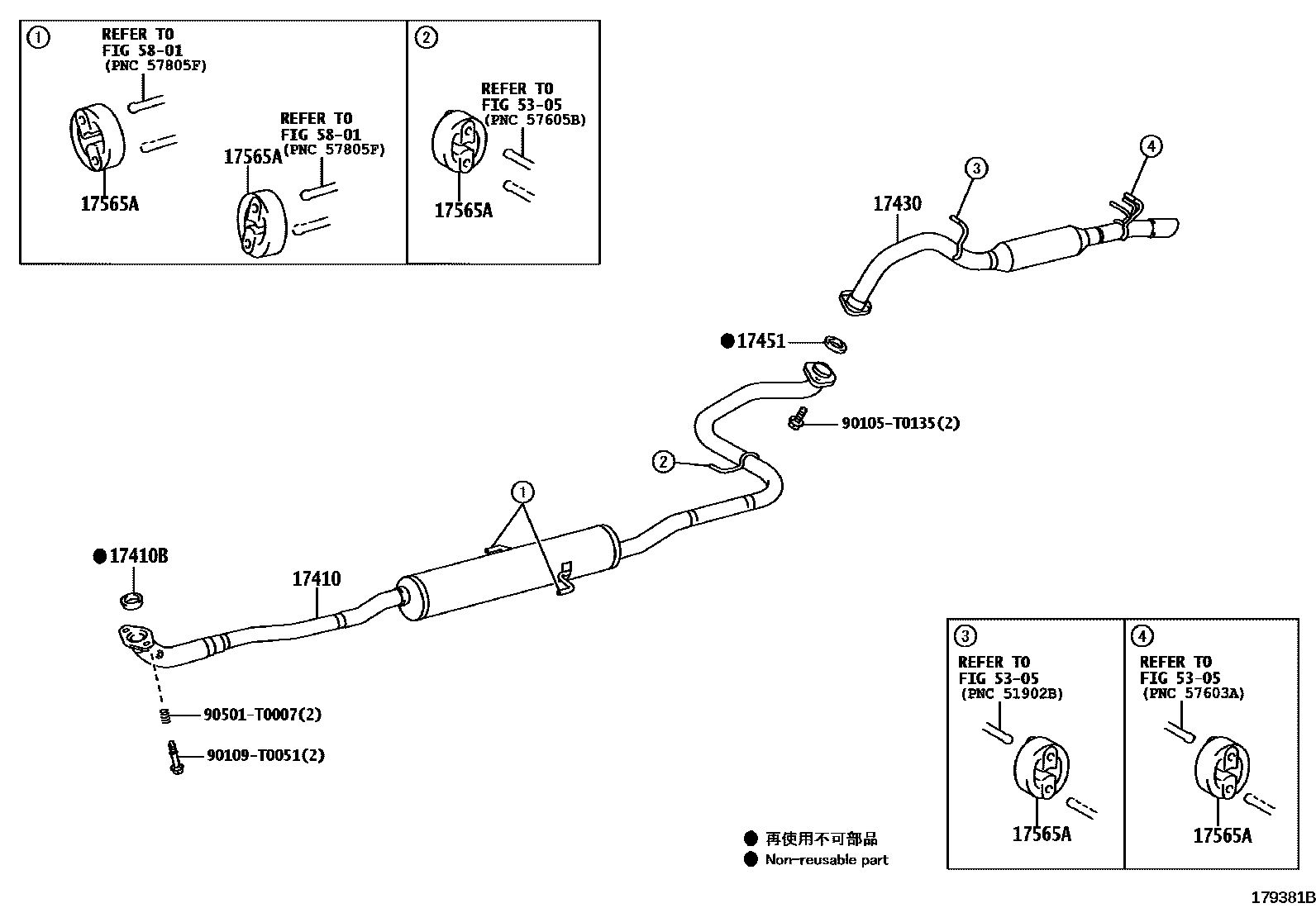

Toyota YARIS Exhaust Pipe EPC diagram — 179381B
Exhaust Pipe — 179381B (201610 – 999999)

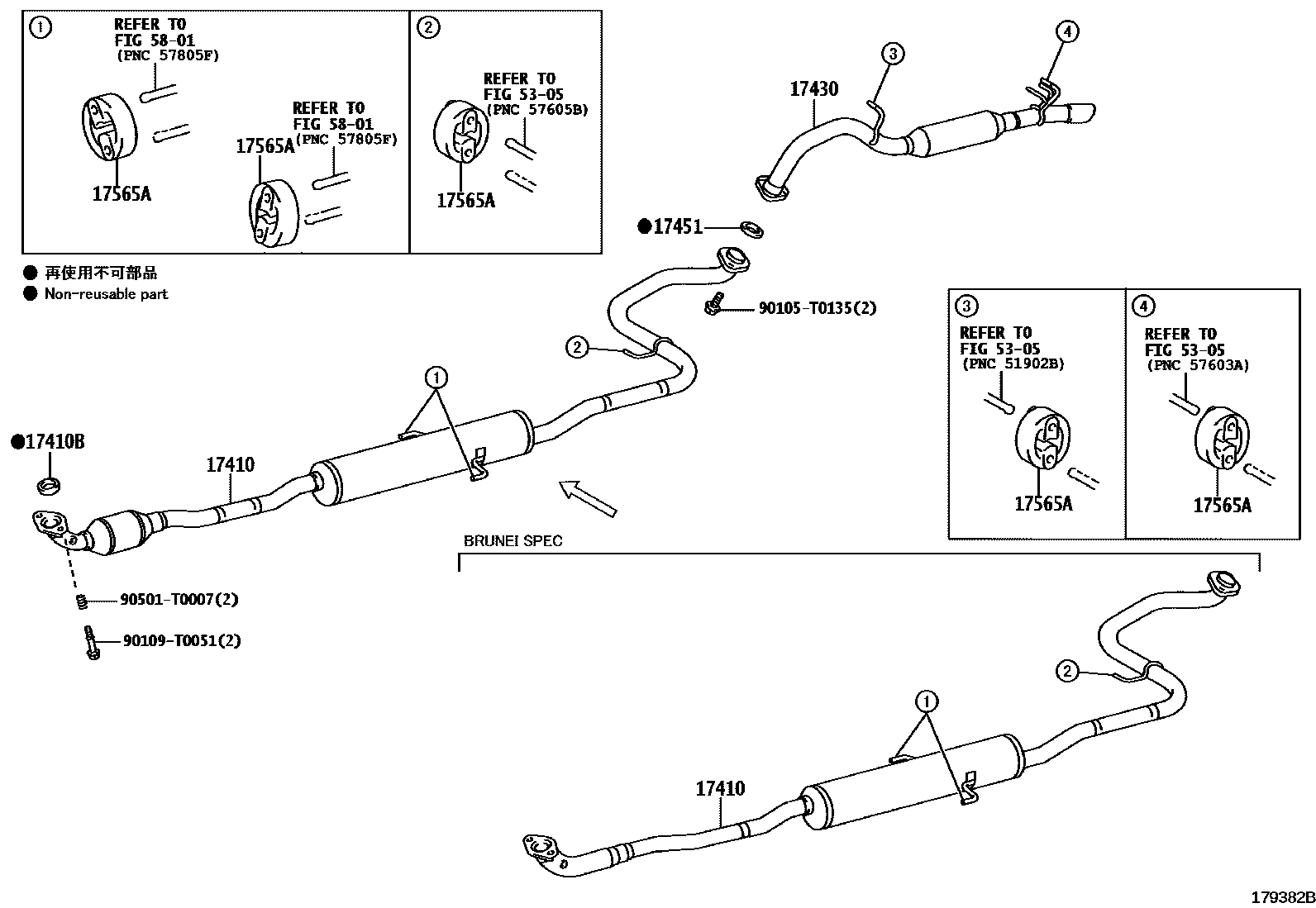

Toyota YARIS Exhaust Pipe EPC diagram — 179382B
Exhaust Pipe — 179382B (201610 – 999999)

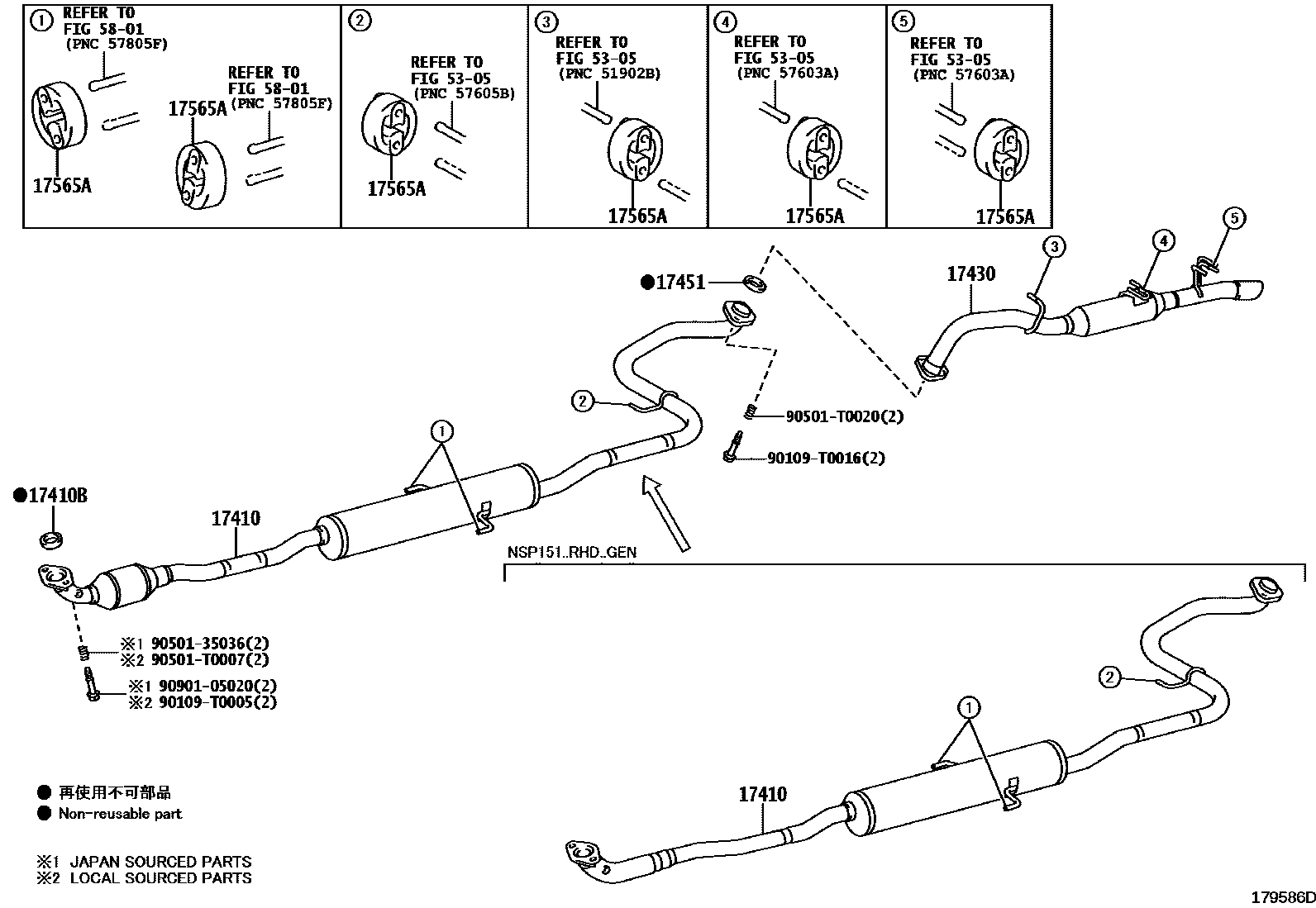

Toyota YARIS Exhaust Pipe EPC diagram — 179586D
Exhaust Pipe — 179586D (201702 – 999999)

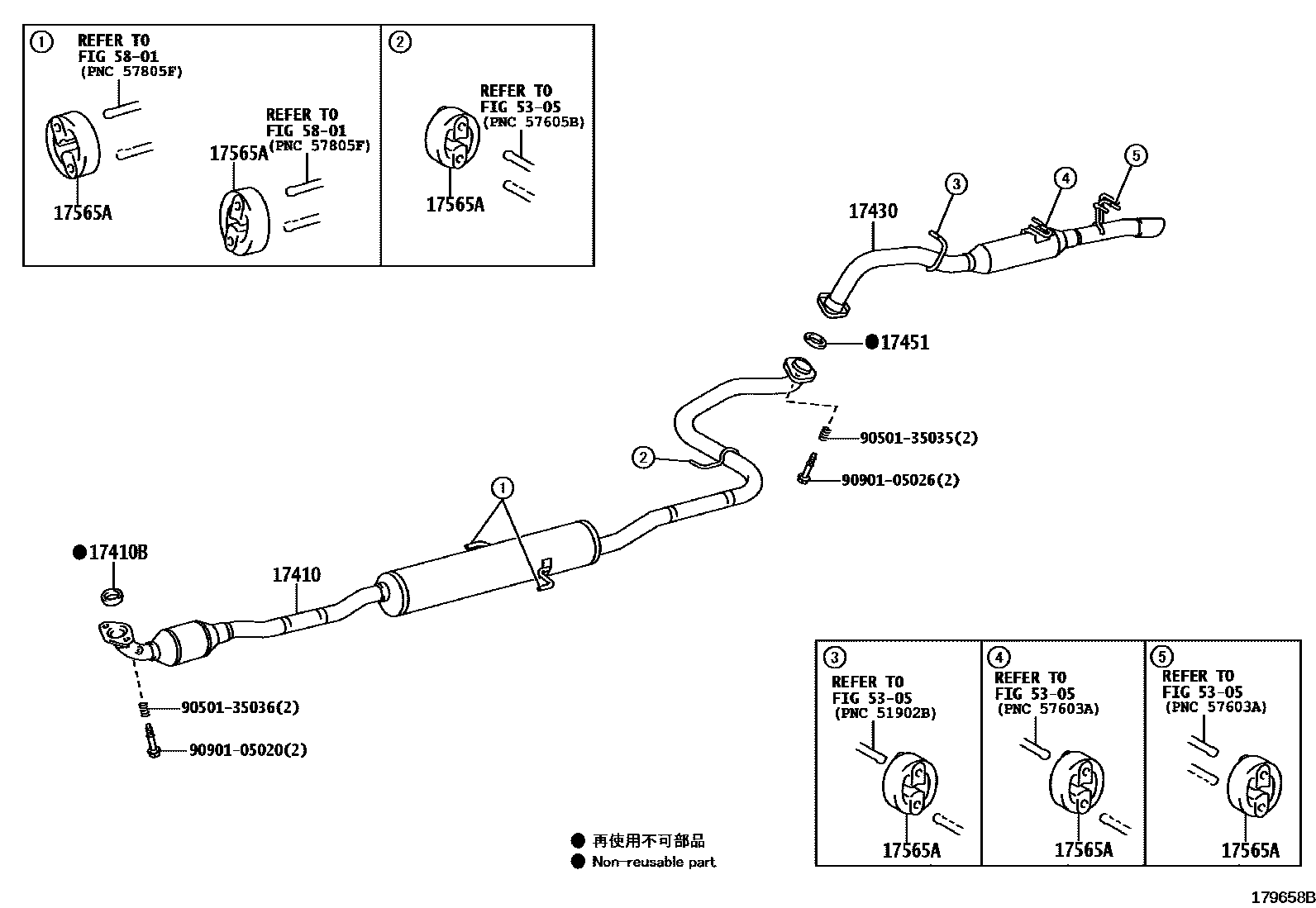

Toyota YARIS Exhaust Pipe EPC diagram — 179658B
Exhaust Pipe — 179658B (201704 – 999999)

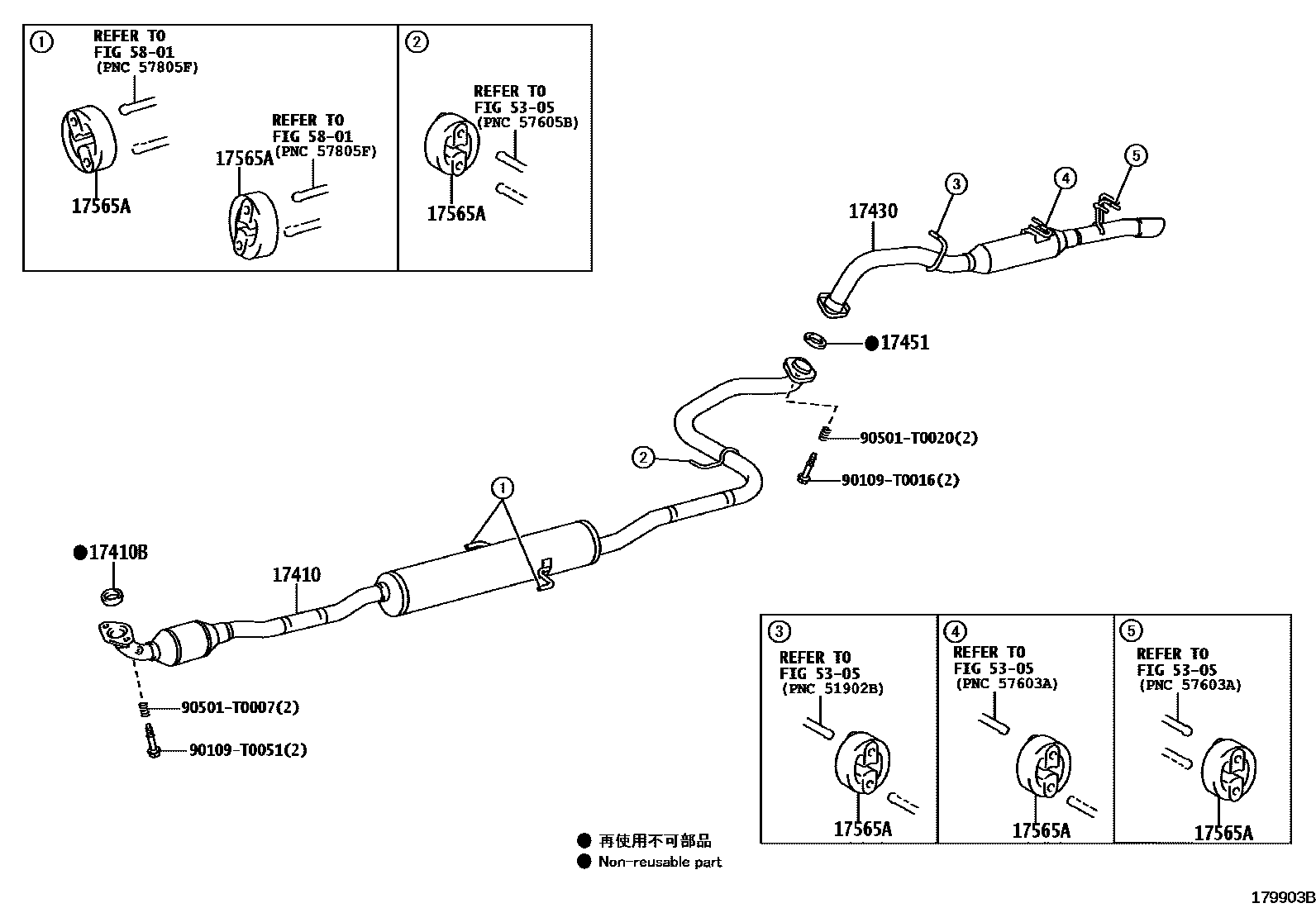

Toyota YARIS Exhaust Pipe EPC diagram — 179903B
Exhaust Pipe — 179903B (201801 – 999999)

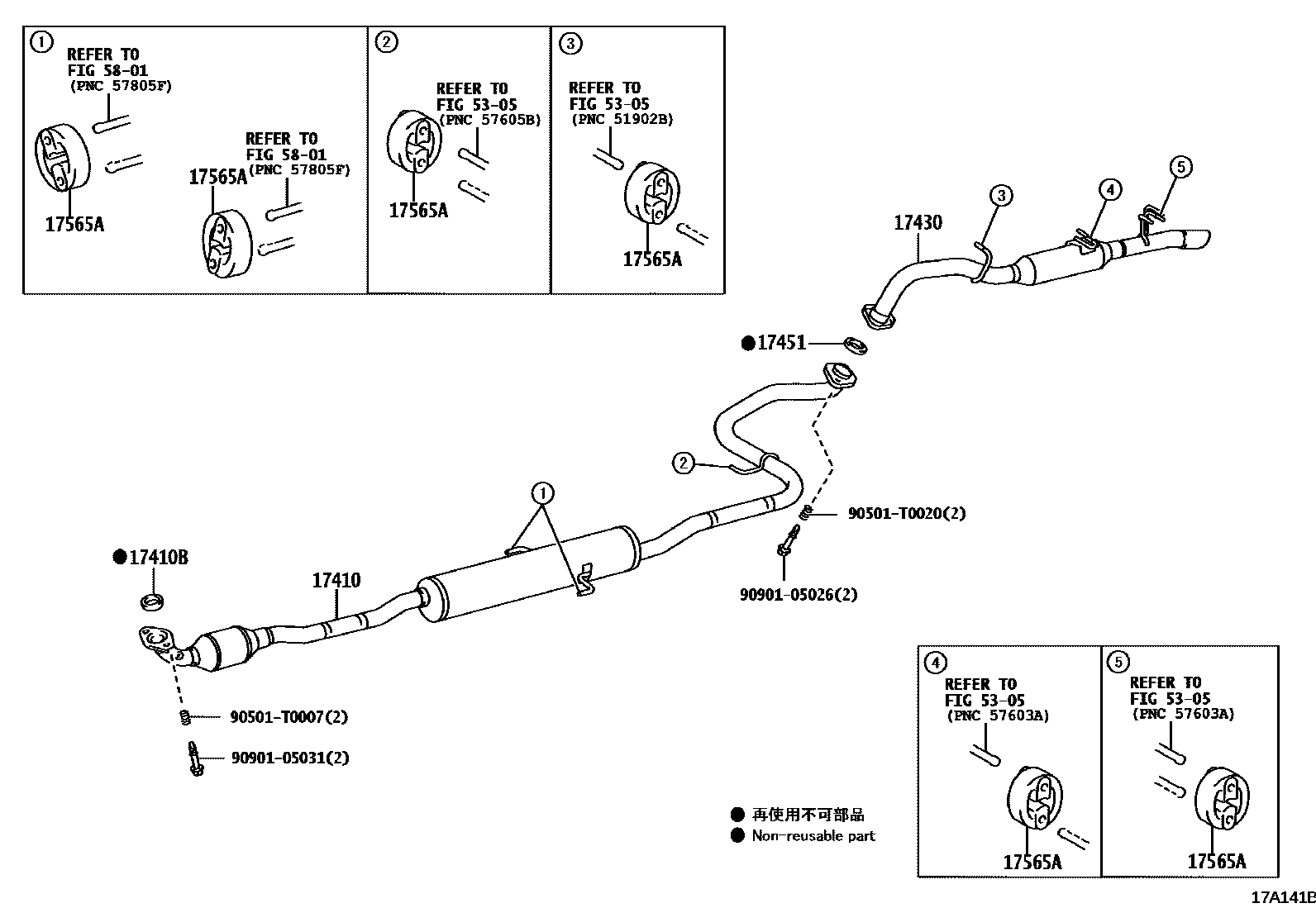

Toyota YARIS Exhaust Pipe EPC diagram — 17A141B
Exhaust Pipe — 17A141B (201807 – 999999)

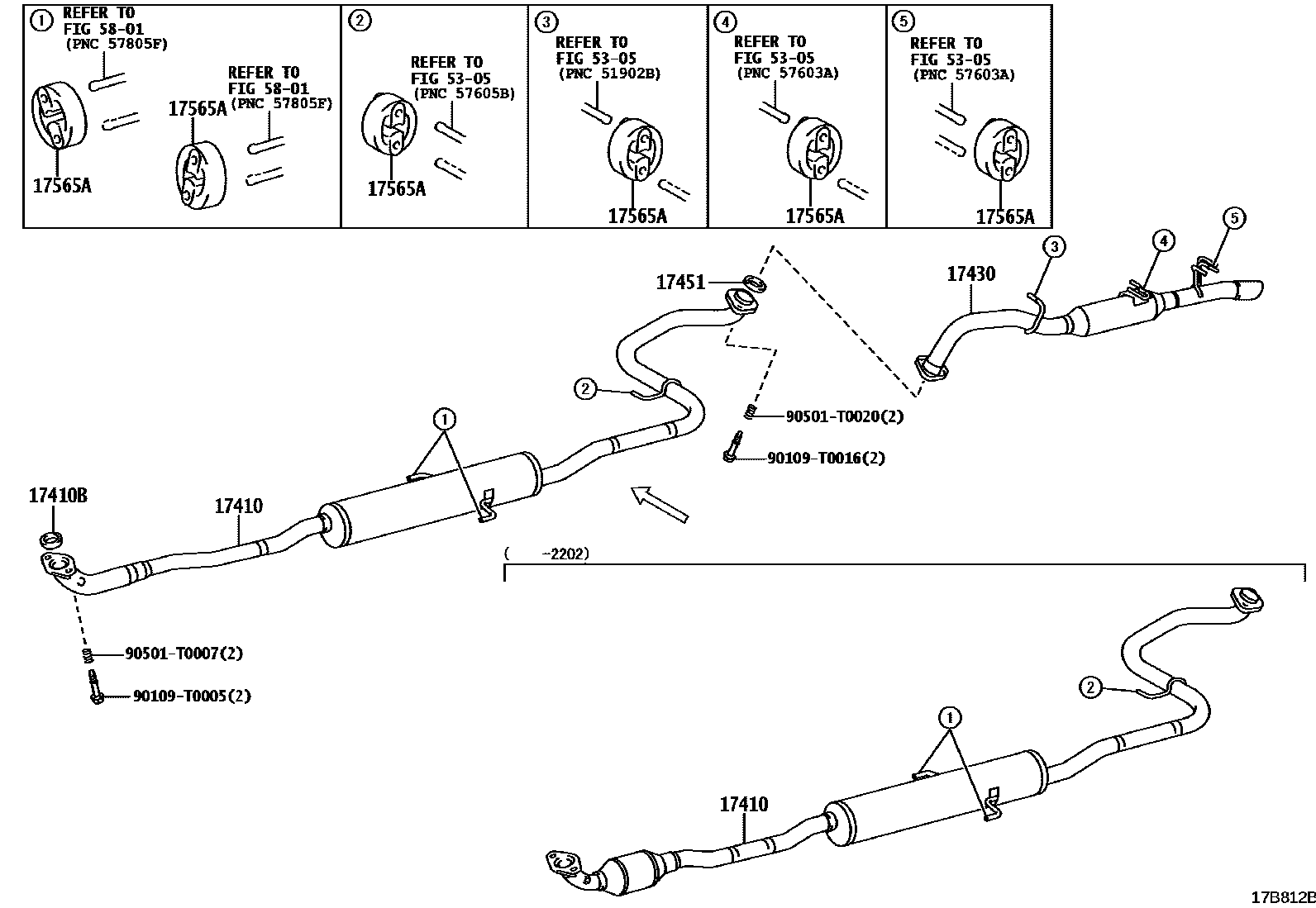

Toyota YARIS Exhaust Pipe EPC diagram — 17B812B
Exhaust Pipe — 17B812B (202003 – 999999)

PNC and OE references

PNCPart nameOE numbers
17410Front exhaust pipe assembly17410-0M200 · 17410-0M210 · 17410-0M220 · 17410-0M230 · 17410-0M240 · 17410-0M260 · 17410-0M300 · 17410-0Y460 · 17410-0Y480 · 17410-0Y481 · 17410-0Y490 · 17410-0Y491 · 17410-0Y501 · 17410-0Y510 · 17410-0Y520 · 17410-0Y530 · 17410-0Y531 · 17410-0Y532 · 17410-0Y540 · 17410-0Y541 · 17410-0Y550 · 17410-0Y551 · 17410-0Y552 · 17410-0Y560 · 17410-0Y570 · 17410-0Y580 · 17410-0Y581 · 17410-0Y590 · 17410-0Y591 · 17410-0Y600 · 17410-0Y630 · 17410-0Y640 · 17410-0Y650 · 17410-0Y680 · 17410-0Y710 · 17410-0YA80 · 17410-0YB10
17410BExhaust pipe gasket17451-0M020 · 17451-0Y020 · 17451-21070
17430Exhaust tailpipe assembly17430-0M140 · 17430-0M150 · 17430-0M160 · 17430-0M170 · 17430-0M180 · 17430-0M210 · 17430-0Y190 · 17430-0Y191 · 17430-0Y250 · 17430-0Y251 · 17430-0Y260 · 17430-0Y261 · 17430-0Y262 · 17430-0Y270 · 17430-0Y271 · 17430-0Y280 · 17430-0Y281 · 17430-0Y290 · 17430-0Y291 · 17430-0Y330 · 17430-0Y340 · 17430-0Y490 · 17430-0Y510 · 17430-0Y530
17451Exhaust pipe gasket17451-0M032 · 17451-23042 · 90917-06048
17565ANo. 4 exhaust pipe lifting lug17565-0M030 · 17565-0M040 · 17565-0Y010 · 17565-0Y020 · 17565-47010
