Toyota YARIS Manifold — Figure 1701

Toyota YARIS EPC diagram 1701, Manifold, with 5 images and 12 PNC and OE references.

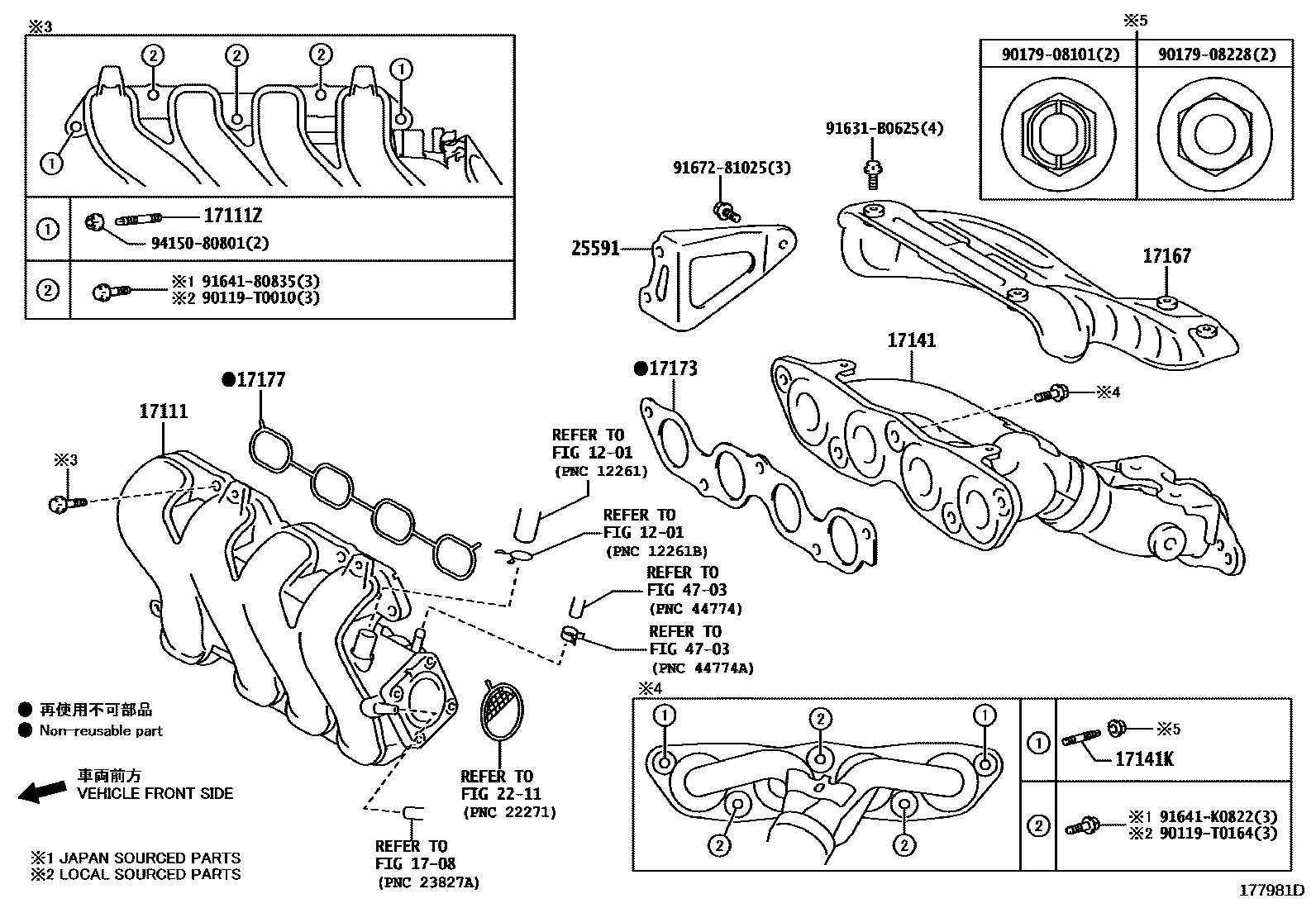

Toyota YARIS Manifold EPC diagram — 177981D
Manifold — 177981D (201304 – 999999)

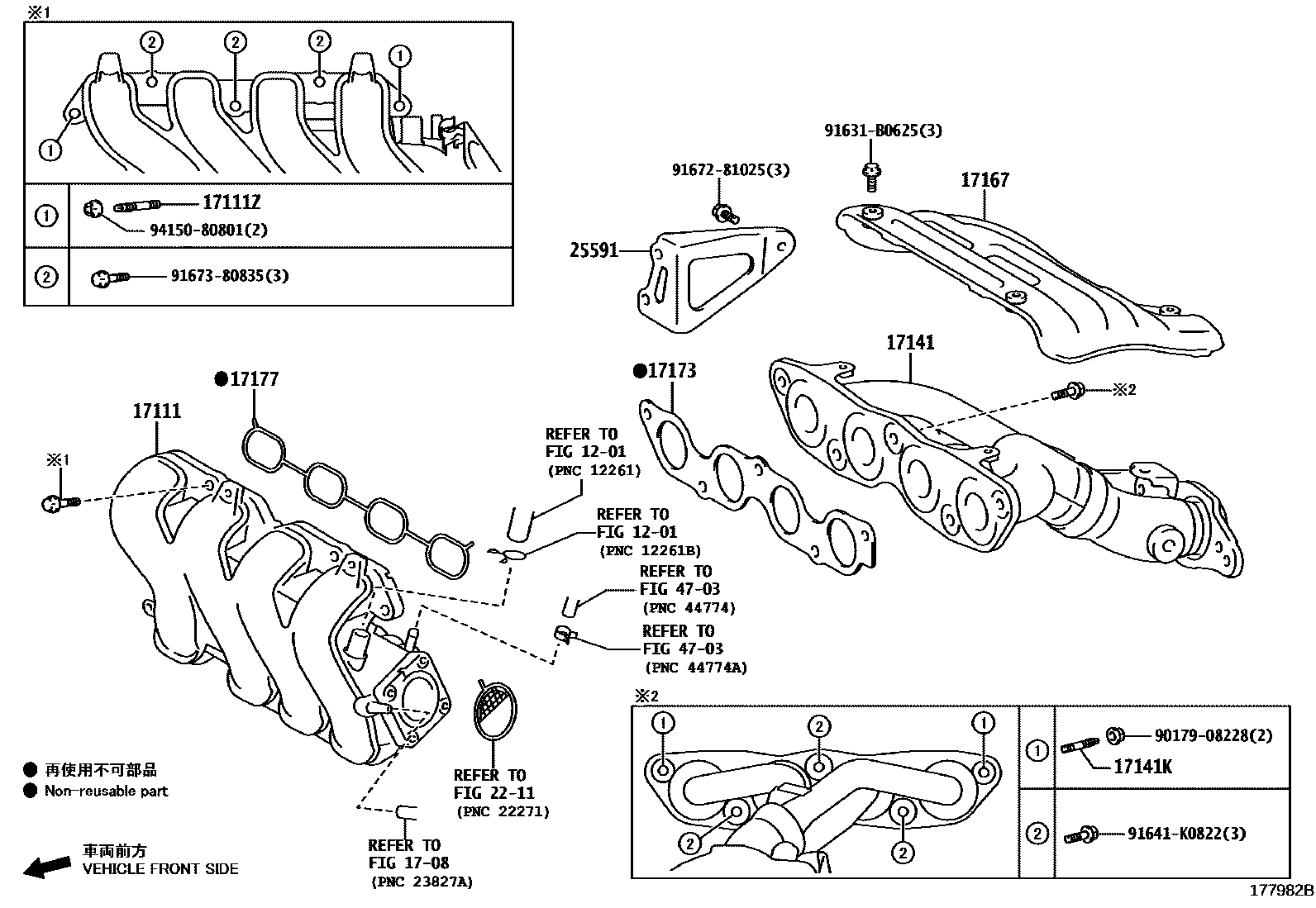

Toyota YARIS Manifold EPC diagram — 177982B
Manifold — 177982B (201307 – 999999)

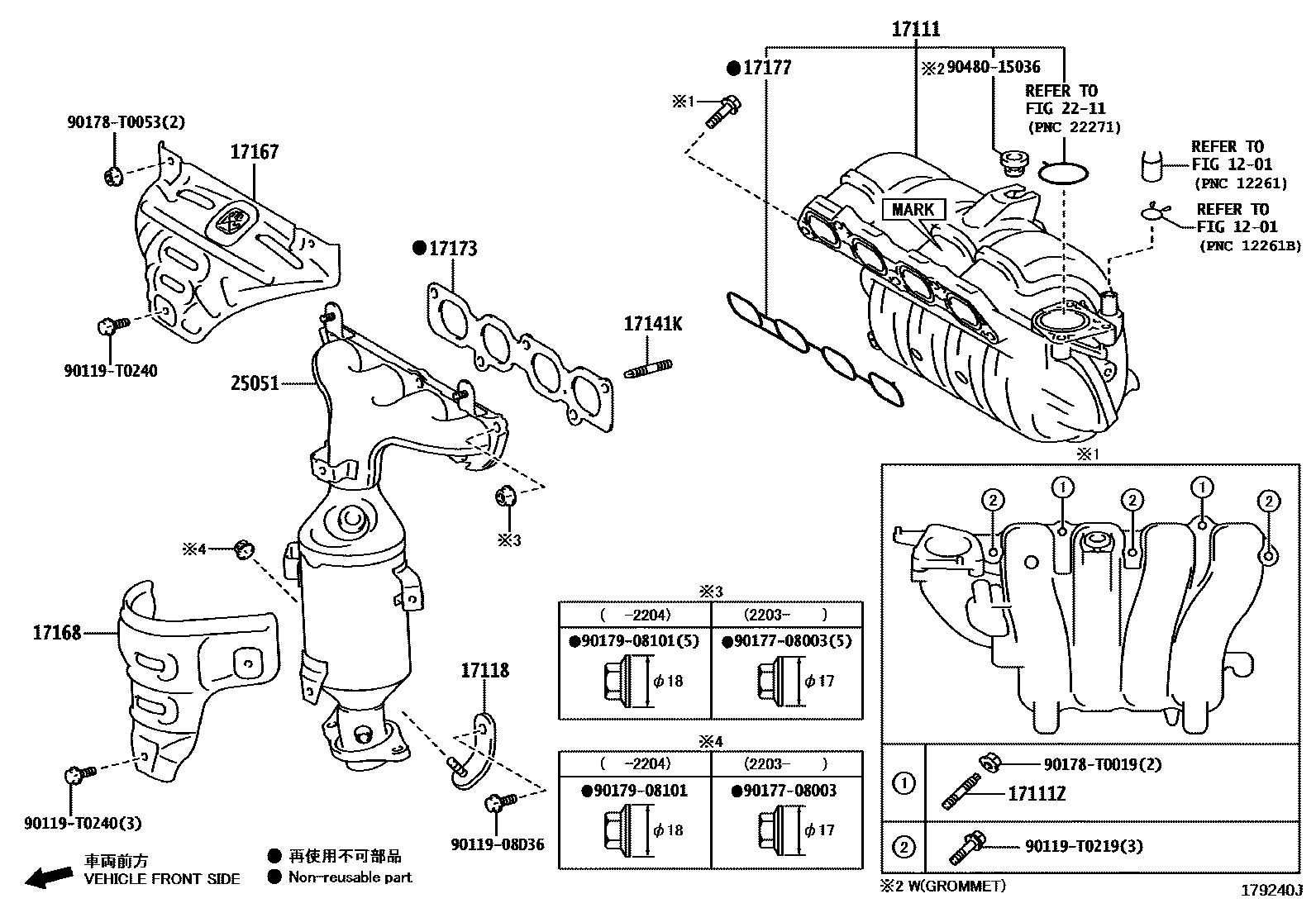

Toyota YARIS Manifold EPC diagram — 179240J
Manifold — 179240J (201604 – 999999)

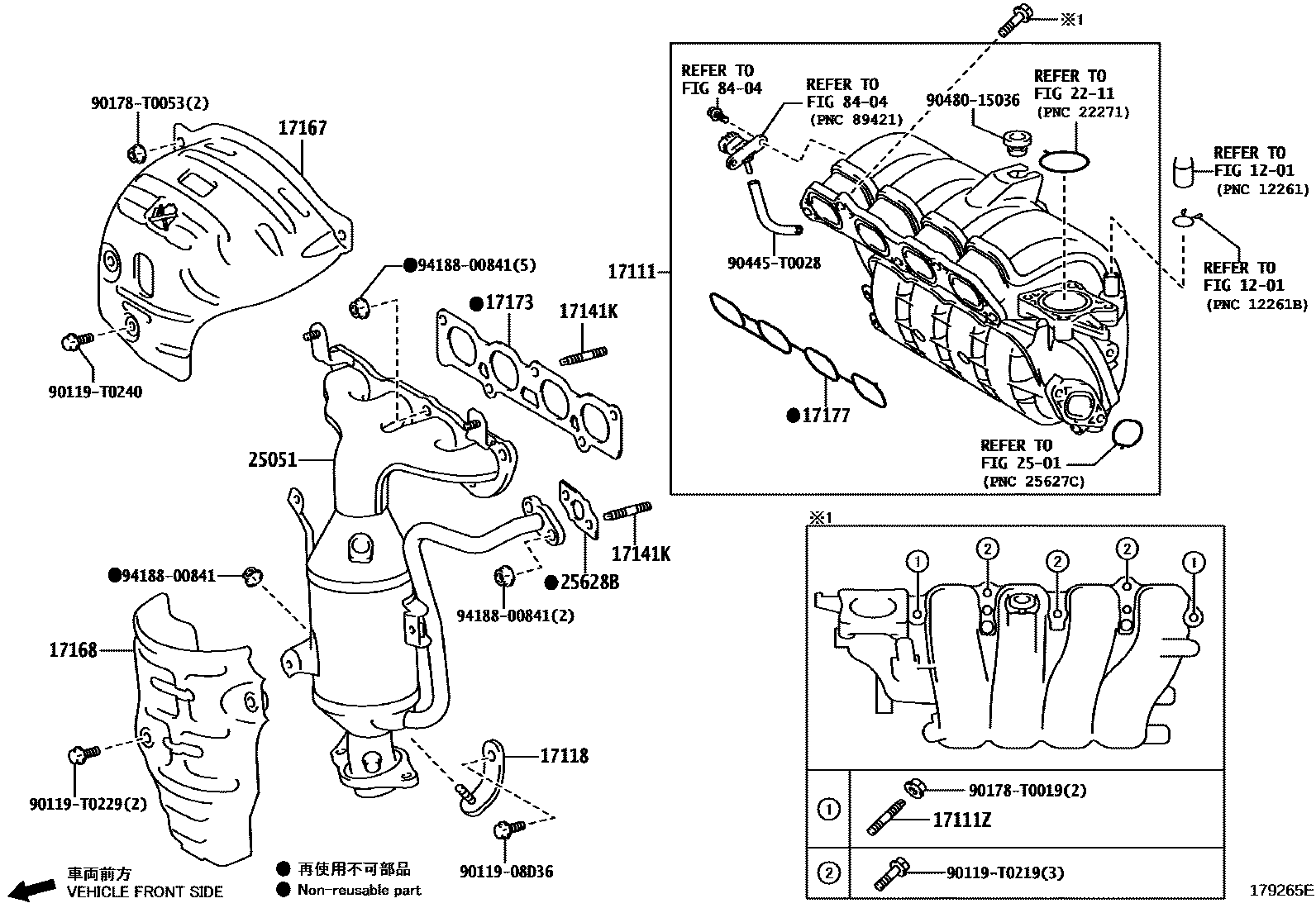

Toyota YARIS Manifold EPC diagram — 179265E
Manifold — 179265E (201708 – 999999)

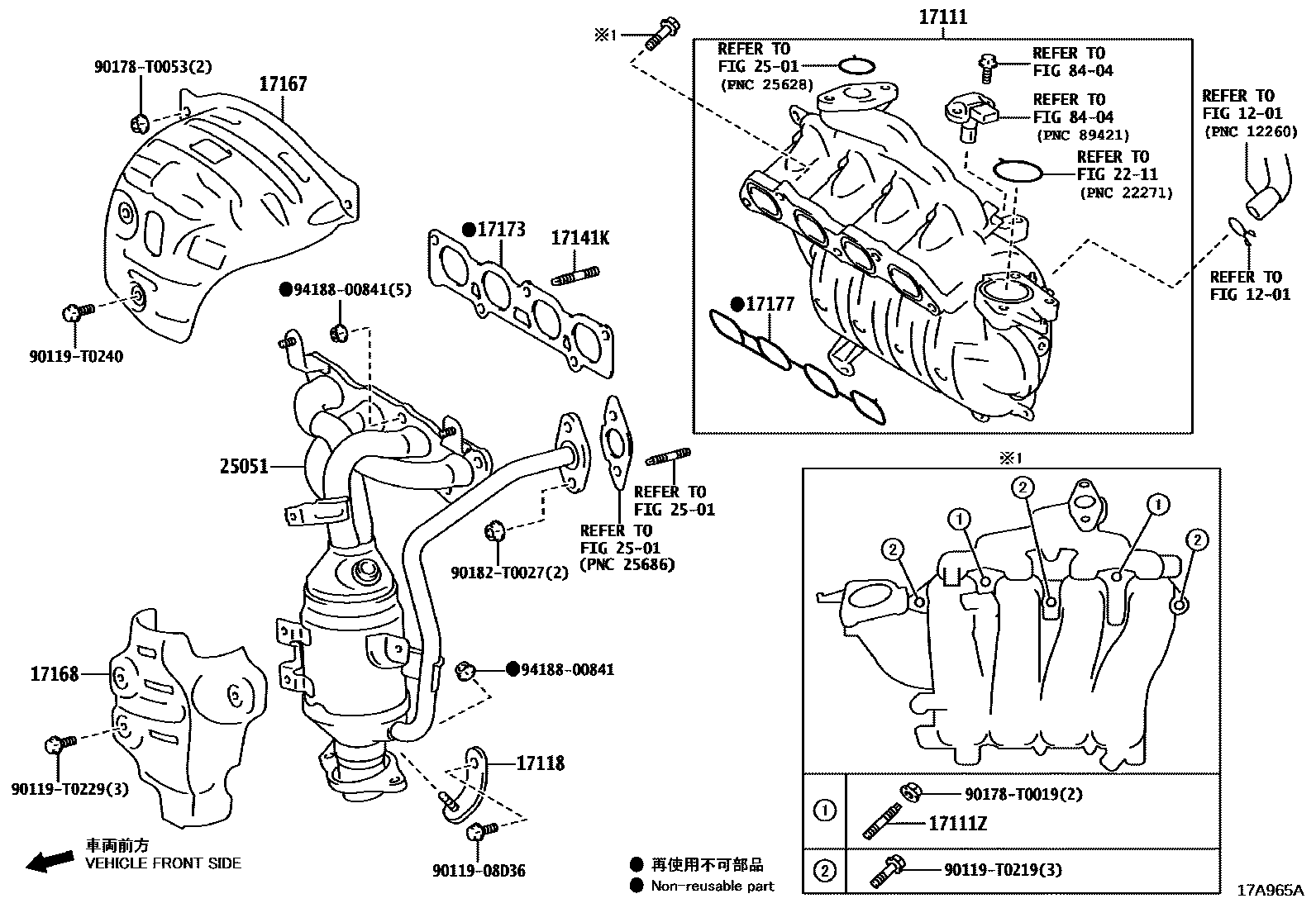

Toyota YARIS Manifold EPC diagram — 17A965A
Manifold — 17A965A (201911 – 999999)

PNC and OE references

PNCPart nameOE numbers
17111Intake Manifold17101-0M030 · 17101-21080 · 17101-21090 · 17120-0Y040 · 17120-0Y050 · 17120-0Y051 · 17120-0Y060 · 17120-0Y061 · 17120-0Y070 · 17120-0Y071 · 17120-0Y080 · 17120-0Y081 · 17120-0Y100 · 17120-0Y130
17111ZStud bolts (for intake manifold to cylinder head)9004A-12004 · 90126-08026 · 90126-T0003 · 90126-T0019
17118Manifold stays17118-0Y031 · 17118-0Y061
17141exhaust manifold17141-0M020 · 17141-21130 · 17141-21140 · 17141-21210
17141KStud bolts (for exhaust manifold to cylinder head)90126-08037 · 90126-08063
17167Exhaust manifold No. 1 heat shield17167-0M020 · 17167-0Y020 · 17167-0Y040 · 17167-0Y050 · 17167-0Y060 · 17167-21110 · 17167-21130 · 17167-47011
17168Exhaust manifold No.2 insulation pad17168-0Y020 · 17168-0Y040 · 17168-0Y050 · 17168-0Y060 · 17168-0Y100
17173Gasket (exhaust manifold to cylinder head)17173-0M010 · 17173-0Y030 · 17173-0Y050 · 17173-0Y060 · 17173-21020 · 17173-47021
17177No. 1 gasket (intake manifold to cylinder head)17177-0Y030 · 17177-0Y060 · 17177-21030 · 17177-47060
25051Exhaust manifold three-way catalytic converter sub-assembly25051-0Y050 · 25051-0Y060 · 25051-0Y110 · 25051-0Y150 · 25051-0Y210 · 25051-0Y220 · 25051-47101 · 25051-47240
25591Manifold bracket25591-0M020 · 25591-0M030 · 25591-21060
25628BEGR air intake gasket25628-47010
