Toyota YARIS Oil Filter — Figure 1502

Toyota YARIS EPC diagram 1502, Oil Filter, with 2 images and 2 PNC and OE references.

Toyota YARIS Oil Filter EPC diagram — 152058B
Oil Filter — 152058B (201304 – 999999)

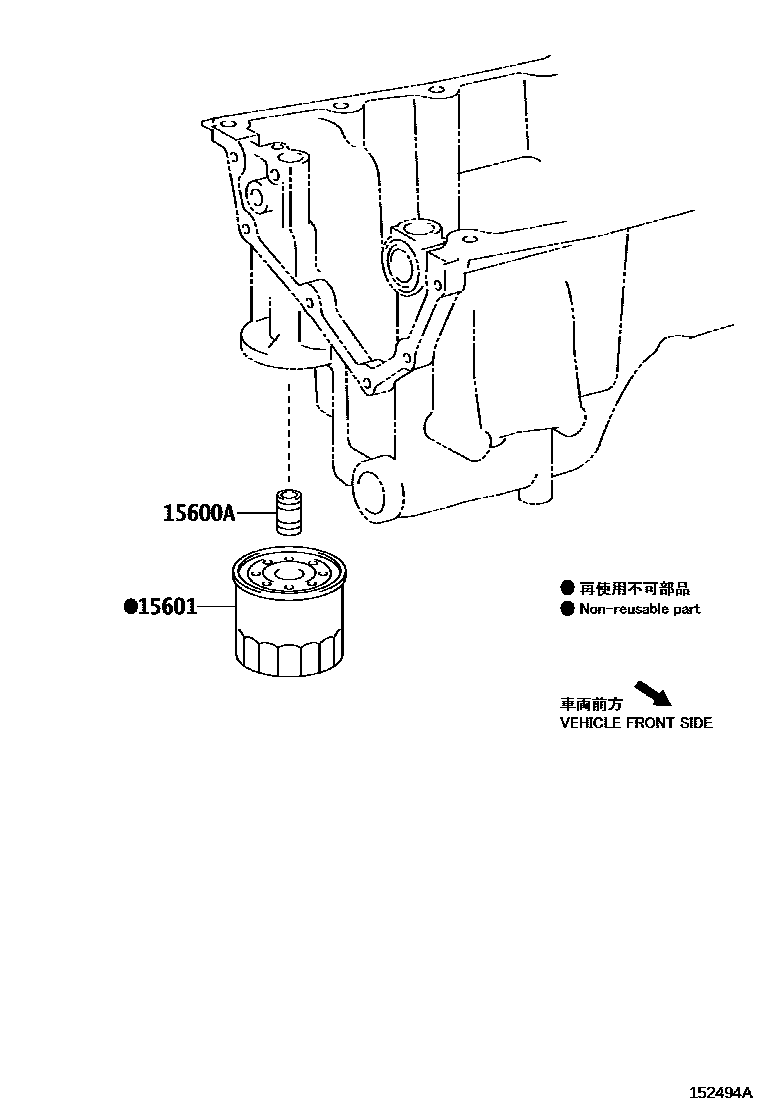

Toyota YARIS Oil Filter EPC diagram — 152494A
Oil Filter — 152494A (201604 – 999999)

PNC and OE references

PNCPart nameOE numbers
15600AConnector (for oil filter)90404-19011 · 90404-T0005 · 90904-04004
15601Oil filter sub-assembly90915-10003 · 90915-TA001
