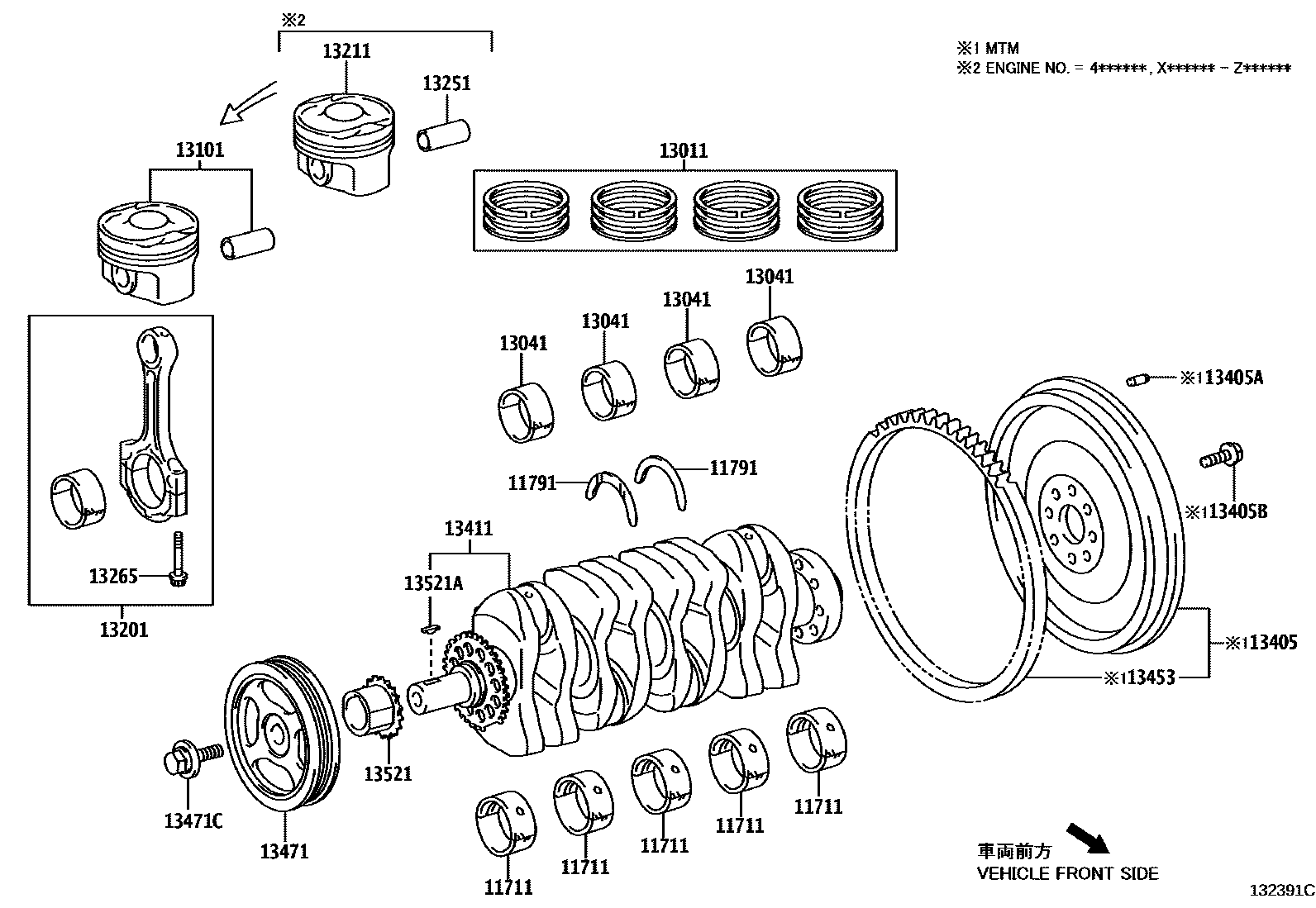

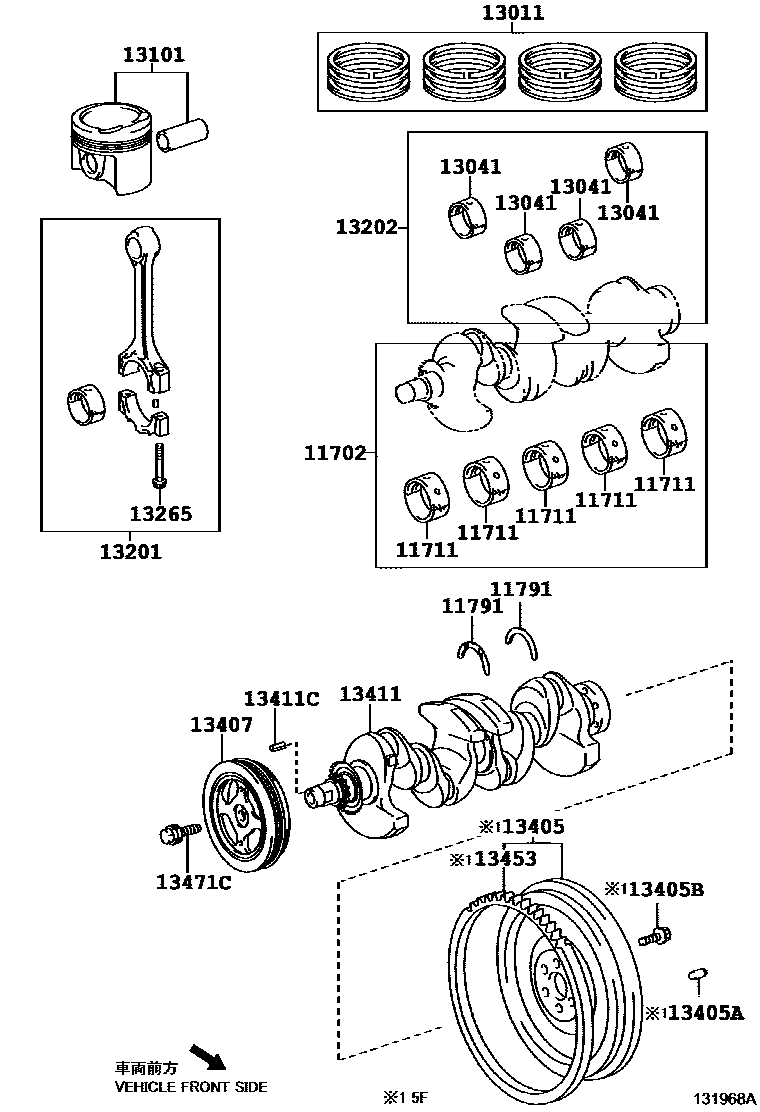

Toyota YARIS Crankshaft & Piston — Figure 1301
Toyota YARIS EPC diagram 1301, Crankshaft & Piston, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11702 | crankshaft bearing assembly | 11704-21020 · 11704-21031 · 11704-21032 · 11704-21033 |
| 11791 | Thrust washer on crankshaft | 11791-0M020 · 11791-0Y010 · 11791-0Y040 · 11791-22020 · 11791-47031 · 11791-B0010 · 11792-22020 · 11792-37010 · 11793-22020 · 11793-37010 |
| 13011 | Piston ring assembly | 13011-0M010 · 13011-0M020 · 13011-0Y030 · 13011-0Y090 · 13011-0Y130 · 13011-21050 · 13011-21140 · 13011-47033 |
| 13101 | Piston sub-assembly with pin | 13101-0M030 · 13101-0M040 · 13101-0Y010 · 13101-0Y070 · 13101-0Y120 · 13101-0Y130 · 13101-21080 |
| 13201 | Connecting rod sub-assembly | 13201-09C20 · 13201-09C30 · 13201-09C50 · 13201-09C60 · 13201-09C70 · 13201-29715 · 13201-29716 · 13201-29717 · 13201-29735 · 13201-29736 · 13201-29757 |
| 13202 | Connecting rod bearing assembly | 13204-21022 · 13204-21033 |
| 13211 | piston | 13211-0Y011 · 13211-0Y061 · 13211-0Y150 |
| 13251 | Piston pin | 13251-0Y030 · 13251-0Y070 |
| 13265 | Connecting rod bolts | 13265-0Y010 · 13265-0Y020 · 13265-21020 |
| 13405 | Flywheel sub-assembly | 13405-0M010 · 13405-0Y080 · 13405-0Y100 · 13405-0Y110 · 13405-0Y150 · 13405-0Y160 · 13405-21020 |
| 13405A | Direct sales (for flywheel) | 90250-08120 · 90250-T0007 |
| 13405B | Flywheel fixing bolt | 90913-01024 · 90913-01029 · 90913-T1001 |
| 13407 | Crankshaft damper sub-assembly | 13407-21032 |
| 13411 | crankshaft | 13401-0Y120 · 13401-0Y140 · 13401-0Y150 · 13401-0Y160 · 13401-0Y170 · 13401-0Y180 · 13401-21020 · 13401-21030 · 13401-47090 · 13401-BZ100 |
| 13411C | Direct sales (for crankshaft) | 90250-03095 · 90254-03025 |
| 13453 | flywheel ring gear | 13453-0M010 · 13453-0Y050 · 13453-10010 |
| 13471 | crankshaft pulley | 13470-0Y020 · 13470-0Y030 · 13470-0Y040 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90119-12345 · 90119-T0444 · 90119-T0529 |
| 13521 | Crankshaft timing gear or sprocket | 13521-0Y040 · 13521-0Y060 · 13521-0Y070 · 13521-BZ040 |
| 13521A | Key (for crankshaft timing gear) | 90280-04001 |
