Toyota YARIS Engine Overhaul Gasket Kit — Figure 1103

Toyota YARIS EPC diagram 1103, Engine Overhaul Gasket Kit, with 10 images and 2 PNC and OE references.

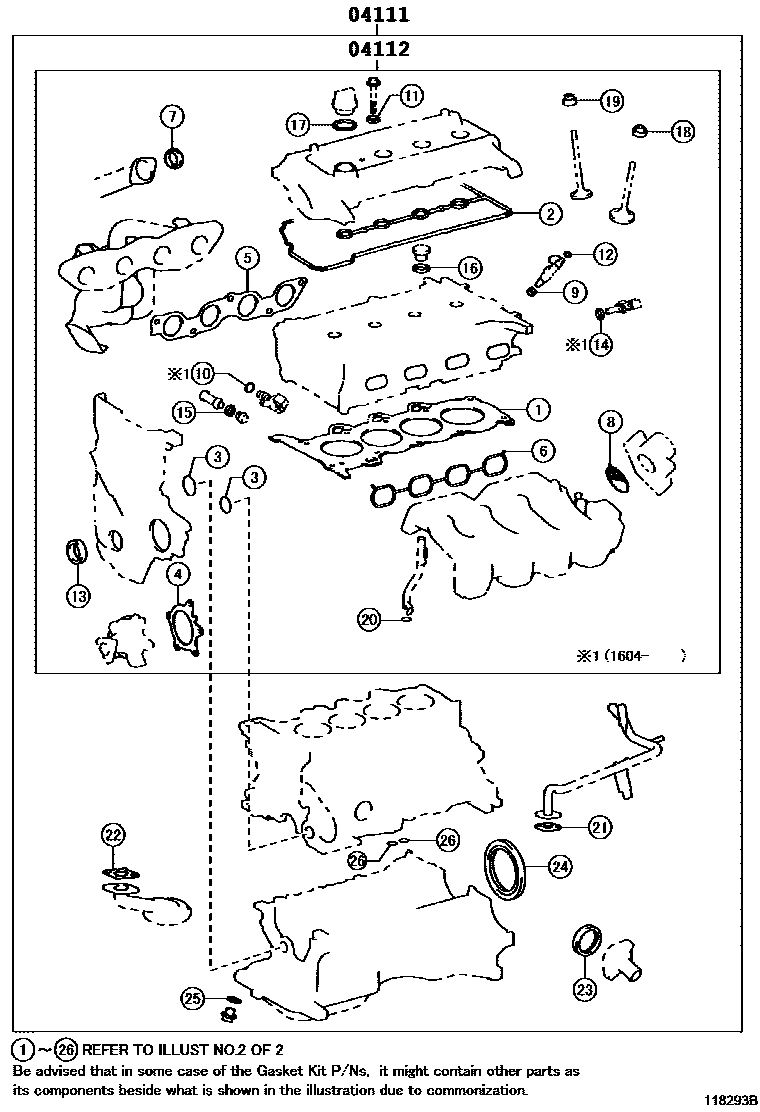

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 118293B
Engine Overhaul Gasket Kit — 118293B (201304 – 999999)

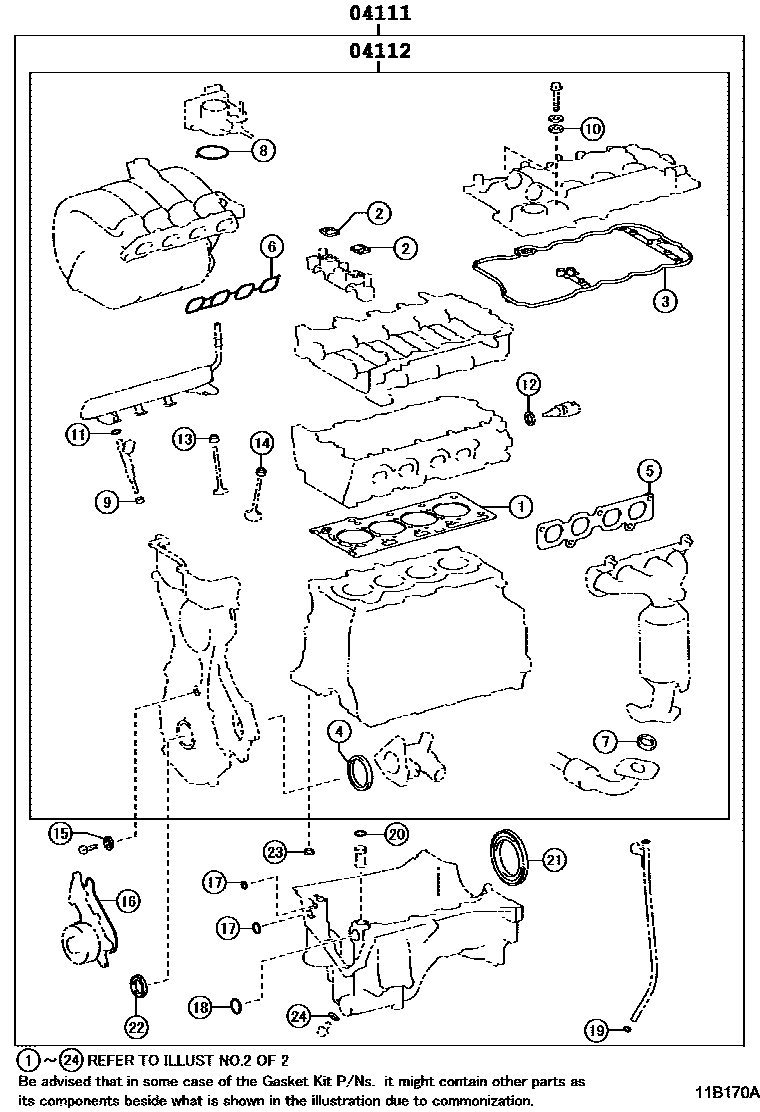

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11B170A
Engine Overhaul Gasket Kit — 11B170A (201604 – 999999)

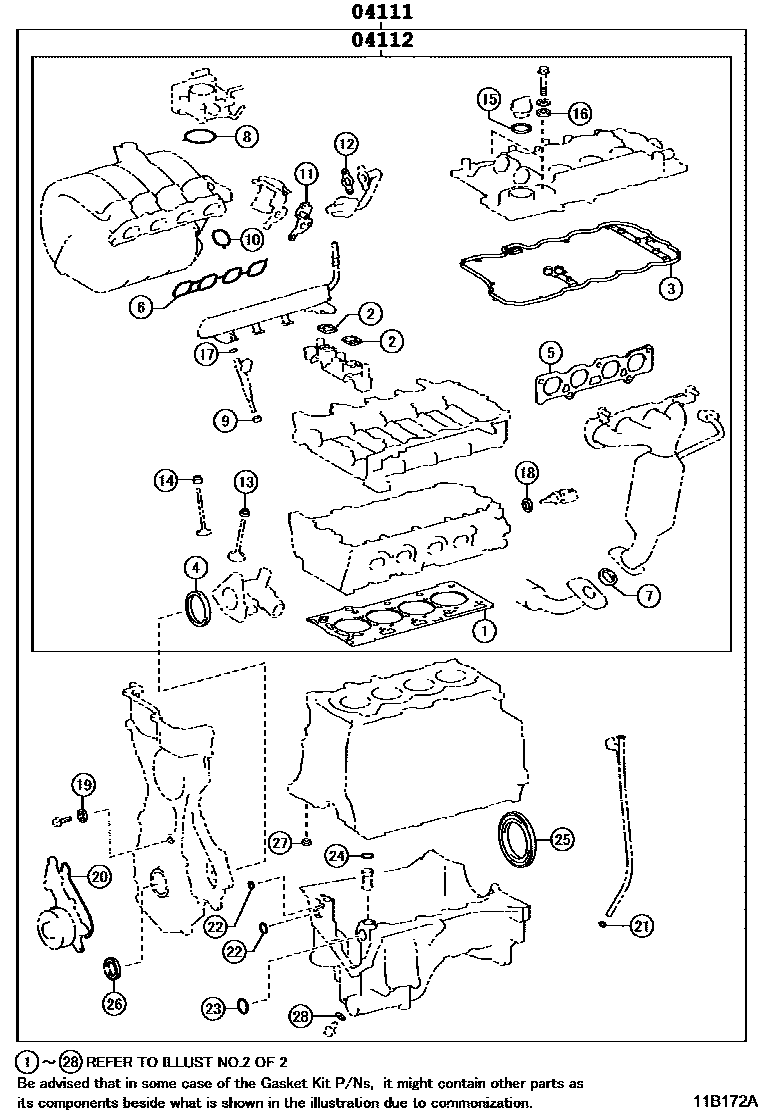

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11B172A
Engine Overhaul Gasket Kit — 11B172A (201708 – 999999)

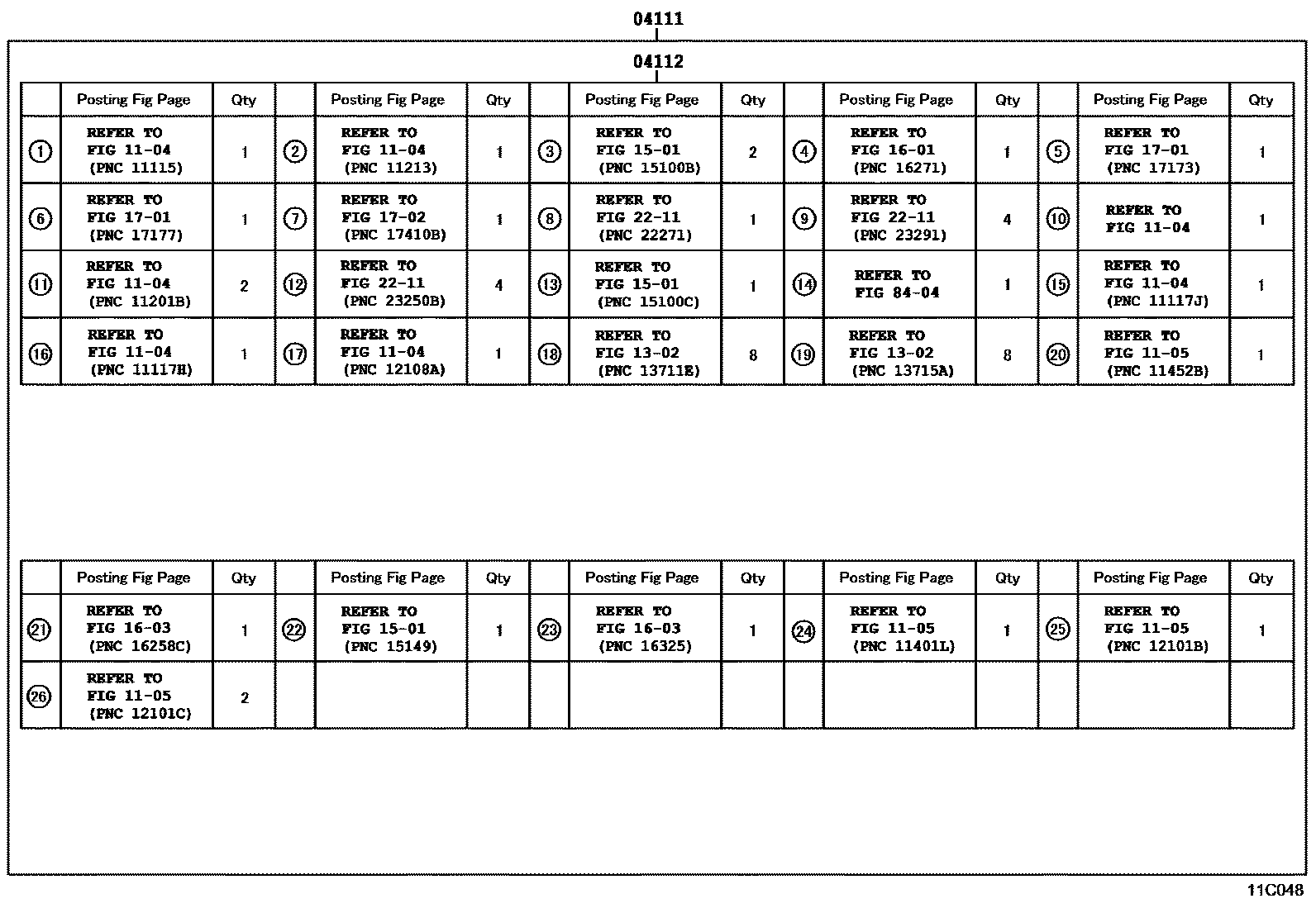

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11C048
Engine Overhaul Gasket Kit — 11C048 (201304 – 999999)

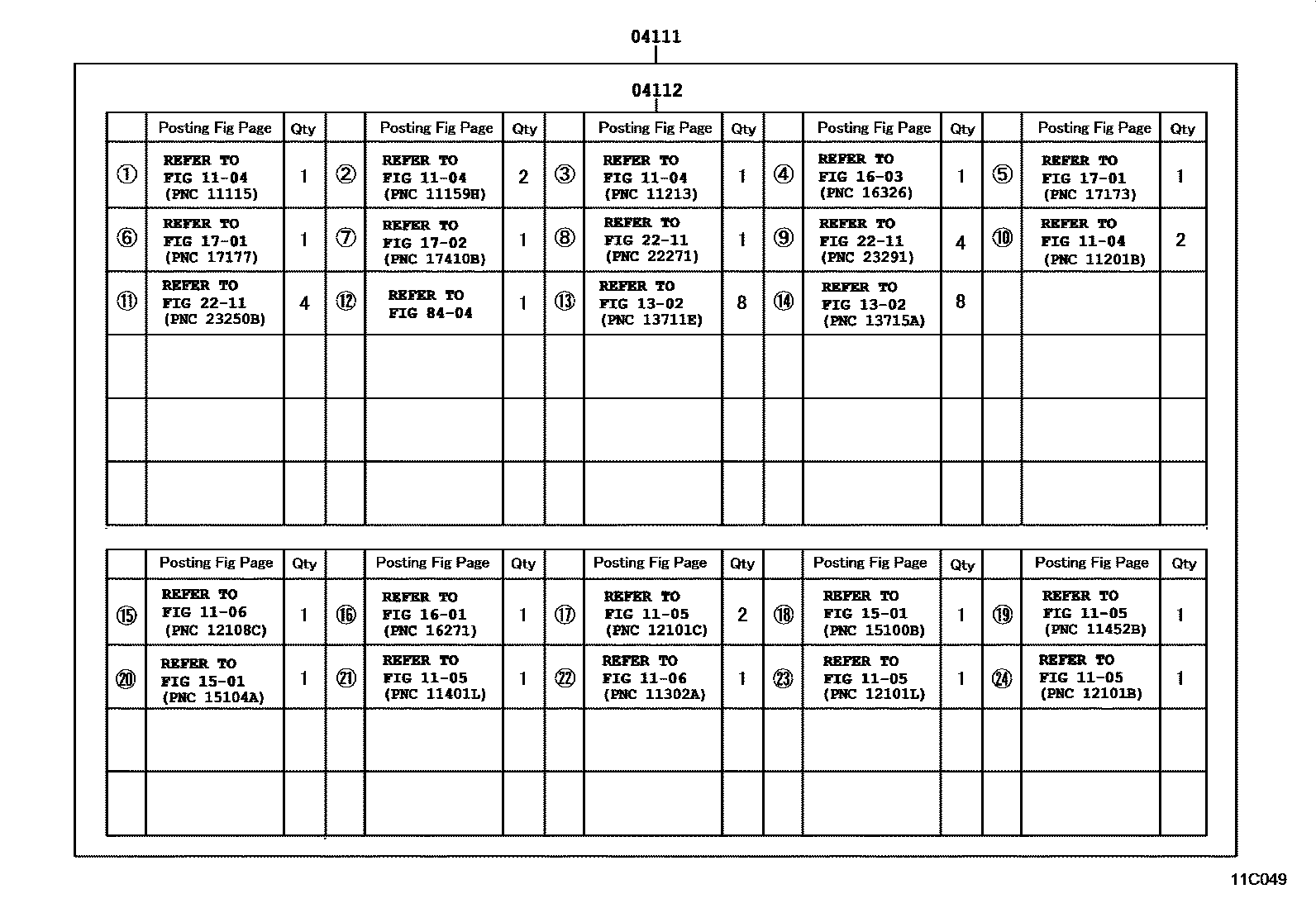

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11C049
Engine Overhaul Gasket Kit — 11C049 (201604 – 999999)

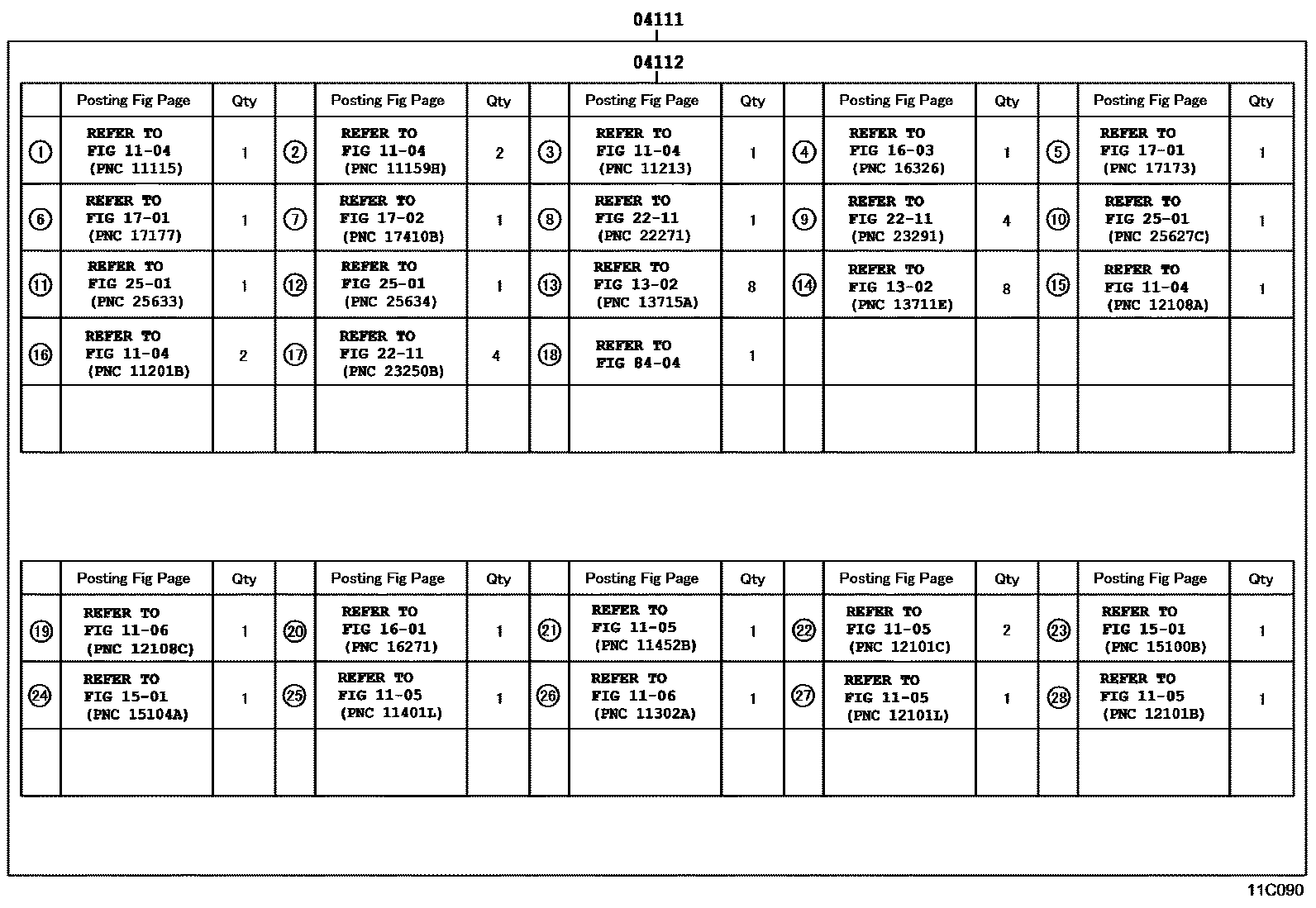

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11C090
Engine Overhaul Gasket Kit — 11C090 (201708 – 999999)
Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11D564
Engine Overhaul Gasket Kit — 11D564 (201807 – 999999)

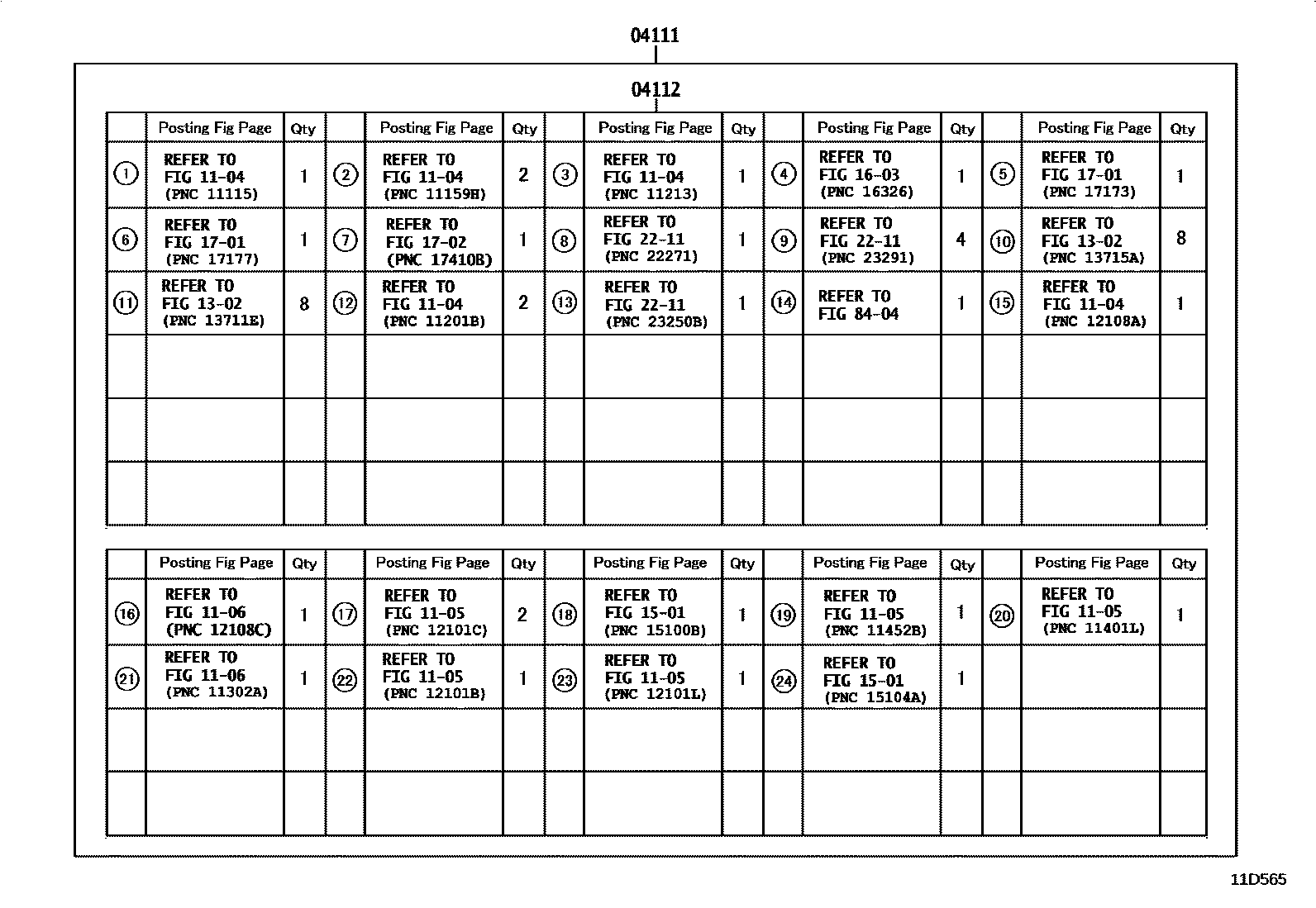

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11D565
Engine Overhaul Gasket Kit — 11D565 (201807 – 999999)
Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11E686
Engine Overhaul Gasket Kit — 11E686 (201911 – 999999)

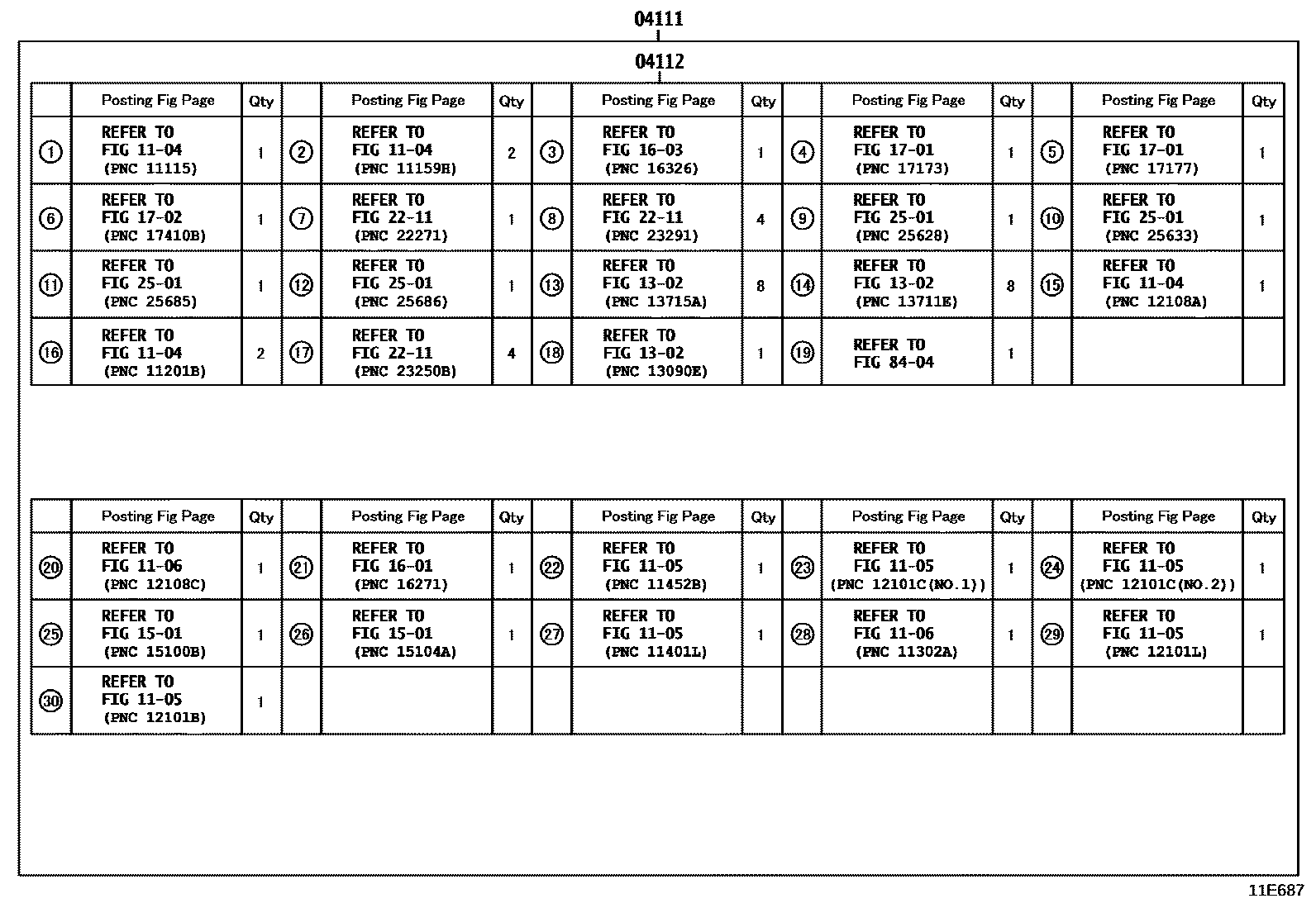

Toyota YARIS Engine Overhaul Gasket Kit EPC diagram — 11E687
Engine Overhaul Gasket Kit — 11E687 (201911 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-0M109 · 04111-0M140 · 04111-0M141 · 04111-0M142 · 04111-0M150 · 04111-0Y030 · 04111-0Y031 · 04111-0Y040 · 04111-0Y050 · 04111-0Y060 · 04111-0Y070 · 04111-0Y080 · 04111-0Y110 · 04111-0Y170 · 04111-21239 · 04111-21370 · 04111-21371 · 04111-21372
04112Engine valve grinding pad assembly04112-0M097 · 04112-0M098 · 04112-0M099 · 04112-0M108 · 04112-0M130 · 04112-0Y030 · 04112-0Y031 · 04112-0Y040 · 04112-0Y050 · 04112-0Y060 · 04112-0Y070 · 04112-0Y080 · 04112-0Y170 · 04112-21237 · 04112-21238 · 04112-21239 · 04112-21370
